Name: Piston Kit 90-91 KX250 67.40 A, Wossner 8109DA Kawasaki MX 13001-1345
Brand: Wossner
SKU: 56-W607+00A.WO

Piston Kit 90-91 KX250 67.40 A, Wossner 8109DA Kawasaki MX 13001-1345

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

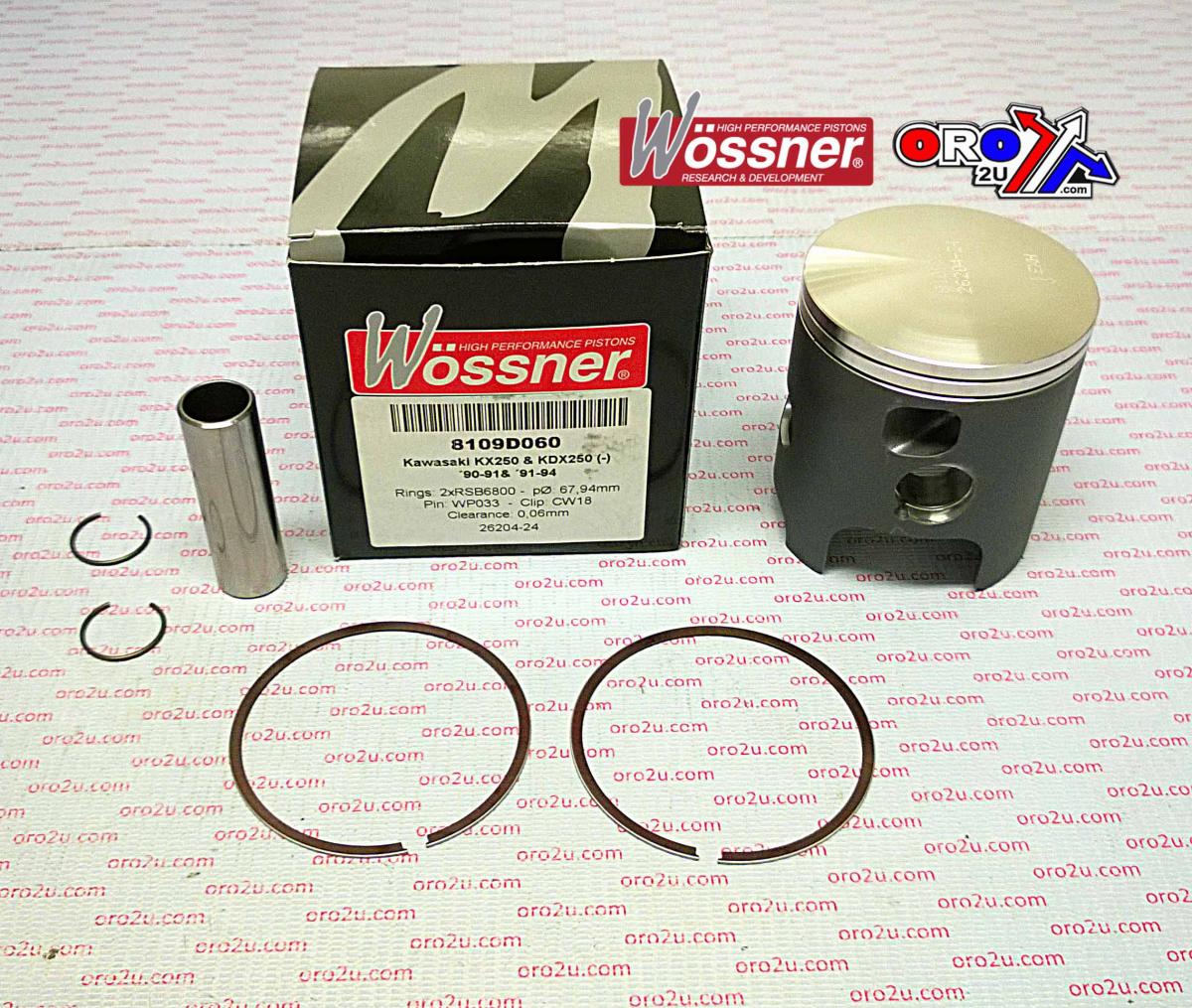

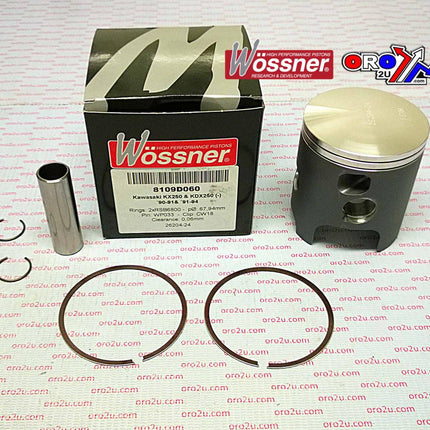

Wossner Forged Piston Kit 67.40mm Bore – Kawasaki KX250 / KDX250 (1990–1994)
This Wossner forged piston kit is designed for Kawasaki KX250 and KDX250 models from 1990 to 1994. With a standard bore size of 67.40 mm and a piston diameter of 67.34 mm, it offers high strength and reliable performance for 2-stroke engines. Its forged construction and elliptical design support optimal combustion heat transfer and balanced load distribution, minimising wear and improving long-term reliability. Manufactured in Germany.

Features

Forged piston construction for enhanced durability and high performance
Efficient thermal conductivity for effective heat dissipation
Elliptical geometry for uniform load distribution and reduced stress concentration
Manufactured in Germany for superior quality control

Specifications

Bore Size: 67.40 mm
Piston Diameter: 67.34 mm
Engine Displacement: 250 cm³
Stroke: 70.00 mm
Clearance: 0.06 mm
Compression Height: 37.00 mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

13001-1345
607M06740

Cross-Reference Wossner Part Numbers

Piston Kit: 8109DA
Lock: CW18
Pin: WP033
Ring Set: RSB6740 x 2
Rod: P2022

Vehicle Fitments

1990 Kawasaki KX250
1991 Kawasaki KX250
1991 Kawasaki KDX250
1992 Kawasaki KDX250
1993 Kawasaki KDX250
1994 Kawasaki KDX250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 250	1990-1991
KAWASAKI	KDX 250	1991-1994
KAWASAKI	KDX 250	1990-1994
KAWASAKI	KDX 250	1991-1997
KAWASAKI	KDX E 250	1992-1995

Piston Kit 90-91 KX250 67.40 A, Wossner 8109DA Kawasaki MX 13001-1345

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner Forged Piston Kit 67.40mm Bore – Kawasaki KX250 / KDX250 (1990–1994) This Wossner forged piston kit is designed for... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W607+00A.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner Forged Piston Kit 67.40mm Bore – Kawasaki KX250 / KDX250 (1990–1994)
This Wossner forged piston kit is designed for Kawasaki KX250 and KDX250 models from 1990 to 1994. With a standard bore size of 67.40 mm and a piston diameter of 67.34 mm, it offers high strength and reliable performance for 2-stroke engines. Its forged construction and elliptical design support optimal combustion heat transfer and balanced load distribution, minimising wear and improving long-term reliability. Manufactured in Germany.

Features

Forged piston construction for enhanced durability and high performance
Efficient thermal conductivity for effective heat dissipation
Elliptical geometry for uniform load distribution and reduced stress concentration
Manufactured in Germany for superior quality control

Specifications

Bore Size: 67.40 mm
Piston Diameter: 67.34 mm
Engine Displacement: 250 cm³
Stroke: 70.00 mm
Clearance: 0.06 mm
Compression Height: 37.00 mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

13001-1345
607M06740

Cross-Reference Wossner Part Numbers

Piston Kit: 8109DA
Lock: CW18
Pin: WP033
Ring Set: RSB6740 x 2
Rod: P2022

Vehicle Fitments

1990 Kawasaki KX250
1991 Kawasaki KX250
1991 Kawasaki KDX250
1992 Kawasaki KDX250
1993 Kawasaki KDX250
1994 Kawasaki KDX250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 250	1990-1991
KAWASAKI	KDX 250	1991-1994
KAWASAKI	KDX 250	1990-1994
KAWASAKI	KDX 250	1991-1997
KAWASAKI	KDX E 250	1992-1995
