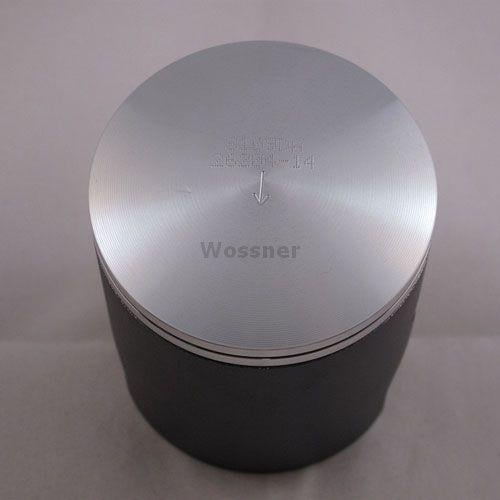

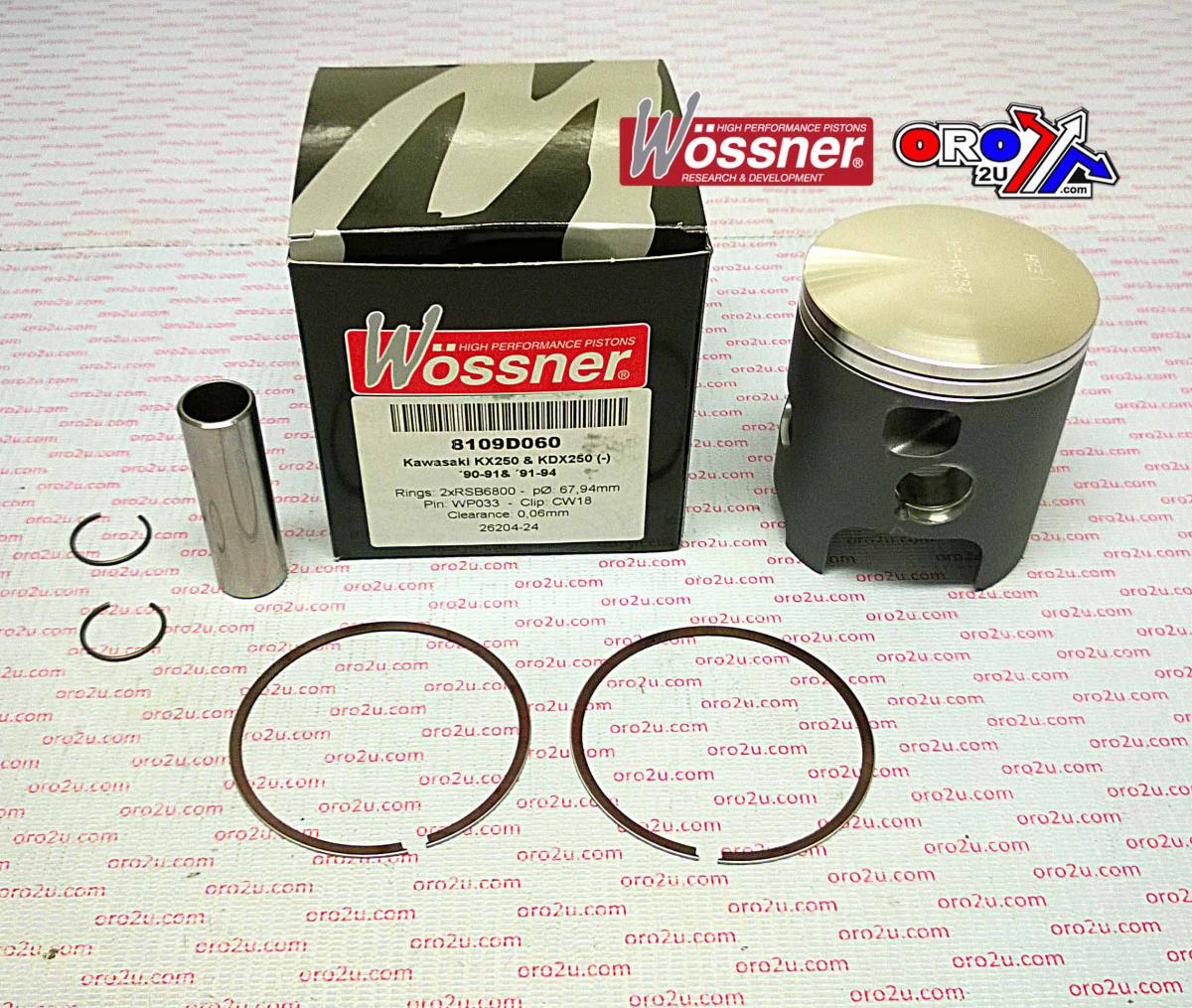

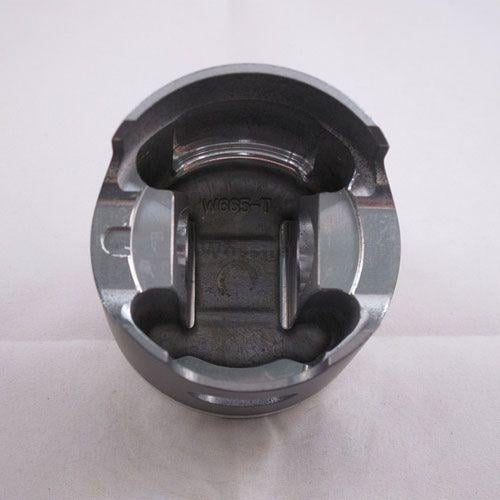

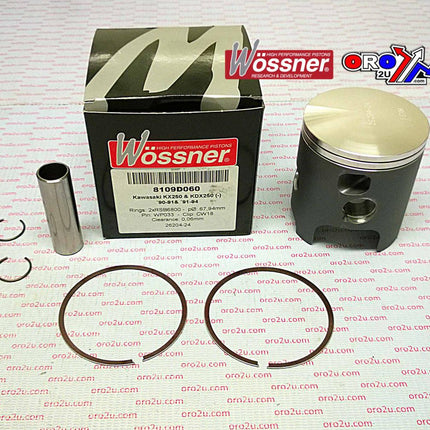

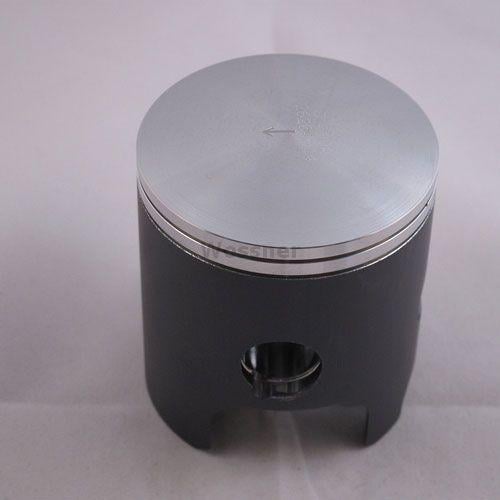

Wossner Forged Piston Kit 67.41mm Bore – Kawasaki KX250 / KDX250 (1990–1994)
This Wossner forged piston kit is designed for Kawasaki KX250 and KDX250 models manufactured between 1990 and 1994. Featuring a 67.41 mm bore and a piston diameter of 67.35 mm (+0.01 mm oversize), it offers excellent mechanical strength and thermal stability. Forged in Germany, the piston incorporates an elliptical design that promotes even load distribution and minimises the risk of localised pressure build-up under heat expansion.

Features

Forged construction for superior strength and extended service life
Optimised for efficient combustion chamber heat dissipation
Elliptical geometry provides uniform thrust load distribution and reduces wear
Precision-manufactured in Germany

Specifications

Bore Size: 67.41 mm
Piston Diameter: 67.35 mm
Engine Displacement: 250 cm³
Stroke: 70.00 mm
Clearance: 0.06 mm
Compression Height: 37.00 mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

Piston Kit: 8109DB
Lock: CW18
Pin: WP033
Ring Set: RSB6740 x 2
Rod: P2022

Vehicle Fitments

1990 Kawasaki KX250
1991 Kawasaki KX250
1991 Kawasaki KDX250
1992 Kawasaki KDX250
1993 Kawasaki KDX250
1994 Kawasaki KDX250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 250	1990-1991
KAWASAKI	KDX 250	1991-1994
KAWASAKI	KDX 250	1991-1997
KAWASAKI	KDX E 250	1992-1995
