Name: Piston Kit 90-91 KX250 68.00, Wossner 8109D060 Kawasaki MX
Brand: Wossner
SKU: 56-W607+060.WO

Piston Kit 90-91 KX250 68.00, Wossner 8109D060 Kawasaki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

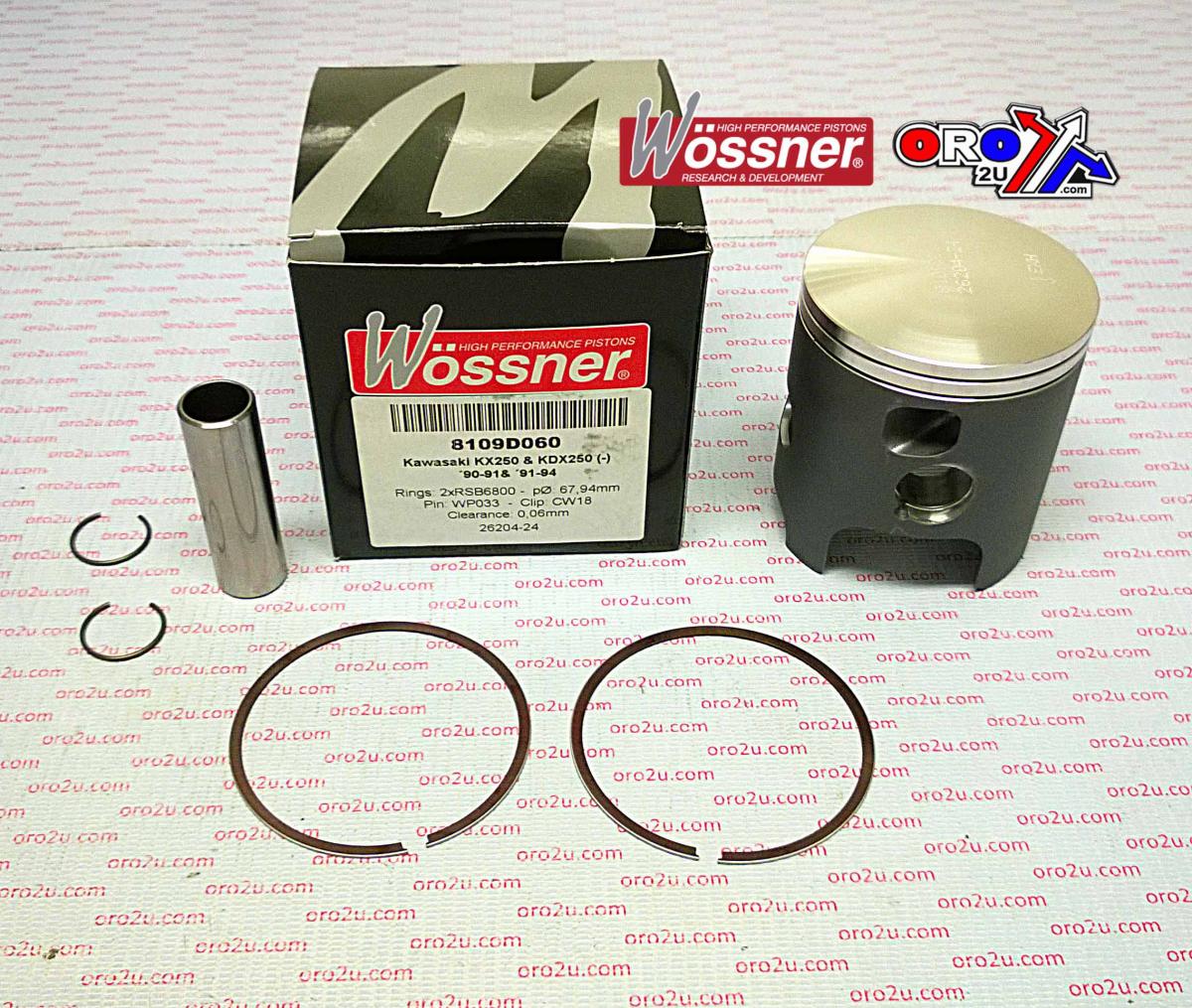

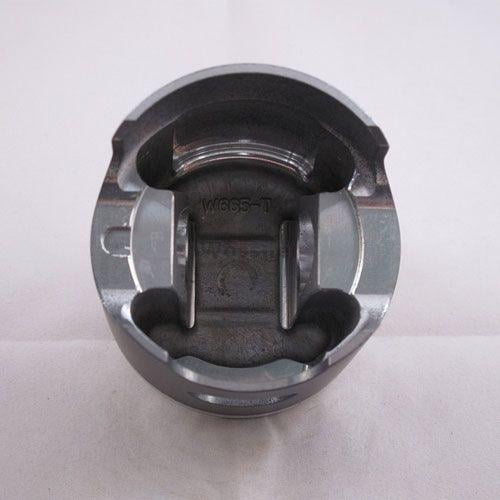

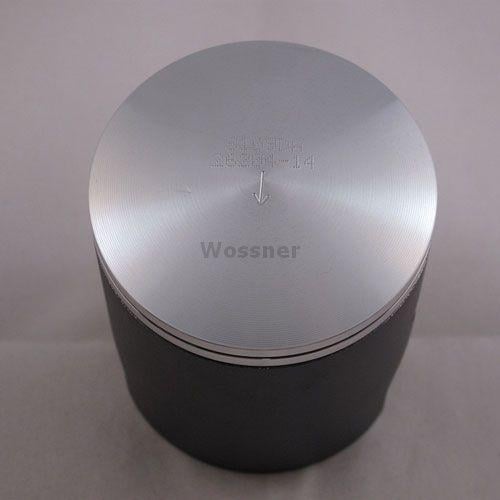

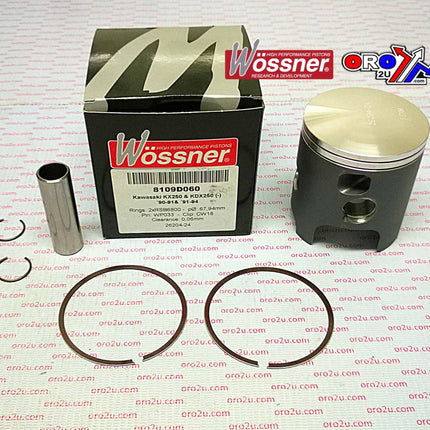

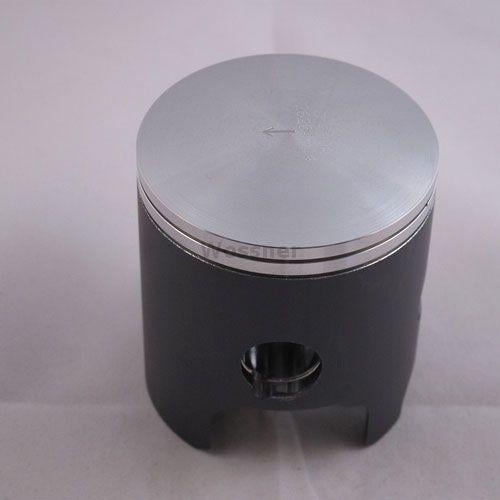

Wossner Forged Piston Kit 68.00mm Bore – Kawasaki KX250 / KDX250 (1990–1994)
This Wossner forged piston kit is designed for Kawasaki KX250 and KDX250 models from 1990 to 1994. Featuring a 68.00 mm bore and a piston diameter of 67.94 mm (+0.60 mm oversize), this piston provides increased clearance for worn or overbored cylinders. The forged construction ensures excellent strength and durability, while the elliptical design promotes even thrust load distribution and efficient heat dissipation. Made in Germany for consistent quality and performance.

Features

Forged construction for high strength and resistance to wear
Engineered for effective combustion heat transfer to cylinder walls
Elliptical shape evenly distributes thrust loads under thermal expansion
Precision-manufactured in Germany

Specifications

Bore Size: 68.00 mm
Piston Diameter: 67.94 mm
Engine Displacement: 250 cm³
Stroke: 70.00 mm
Clearance: 0.06 mm
Compression Height: 37.00 mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

Piston Kit: 8109D060
Lock: CW18
Pin: WP033
Ring Set: RSB6800 x 2
Rod: P2022

Vehicle Fitments

1990 Kawasaki KX250
1991 Kawasaki KX250
1991 Kawasaki KDX250
1992 Kawasaki KDX250
1993 Kawasaki KDX250
1994 Kawasaki KDX250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 250	1990-1991
KAWASAKI	KDX 250	1991-1994
KAWASAKI	KDX 250	1991-1997
KAWASAKI	KDX E 250	1992-1995

Piston Kit 90-91 KX250 68.00, Wossner 8109D060 Kawasaki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner Forged Piston Kit 68.00mm Bore – Kawasaki KX250 / KDX250 (1990–1994) This Wossner forged piston kit is designed for... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W607+060.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner Forged Piston Kit 68.00mm Bore – Kawasaki KX250 / KDX250 (1990–1994)
This Wossner forged piston kit is designed for Kawasaki KX250 and KDX250 models from 1990 to 1994. Featuring a 68.00 mm bore and a piston diameter of 67.94 mm (+0.60 mm oversize), this piston provides increased clearance for worn or overbored cylinders. The forged construction ensures excellent strength and durability, while the elliptical design promotes even thrust load distribution and efficient heat dissipation. Made in Germany for consistent quality and performance.

Features

Forged construction for high strength and resistance to wear
Engineered for effective combustion heat transfer to cylinder walls
Elliptical shape evenly distributes thrust loads under thermal expansion
Precision-manufactured in Germany

Specifications

Bore Size: 68.00 mm
Piston Diameter: 67.94 mm
Engine Displacement: 250 cm³
Stroke: 70.00 mm
Clearance: 0.06 mm
Compression Height: 37.00 mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

Piston Kit: 8109D060
Lock: CW18
Pin: WP033
Ring Set: RSB6800 x 2
Rod: P2022

Vehicle Fitments

1990 Kawasaki KX250
1991 Kawasaki KX250
1991 Kawasaki KDX250
1992 Kawasaki KDX250
1993 Kawasaki KDX250
1994 Kawasaki KDX250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 250	1990-1991
KAWASAKI	KDX 250	1991-1994
KAWASAKI	KDX 250	1991-1997
KAWASAKI	KDX E 250	1992-1995
