Name: Piston Kit 90-99 DR350 79.00, Forged Wossner 8600DA 12111-14D03-0F0
Brand: Wossner
SKU: 56-W4576.A.WO
Price: 201.63 GBP

Piston Kit 90-99 DR350 79.00, Forged Wossner 8600DA 12111-14D03-0F0

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

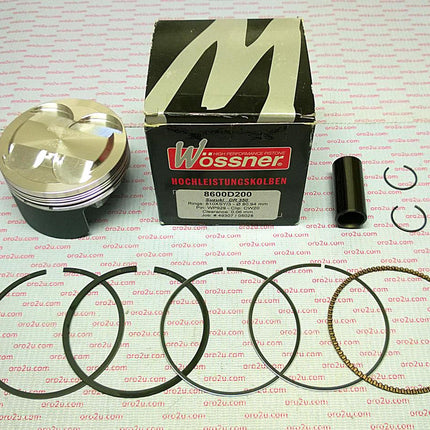

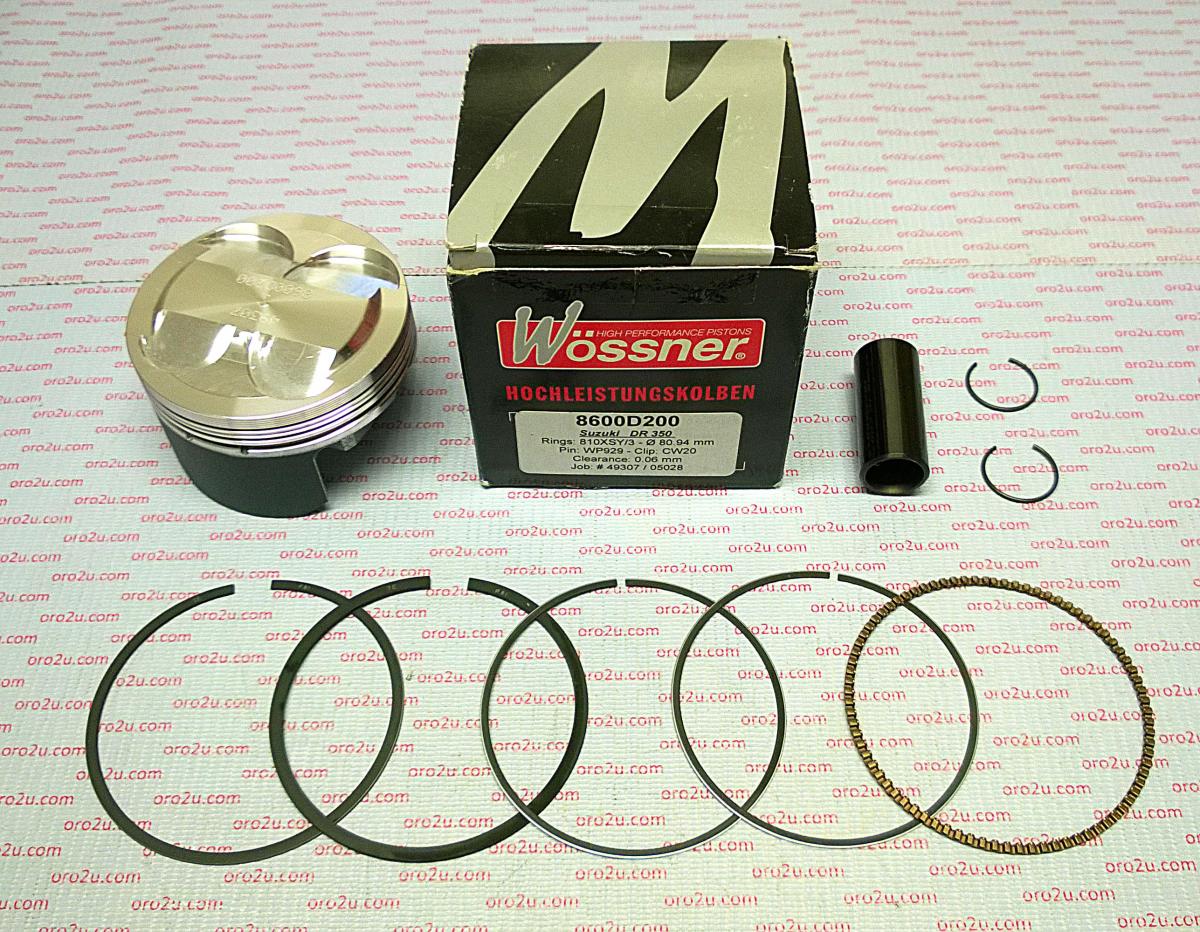

Wössner 79mm forged piston kit designed for Suzuki DR350R, DR350S, and DR350SE models from 1990 to 1999. Engineered for optimal combustion chamber heat transfer and uniform load distribution, reducing localized pressure and preventing piston collapse. Made in Germany for durability and performance.

Features

Forged construction for superior strength and durability
Optimized heat transfer to cylinder walls
Elliptical design ensures uniform bearing surface under heat expansion
Reduces localized pressure and evenly distributes thrust loads
Prevents piston collapse under high-stress conditions

Specifications

Bore Size: 79.00mm
Wössner Part Number: 8600DA
Lock Part Number: CW20
Pin Part Number: WP038
Ring Set Part Number: 790XDS
Displacement: 349 cm³
Stroke: 71.20mm
Clearance: 0.06mm
Compression Ratio: OEM (9.50:1)
Dome Volume: +3.50 cm³
Compression Height: 25.00mm

Cross-Reference OEM Part Numbers

12111-14D03-0F0
4576M07900

Vehicle Fitments

Suzuki DR350R (1990-1999)
Suzuki DR350S (1990-1999)
Suzuki DR350SE (1990-1999)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	DR SE 350	1990-1999
SUZUKI	DR 350	1990-1999

Piston Kit 90-99 DR350 79.00, Forged Wossner 8600DA 12111-14D03-0F0

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wössner 79mm forged piston kit designed for Suzuki DR350R, DR350S, and DR350SE models from 1990 to 1999. Engineered for optimal... Read more

Out of stock

£201.63 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W4576.A.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wössner 79mm forged piston kit designed for Suzuki DR350R, DR350S, and DR350SE models from 1990 to 1999. Engineered for optimal combustion chamber heat transfer and uniform load distribution, reducing localized pressure and preventing piston collapse. Made in Germany for durability and performance.

Features

Forged construction for superior strength and durability
Optimized heat transfer to cylinder walls
Elliptical design ensures uniform bearing surface under heat expansion
Reduces localized pressure and evenly distributes thrust loads
Prevents piston collapse under high-stress conditions

Specifications

Bore Size: 79.00mm
Wössner Part Number: 8600DA
Lock Part Number: CW20
Pin Part Number: WP038
Ring Set Part Number: 790XDS
Displacement: 349 cm³
Stroke: 71.20mm
Clearance: 0.06mm
Compression Ratio: OEM (9.50:1)
Dome Volume: +3.50 cm³
Compression Height: 25.00mm

Cross-Reference OEM Part Numbers

12111-14D03-0F0
4576M07900

Vehicle Fitments

Suzuki DR350R (1990-1999)
Suzuki DR350S (1990-1999)
Suzuki DR350SE (1990-1999)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	DR SE 350	1990-1999
SUZUKI	DR 350	1990-1999
