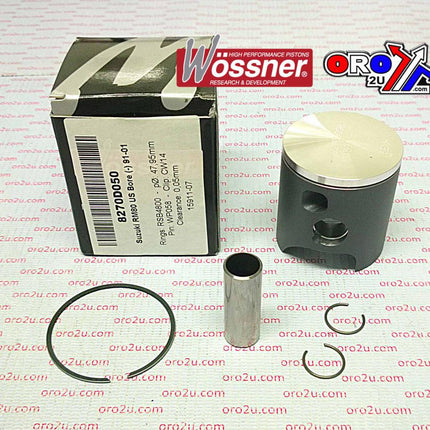

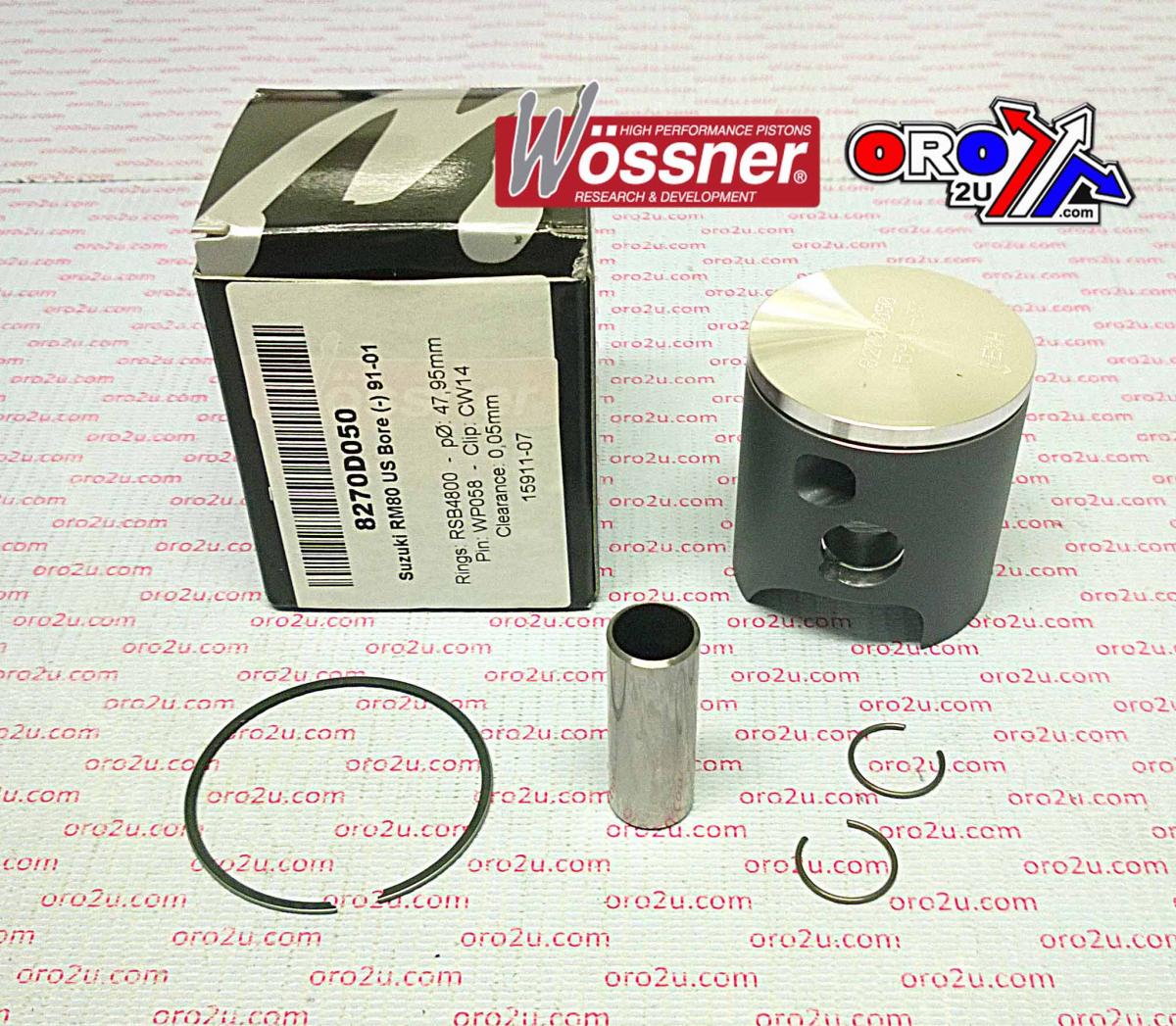

Name: Piston Kit 91-01 RM80 48.45, Wossner 8270D100 Suzuki MX
Brand: Wossner
SKU: 56-W645+P4.WO
Price: 104.04 GBP
Availability: InStock

Piston Kit 91-01 RM80 48.45, Wossner 8270D100 Suzuki MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Wossner forged piston kit with a 48.50mm bore size (48.45mm actual), specifically designed for Suzuki RM80 models from 1991 to 2001 with a US bore. Manufactured in Germany, this piston kit features an elliptical design that supports uniform bearing surfaces under thermal expansion, promotes efficient heat transfer from the combustion chamber, and distributes thrust loads evenly to reduce the risk of piston collapse.

Features

Forged piston construction for high strength and reliability
Engineered to optimise heat transfer from combustion chamber to cylinder walls
Elliptical design ensures uniform bearing surface during thermal expansion
Helps prevent localised pressure and piston collapse
Manufactured in Germany

Specifications

Bore Size: 48.50mm (actual 48.45mm)
Display Displacement: 82 cm³
Stroke: 46.80mm
Clearance: 0.05mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke
Compression Height: 27.00mm

Cross-Reference OEM Part Numbers

Piston Kit: 8270D100
Lock: CW14
Pin: WP058
Ring Set: RSB4850

Vehicle Fitments

1991–2001 Suzuki RM80 (US Bore)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 80	1991-2001
