Description

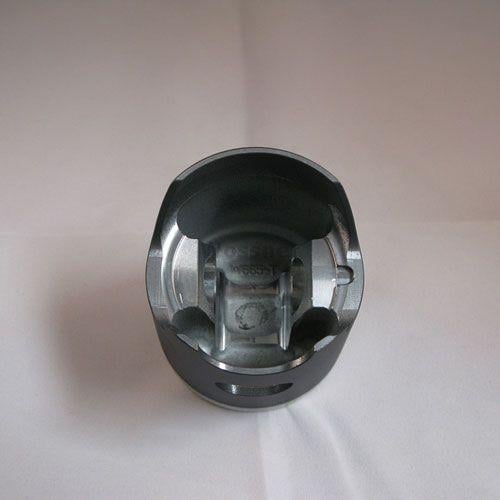

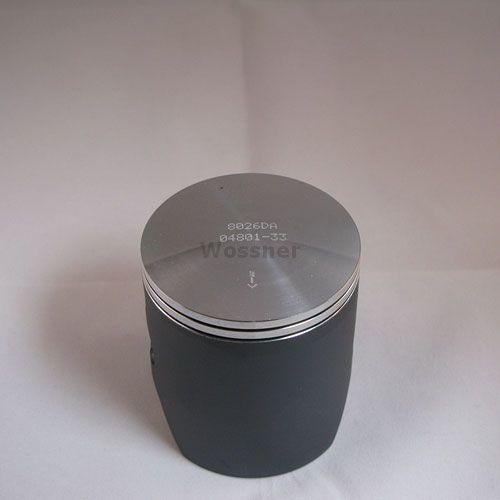

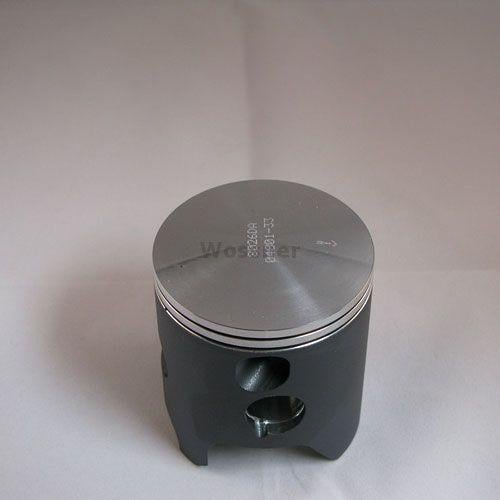

Wossner Forged Piston Kit 66.40mm Bore – Kawasaki KX250 (1992–2001)
This Wossner forged piston kit is specifically designed for Kawasaki KX250 models produced from 1992 to 2001. With a standard bore of 66.40 mm and a piston diameter of 66.34 mm, it is built to provide strength, durability, and thermal efficiency for high-performance 2-stroke engines. The forged aluminium construction, combined with an elliptical design, ensures optimal heat transfer and balanced thrust load distribution under engine expansion. Precision-manufactured in Germany for consistent quality and fit.

Features

Forged construction for superior strength and wear resistance
Engineered to maximise heat dissipation from combustion chamber to cylinder walls
Elliptical profile distributes load evenly to reduce localised pressure and piston fatigue
Manufactured in Germany to high precision standards

Specifications

Bore Size: 66.40 mm
Piston Diameter: 66.34 mm
Engine Displacement: 249 cm³
Stroke: 72.00 mm
Clearance: 0.06 mm
Compression Height: 38.00 mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM and Equivalent Part Numbers

13001-1373
09104740
617M06640

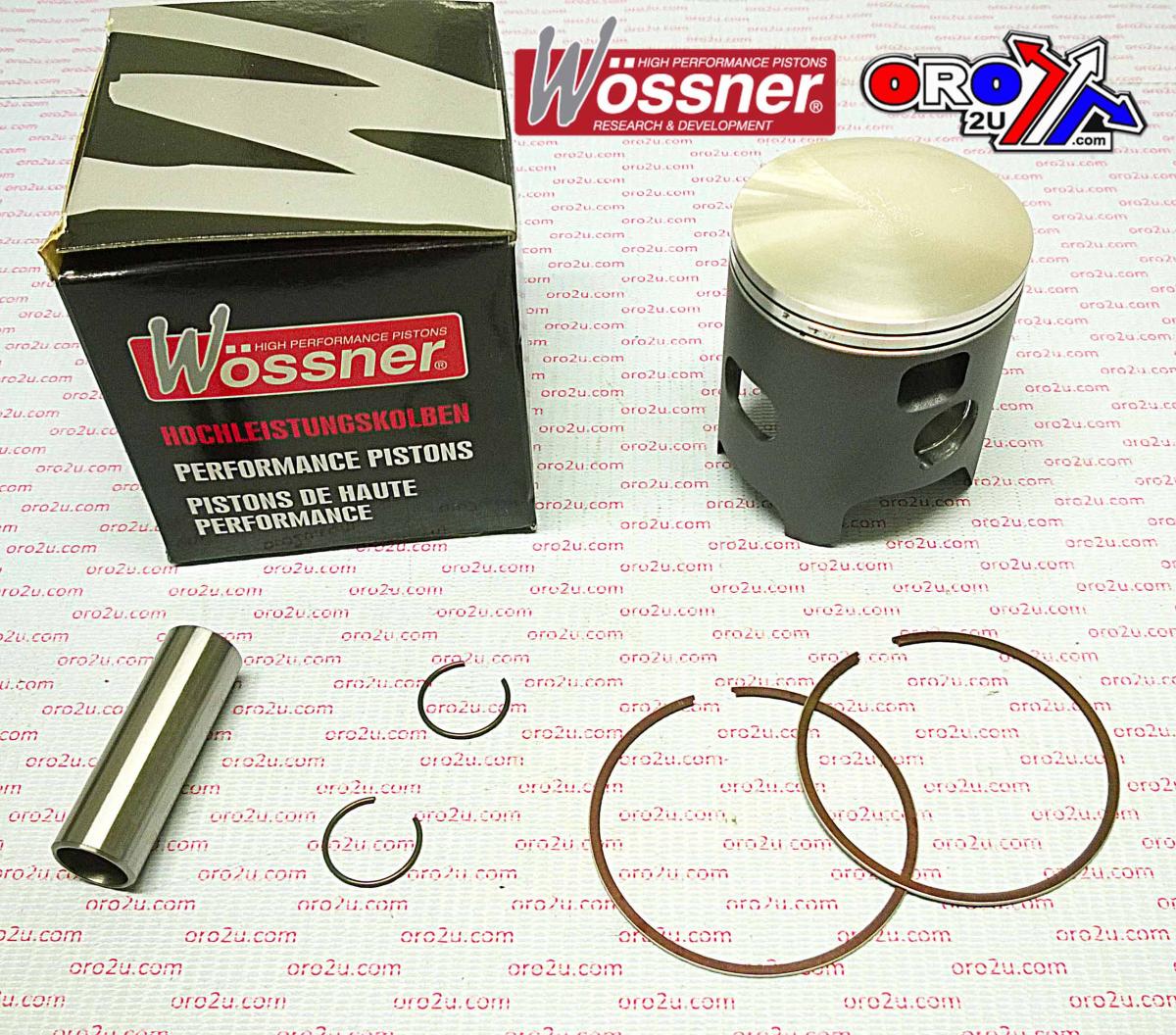

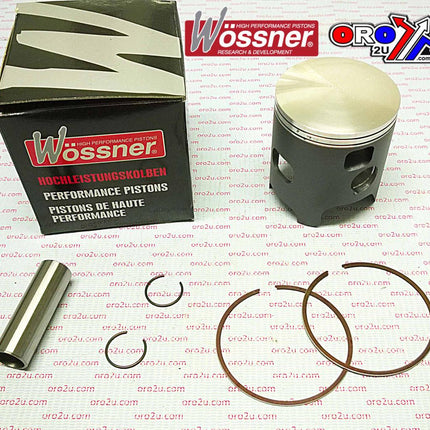

Cross-Reference Wossner Part Numbers

Piston Kit: 8026DA
Lock: CW18
Pin: WP033
Ring Set: RSB6640 x 2

Vehicle Fitments

1992 Kawasaki KX250
1993 Kawasaki KX250
1994 Kawasaki KX250
1995 Kawasaki KX250
1996 Kawasaki KX250
1997 Kawasaki KX250
1998 Kawasaki KX250
1999 Kawasaki KX250
2000 Kawasaki KX250
2001 Kawasaki KX250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 250	1992-2004
KAWASAKI	KX 250	1992-2001
