Description

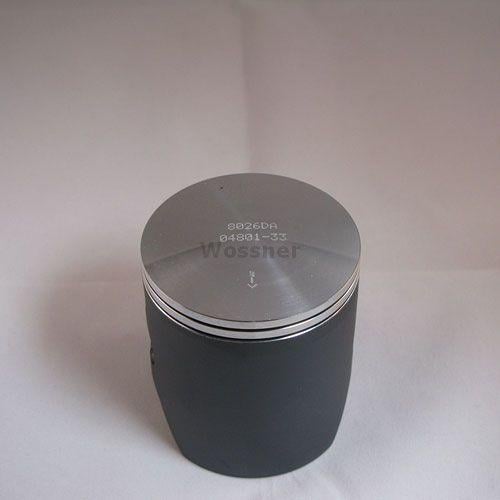

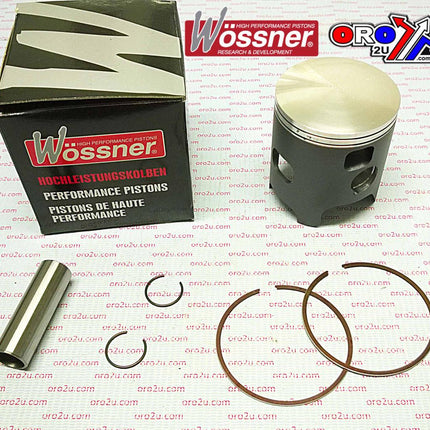

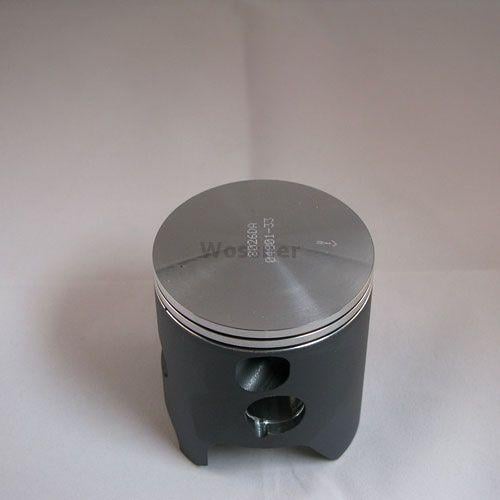

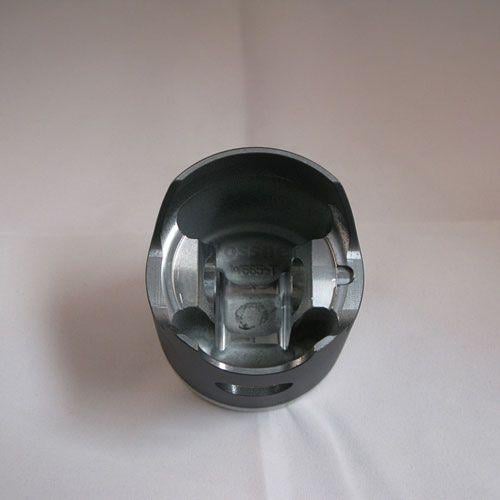

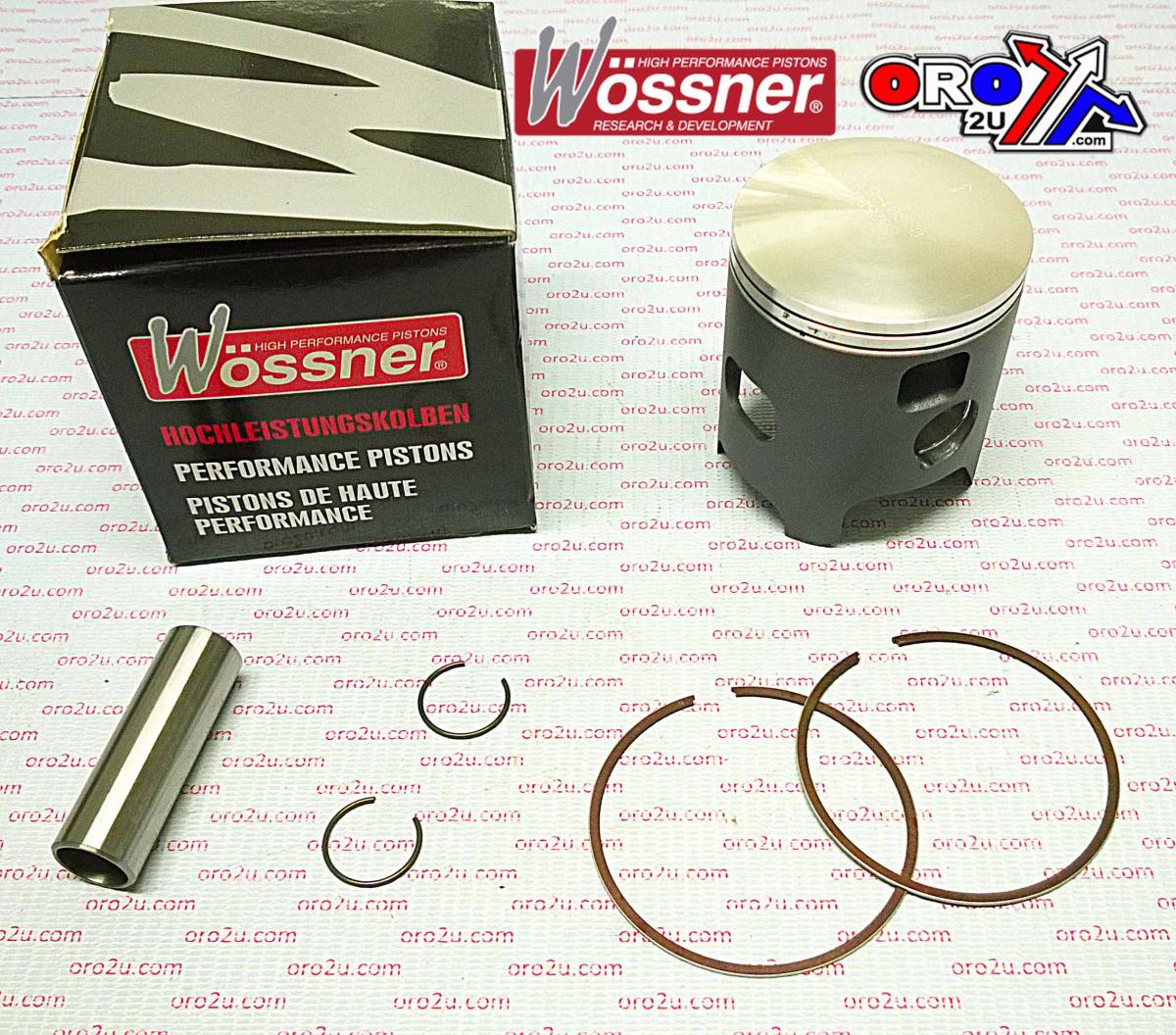

Wossner Forged Piston Kit 68.00mm Bore – Kawasaki KX250 (1992–2001)
This Wossner forged piston kit is designed for Kawasaki KX250 models from 1992 to 2001. With a bore size of 68.00 mm and a piston diameter of 67.94 mm (+1.60 mm oversize), it is suited for significantly overbored or re-sleeved engines. Forged in Germany, the piston provides outstanding durability and performance. The elliptical design ensures a more uniform bearing surface, effectively managing heat expansion and evenly distributing thrust loads to minimize wear and reduce the risk of piston failure.

Features

Forged construction for maximum strength and thermal resilience
Elliptical design evenly distributes load and reduces localised pressure
Efficient combustion chamber heat transfer
Manufactured in Germany for precision and reliability

Specifications

Bore Size: 68.00 mm
Piston Diameter: 67.94 mm
Engine Displacement: 249 cm³
Stroke: 72.00 mm
Clearance: 0.06 mm
Compression Height: 38.00 mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference Wossner Part Numbers

Piston Kit: 8026D160
Lock: CW18
Pin: WP033
Ring Set: RSB6800 x 2

Vehicle Fitments

1992 Kawasaki KX250
1993 Kawasaki KX250
1994 Kawasaki KX250
1995 Kawasaki KX250
1996 Kawasaki KX250
1997 Kawasaki KX250
1998 Kawasaki KX250
1999 Kawasaki KX250
2000 Kawasaki KX250
2001 Kawasaki KX250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 250	1992-2004
KAWASAKI	KX 250	1992-2001
