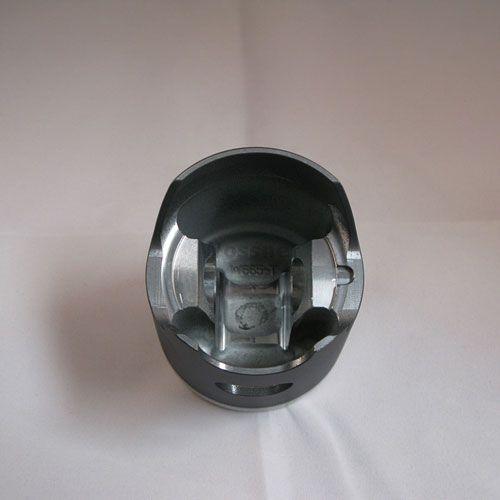

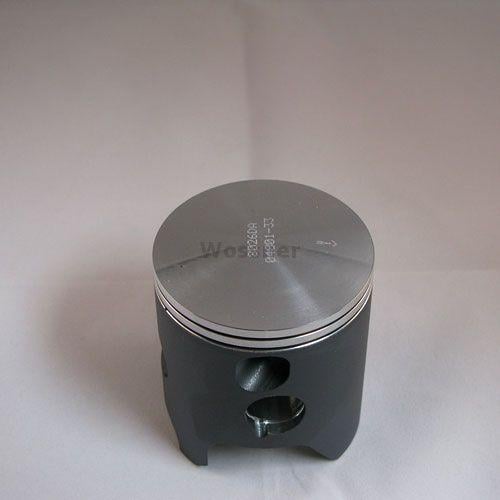

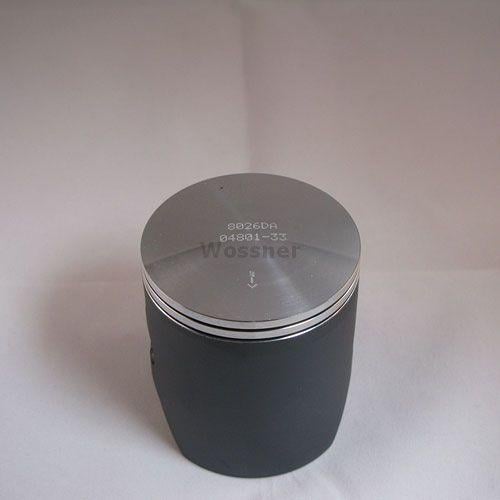

Wossner Forged Piston Kit 68.50mm Bore – Kawasaki KX250 (1992–2001)
This Wossner forged piston kit is designed for Kawasaki KX250 models from 1992 to 2001. Featuring a 68.50 mm bore and a piston diameter of 68.44 mm (+2.10 mm oversize), it is ideal for extensively overbored or re-sleeved cylinders. Forged for exceptional strength and thermal stability, the piston’s elliptical profile ensures even bearing surface contact, reducing localised pressure and distributing thrust loads effectively. Precision-engineered in Germany for reliable, high-performance use.

Features

Forged construction offers superior strength and resistance to stress
Designed to enhance heat transfer from combustion chamber to cylinder walls
Elliptical geometry provides even load distribution and minimises wear
Manufactured in Germany for consistent fit and performance

Specifications

Bore Size: 68.50 mm
Piston Diameter: 68.44 mm
Engine Displacement: 249 cm³
Stroke: 72.00 mm
Clearance: 0.06 mm
Compression Height: 38.00 mm
Compression Ratio: 2-stroke (Wossner and OEM)

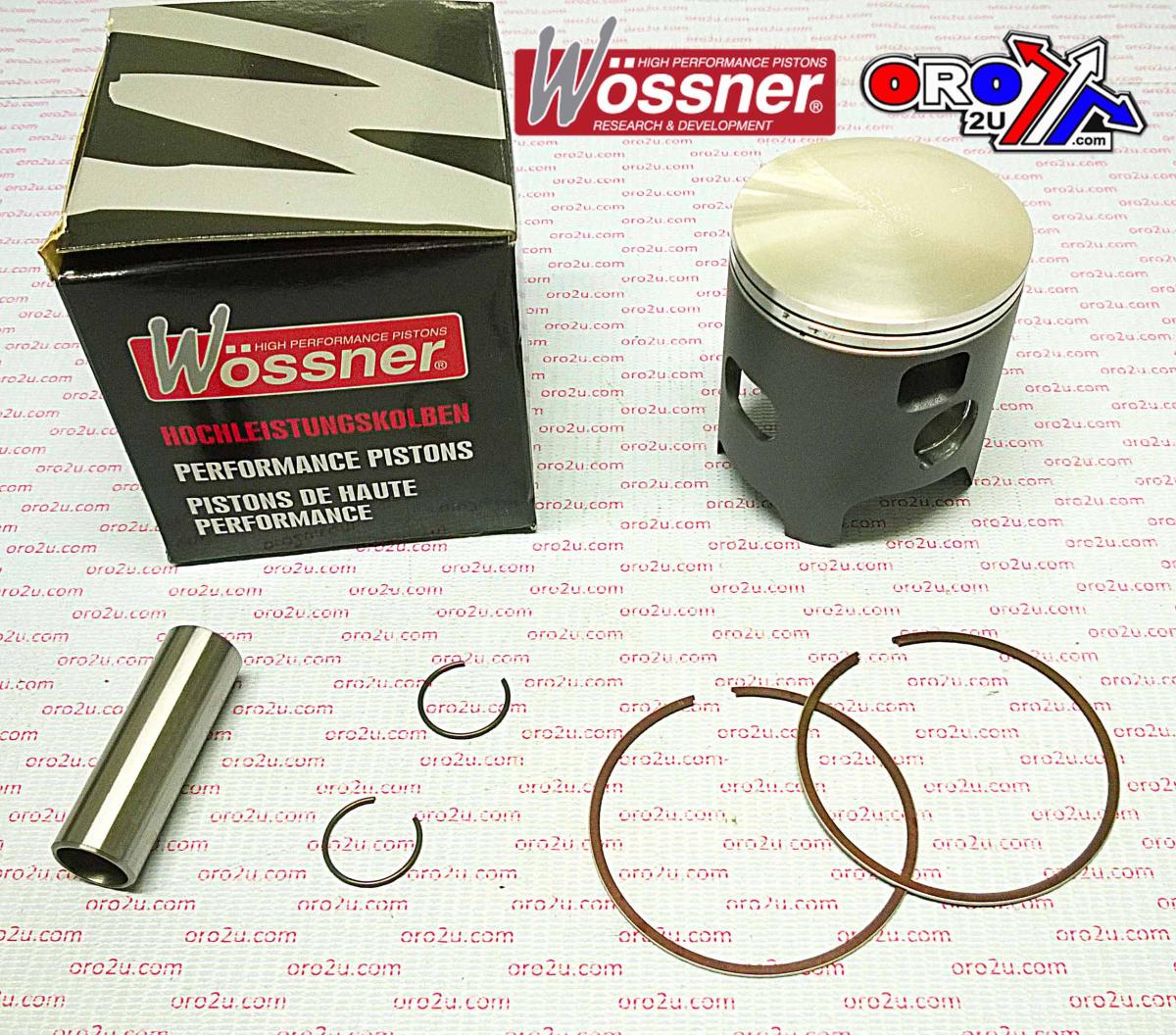

Cross-Reference Wossner Part Numbers

Piston Kit: 8026D210
Lock: CW18
Pin: WP033
Ring Set: RSB6850 x 2

Vehicle Fitments

1992 Kawasaki KX250
1993 Kawasaki KX250
1994 Kawasaki KX250
1995 Kawasaki KX250
1996 Kawasaki KX250
1997 Kawasaki KX250
1998 Kawasaki KX250
1999 Kawasaki KX250
2000 Kawasaki KX250
2001 Kawasaki KX250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KX 250	1992-2004
KAWASAKI	KX 250	1992-2001
