Name: Piston Kit 94-96 YZ125 54.00 A, Wossner 8116DA Yamaha MX 4JY-11631-02-A0
Brand: Wossner
SKU: 56-W647+00A.WO
Price: 126.8 GBP
Availability: InStock

Piston Kit 94-96 YZ125 54.00 A, Wossner 8116DA Yamaha MX 4JY-11631-02-A0

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

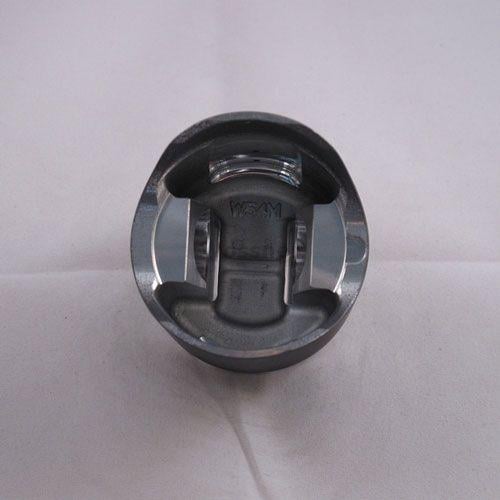

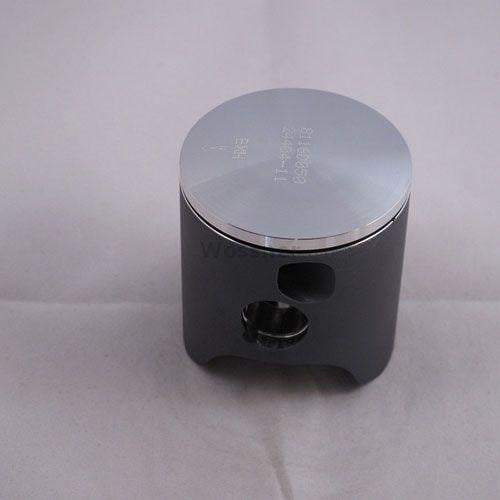

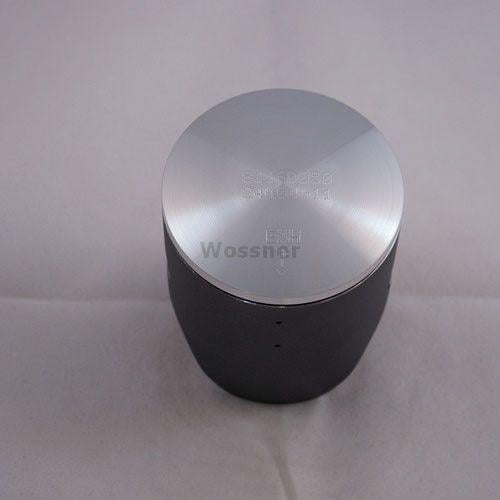

Wossner Piston Kit 8116DA is a standard-size forged piston specifically designed for Yamaha YZ125 models from 1994 to 1996 with a 54.00mm bore. Manufactured in Germany, this piston offers enhanced structural integrity and optimal heat dissipation. Its elliptical profile promotes an even bearing surface under thermal expansion, minimising localised stress and helping to prevent piston failure under high-performance conditions.

Features

Forged piston for maximum strength and reliability
Elliptical design distributes thrust loads evenly under heat expansion
Efficient heat transfer from combustion chamber to cylinder walls
Precision-engineered and manufactured in Germany

Specifications

Bore: 54.00 mm
Actual Piston Diameter: 53.94 mm
Stroke: 54.50 mm
Displacement: 124 cm³
Clearance: 0.06 mm
Compression Height: 28.00 mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

Wossner Piston: 8116DA
Lock: CW16
Pin: WP036
Ring Set: RSB5400
Rod: P2047
Internal Part No: 56-W647+00A.WO
OEM: 4JY-11631-02-A0
Alternate Part Number: 647M05400

Vehicle Fitments

1994 Yamaha YZ125
1995 Yamaha YZ125
1996 Yamaha YZ125

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	YZ 125	1994-1996

Piston Kit 94-96 YZ125 54.00 A, Wossner 8116DA Yamaha MX 4JY-11631-02-A0

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner Piston Kit 8116DA is a standard-size forged piston specifically designed for Yamaha YZ125 models from 1994 to 1996 with... Read more

1 in stock 1-2 business days

£126.80 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W647+00A.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner Piston Kit 8116DA is a standard-size forged piston specifically designed for Yamaha YZ125 models from 1994 to 1996 with a 54.00mm bore. Manufactured in Germany, this piston offers enhanced structural integrity and optimal heat dissipation. Its elliptical profile promotes an even bearing surface under thermal expansion, minimising localised stress and helping to prevent piston failure under high-performance conditions.

Features

Forged piston for maximum strength and reliability
Elliptical design distributes thrust loads evenly under heat expansion
Efficient heat transfer from combustion chamber to cylinder walls
Precision-engineered and manufactured in Germany

Specifications

Bore: 54.00 mm
Actual Piston Diameter: 53.94 mm
Stroke: 54.50 mm
Displacement: 124 cm³
Clearance: 0.06 mm
Compression Height: 28.00 mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

Wossner Piston: 8116DA
Lock: CW16
Pin: WP036
Ring Set: RSB5400
Rod: P2047
Internal Part No: 56-W647+00A.WO
OEM: 4JY-11631-02-A0
Alternate Part Number: 647M05400

Vehicle Fitments

1994 Yamaha YZ125
1995 Yamaha YZ125
1996 Yamaha YZ125

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
YAMAHA	YZ 125	1994-1996
