Name: Piston Kit 95-20 KX100 1-RING, Wossner 8254DA Kawasaki MX 13001-0123, K1300-10123
Brand: Wossner
SKU: 56-W651.A.WO
Price: 104.04 GBP
Availability: InStock

Piston Kit 95-20 KX100 1-RING, Wossner 8254DA Kawasaki MX 13001-0123, K1300-10123

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

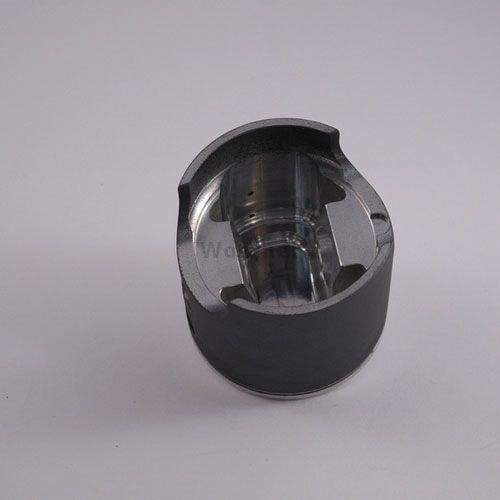

Wossner Piston Kit 8254DA is a standard-size forged piston designed for use in Kawasaki KX100 (1995–2020) and Suzuki RM100 (2003) models, featuring a 52.50mm bore. Manufactured in Germany, this piston provides exceptional strength, optimal heat transfer, and load distribution. Its elliptical profile ensures even bearing surface contact during heat expansion, effectively reducing localised pressure and the risk of piston collapse.

Features

Forged piston design for durability and performance under extreme conditions
Elliptical shape ensures balanced thrust load distribution during thermal expansion
Maximised heat dissipation from combustion chamber to cylinder wall
German precision manufacturing

Specifications

Bore: 52.50 mm
Actual Piston Diameter: 52.45 mm
Stroke: 45.80 mm
Displacement: 100 cm³
Clearance: 0.05 mm
Compression Height: 26.00 mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

Wossner Piston: 8254DA
Lock: CW14
Pin: WP025
Ring Set: RSB5250
Rod: P2005
Internal Part No: 56-W651.A.WO
OEM: 13001-0123, 09104898, 651M05250, K1300-10123

Additional Cross References:

PISTON-ENGINE: 13001-0759
RING-PISTON TOP: 13003-1274
PIN-PISTON: 13002-1018
RING-SNAP: 92033-0005

Vehicle Fitments

1995–2020 Kawasaki KX100
2003 Suzuki RM100

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 100	2003
KAWASAKI	KX 100	2014-2019
KAWASAKI	KX 100	2014-2021
SUZUKI	RM 100	2003-2005
KAWASAKI	KX 100	1995-2019
SUZUKI	RM 100	2003-2004
KAWASAKI	KX 100	1995-2020
KAWASAKI	KX 100	1995-2013
KAWASAKI	KX 100	1989-2019

Piston Kit 95-20 KX100 1-RING, Wossner 8254DA Kawasaki MX 13001-0123, K1300-10123

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner Piston Kit 8254DA is a standard-size forged piston designed for use in Kawasaki KX100 (1995–2020) and Suzuki RM100 (2003)... Read more

1 in stock 1-2 business days

£104.04 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W651.A.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner Piston Kit 8254DA is a standard-size forged piston designed for use in Kawasaki KX100 (1995–2020) and Suzuki RM100 (2003) models, featuring a 52.50mm bore. Manufactured in Germany, this piston provides exceptional strength, optimal heat transfer, and load distribution. Its elliptical profile ensures even bearing surface contact during heat expansion, effectively reducing localised pressure and the risk of piston collapse.

Features

Forged piston design for durability and performance under extreme conditions
Elliptical shape ensures balanced thrust load distribution during thermal expansion
Maximised heat dissipation from combustion chamber to cylinder wall
German precision manufacturing

Specifications

Bore: 52.50 mm
Actual Piston Diameter: 52.45 mm
Stroke: 45.80 mm
Displacement: 100 cm³
Clearance: 0.05 mm
Compression Height: 26.00 mm
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

Wossner Piston: 8254DA
Lock: CW14
Pin: WP025
Ring Set: RSB5250
Rod: P2005
Internal Part No: 56-W651.A.WO
OEM: 13001-0123, 09104898, 651M05250, K1300-10123

Additional Cross References:

PISTON-ENGINE: 13001-0759
RING-PISTON TOP: 13003-1274
PIN-PISTON: 13002-1018
RING-SNAP: 92033-0005

Vehicle Fitments

1995–2020 Kawasaki KX100
2003 Suzuki RM100

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 100	2003
KAWASAKI	KX 100	2014-2019
KAWASAKI	KX 100	2014-2021
SUZUKI	RM 100	2003-2005
KAWASAKI	KX 100	1995-2019
SUZUKI	RM 100	2003-2004
KAWASAKI	KX 100	1995-2020
KAWASAKI	KX 100	1995-2013
KAWASAKI	KX 100	1989-2019
