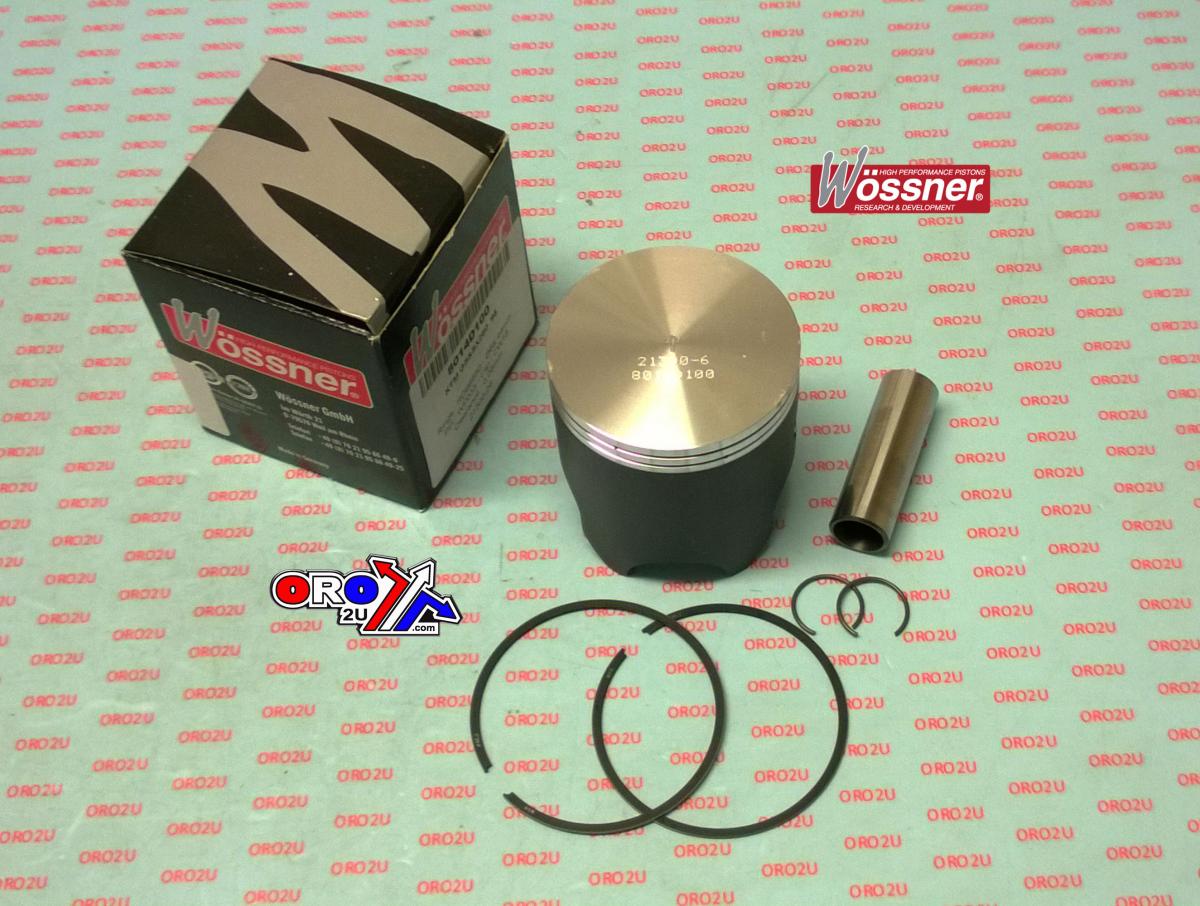

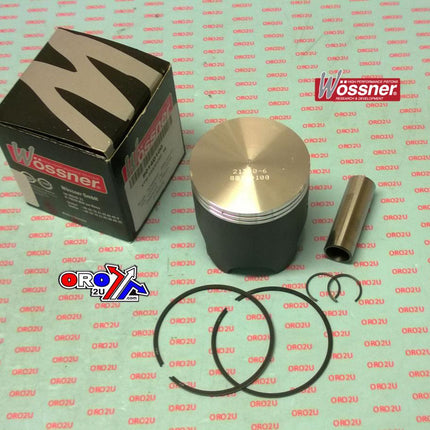

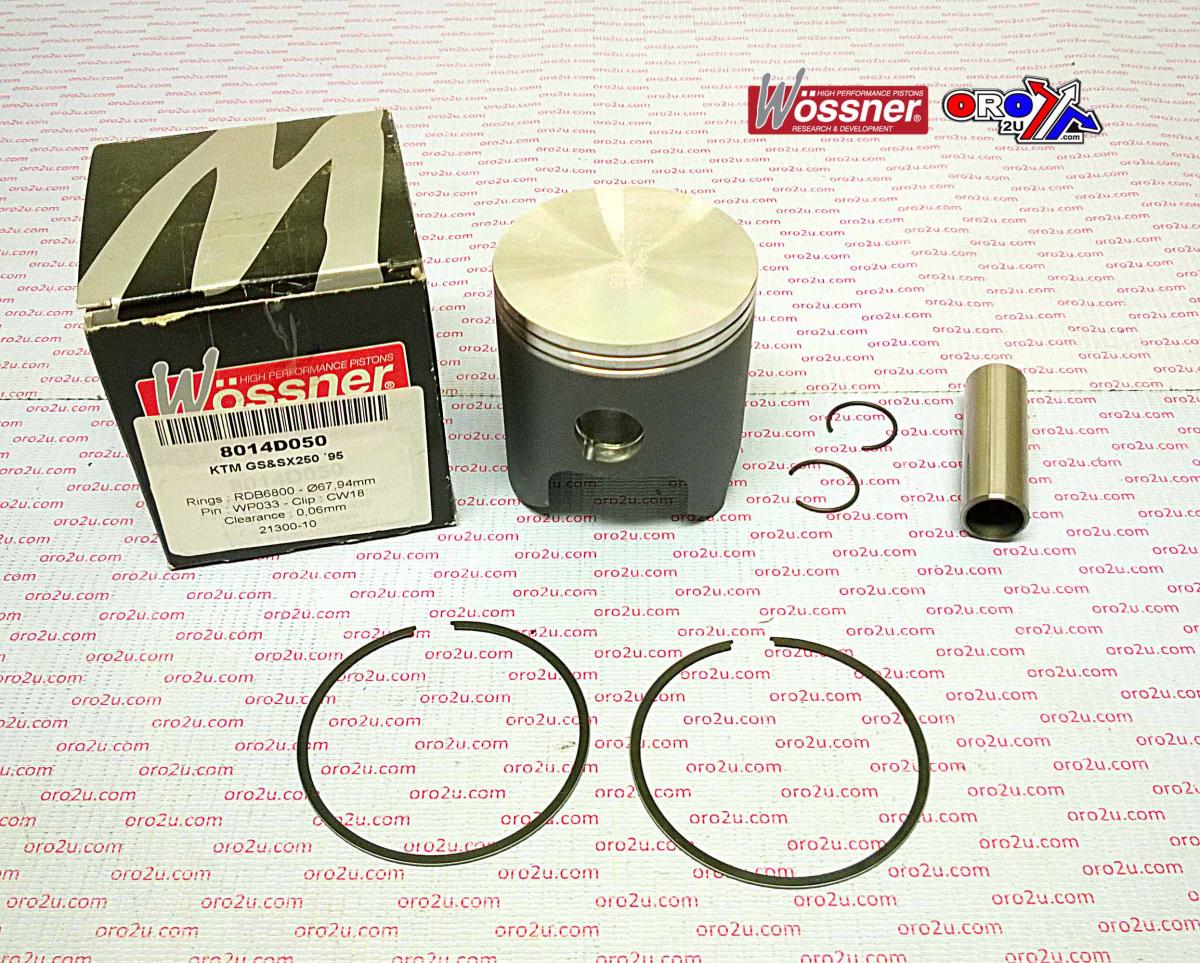

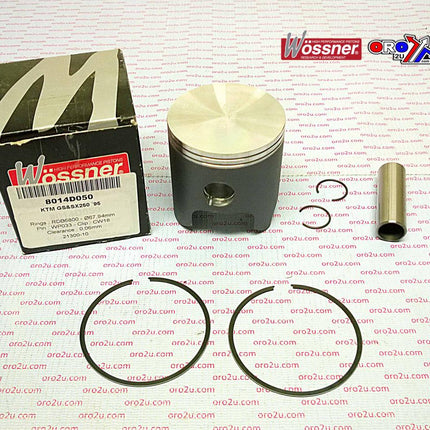

Name: Piston Kit 95 KTM250SX 67.50, Wossner 8014BD Forged MX
Brand: Wossner
SKU: 56-W655+00B.WO
Price: 169.84 GBP
Availability: InStock

Piston Kit 95 KTM250SX 67.50, Wossner 8014BD Forged MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

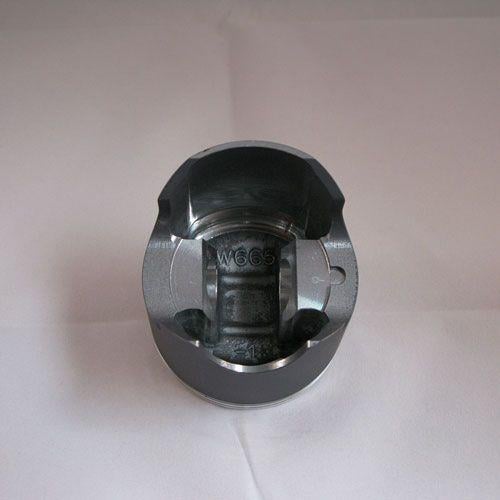

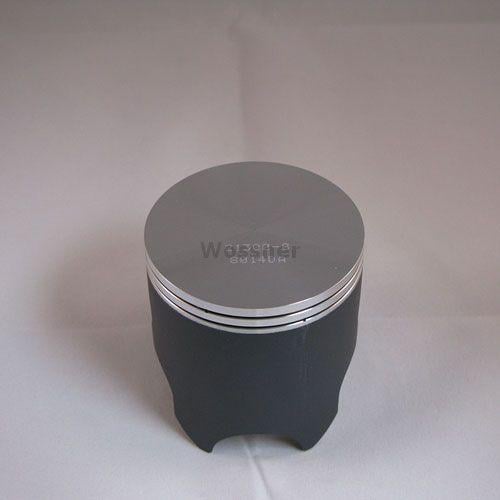

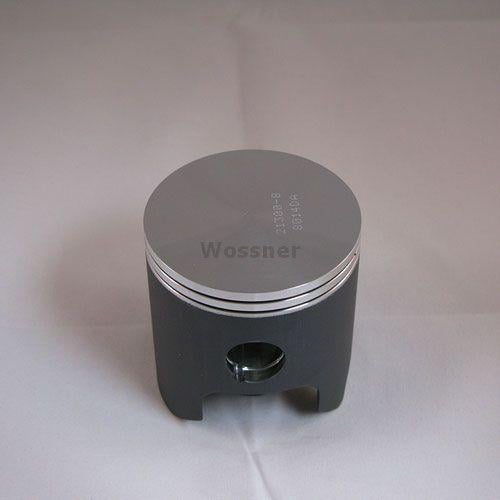

Wossner forged piston kit with a 67.51mm bore (67.45mm actual) is specifically developed for KTM GS250 and SX250 models from 1995. Crafted in Germany, this piston features an elliptical profile that distributes thrust loads evenly and supports optimal heat transfer from the combustion chamber to the cylinder wall, reducing stress concentrations and minimising the risk of piston failure under thermal expansion.

Features

High-strength forged piston construction
Designed for efficient combustion heat dissipation to cylinder wall
Elliptical shape promotes consistent bearing surface under expansion
Prevents localised stress points and piston deformation
Precision manufactured in Germany

Specifications

Bore Size: 67.51mm (Actual: 67.45mm)
Compression Height: 29.70mm
Clearance: 0.06mm
Stroke: 69.50mm
Displacement: 249 cm³
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

Piston Kit: 8014DB
Lock: CW18
Pin: WP033
Ring Set: RSB6750 x2

Vehicle Fitments

KTM GS250 (1995)
KTM SX250 (1995)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	SX 250	1995

Piston Kit 95 KTM250SX 67.50, Wossner 8014BD Forged MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner forged piston kit with a 67.51mm bore (67.45mm actual) is specifically developed for KTM GS250 and SX250 models from... Read more

1 in stock 1-2 business days

£169.84 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W655+00B.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner forged piston kit with a 67.51mm bore (67.45mm actual) is specifically developed for KTM GS250 and SX250 models from 1995. Crafted in Germany, this piston features an elliptical profile that distributes thrust loads evenly and supports optimal heat transfer from the combustion chamber to the cylinder wall, reducing stress concentrations and minimising the risk of piston failure under thermal expansion.

Features

High-strength forged piston construction
Designed for efficient combustion heat dissipation to cylinder wall
Elliptical shape promotes consistent bearing surface under expansion
Prevents localised stress points and piston deformation
Precision manufactured in Germany

Specifications

Bore Size: 67.51mm (Actual: 67.45mm)
Compression Height: 29.70mm
Clearance: 0.06mm
Stroke: 69.50mm
Displacement: 249 cm³
Wossner Compression Ratio: 2-stroke
OEM Compression Ratio: 2-stroke

Cross-Reference OEM Part Numbers

Piston Kit: 8014DB
Lock: CW18
Pin: WP033
Ring Set: RSB6750 x2

Vehicle Fitments

KTM GS250 (1995)
KTM SX250 (1995)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	SX 250	1995
