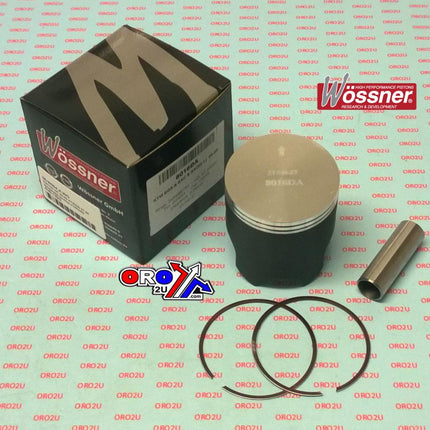

Name: Piston Kit 96-99 KTM250 67.50, Wossner 8016DA Forged
Brand: Wossner
SKU: 56-W694.A.WO

Piston Kit 96-99 KTM250 67.50, Wossner 8016DA Forged

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

This Wossner forged piston kit is specifically designed for KTM MXC250, EXC250, and SX250 models from 1996 to 1999. With a 67.50mm standard bore, it delivers the structural reliability required in high-performance two-stroke engines. Manufactured in Germany, the piston features an elliptical profile that accommodates thermal expansion, ensuring uniform load distribution and reducing stress concentrations. This design enhances piston longevity and supports efficient heat transfer from the combustion chamber to the cylinder wall.

Features

Forged piston construction ensures high durability and mechanical strength
Elliptical design distributes bearing surface load evenly under thermal expansion
Prevents localised stress points and minimises risk of piston collapse
Engineered for optimal heat transfer from combustion chamber
Precision-manufactured in Germany

Specifications

Bore Size: 67.50mm (Standard)
Actual Diameter: 67.44mm
Compression Height: 26.70mm
Stroke: 69.50mm
Displacement: 249 cm³
Piston Clearance: 0.06mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

Wossner Piston Kit Part No: 8016DA
Lock: CW18
Pin: WP033
Ring Set: RSB6750 x2
Rod: P2024

Vehicle Fitments

1996 KTM EXC250
1996 KTM SX250
1996 KTM MXC250
1997 KTM EXC250
1997 KTM SX250
1997 KTM MXC250
1998 KTM EXC250
1998 KTM SX250
1998 KTM MXC250
1999 KTM EXC250
1999 KTM SX250
1999 KTM MXC250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	EGS 250	1996-1999
KTM	SX 250	1996-1999
KTM	MXC 250	1996-1999
KTM	EXC 250	1996-1999

Piston Kit 96-99 KTM250 67.50, Wossner 8016DA Forged

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

This Wossner forged piston kit is specifically designed for KTM MXC250, EXC250, and SX250 models from 1996 to 1999. With... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W694.A.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

This Wossner forged piston kit is specifically designed for KTM MXC250, EXC250, and SX250 models from 1996 to 1999. With a 67.50mm standard bore, it delivers the structural reliability required in high-performance two-stroke engines. Manufactured in Germany, the piston features an elliptical profile that accommodates thermal expansion, ensuring uniform load distribution and reducing stress concentrations. This design enhances piston longevity and supports efficient heat transfer from the combustion chamber to the cylinder wall.

Features

Forged piston construction ensures high durability and mechanical strength
Elliptical design distributes bearing surface load evenly under thermal expansion
Prevents localised stress points and minimises risk of piston collapse
Engineered for optimal heat transfer from combustion chamber
Precision-manufactured in Germany

Specifications

Bore Size: 67.50mm (Standard)
Actual Diameter: 67.44mm
Compression Height: 26.70mm
Stroke: 69.50mm
Displacement: 249 cm³
Piston Clearance: 0.06mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

Wossner Piston Kit Part No: 8016DA
Lock: CW18
Pin: WP033
Ring Set: RSB6750 x2
Rod: P2024

Vehicle Fitments

1996 KTM EXC250
1996 KTM SX250
1996 KTM MXC250
1997 KTM EXC250
1997 KTM SX250
1997 KTM MXC250
1998 KTM EXC250
1998 KTM SX250
1998 KTM MXC250
1999 KTM EXC250
1999 KTM SX250
1999 KTM MXC250

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	EGS 250	1996-1999
KTM	SX 250	1996-1999
KTM	MXC 250	1996-1999
KTM	EXC 250	1996-1999
