Name: Piston Kit 97-01 CR250 66.40 A, Wossner 8001DA Honda MX
Brand: Wossner
SKU: 56-W702.A.WO

Piston Kit 97-01 CR250 66.40 A, Wossner 8001DA Honda MX

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

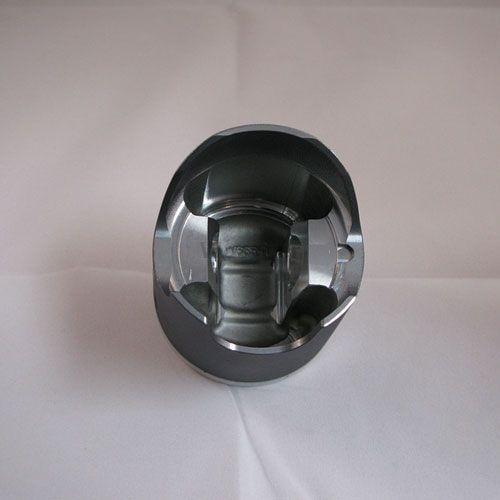

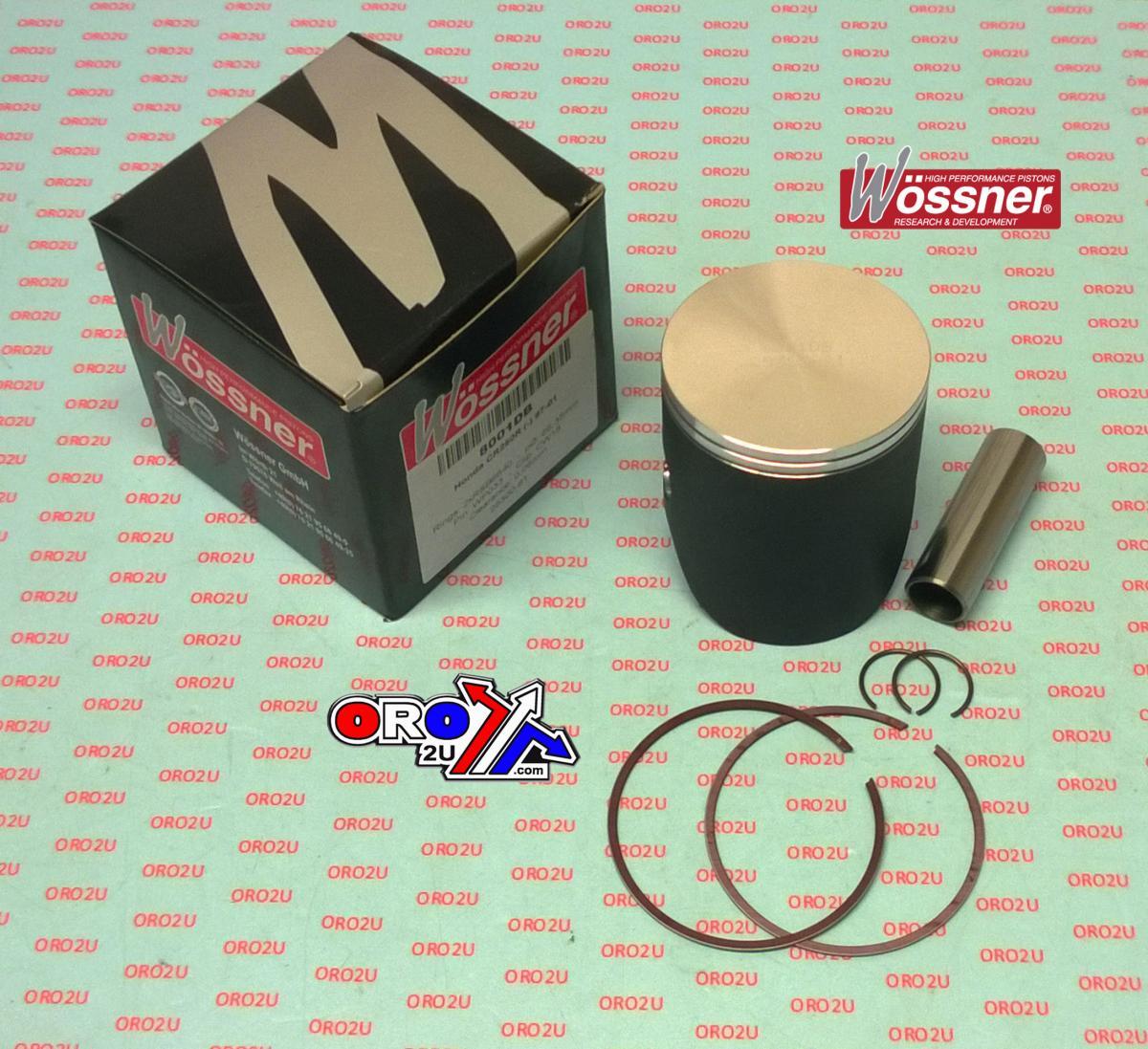

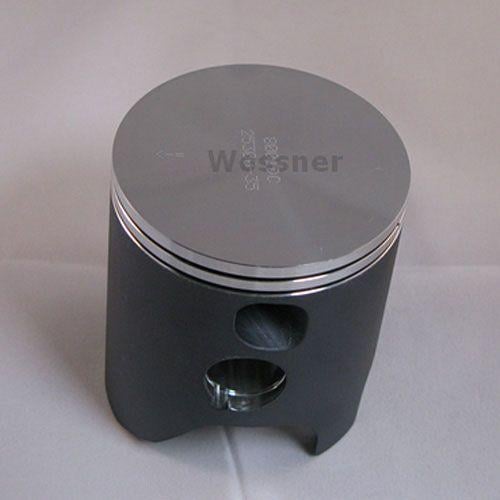

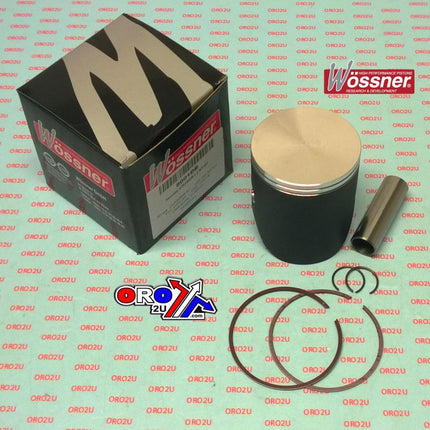

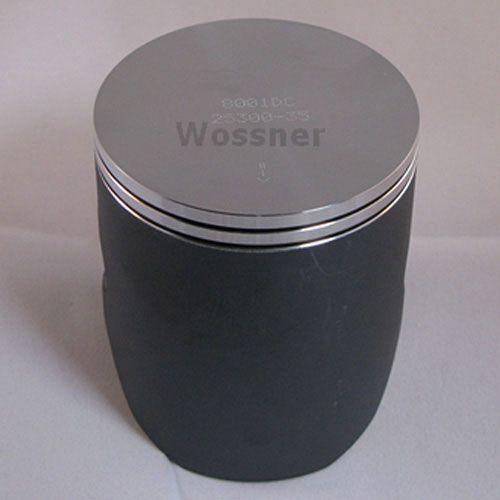

This Wossner forged piston kit is designed for Honda CR250R models from 1997 to 2001 and features a standard bore of 67.40mm. Manufactured in Germany using precision forging techniques, this piston incorporates an elliptical design that evenly distributes thermal expansion stress, reducing localised pressure points and helping prevent piston collapse. The design also facilitates optimal combustion heat transfer to the cylinder wall, ensuring durability and performance in demanding two-stroke conditions.

Features

Forged piston construction for high strength and wear resistance
Elliptical shape provides even expansion under heat
Reduces risk of piston collapse by distributing thrust loads uniformly
Optimised for efficient heat dissipation from combustion chamber
Manufactured in Germany with precision engineering

Specifications

Bore Size: 67.40mm (Standard)
Actual Diameter: 66.34mm
Compression Height: 38.00mm
Stroke: 72.00mm
Displacement: 249 cm³
Piston Clearance: 0.06mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

Wossner Piston Kit Part No: 8001DA
Lock: CW18
Pin: WP033
Ring Set: RSB6640 x2
Rod: P2021
OEM Reference: 13101-KZ3-L10

Vehicle Fitments

1997 Honda CR250R
1998 Honda CR250R
1999 Honda CR250R
2000 Honda CR250R
2001 Honda CR250R

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	CR 250	1997-2001
SUZUKI	RM 250	1998
HUSQVARNA	WR 250	1998-2013
HUSQVARNA	CR 250	1998-2013
HUSQVARNA	CR 250	1999-2012
HUSQVARNA	WR 250	1999-2013
HUSQVARNA	CR 250	1998-2005
HONDA	CR 2 RING 250	1997-2001
