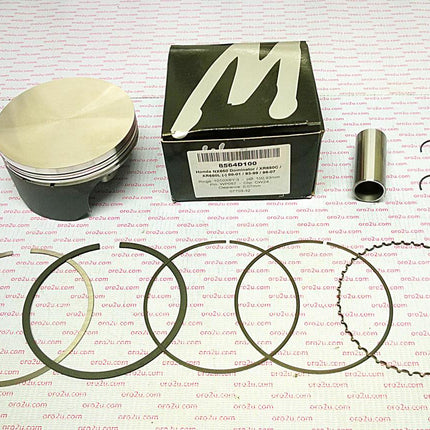

Name: Piston Kit 97-14 XR650 100.00, Forged Wossner 8564DA NX650 13110-MN9-000
Brand: Wossner
SKU: 56-W4562.00A.WO
Price: 230.23 GBP
Availability: InStock

Piston Kit 97-14 XR650 100.00, Forged Wossner 8564DA NX650 13110-MN9-000

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Wossner forged piston kit designed for Honda NX650, XR650, FMX650, and SLR650 models. Manufactured in Germany, this piston offers superior strength and heat transfer efficiency. The elliptical design ensures even load distribution, reducing localized pressure and preventing piston collapse.

Features

Forged construction for enhanced durability and strength
Optimized heat transfer for improved performance
Elliptical design for uniform bearing surface and reduced wear
Designed for 4-stroke engines

Specifications

Bore Size: 100 mm (Standard)
Actual Bore: 99.93 mm
Stroke: 82.00 mm
Clearance: 0.07 mm
Compression Height: 29.00 mm
Dome Volume: +0.00 cm³
Compression Ratio: OEM (8.30:1)
Displacement: 644 cm³
Made in Germany

Cross-Reference OEM Part Numbers

Wossner Part No.: 8564DA
Lock P/N: CW24
Pin P/N: WP057
Ring Set P/N: 1000XSY
OEM Part No.: 13110-MN9-000, 4562M10000

Vehicle Fitments

Honda NX650 Dominator (1988-2004)
Honda XR650C (1993-Onward)
Honda XR650L (1996-2016)
Honda FMX650 (2005)
Honda SLR650 (1997)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	XR L 650	1993-2018
HONDA	XR L 650	1993-2019
HONDA	XR L 650	1993-2020
HONDA	XR L 650	1993-2017
HONDA	NX 650	1993-2002
HONDA	XR L 650	1996-2019
HONDA	XR C 650	1993-1999
HONDA	XR C 650	1993-2019
HONDA	XR C 650	1993-2020
HONDA	NX DOMINATOR 650	1988-2004
HONDA	NX 650	1993-1998

Piston Kit 97-14 XR650 100.00, Forged Wossner 8564DA NX650 13110-MN9-000

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner forged piston kit designed for Honda NX650, XR650, FMX650, and SLR650 models. Manufactured in Germany, this piston offers superior... Read more

1 in stock 1-2 business days

£230.23 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W4562.00A.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner forged piston kit designed for Honda NX650, XR650, FMX650, and SLR650 models. Manufactured in Germany, this piston offers superior strength and heat transfer efficiency. The elliptical design ensures even load distribution, reducing localized pressure and preventing piston collapse.

Features

Forged construction for enhanced durability and strength
Optimized heat transfer for improved performance
Elliptical design for uniform bearing surface and reduced wear
Designed for 4-stroke engines

Specifications

Bore Size: 100 mm (Standard)
Actual Bore: 99.93 mm
Stroke: 82.00 mm
Clearance: 0.07 mm
Compression Height: 29.00 mm
Dome Volume: +0.00 cm³
Compression Ratio: OEM (8.30:1)
Displacement: 644 cm³
Made in Germany

Cross-Reference OEM Part Numbers

Wossner Part No.: 8564DA
Lock P/N: CW24
Pin P/N: WP057
Ring Set P/N: 1000XSY
OEM Part No.: 13110-MN9-000, 4562M10000

Vehicle Fitments

Honda NX650 Dominator (1988-2004)
Honda XR650C (1993-Onward)
Honda XR650L (1996-2016)
Honda FMX650 (2005)
Honda SLR650 (1997)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	XR L 650	1993-2018
HONDA	XR L 650	1993-2019
HONDA	XR L 650	1993-2020
HONDA	XR L 650	1993-2017
HONDA	NX 650	1993-2002
HONDA	XR L 650	1996-2019
HONDA	XR C 650	1993-1999
HONDA	XR C 650	1993-2019
HONDA	XR C 650	1993-2020
HONDA	NX DOMINATOR 650	1988-2004
HONDA	NX 650	1993-1998
