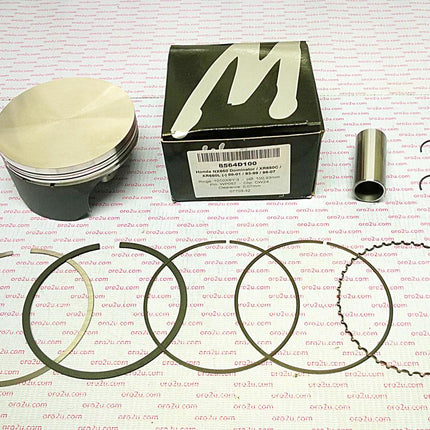

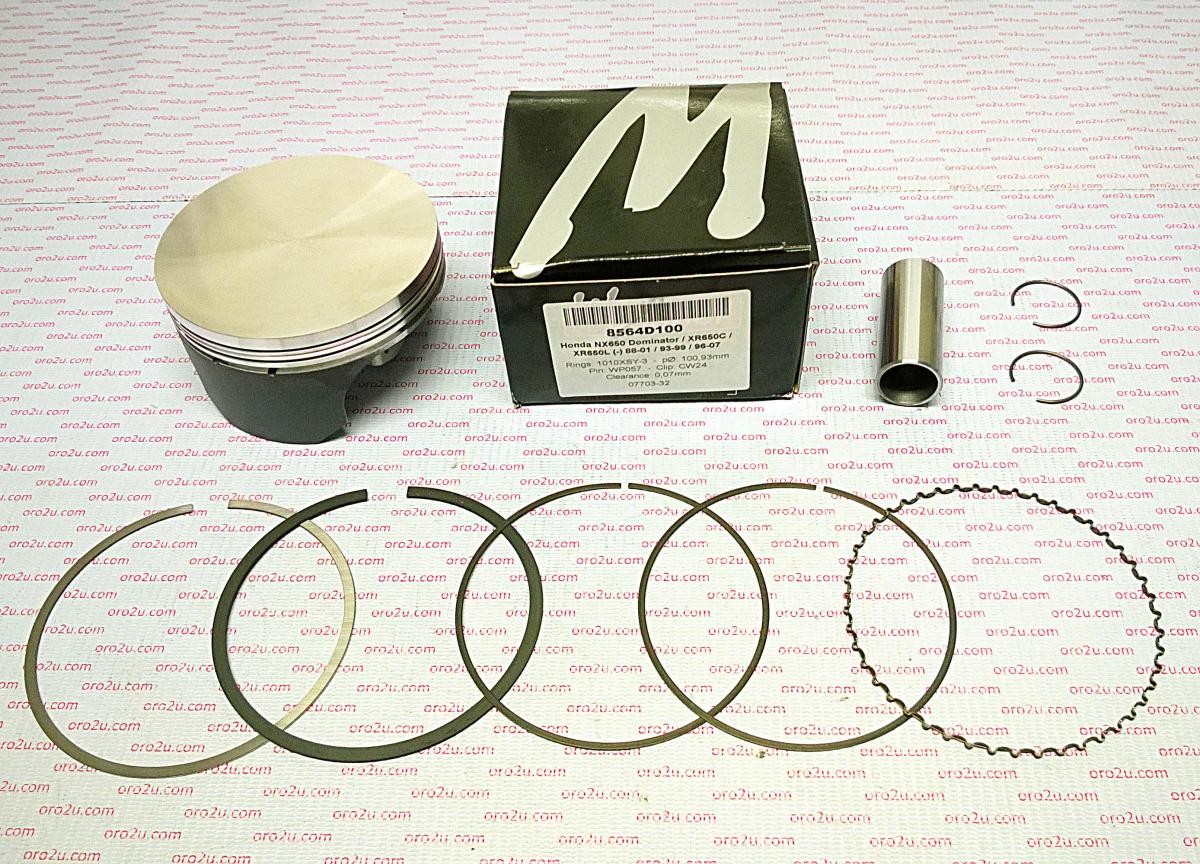

Name: Piston Kit 97-14 XR650 102.00, Forged Wossner 8564D200 NX650
Brand: Wossner
SKU: 56-W4562.200.WO
Price: 244.12 GBP
Availability: InStock

Piston Kit 97-14 XR650 102.00, Forged Wossner 8564D200 NX650

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

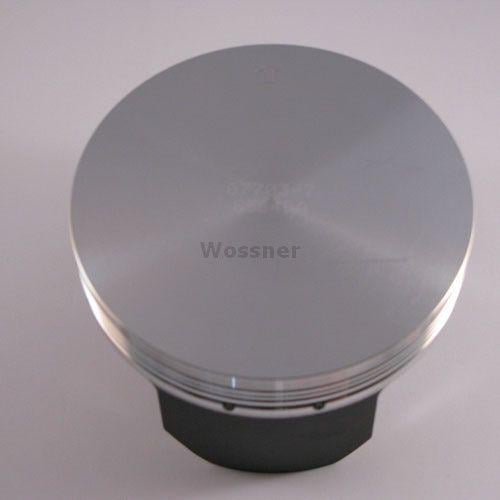

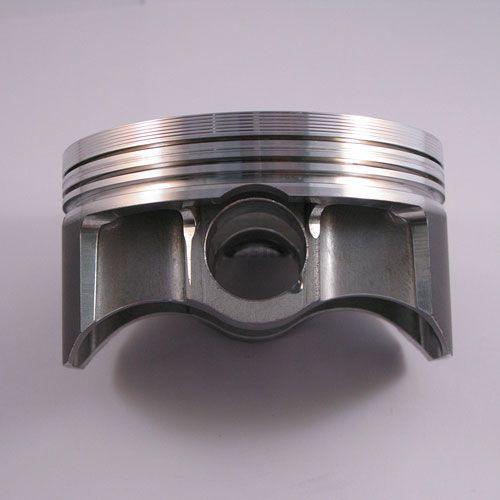

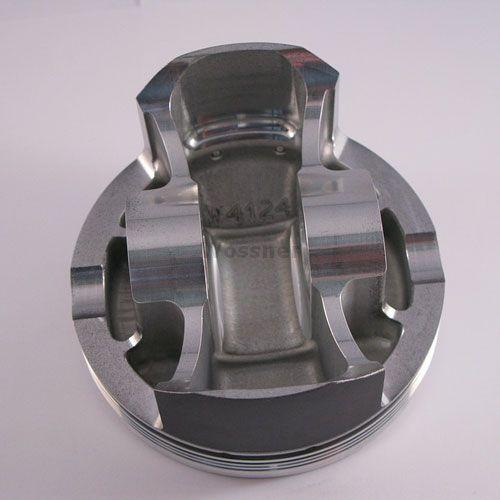

Wössner 102mm forged piston kit designed for Honda NX650, XR650C, and XR650L models. Engineered for optimal combustion chamber heat transfer and uniform load distribution, reducing localized pressure and preventing piston collapse. Made in Germany for durability and performance.

Features

Forged construction for superior strength and durability
Optimized heat transfer to cylinder walls
Elliptical design ensures uniform bearing surface under heat expansion
Reduces localized pressure and evenly distributes thrust loads
Prevents piston collapse under high-stress conditions

Specifications

Bore Size: 102mm
Wössner Part Number: 8564D200
Lock Part Number: CW24
Pin Part Number: WP057
Ring Set Part Number: 1020XSY
Displacement: 644 cm³
Stroke: 82.00mm
Clearance: 0.07mm
Compression Ratio: OEM (8.30:1)
Dome Volume: +0.00 cm³
Compression Height: 29.00mm

Cross-Reference OEM Part Numbers

Not specified

Vehicle Fitments

Honda NX650 Dominator (1988-2004)
Honda XR650C (1993-on)
Honda XR650L (1996-2016)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	XR L 650	1993-2018
HONDA	XR L 650	1993-2020
HONDA	XR L 650	1993-2017
HONDA	NX 650	1993-2002
HONDA	XR L 650	1996-2019
HONDA	XR C 650	1993-1999
HONDA	XR C 650	1993-2019
HONDA	XR C 650	1993-2020
HONDA	NX DOMINATOR 650	1988-2004
HONDA	NX 650	1993-1998

Piston Kit 97-14 XR650 102.00, Forged Wossner 8564D200 NX650

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wössner 102mm forged piston kit designed for Honda NX650, XR650C, and XR650L models. Engineered for optimal combustion chamber heat transfer... Read more

1 in stock 1-2 business days

£244.12 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W4562.200.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wössner 102mm forged piston kit designed for Honda NX650, XR650C, and XR650L models. Engineered for optimal combustion chamber heat transfer and uniform load distribution, reducing localized pressure and preventing piston collapse. Made in Germany for durability and performance.

Features

Forged construction for superior strength and durability
Optimized heat transfer to cylinder walls
Elliptical design ensures uniform bearing surface under heat expansion
Reduces localized pressure and evenly distributes thrust loads
Prevents piston collapse under high-stress conditions

Specifications

Bore Size: 102mm
Wössner Part Number: 8564D200
Lock Part Number: CW24
Pin Part Number: WP057
Ring Set Part Number: 1020XSY
Displacement: 644 cm³
Stroke: 82.00mm
Clearance: 0.07mm
Compression Ratio: OEM (8.30:1)
Dome Volume: +0.00 cm³
Compression Height: 29.00mm

Cross-Reference OEM Part Numbers

Not specified

Vehicle Fitments

Honda NX650 Dominator (1988-2004)
Honda XR650C (1993-on)
Honda XR650L (1996-2016)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	XR L 650	1993-2018
HONDA	XR L 650	1993-2020
HONDA	XR L 650	1993-2017
HONDA	NX 650	1993-2002
HONDA	XR L 650	1996-2019
HONDA	XR C 650	1993-1999
HONDA	XR C 650	1993-2019
HONDA	XR C 650	1993-2020
HONDA	NX DOMINATOR 650	1988-2004
HONDA	NX 650	1993-1998
