Name: Piston Kit 98-13 KTM200 64.00, Wossner 8048DA Forged 52330007300
Brand: Wossner
SKU: 56-W770.A.WO

Piston Kit 98-13 KTM200 64.00, Wossner 8048DA Forged 52330007300

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

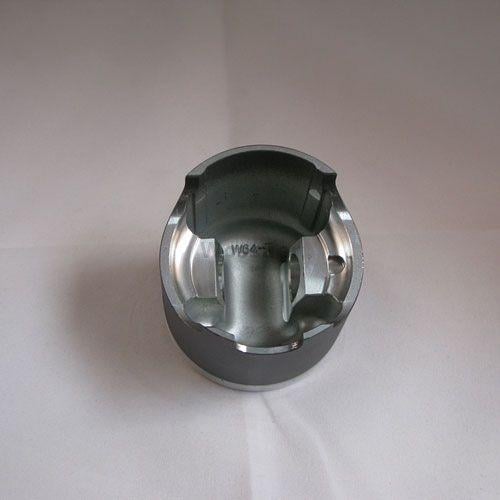

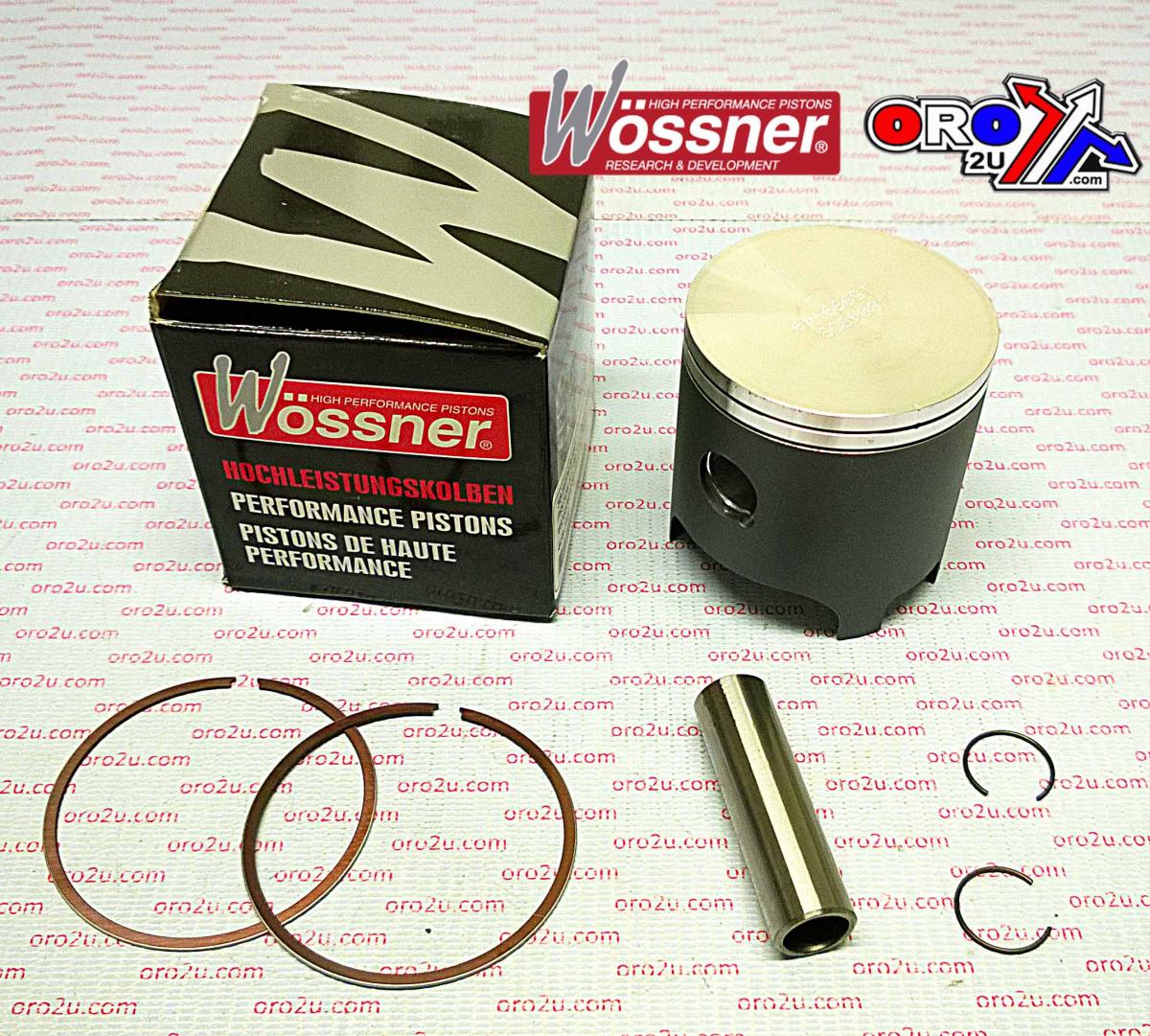

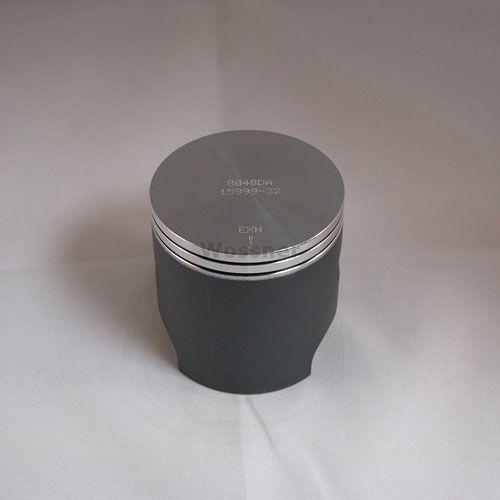

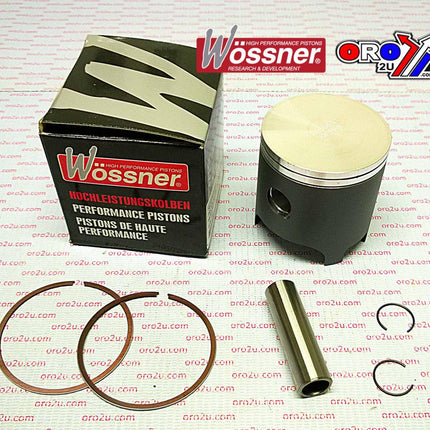

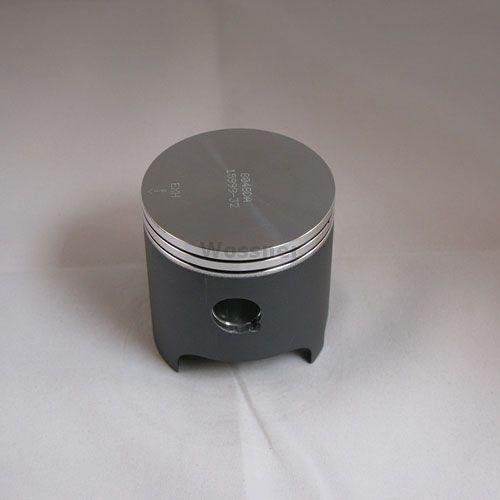

This Wossner piston kit with a 64.00mm bore (standard size) is designed for KTM 200cc 2-stroke engines, offering high durability and performance. Suitable for both SX and EXC models across multiple years, the forged construction ensures structural integrity and efficient thermal behaviour under intense engine conditions.

Features

Forged piston provides superior strength and longevity
Facilitates efficient combustion heat transfer to the cylinder wall
Elliptical design promotes uniform bearing surface during heat expansion
Reduces localised pressure and distributes thrust loads evenly to prevent piston collapse
Manufactured in Germany for high-precision standards

Specifications

Bore: 64.00 mm
Actual piston size: 63.94 mm
Stroke: 60.00 mm
Display volume: 200 cm³
Clearance: 0.06 mm
Compression ratio: 2-stroke (Wossner and OEM)
Compression height: 28.00 mm

Cross-Reference OEM Part Numbers

Piston Kit: 8048DA
Lock: CW16
Pin: WP027
Ring Set: RSB6400 x 2
Part No: 56-W770.A.WO
52330007300
09104755
770M06400

Cross-Reference Aftermarket Part Numbers

Wossner: 8048DA
Wiseco: 770M06400
Vertex: 22926
ProX: 01-6248
Namura: NX-70021
KTM OEM Piston I Cpl.: 52330007400 I
KTM OEM Piston II Cpl.: 52330007400 II
KTM OEM Pin: 52330033100
KTM OEM Ring: 52330032100
KTM OEM Clip: 52330074100

Vehicle Fitments

KTM SX 200 2003–2005
KTM EXC 200 1998–2013

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	XC 200	2006-2009
KTM	SX 200	2003-2005
KTM	EXC 200	1998-2016
KTM	EXC 200	1998-2005
KTM	XC 200	2003-2016
KTM	XC W 200	2006-2015
KTM	MXC 200	1998-2002
KTM	EXC 200	1998-2015
KTM	EXC 200	2006-2016
KTM	MXC 200	2003-2008
KTM	XC W 200	2006-2014
KTM	SX 200	1998-2009
KTM	MXC 200	1998-2015

Piston Kit 98-13 KTM200 64.00, Wossner 8048DA Forged 52330007300

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

This Wossner piston kit with a 64.00mm bore (standard size) is designed for KTM 200cc 2-stroke engines, offering high durability... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W770.A.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

This Wossner piston kit with a 64.00mm bore (standard size) is designed for KTM 200cc 2-stroke engines, offering high durability and performance. Suitable for both SX and EXC models across multiple years, the forged construction ensures structural integrity and efficient thermal behaviour under intense engine conditions.

Features

Forged piston provides superior strength and longevity
Facilitates efficient combustion heat transfer to the cylinder wall
Elliptical design promotes uniform bearing surface during heat expansion
Reduces localised pressure and distributes thrust loads evenly to prevent piston collapse
Manufactured in Germany for high-precision standards

Specifications

Bore: 64.00 mm
Actual piston size: 63.94 mm
Stroke: 60.00 mm
Display volume: 200 cm³
Clearance: 0.06 mm
Compression ratio: 2-stroke (Wossner and OEM)
Compression height: 28.00 mm

Cross-Reference OEM Part Numbers

Piston Kit: 8048DA
Lock: CW16
Pin: WP027
Ring Set: RSB6400 x 2
Part No: 56-W770.A.WO
52330007300
09104755
770M06400

Cross-Reference Aftermarket Part Numbers

Wossner: 8048DA
Wiseco: 770M06400
Vertex: 22926
ProX: 01-6248
Namura: NX-70021
KTM OEM Piston I Cpl.: 52330007400 I
KTM OEM Piston II Cpl.: 52330007400 II
KTM OEM Pin: 52330033100
KTM OEM Ring: 52330032100
KTM OEM Clip: 52330074100

Vehicle Fitments

KTM SX 200 2003–2005
KTM EXC 200 1998–2013

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	XC 200	2006-2009
KTM	SX 200	2003-2005
KTM	EXC 200	1998-2016
KTM	EXC 200	1998-2005
KTM	XC 200	2003-2016
KTM	XC W 200	2006-2015
KTM	MXC 200	1998-2002
KTM	EXC 200	1998-2015
KTM	EXC 200	2006-2016
KTM	MXC 200	2003-2008
KTM	XC W 200	2006-2014
KTM	SX 200	1998-2009
KTM	MXC 200	1998-2015
