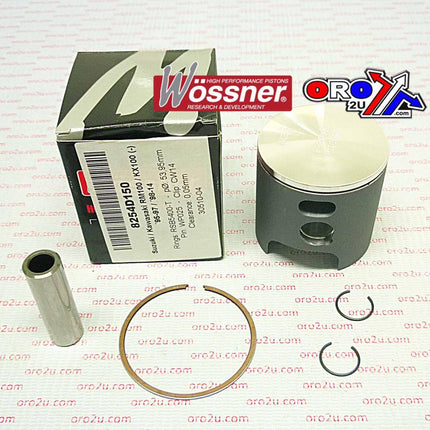

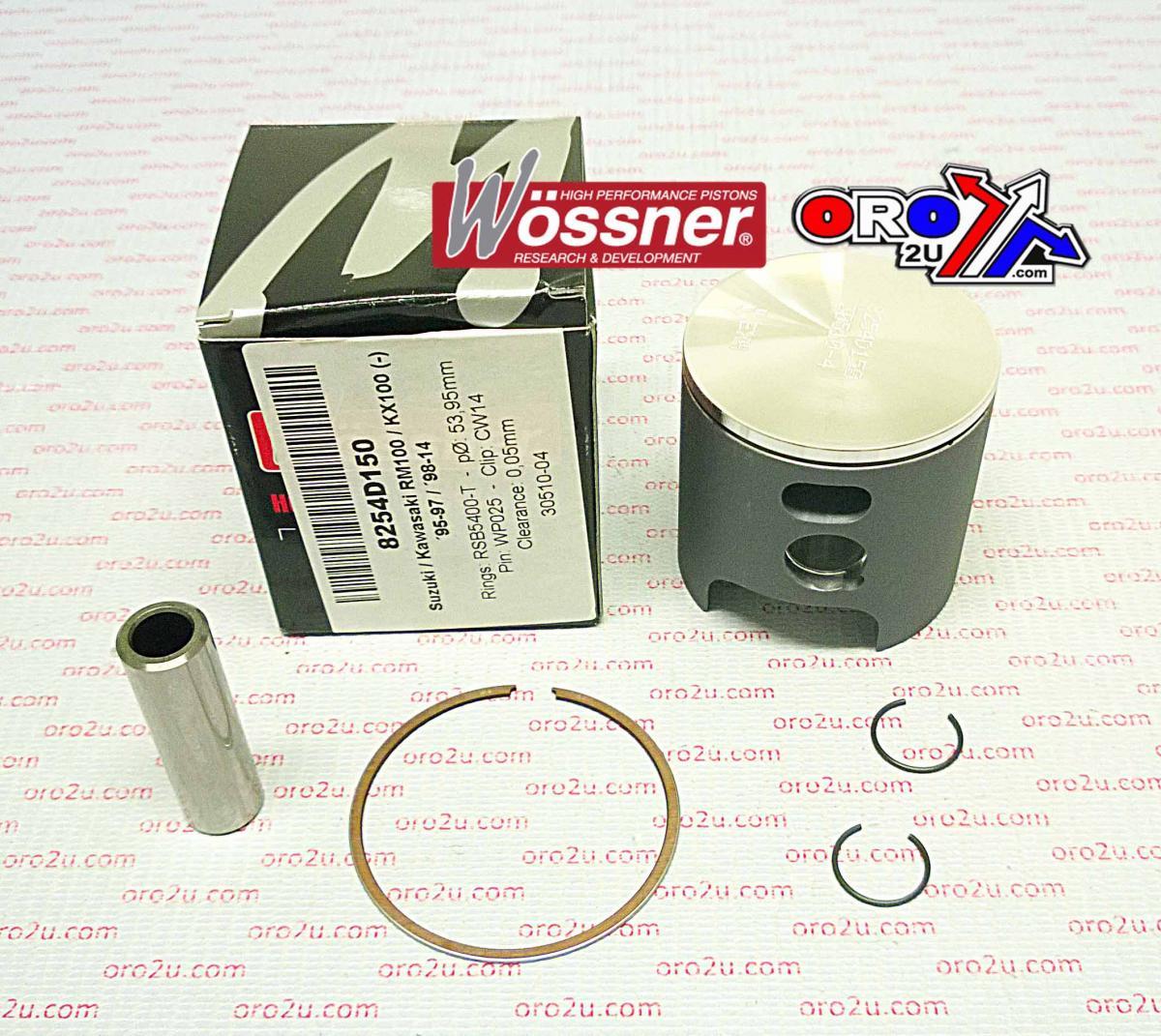

Name: Piston Kit 98-18 KX100 53.50, Wossner 8254D100 Kawasaki MX, Single Ring
Brand: Wossner
SKU: 56-W651_100.WO
Price: 104.04 GBP
Availability: InStock

Piston Kit 98-18 KX100 53.50, Wossner 8254D100 Kawasaki MX, Single Ring

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

The Wossner 53.50mm forged piston kit (Part No. 8254D100) is specifically designed for high-performance use in Kawasaki and Suzuki 100cc 2-stroke engines. Its elliptical structure ensures optimal expansion control and uniform pressure distribution, significantly reducing piston collapse. Manufactured with precision in Germany, it provides superior heat transfer and mechanical reliability for demanding applications.

Features

Forged construction enhances strength and longevity
Elliptical design improves uniform bearing surface under heat expansion
Engineered for efficient heat dissipation from combustion chamber to cylinder
German-made for high manufacturing precision

Specifications

Bore Size: 53.50 mm (+1.00 mm oversize)
Display Displacement: 100 cm³
Stroke: 45.80 mm
Piston Clearance: 0.05 mm
Compression Height: 26.00 mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

Piston Kit: 8254D100
Lock: CW14
Pin: WP025
Ring Set: RSB5350
Rod: P2005
Internal Reference Part No.: 56-W651.100.WO

Vehicle Fitments

Kawasaki KX100: 1995–2018
Suzuki RM100: 2003

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 100	2003
KAWASAKI	KX 100	2014-2019
KAWASAKI	KX 100	2014-2021
SUZUKI	RM 100	2003-2005
KAWASAKI	KX 100	1995-2019
SUZUKI	RM 100	2003-2004
KAWASAKI	KX 100	1995-2020
KAWASAKI	KX 100	1995-2013
KAWASAKI	KX 100	1989-2019

Piston Kit 98-18 KX100 53.50, Wossner 8254D100 Kawasaki MX, Single Ring

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

The Wossner 53.50mm forged piston kit (Part No. 8254D100) is specifically designed for high-performance use in Kawasaki and Suzuki 100cc... Read more

1 in stock 1-2 business days

£104.04 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W651_100.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

The Wossner 53.50mm forged piston kit (Part No. 8254D100) is specifically designed for high-performance use in Kawasaki and Suzuki 100cc 2-stroke engines. Its elliptical structure ensures optimal expansion control and uniform pressure distribution, significantly reducing piston collapse. Manufactured with precision in Germany, it provides superior heat transfer and mechanical reliability for demanding applications.

Features

Forged construction enhances strength and longevity
Elliptical design improves uniform bearing surface under heat expansion
Engineered for efficient heat dissipation from combustion chamber to cylinder
German-made for high manufacturing precision

Specifications

Bore Size: 53.50 mm (+1.00 mm oversize)
Display Displacement: 100 cm³
Stroke: 45.80 mm
Piston Clearance: 0.05 mm
Compression Height: 26.00 mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

Piston Kit: 8254D100
Lock: CW14
Pin: WP025
Ring Set: RSB5350
Rod: P2005
Internal Reference Part No.: 56-W651.100.WO

Vehicle Fitments

Kawasaki KX100: 1995–2018
Suzuki RM100: 2003

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 100	2003
KAWASAKI	KX 100	2014-2019
KAWASAKI	KX 100	2014-2021
SUZUKI	RM 100	2003-2005
KAWASAKI	KX 100	1995-2019
SUZUKI	RM 100	2003-2004
KAWASAKI	KX 100	1995-2020
KAWASAKI	KX 100	1995-2013
KAWASAKI	KX 100	1989-2019
