Name: Piston Kit 98-18 KX100 54.00, Wossner 8254D150 Kawasaki MX, Single Ring
Brand: Wossner
SKU: 56-W651_150.WO

Piston Kit 98-18 KX100 54.00, Wossner 8254D150 Kawasaki MX, Single Ring

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

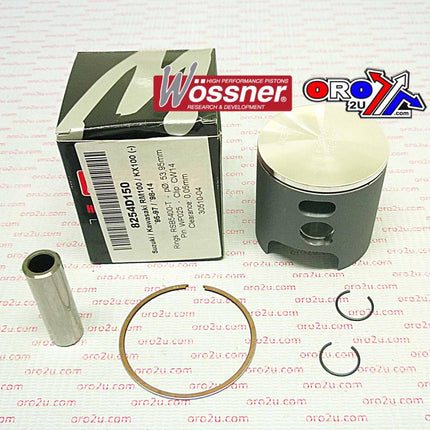

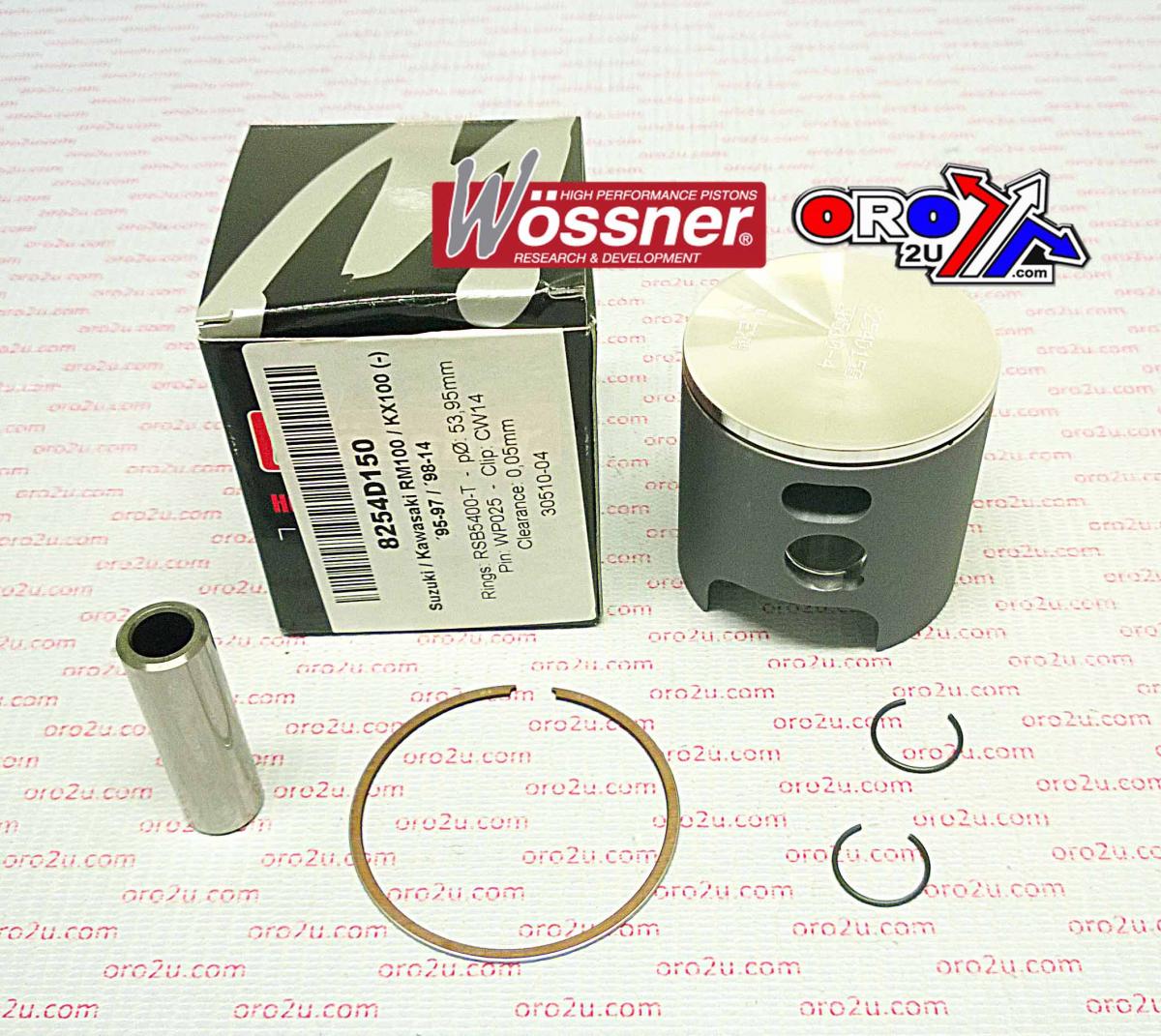

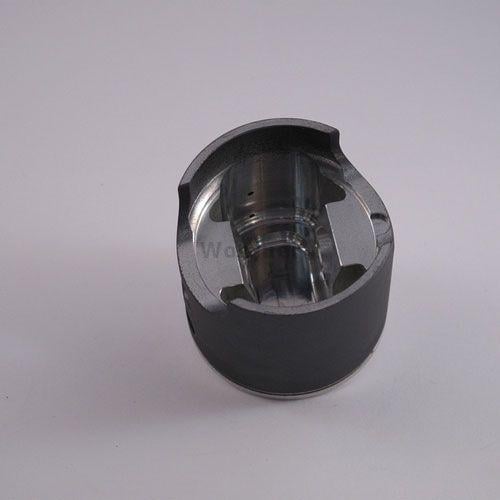

The Wossner 54.00mm forged piston kit (Part No. 8254D150) is tailored for high-performance rebuilds of Kawasaki and Suzuki 100cc 2-stroke engines. With a design that prioritises even thermal expansion and load distribution, this piston minimises the risk of collapse while enhancing combustion efficiency. Made in Germany, it upholds high standards of precision and endurance for race or off-road use.

Features

Forged piston construction delivers high strength under demanding conditions
Elliptical profile provides a uniform bearing surface during heat expansion
Optimised for effective heat dissipation from the combustion area to the cylinder
Precision-manufactured in Germany

Specifications

Bore Size: 54.00 mm (+1.50 mm oversize)
Display Displacement: 100 cm³
Stroke: 45.80 mm
Piston Clearance: 0.05 mm
Compression Height: 26.00 mm
Compression Ratio: 2-stroke (Wossner and OEM)

Cross-Reference OEM Part Numbers

Piston Kit: 8254D150
Lock: CW14
Pin: WP025
Ring Set: RSB5400
Rod: P2005
Internal Reference Part No.: 56-W651.150.WO

Vehicle Fitments

Kawasaki KX100: 1995–2018
Suzuki RM100: 2003

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM 100	2003
KAWASAKI	KX 100	2014-2019
KAWASAKI	KX 100	2014-2021
SUZUKI	RM 100	2003-2005
KAWASAKI	KX 100	1995-2019
SUZUKI	RM 100	2003-2004
KAWASAKI	KX 100	1995-2020
KAWASAKI	KX 100	1995-2013
KAWASAKI	KX 100	1989-2019
