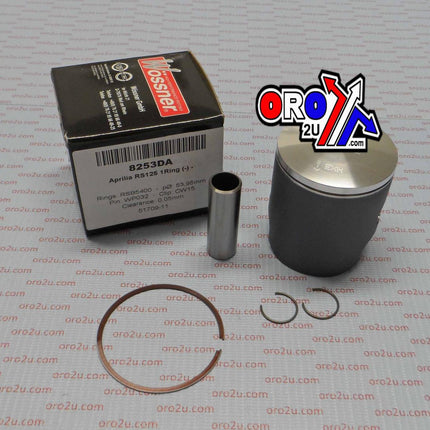

Piston Kit Aprilia RS125 A, Forged Wossner Kit 8253DA, Single Ring

Description

This Wossner forged piston kit is designed for Aprilia RS125 motorcycles produced from 1985 to 2012. It features a standard 54.00mm bore with a piston diameter of 53.95mm and a single-ring configuration. Built for durability and efficient thermal management, the piston’s elliptical design ensures uniform expansion and optimal thrust load distribution. Precision-made in Germany, it maintains consistent performance across a wide range of 2-stroke Aprilia applications.

Features

  • Forged piston kit with single ring for Aprilia RS125 (1985–2012)

  • Bore size: 54.00mm (Standard)

  • Piston diameter: 53.95mm

  • Elliptical design for improved thermal expansion and load balance

  • Designed to prevent localised pressure and piston collapse

  • Made in Germany

Specifications

  • Part No: 56-W9913.00A.WO

  • Model: Wossner 8253DA

  • Application: 2-stroke engine

  • Displacement: 125cm³

  • Stroke: 54.50mm

  • Clearance: 0.05mm

  • Compression height: 29.00mm

  • Compression ratio: 2-stroke (OEM and Wossner)

  • Piston clips: CW15

  • Piston pin: WP032

  • Piston ring set: RSB5400

Cross-Reference OEM Part Numbers

  • Not specified

Vehicle Fitments

  • Aprilia AF1 Futura 1985

  • Aprilia AF1 Replica 1985

  • Aprilia Caponord Rally 1985

  • Aprilia Europe Base 1985

  • Aprilia Mini RX 1985

  • Aprilia Pegaso Base 1985

  • Aprilia Red Rose Base 1985

  • Aprilia RS 125 1985

  • Aprilia RS 125 1985

  • Aprilia Syntesi Base 1985

  • Aprilia Tuareg 250 1985

  • Aprilia AF1 Base 1986

Piston Kit Aprilia RS125 A, Forged Wossner Kit 8253DA, Single Ring

Product form

This Wossner forged piston kit is designed for Aprilia RS125 motorcycles produced from 1985 to 2012. It features a standard... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W9913.00A.WO

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This Wossner forged piston kit is designed for Aprilia RS125 motorcycles produced from 1985 to 2012. It features a standard 54.00mm bore with a piston diameter of 53.95mm and a single-ring configuration. Built for durability and efficient thermal management, the piston’s elliptical design ensures uniform expansion and optimal thrust load distribution. Precision-made in Germany, it maintains consistent performance across a wide range of 2-stroke Aprilia applications.

    Features

    • Forged piston kit with single ring for Aprilia RS125 (1985–2012)

    • Bore size: 54.00mm (Standard)

    • Piston diameter: 53.95mm

    • Elliptical design for improved thermal expansion and load balance

    • Designed to prevent localised pressure and piston collapse

    • Made in Germany

    Specifications

    • Part No: 56-W9913.00A.WO

    • Model: Wossner 8253DA

    • Application: 2-stroke engine

    • Displacement: 125cm³

    • Stroke: 54.50mm

    • Clearance: 0.05mm

    • Compression height: 29.00mm

    • Compression ratio: 2-stroke (OEM and Wossner)

    • Piston clips: CW15

    • Piston pin: WP032

    • Piston ring set: RSB5400

    Cross-Reference OEM Part Numbers

    • Not specified

    Vehicle Fitments

    • Aprilia AF1 Futura 1985

    • Aprilia AF1 Replica 1985

    • Aprilia Caponord Rally 1985

    • Aprilia Europe Base 1985

    • Aprilia Mini RX 1985

    • Aprilia Pegaso Base 1985

    • Aprilia Red Rose Base 1985

    • Aprilia RS 125 1985

    • Aprilia RS 125 1985

    • Aprilia Syntesi Base 1985

    • Aprilia Tuareg 250 1985

    • Aprilia AF1 Base 1986

    Shipping & Delivery

    How long will my item take to arrive?

    Orders are typically dispatched within 1 working day and are shipped on a 24hour (non-guaranteed) service.

    Where do you ship to?

    We currently only ship orders within the UK.

    How can I track my order?

    Once your order has been dispatched, you will receive a tracking code. Tracking information is emailed to the email address that was provided when placing the order.

    Can I collect my order?

    Unfortunately we do not offer order collections from our fulfilment centre.
