Name: Piston Kit Gm Speedway 90.00, Wossner K8811DE E
Brand: Wossner
SKU: 56-W9841.E

Piston Kit Gm Speedway 90.00, Wossner K8811DE E

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

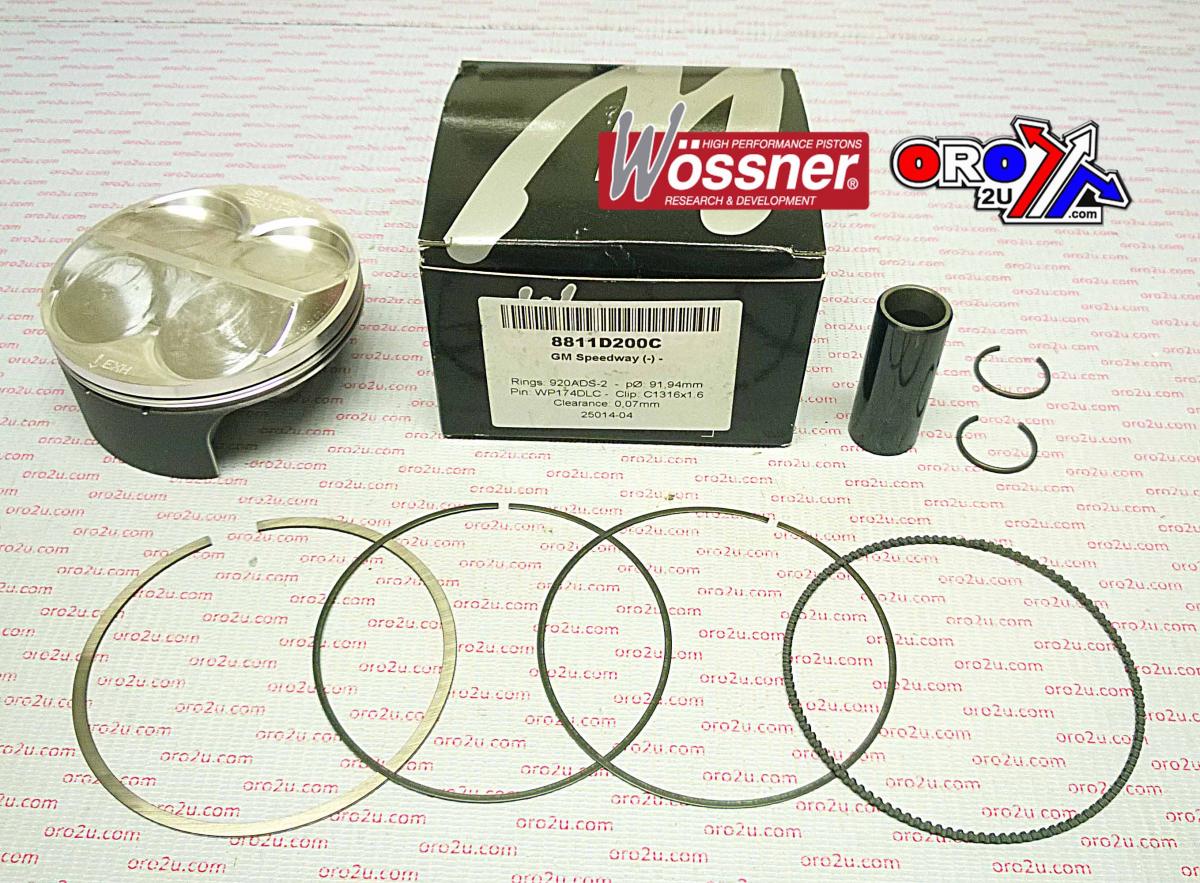

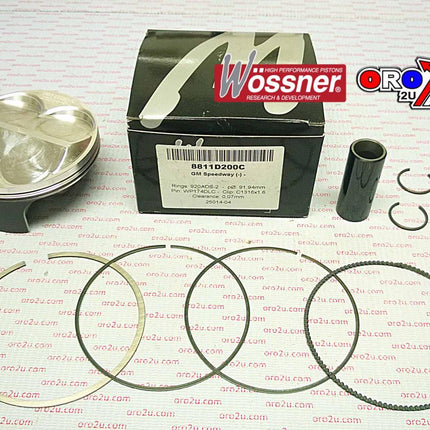

This Wossner forged piston kit with a 90.04mm bore (+0.04mm oversize) is designed for all Speedway applications, including GM Speedway 499cc engines. Precision-forged in Germany, the piston features superior strength and optimal heat transfer capabilities. Its elliptical profile promotes uniform pressure distribution and expansion under thermal load, minimising stress and reducing the risk of piston failure.

Features

Forged construction for maximum strength and performance
Engineered for efficient heat dissipation from combustion to cylinder walls
Elliptical profile ensures consistent bearing surface under expansion
Reduces localised pressure and evenly distributes thrust loads
Manufactured in Germany

Specifications

Bore: 90.04mm (+0.04mm Oversize)
Actual bore: 89.96mm
Display volume: 499 cm³
Stroke: 78.50mm
Clearance: 0.08mm
Dome volume: +5.60 cm³
Compression height: 22.00mm

Cross-Reference OEM Part Numbers

56-W9841.E
8811DE
Lock Part Number: CW21
Pin Part Number: WP074
Ring Set Part Number: 900ADS

Vehicle Fitments

Speedway (All Models)
GM Speedway 499cc

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
GM	SPEEDWAY 499	2000-2017
GM	SPEEDWAY 500	1990-2015

Piston Kit Gm Speedway 90.00, Wossner K8811DE E

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

This Wossner forged piston kit with a 90.04mm bore (+0.04mm oversize) is designed for all Speedway applications, including GM Speedway... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W9841.E

Free shipping on all orders above £75

No hassle returns within 30 days

Description

This Wossner forged piston kit with a 90.04mm bore (+0.04mm oversize) is designed for all Speedway applications, including GM Speedway 499cc engines. Precision-forged in Germany, the piston features superior strength and optimal heat transfer capabilities. Its elliptical profile promotes uniform pressure distribution and expansion under thermal load, minimising stress and reducing the risk of piston failure.

Features

Forged construction for maximum strength and performance
Engineered for efficient heat dissipation from combustion to cylinder walls
Elliptical profile ensures consistent bearing surface under expansion
Reduces localised pressure and evenly distributes thrust loads
Manufactured in Germany

Specifications

Bore: 90.04mm (+0.04mm Oversize)
Actual bore: 89.96mm
Display volume: 499 cm³
Stroke: 78.50mm
Clearance: 0.08mm
Dome volume: +5.60 cm³
Compression height: 22.00mm

Cross-Reference OEM Part Numbers

56-W9841.E
8811DE
Lock Part Number: CW21
Pin Part Number: WP074
Ring Set Part Number: 900ADS

Vehicle Fitments

Speedway (All Models)
GM Speedway 499cc

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
GM	SPEEDWAY 499	2000-2017
GM	SPEEDWAY 500	1990-2015
