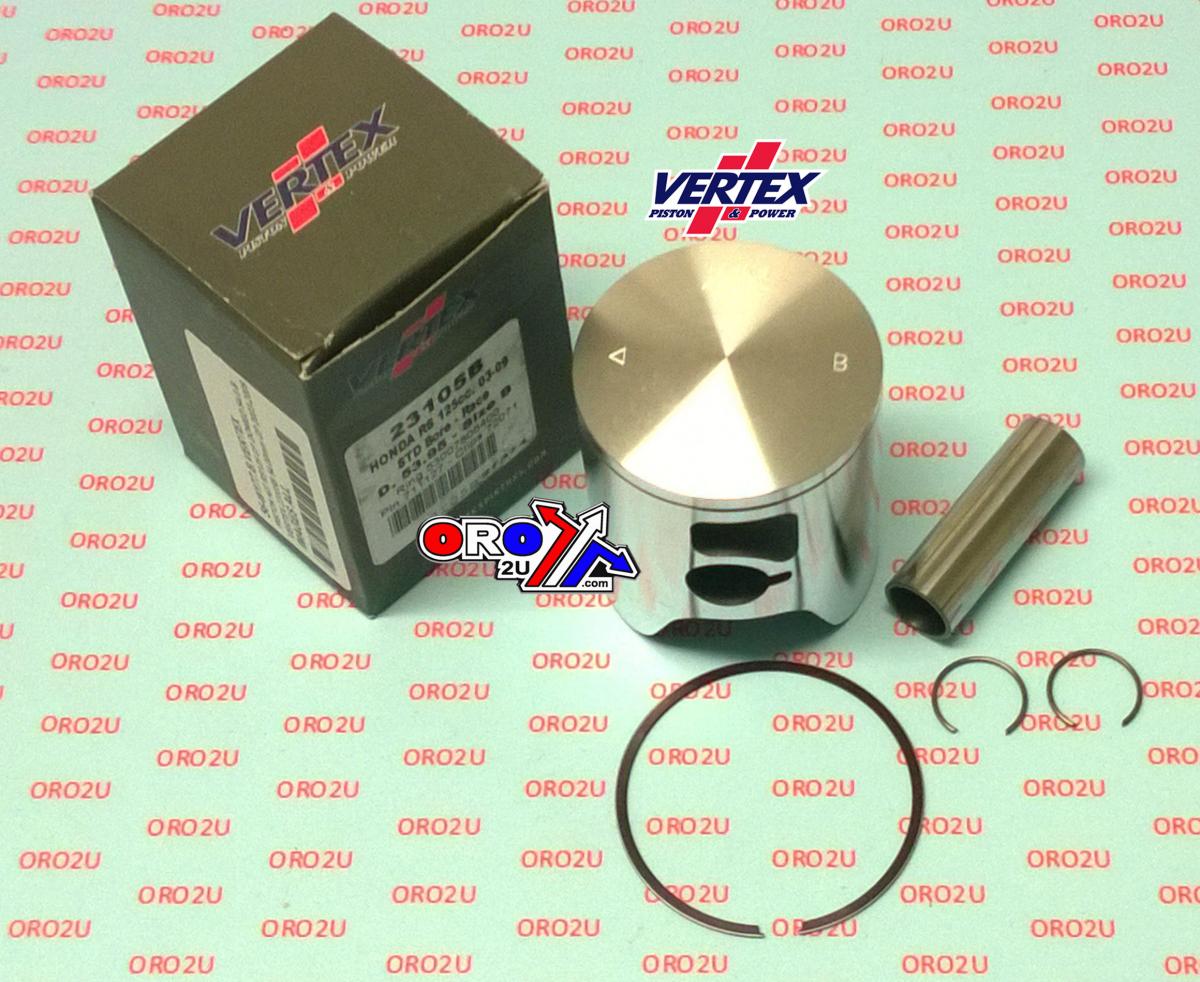

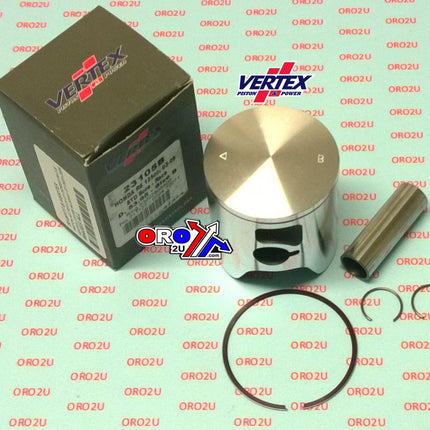

VERTEX UK PISTON KIT FORGED 23105A 1-RING (radhouse.co.uk)
Vertex kit DOME TOP piston for the Honda RS 125
These are a good alternative to the Standard HRC pistons at a much better price
Piston kit comes with .8mm flat ring Ring , Pin , and 2 x clips
Its very important to prep them well , by champhering all the skirts ,and the ring groove ,as well as setting the ring gap , as the ring fits all sizes ( IE the biggest )
Ring gap is at the back , so runs over the rear boost port , requiring good champhering of the rear port .
I recommend the ring is changed half way through the 300 to 350 KM life of the piston , to prevent the ring locating tag breaking.
All Vertex Pistons Feature:
- Standard pistons and components are OEM replacements.
- Kits include piston, rings, wrist pin and circlips.
- All pistons are heat treated with a T-5 or T-6 hardening and tempering cycle.
- Replacement rings are sold individually.
- Made in Italy.
- Fitted in many oem bikes as STD.
SPECIFICATION:
- BORE SIZE. 54.00mm [A 53.94mm]
Replacement Parts.
- Rings. 53007805400 Need 1,
- Pin. 711127,
- Clips. 72071,
MODEL FITMENT:
-
HONDA RS125, GP, 2003-2009 DOME
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| HONDA |
RS GP DOMED 125 |
2003-2007 |
| HONDA |
RS 125 |
2003-2007 |
