Name: Piston Kit KTM 520 525 Exc Sx, Wossner 8637DA KTM 00-09 Hc 59030007000
Brand: Wossner
SKU: 56-W216+00A.WO
Price: 244.03 GBP
Availability: InStock

Piston Kit KTM 520 525 Exc Sx, Wossner 8637DA KTM 00-09 Hc 59030007000

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

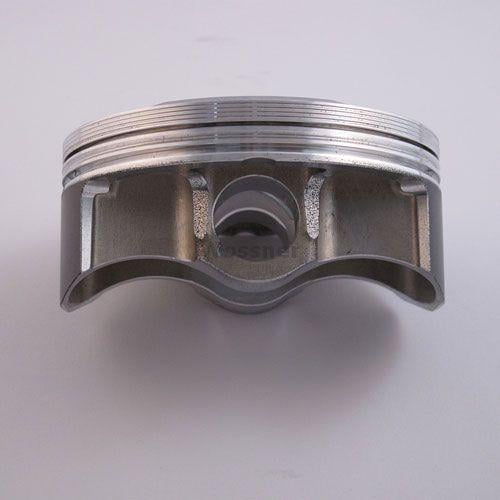

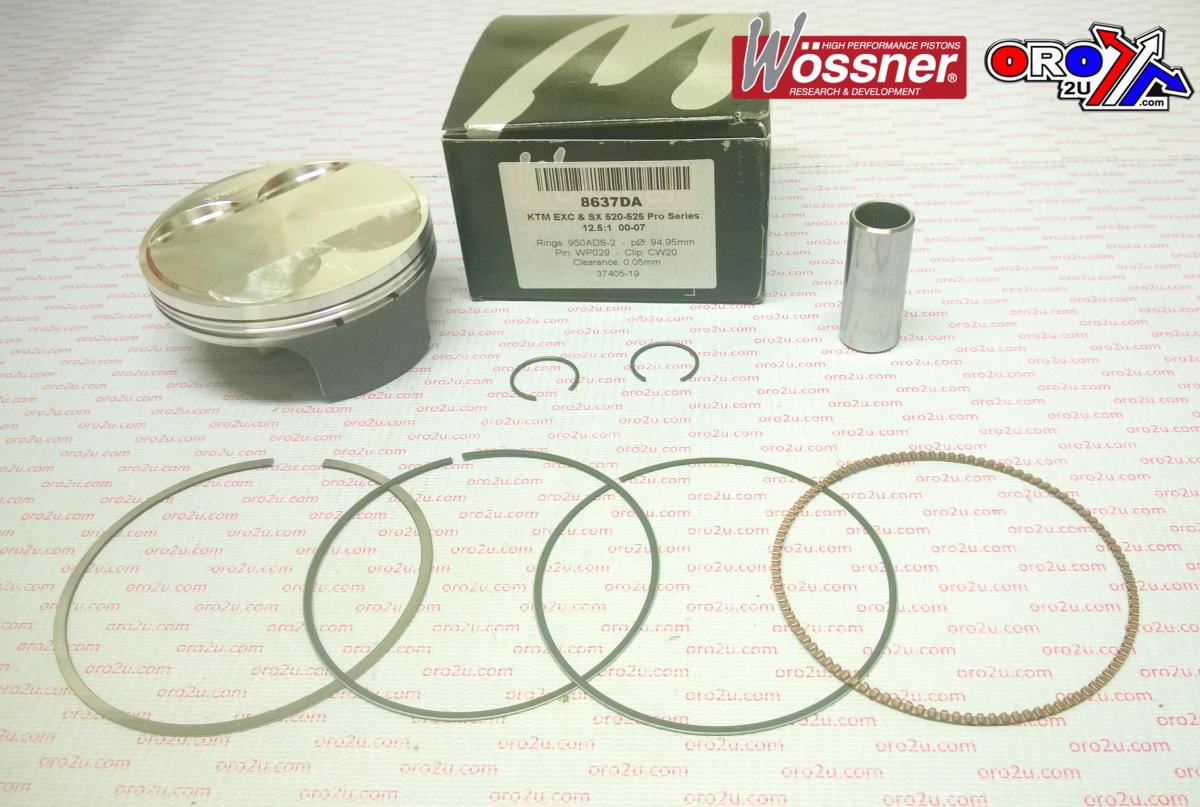

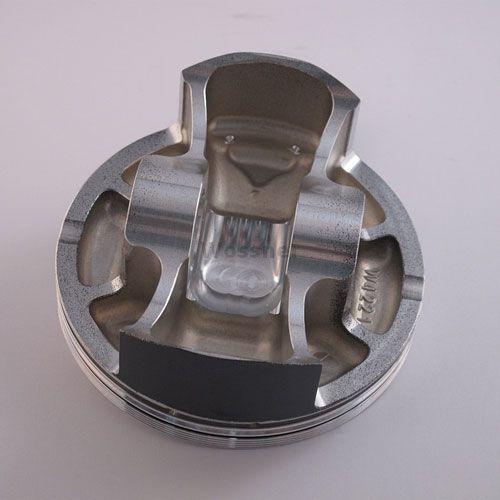

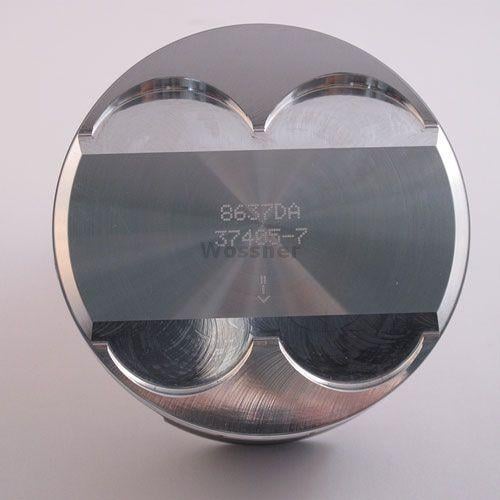

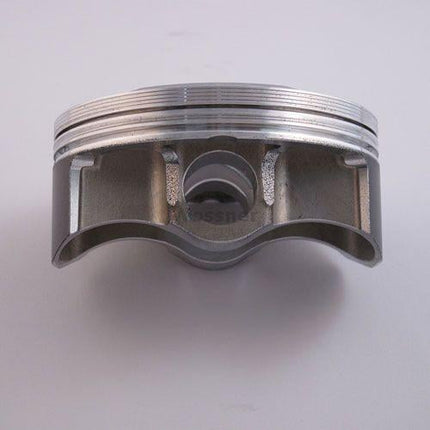

Wossner high-compression forged piston kit designed for KTM SX-EXC520 (2000-2002), SX-EXC525 Racing (2003-2007), and Beta Motor RR525 (2005-2009) models. Engineered for superior strength and optimal heat transfer, these pistons feature an elliptical design to ensure uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

High-compression forged piston for increased performance
Optimized heat transfer for efficient combustion chamber performance
Elliptical design for even thrust load distribution and reduced piston collapse
Manufactured in Germany

Specifications

Bore Size: 95.00mm
Actual Bore Diameter: 94.95mm
Displacement: 510 cm³
Stroke: 72.00mm
Clearance: 0.05mm
Wossner Compression Ratio: 12.50:1
OEM Compression Ratio: 11.00:1
Dome Volume: +4.60 cm³
Compression Height: 23.50mm
Lock Part Number: CW20
Pin Part Number: WP029
Ring Set Part Number: 950ADS-2

Cross-Reference OEM Part Numbers

59030007000

Vehicle Fitments

KTM EXC520 Pro Series (2000-2002)
KTM SX520 Pro Series (2000-2002)
KTM EXC525 Racing Pro Series (2003-2007)
KTM SX525 Racing Pro Series (2003-2007)
KTM EXC-G525 Racing Pro Series (2003-2006)
KTM SM-R525 Pro Series (2004-2005)
KTM EXC525 Factory Racing Pro Series (2007)
Beta Motor RR525 (2005-2009)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	SX 520	2000-2002
KTM	EXC 520	2000-2002
KTM	XC 525	2008-2012
KTM	SM R 525	2004-2005
KTM	EXC 525	2003-2007
BETA	RR 525	2005-2009
KTM	SX 525	2003-2007
KTM	EXC 525	2003-2010
KTM	SX 525	2003-2010
