Name: Piston Kit KTM505SX-F Hc 100, Wossner 8725DB 08-09
Brand: Wossner
SKU: 56-W315+00B.WO
Price: 255.51 GBP
Availability: InStock

Piston Kit KTM505SX-F Hc 100, Wossner 8725DB 08-09

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

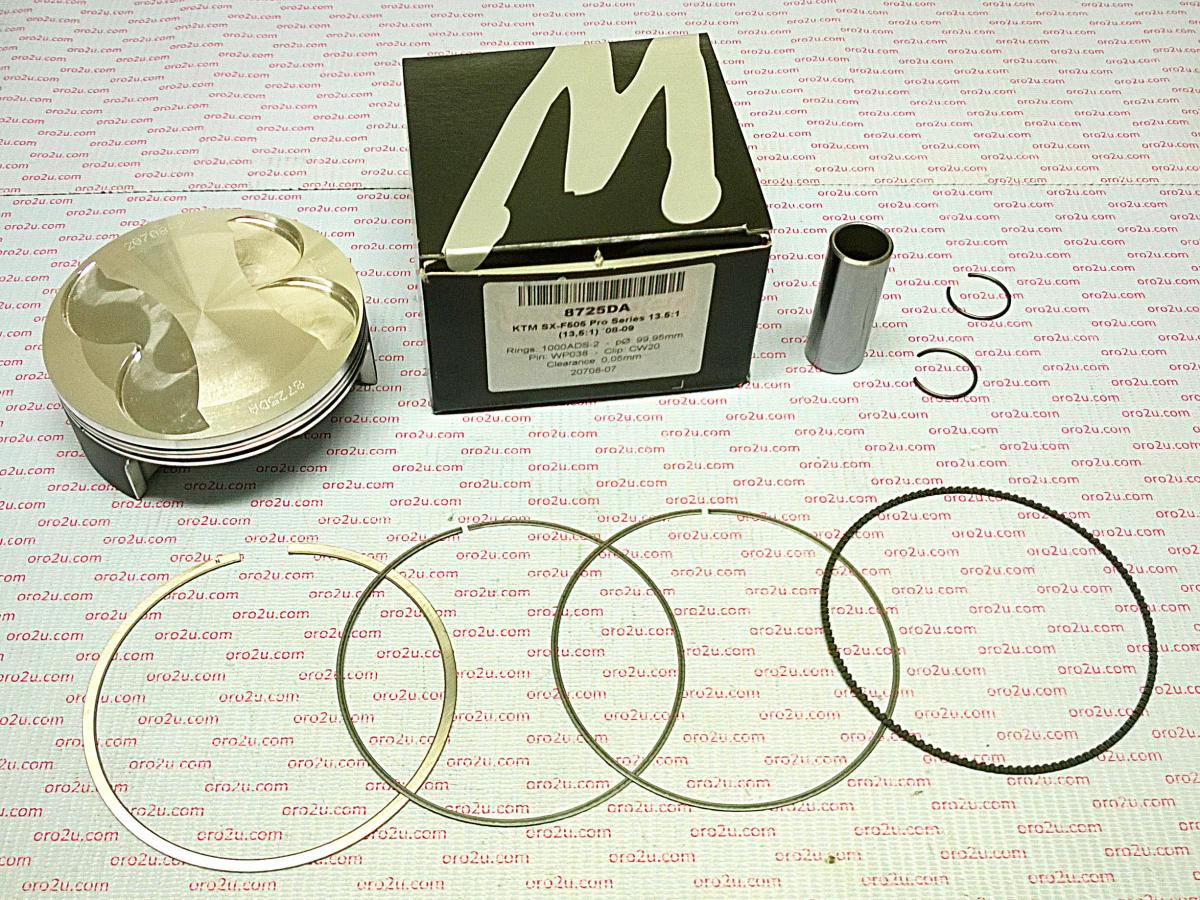

Wossner forged piston kit with a 100.01mm bore (99.96mm) for KTM SX-F 505 (2007-2008). Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

High-compression forged piston for increased performance
Optimized heat transfer for enhanced durability
Elliptical design ensures uniform bearing surface under heat expansion
Even thrust load distribution to prevent piston collapse
Manufactured in Germany

Specifications

Bore Size: 100.01mm (99.96mm)
Compression Ratio: 13.5:1
Part Number: 8725DB
Lock Part Number: CW20
Pin Part Number: WP038
Ring Set Part Number: 1000ADS-2
Displacement: 449 cm³
Stroke: 60.80mm
Clearance: 0.05mm
OEM Compression Ratio: 12.5:1
Dome Volume: +0.30 cm³
Compression Height: 21.80mm

Vehicle Fitments

KTM SX-F 505 (2007-2008)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	SX F 505	2008-2009
KTM	SX F 505	2007-2008

Piston Kit KTM505SX-F Hc 100, Wossner 8725DB 08-09

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner forged piston kit with a 100.01mm bore (99.96mm) for KTM SX-F 505 (2007-2008). Designed for superior strength and heat... Read more

1 in stock 1-2 business days

£255.51 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W315+00B.WO

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner forged piston kit with a 100.01mm bore (99.96mm) for KTM SX-F 505 (2007-2008). Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

High-compression forged piston for increased performance
Optimized heat transfer for enhanced durability
Elliptical design ensures uniform bearing surface under heat expansion
Even thrust load distribution to prevent piston collapse
Manufactured in Germany

Specifications

Bore Size: 100.01mm (99.96mm)
Compression Ratio: 13.5:1
Part Number: 8725DB
Lock Part Number: CW20
Pin Part Number: WP038
Ring Set Part Number: 1000ADS-2
Displacement: 449 cm³
Stroke: 60.80mm
Clearance: 0.05mm
OEM Compression Ratio: 12.5:1
Dome Volume: +0.30 cm³
Compression Height: 21.80mm

Vehicle Fitments

KTM SX-F 505 (2007-2008)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	SX F 505	2008-2009
KTM	SX F 505	2007-2008
