Name: Piston Kit Kxf RMZ 250 77.00 B, Forged Wosner 8582DB
Brand: Wossner
SKU: 56-W4842.B.WO

Piston Kit Kxf RMZ 250 77.00 B, Forged Wosner 8582DB

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

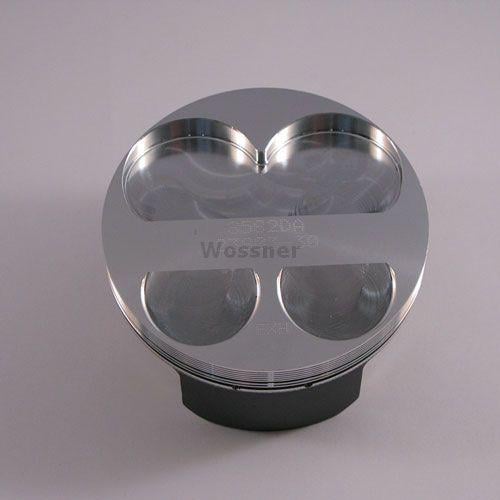

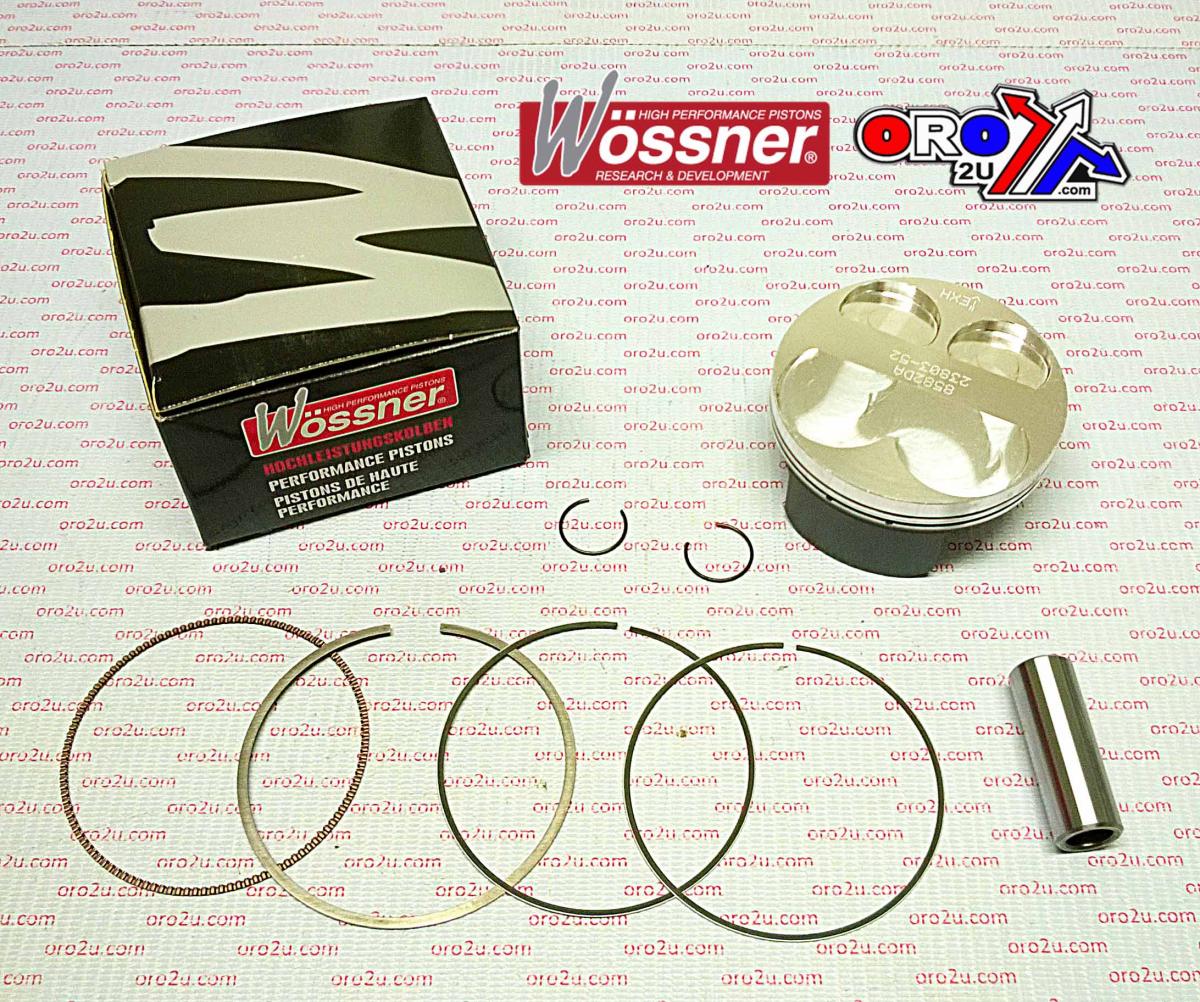

Wossner 77.01mm forged piston kit is designed for strength and durability. Engineered for optimal heat transfer, it ensures efficient cooling of the combustion chamber. The elliptical design provides a uniform bearing surface, reducing localized pressure and distributing thrust loads evenly to prevent piston collapse. Manufactured in Germany for precision and reliability.

Features

Forged construction for enhanced strength and longevity
Optimized heat transfer for improved engine performance
Elliptical design prevents piston collapse and ensures even load distribution
Manufactured in Germany for high-quality standards

Specifications

Bore Size: 77.01mm
Actual Bore Diameter: 76.97mm
Displacement: 249 cm³
Stroke: 53.60mm
Clearance: 0.04mm
Wossner Compression Ratio: 12.10:1
OEM Compression Ratio: 12.60:1
Dome Volume: -5.90 cm³
Compression Height: 19.60mm
Gasket Part Number: D4013
Lock Part Number: CW16
Pin Part Number: WP059
Ring Set Part Number: 770XAS
Rod Part Number: P4002

Cross-Reference OEM Part Numbers

Part No: 56-W4842.B.WO
Wossner Part No: 8582DB

Vehicle Fitments

Kawasaki KX250F (2004 - 2005)
Suzuki RM-Z250 (2004 - 2006)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	RM Z 250	2004-2006
SUZUKI	RM Z 250	2007-2009
KAWASAKI	KX F 250	2004-2005
SUZUKI	RM Z 250	2004-2009
KAWASAKI	KX F 250	2004-2008
KAWASAKI	KX F 250	2009
KAWASAKI	KX F 250	2006
KAWASAKI	KX F 250	2007-2008
