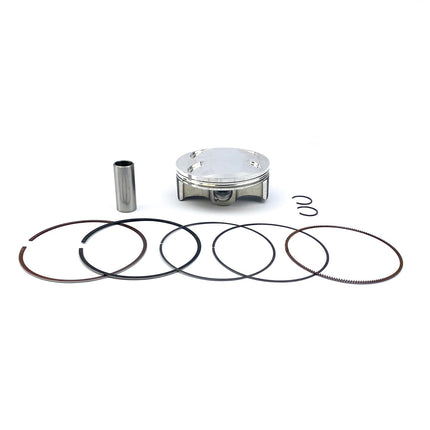

Piston Kit KXF450 16-18 High Compression Wossner Kit 4087DA

Description

High Compression Piston kit 96mm Bore 95.95 Wossner 4087DA (STD)

KAWASAKI
KX450F 2016 - 2018,

  • Wossner forged pistons are superior in strength and design.
  • Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
  • Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
  • Made in Germany.

Part No. 56-W9916.A.WO.HC  (radhouse.co.uk)

WOSSNER 4087DA PISTON KIT 96.00mm
A GRADE PISTON KIT 95.95mm
COMPRESSION RATIO 13.60:1
COMPRESSION HEIGHT 23,70mm
STROKE 62,1
CLEARANCE 0.05mm
THEORETICAL WEIGHT 256.50g

Cross reference numbers
RING SET. TPR96.00
CLIPS. CW19
PIN. WP028-SP

Piston Kit KXF450 16-18 High Compression Wossner Kit 4087DA

Product form

High Compression Piston kit 96mm Bore 95.95 Wossner 4087DA (STD) KAWASAKI KX450F 2016 - 2018, Wossner forged pistons are superior in... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W9916.A.WO.HC
    Barcode: 0120000009909

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    High Compression Piston kit 96mm Bore 95.95 Wossner 4087DA (STD)

    KAWASAKI
    KX450F 2016 - 2018,

    • Wossner forged pistons are superior in strength and design.
    • Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
    • Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
    • Made in Germany.

    Part No. 56-W9916.A.WO.HC  (radhouse.co.uk)

    WOSSNER 4087DA PISTON KIT 96.00mm
    A GRADE PISTON KIT 95.95mm
    COMPRESSION RATIO 13.60:1
    COMPRESSION HEIGHT 23,70mm
    STROKE 62,1
    CLEARANCE 0.05mm
    THEORETICAL WEIGHT 256.50g

    Cross reference numbers
    RING SET. TPR96.00
    CLIPS. CW19
    PIN. WP028-SP
