Name: Piston Kit LTR450 Hc 95.50 C, Wossner 8699DC 13.3:1 Comp, Suzuki
Brand: Wossner
SKU: 56-W4912.WO.C

Piston Kit LTR450 Hc 95.50 C, Wossner 8699DC 13.3:1 Comp, Suzuki

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

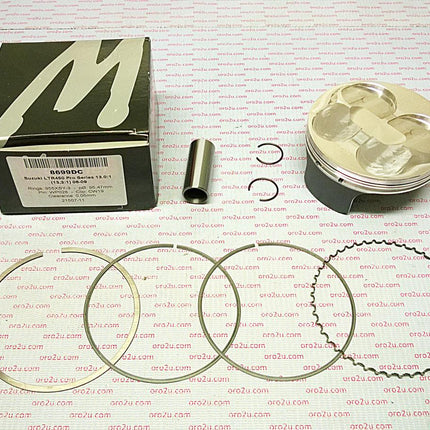

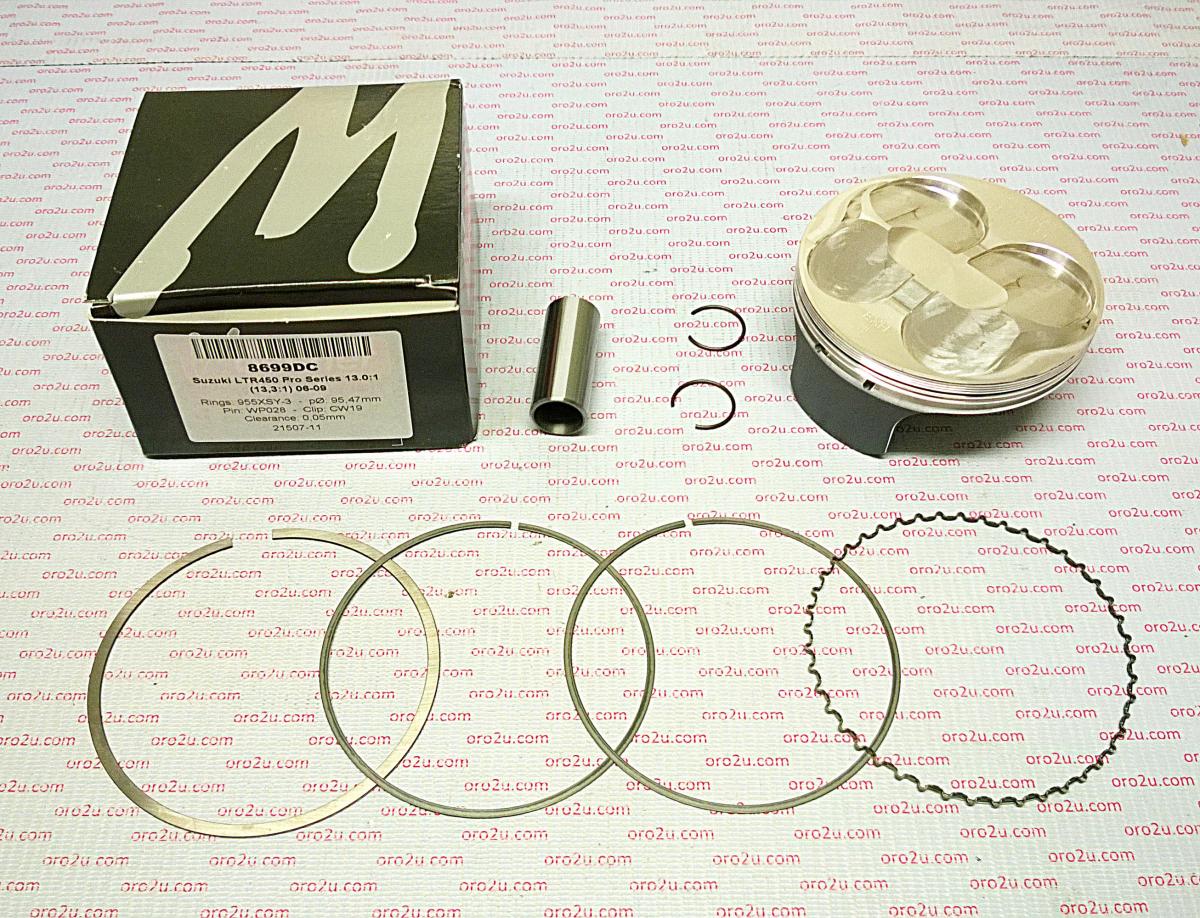

The Wossner 8699DC forged piston kit features a 95.52mm bore and is designed for high-compression performance in Suzuki LTR450 models from 2002 to 2011. Engineered in Germany, this piston provides superior heat transfer, strength, and reliability. Its elliptical shape ensures even load distribution under heat expansion, reducing localized stress and the risk of piston failure.

Features

Forged high-compression piston for durability and enhanced engine performance
Designed for optimal thermal conductivity and structural strength
Elliptical profile distributes pressure uniformly under heat expansion
Minimizes risk of localized pressure and piston collapse
Manufactured in Germany

Specifications

Bore: 95.52 mm
Actual Bore Diameter: 95.46 mm
Display: 450 cm³
Hub Stroke: 62.80 mm
Clearance: 0.05 mm
Compression Height: 24.50 mm
Dome Volume: +2.30 cm³
Wossner Compression Ratio: 13.30:1
OEM Compression Ratio: 11.70:1

Cross-Reference OEM Part Numbers

Piston: 8699DC
Lock: CW19
Pin: WP037
Ring Set: 955XSY
Rod: P4011
Part No.: 56-W4912.WO.C

Vehicle Fitments

Suzuki LTR450 2002–2011

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
SUZUKI	LTR 450	2006-2009
