Name: Piston Kit LTZ400 95.00, Forged Wossner 8563D550
Brand: Wossner
SKU: 56-W4713_550.WO

Piston Kit LTZ400 95.00, Forged Wossner 8563D550

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

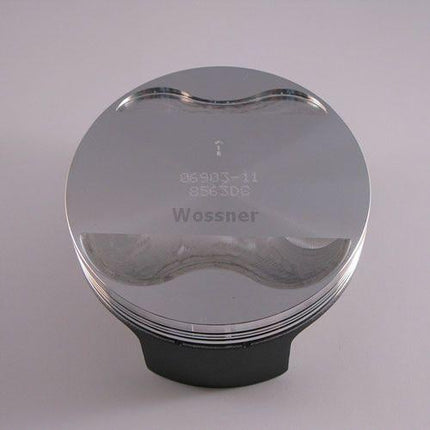

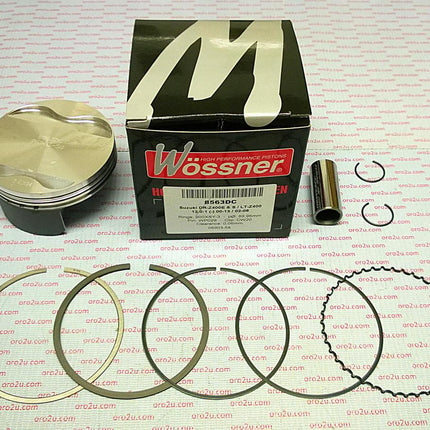

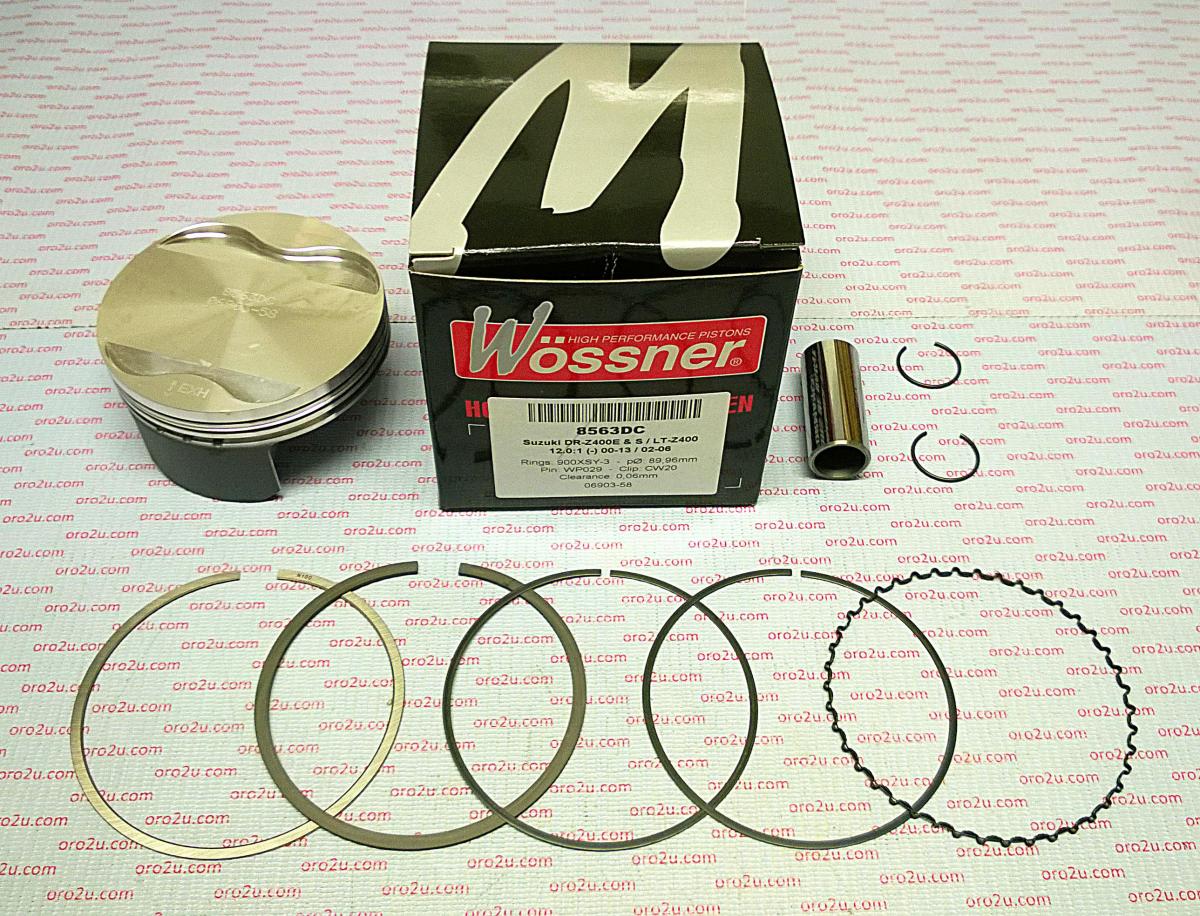

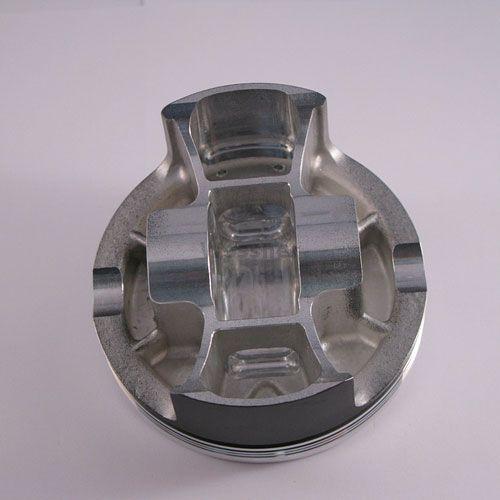

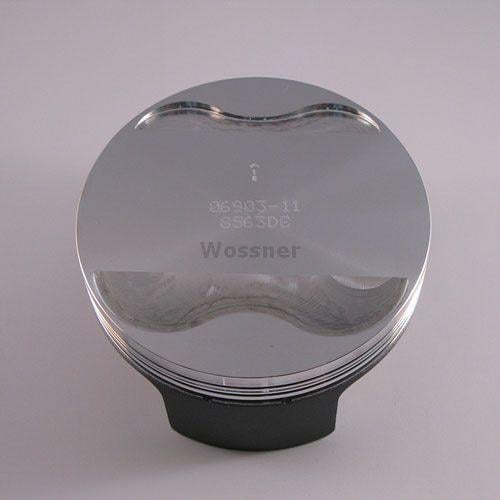

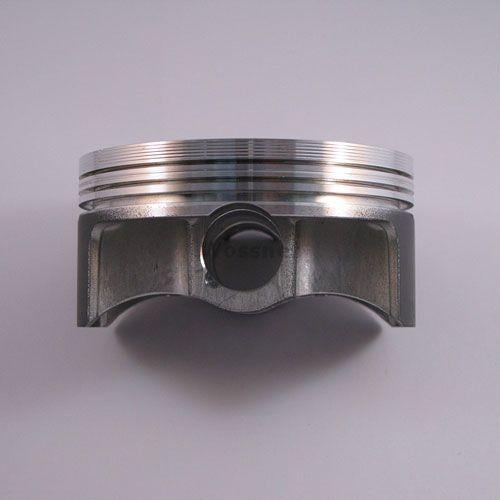

Wossner forged piston kit with a 95.50mm bore (95.44mm actual) is designed for Suzuki LT-Z400, DRZ400E, and DRZ400S models. Engineered for strength and optimal heat transfer, the piston features an elliptical design that ensures even load distribution, reducing localized pressure and preventing piston collapse. Manufactured in Germany, it maintains OEM compression specifications.

Features

Forged construction for durability and high performance
Optimized heat transfer to cylinder walls for improved efficiency
Elliptical design ensures uniform bearing surface and prevents piston collapse
Manufactured in Germany for high-quality standards

Specifications

Bore Size: 95.50mm (95.44mm actual)
Display (Displacement): 398 cm³
Stroke: 62.60mm
Clearance: 0.06mm
Compression Ratio: OEM specification (12.20:1)
Dome Volume: -2.00 cm³
Compression Height: 25.30mm

Cross-Reference OEM Part Numbers

Piston Kit: 8563D550
Lock: CW20
Pin: WP038
Ring Set: 955XSY
Rod: P4009

Vehicle Fitments

Suzuki LT-Z400 (2002-2012)
Suzuki DRZ400E (2000-2014)
Suzuki DRZ400S (2000-2014)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KAWASAKI	KLX R 400	2003
KAWASAKI	KFX 400	2003-2006
KAWASAKI	KLX 400	2003-2004
SUZUKI	DR Z 400	2000-2017
SUZUKI	DR Z 400	2000-2016
ARCTIC CAT	DVX 400	2004-2008
SUZUKI	DR Z 400	2000-2014
KAWASAKI	KLX 400	2003-2006
KAWASAKI	KLX 400	2003
SUZUKI	LT Z 400	2003-2014
SUZUKI	LT Z 400	2003-2018
SUZUKI	DR Z 400	2003-2008
SUZUKI	DR Z 400	2010-2018
KAWASAKI	KFX 400	2004-2008
SUZUKI	LT Z QUADSPORT 400	2003-2018
SUZUKI	LTZ 400	2003-2009
