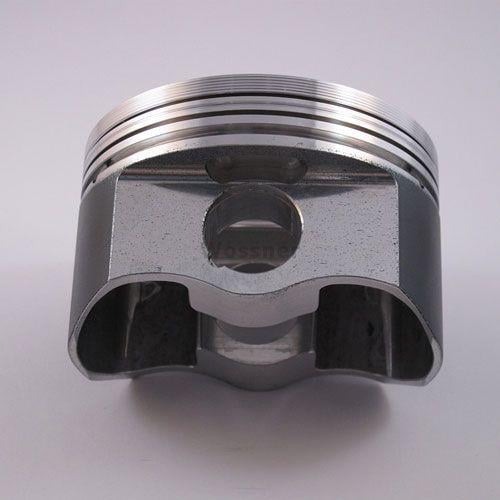

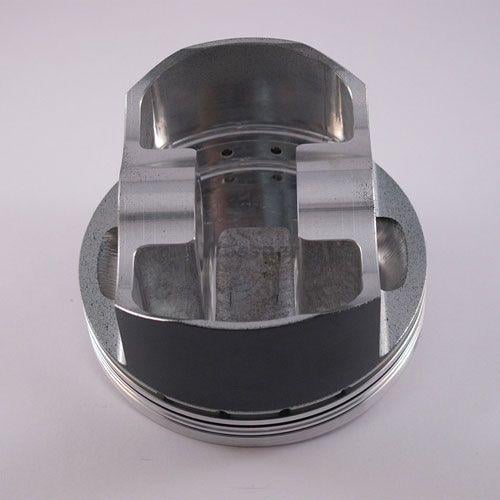

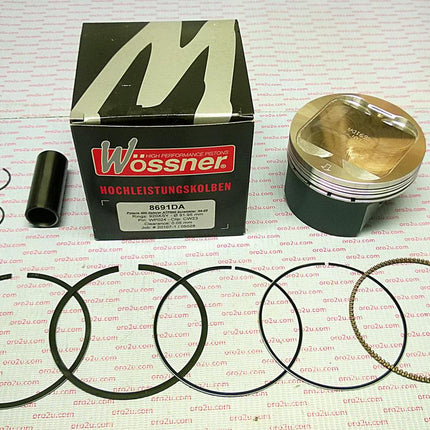

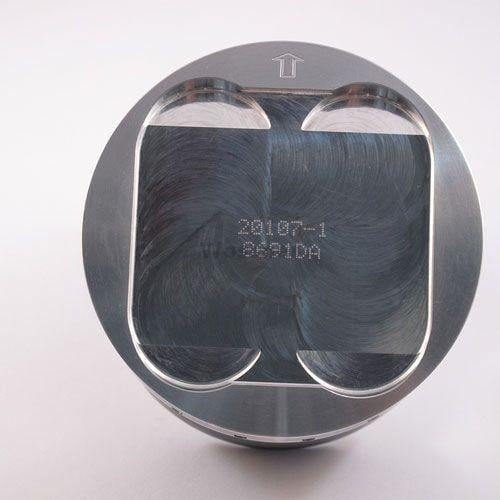

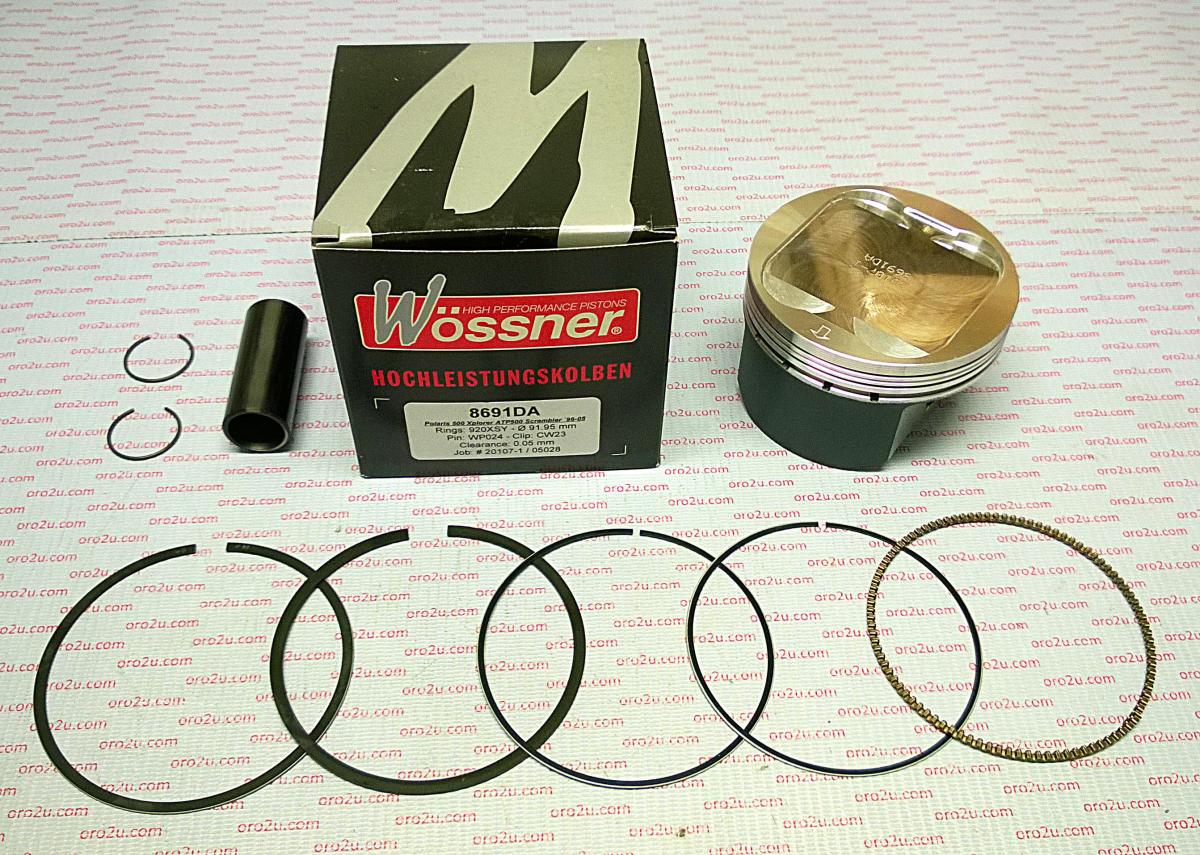

Piston Kit Polaris 500 93.00, Forged Wossner 8691D100

Description

The Wossner 93mm Bore Piston Kit (Part No. 8691D100) is a high-performance forged piston designed for Polaris 500 Explorer, ATP 500 H.O, and Sportsman models from 1996 to 2005. Engineered for strength and durability, it optimizes heat transfer within the combustion chamber and features an elliptical design to ensure even load distribution, reducing localized pressure and preventing piston collapse. Manufactured in Germany, this piston maintains the OEM compression ratio for reliable engine performance.

Features

  • High-strength forged piston construction
  • Optimized heat transfer for improved combustion efficiency
  • Elliptical design for even thrust load distribution
  • Manufactured in Germany

Specifications

  • Bore Size: 93mm
  • Actual Bore Diameter: 92.95mm
  • Compression Ratio: OEM
  • OEM Compression Ratio: 10.20:1
  • Displacement: 498cc
  • Stroke: 75.00mm
  • Clearance: 0.05mm
  • Dome Volume: -9.20cm³
  • Compression Height: 33.30mm

Cross-Reference OEM Part Numbers

  • Lock P/N: CW23
  • Pin P/N: WP024
  • Ring Set P/N: 930XSY

Vehicle Fitments

  • Polaris 500 Explorer (1996-2005)
  • Polaris ATP 500 H.O (1996-2005)
  • Polaris Sportsman (1996-2005)

Piston Kit Polaris 500 93.00, Forged Wossner 8691D100

Product form

The Wossner 93mm Bore Piston Kit (Part No. 8691D100) is a high-performance forged piston designed for Polaris 500 Explorer, ATP... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W4677+100.WO

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    The Wossner 93mm Bore Piston Kit (Part No. 8691D100) is a high-performance forged piston designed for Polaris 500 Explorer, ATP 500 H.O, and Sportsman models from 1996 to 2005. Engineered for strength and durability, it optimizes heat transfer within the combustion chamber and features an elliptical design to ensure even load distribution, reducing localized pressure and preventing piston collapse. Manufactured in Germany, this piston maintains the OEM compression ratio for reliable engine performance.

    Features

    • High-strength forged piston construction
    • Optimized heat transfer for improved combustion efficiency
    • Elliptical design for even thrust load distribution
    • Manufactured in Germany

    Specifications

    • Bore Size: 93mm
    • Actual Bore Diameter: 92.95mm
    • Compression Ratio: OEM
    • OEM Compression Ratio: 10.20:1
    • Displacement: 498cc
    • Stroke: 75.00mm
    • Clearance: 0.05mm
    • Dome Volume: -9.20cm³
    • Compression Height: 33.30mm

    Cross-Reference OEM Part Numbers

    • Lock P/N: CW23
    • Pin P/N: WP024
    • Ring Set P/N: 930XSY

    Vehicle Fitments

    • Polaris 500 Explorer (1996-2005)
    • Polaris ATP 500 H.O (1996-2005)
    • Polaris Sportsman (1996-2005)
