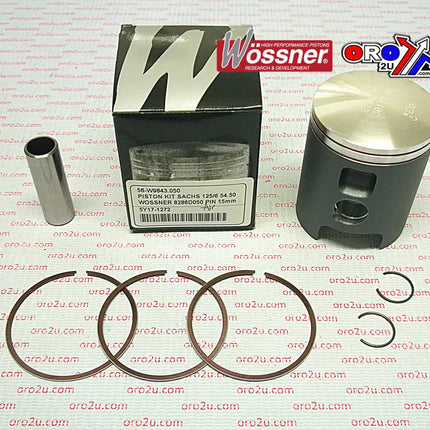

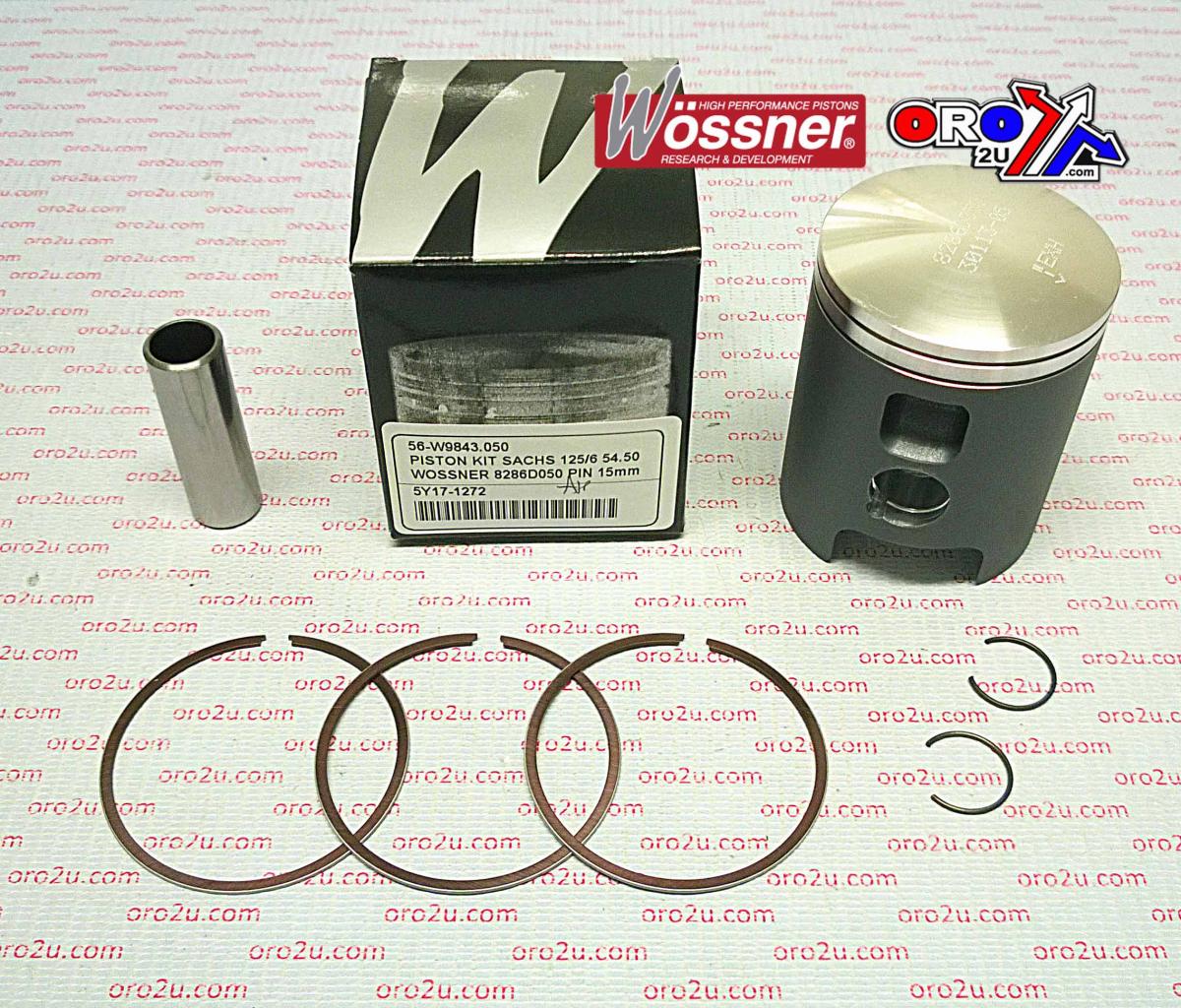

Piston Kit Sachs 125/6 54.50, Wossner 8286D050 Pin 15mm

Description

This Wossner forged piston kit with a 54.50mm bore is a standard replacement for the Sachs 125/6 engine. Forged in Germany, the piston offers superior strength and efficient thermal characteristics. Its elliptical profile ensures uniform expansion under operating temperatures, reducing stress and preventing piston collapse in two-stroke engine applications.

Features

  • Forged construction for high strength and reliability

  • Engineered for optimal heat transfer from combustion to cylinder walls

  • Elliptical profile maintains uniform bearing surface during heat expansion

  • Even thrust load distribution minimises localised pressure

  • Manufactured in Germany

Specifications

  • Bore: 54.50mm (Standard)

  • Actual bore: 54.44mm

  • Display volume: 122 cm³

  • Stroke: 54.00mm

  • Clearance: 0.06mm

  • Wossner compression ratio: 2-stroke

  • OEM compression ratio: 2-stroke

  • Compression height: 38.00mm

Cross-Reference OEM Part Numbers

  • 56-W9843.050

  • 8286DA

  • Clip Part Number: CW15

  • Pin Part Number: WP132

  • Ring Set Part Number: RSB5450 (x2)

Vehicle Fitments

  • Sachs 125/6

Piston Kit Sachs 125/6 54.50, Wossner 8286D050 Pin 15mm

Product form

This Wossner forged piston kit with a 54.50mm bore is a standard replacement for the Sachs 125/6 engine. Forged in... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W9843.050

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This Wossner forged piston kit with a 54.50mm bore is a standard replacement for the Sachs 125/6 engine. Forged in Germany, the piston offers superior strength and efficient thermal characteristics. Its elliptical profile ensures uniform expansion under operating temperatures, reducing stress and preventing piston collapse in two-stroke engine applications.

    Features

    • Forged construction for high strength and reliability

    • Engineered for optimal heat transfer from combustion to cylinder walls

    • Elliptical profile maintains uniform bearing surface during heat expansion

    • Even thrust load distribution minimises localised pressure

    • Manufactured in Germany

    Specifications

    • Bore: 54.50mm (Standard)

    • Actual bore: 54.44mm

    • Display volume: 122 cm³

    • Stroke: 54.00mm

    • Clearance: 0.06mm

    • Wossner compression ratio: 2-stroke

    • OEM compression ratio: 2-stroke

    • Compression height: 38.00mm

    Cross-Reference OEM Part Numbers

    • 56-W9843.050

    • 8286DA

    • Clip Part Number: CW15

    • Pin Part Number: WP132

    • Ring Set Part Number: RSB5450 (x2)

    Vehicle Fitments

    • Sachs 125/6
