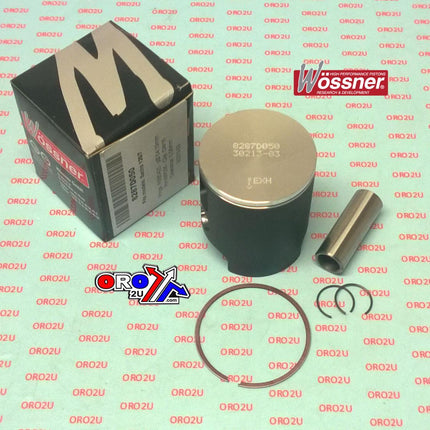

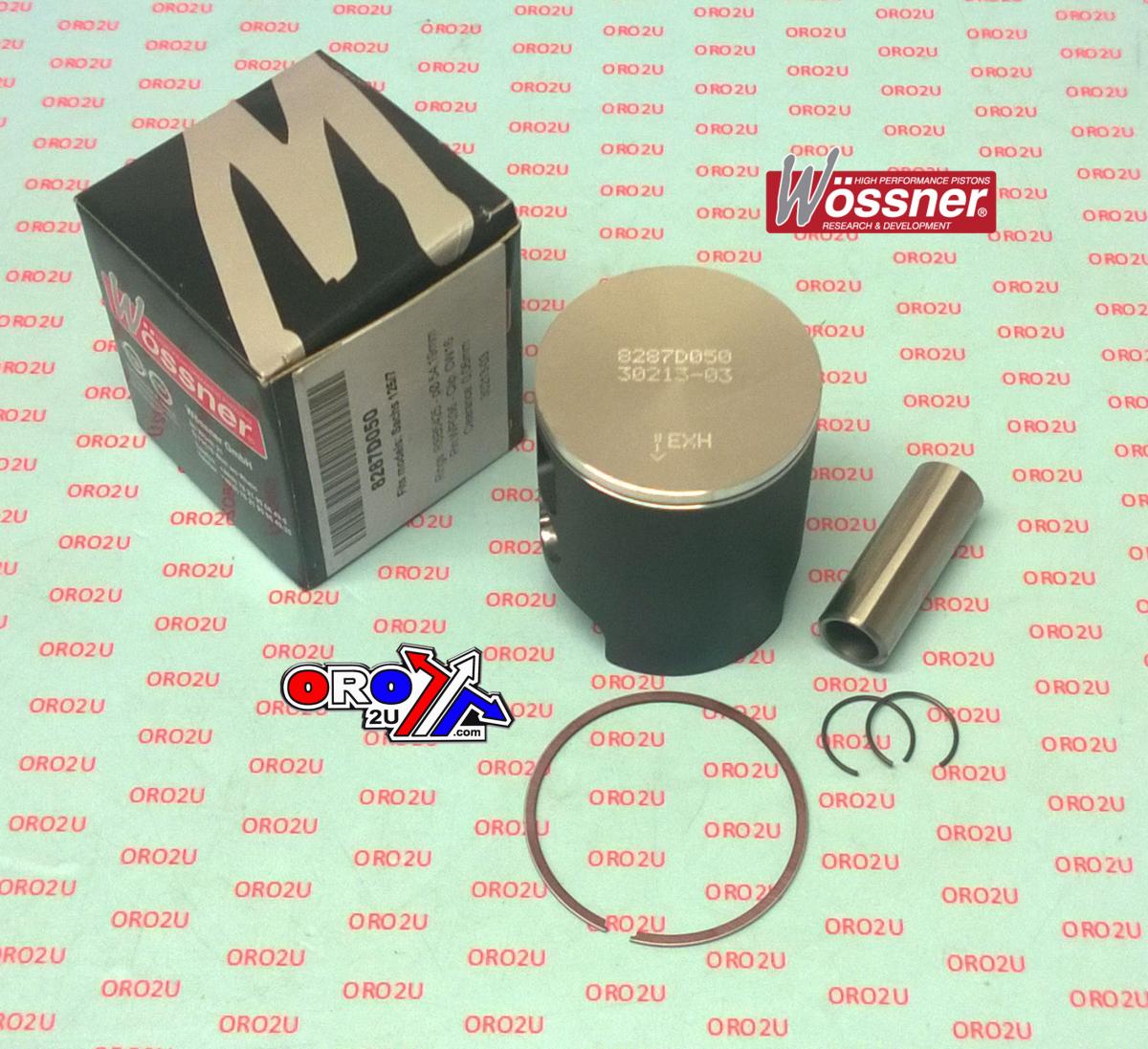

Piston Kit Sachs 125/7 55.25, Wossner 8287D150 Pin 16mm

Description

This Wossner forged piston kit with a 55.25mm bore is an oversized (+1.50mm) replacement for the Sachs 125/7 engine. Manufactured in Germany, it delivers excellent strength and heat transfer performance. The elliptical piston design ensures even pressure distribution during thermal expansion, reducing localised stress and enhancing durability in two-stroke engine applications.

Features

  • Forged construction for superior strength and longevity

  • Engineered for efficient combustion chamber heat dissipation

  • Elliptical profile maintains consistent bearing surface under thermal load

  • Even distribution of thrust loads minimises piston stress and wear

  • Manufactured in Germany

Specifications

  • Bore: 55.25mm (+1.50mm Oversize)

  • Actual bore: 55.19mm

  • Display volume: 122 cm³

  • Stroke: 54.00mm

  • Clearance: 0.06mm

  • Wossner compression ratio: 2-stroke

  • OEM compression ratio: 2-stroke

  • Compression height: 38.00mm

Cross-Reference OEM Part Numbers

  • 56-W9844.150

  • 8287D150

  • Clip Part Number: CW16

  • Pin Part Number: WP136

  • Ring Set Part Number: RSB5525 (x2)

Vehicle Fitments

  • Sachs 125/7

Piston Kit Sachs 125/7 55.25, Wossner 8287D150 Pin 16mm

Product form

This Wossner forged piston kit with a 55.25mm bore is an oversized (+1.50mm) replacement for the Sachs 125/7 engine. Manufactured... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W9844.150

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This Wossner forged piston kit with a 55.25mm bore is an oversized (+1.50mm) replacement for the Sachs 125/7 engine. Manufactured in Germany, it delivers excellent strength and heat transfer performance. The elliptical piston design ensures even pressure distribution during thermal expansion, reducing localised stress and enhancing durability in two-stroke engine applications.

    Features

    • Forged construction for superior strength and longevity

    • Engineered for efficient combustion chamber heat dissipation

    • Elliptical profile maintains consistent bearing surface under thermal load

    • Even distribution of thrust loads minimises piston stress and wear

    • Manufactured in Germany

    Specifications

    • Bore: 55.25mm (+1.50mm Oversize)

    • Actual bore: 55.19mm

    • Display volume: 122 cm³

    • Stroke: 54.00mm

    • Clearance: 0.06mm

    • Wossner compression ratio: 2-stroke

    • OEM compression ratio: 2-stroke

    • Compression height: 38.00mm

    Cross-Reference OEM Part Numbers

    • 56-W9844.150

    • 8287D150

    • Clip Part Number: CW16

    • Pin Part Number: WP136

    • Ring Set Part Number: RSB5525 (x2)

    Vehicle Fitments

    • Sachs 125/7
