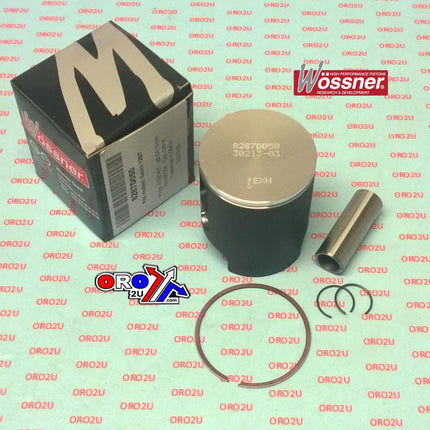

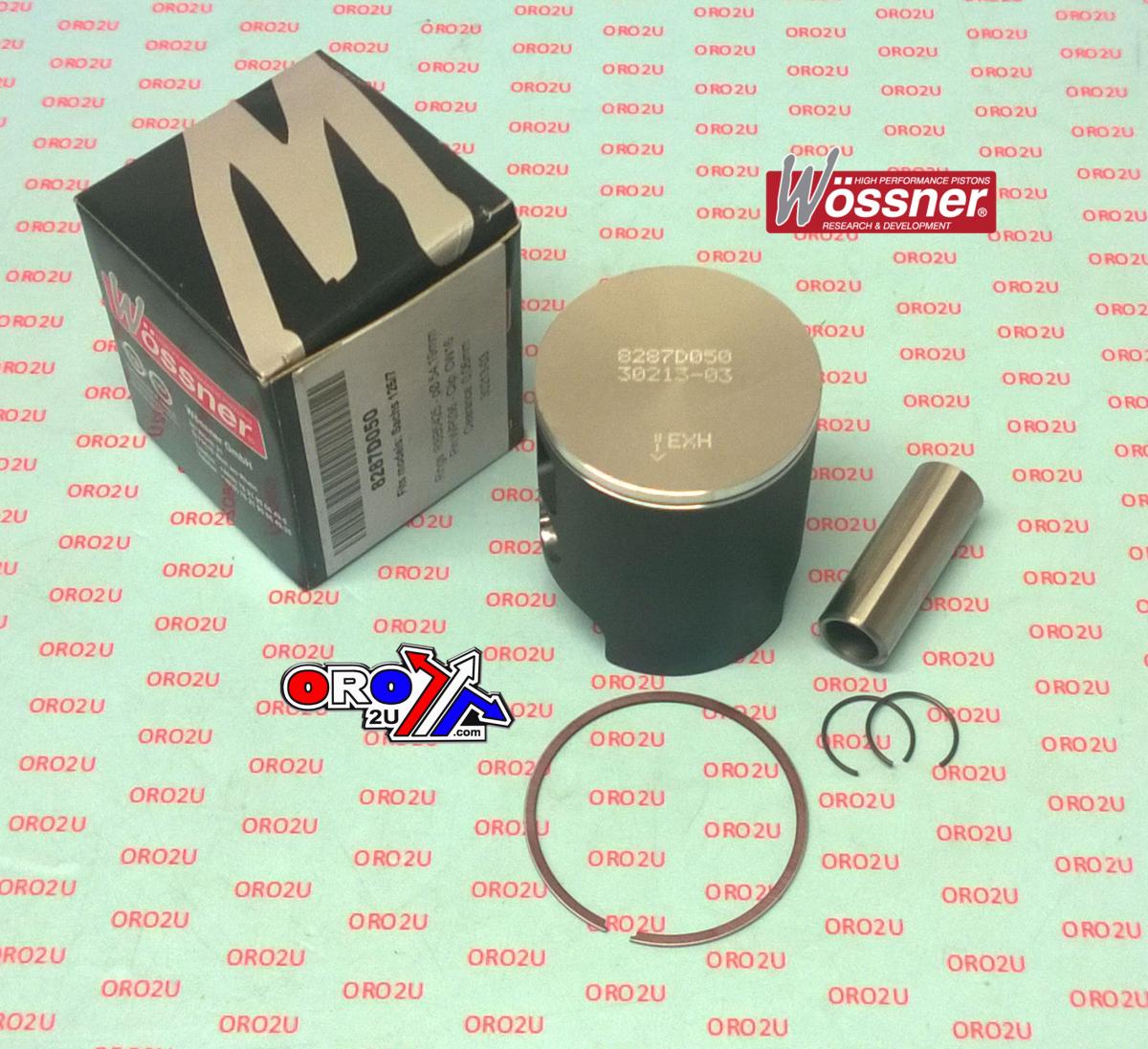

Piston Kit Sachs 125/7 55.75, Wossner 8287D200 Pin 16mm

Description

This Wossner forged piston kit with a 55.75mm bore is an oversized (+2.00mm) replacement for the Sachs 125/7 engine. Precision-forged in Germany, it is engineered for strength, thermal efficiency, and longevity. The elliptical piston profile promotes even expansion and load distribution, reducing localised stress and preventing failure under two-stroke operating conditions.

Features

  • Forged construction for high durability and performance

  • Optimised for efficient heat transfer from combustion to cylinder walls

  • Elliptical design provides uniform bearing surface under thermal expansion

  • Even thrust load distribution minimises localised pressure points

  • Manufactured in Germany

Specifications

  • Bore: 55.75mm (+2.00mm Oversize)

  • Actual bore: 55.69mm

  • Display volume: 122 cm³

  • Stroke: 54.00mm

  • Clearance: 0.06mm

  • Wossner compression ratio: 2-stroke

  • OEM compression ratio: 2-stroke

  • Compression height: 38.00mm

Cross-Reference OEM Part Numbers

  • 56-W9844.200

  • 8287D200

  • Clip Part Number: CW16

  • Pin Part Number: WP136

  • Ring Set Part Number: RSB5575 (x2)

Vehicle Fitments

  • Sachs 125/7

Piston Kit Sachs 125/7 55.75, Wossner 8287D200 Pin 16mm

Product form

This Wossner forged piston kit with a 55.75mm bore is an oversized (+2.00mm) replacement for the Sachs 125/7 engine. Precision-forged... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W9844.200

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This Wossner forged piston kit with a 55.75mm bore is an oversized (+2.00mm) replacement for the Sachs 125/7 engine. Precision-forged in Germany, it is engineered for strength, thermal efficiency, and longevity. The elliptical piston profile promotes even expansion and load distribution, reducing localised stress and preventing failure under two-stroke operating conditions.

    Features

    • Forged construction for high durability and performance

    • Optimised for efficient heat transfer from combustion to cylinder walls

    • Elliptical design provides uniform bearing surface under thermal expansion

    • Even thrust load distribution minimises localised pressure points

    • Manufactured in Germany

    Specifications

    • Bore: 55.75mm (+2.00mm Oversize)

    • Actual bore: 55.69mm

    • Display volume: 122 cm³

    • Stroke: 54.00mm

    • Clearance: 0.06mm

    • Wossner compression ratio: 2-stroke

    • OEM compression ratio: 2-stroke

    • Compression height: 38.00mm

    Cross-Reference OEM Part Numbers

    • 56-W9844.200

    • 8287D200

    • Clip Part Number: CW16

    • Pin Part Number: WP136

    • Ring Set Part Number: RSB5575 (x2)

    Vehicle Fitments

    • Sachs 125/7
