Piston Kit SET/3 Kaw. 500 Kh, Wossner K8247D050-3 60.50mm

Description

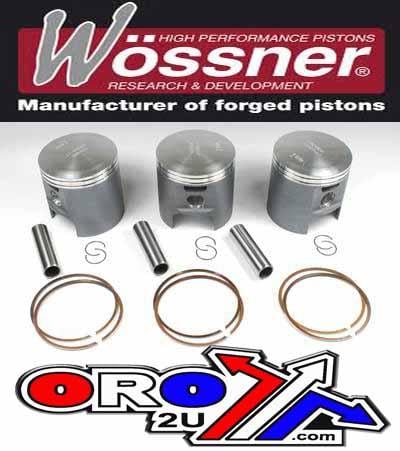

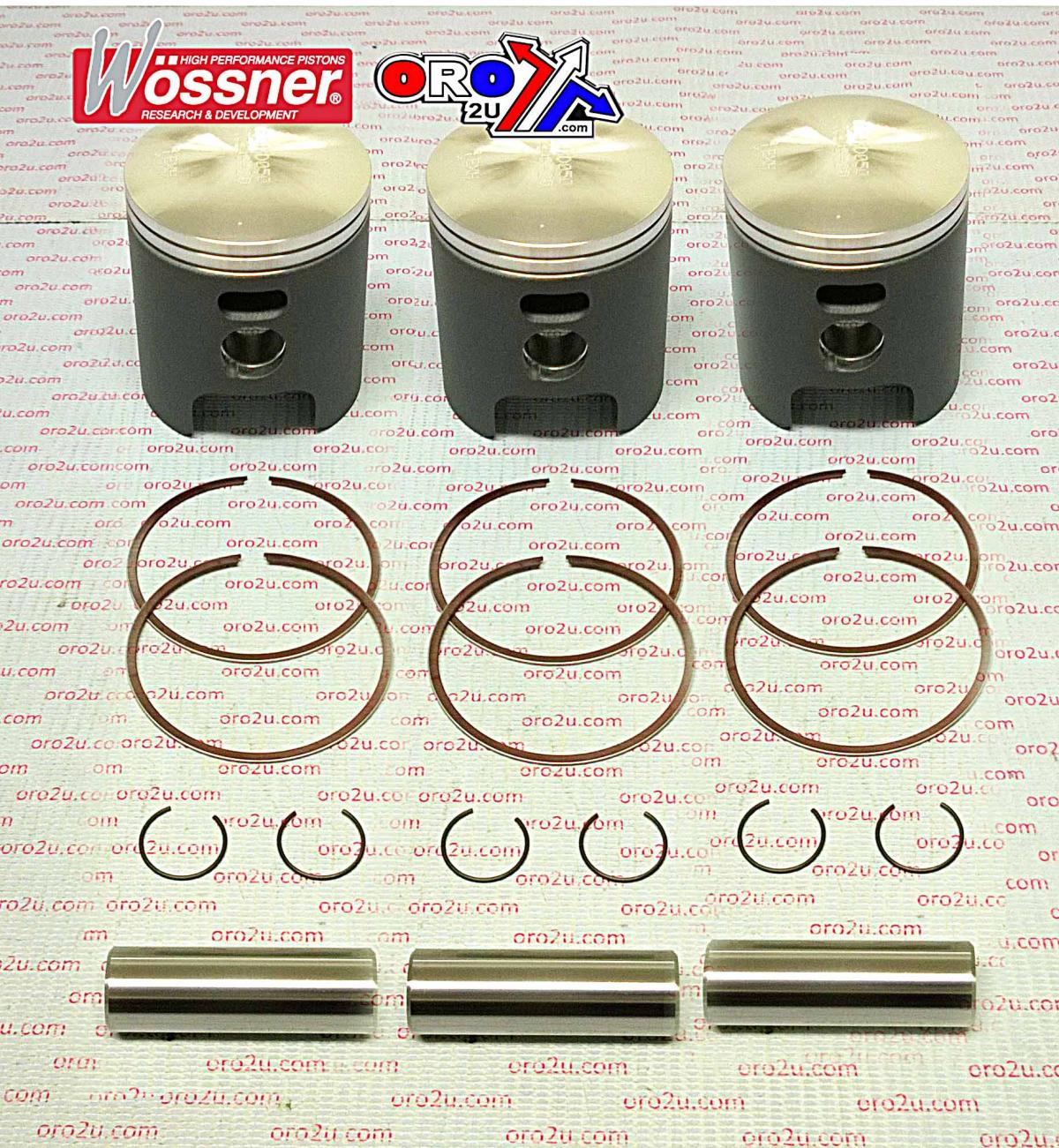

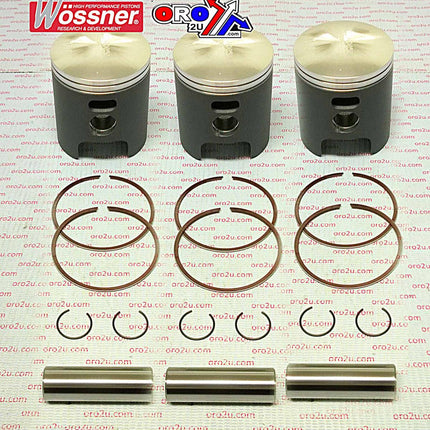

The Wossner K8247D050-3 piston kit is a +0.50mm oversize forged piston set for Kawasaki triple-cylinder 500cc motorcycles produced from 1969 to 1976. With a 60.50mm bore and two-stroke configuration, these pistons are engineered for reliable performance and optimal thermal efficiency. Manufactured in Germany, this kit includes three pistons and necessary installation components.

Features

  • Forged high-performance pistons with skirt coating

  • Elliptical design ensures even heat expansion and load distribution

  • Optimised for efficient heat transfer from combustion chamber to cylinder walls

  • Designed for two-stroke engine operation

  • Includes piston pins, clips, and rings

Specifications

  • Bore size: 60.50mm (+0.50mm oversize)

  • Measured bore: 60.43mm

  • Display displacement: 498 cm³

  • Stroke: 58.80mm

  • Clearance: 0.07mm

  • Compression height: 31.90mm

  • Theoretical weight: 177g

  • Wossner compression ratio: 2-stroke

  • OEM compression ratio: 2-stroke

  • Quantity: 3 pistons per kit

  • Made in Germany

Cross-Reference OEM Part Numbers

  • Part No. 56-W9867.050.WO

  • Clip: CW16

  • Piston Pin: WP041

  • Ring Set: RSB6050 x 2 per piston

Vehicle Fitments

  • Kawasaki 500S 1969–1976

  • Kawasaki 500 H1 1969–1976

  • Kawasaki 500 KH 1969–1976

  • Triple Cylinder Models

Piston Kit SET/3 Kaw. 500 Kh, Wossner K8247D050-3 60.50mm

Product form

The Wossner K8247D050-3 piston kit is a +0.50mm oversize forged piston set for Kawasaki triple-cylinder 500cc motorcycles produced from 1969... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W9867.050.WO

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    The Wossner K8247D050-3 piston kit is a +0.50mm oversize forged piston set for Kawasaki triple-cylinder 500cc motorcycles produced from 1969 to 1976. With a 60.50mm bore and two-stroke configuration, these pistons are engineered for reliable performance and optimal thermal efficiency. Manufactured in Germany, this kit includes three pistons and necessary installation components.

    Features

    • Forged high-performance pistons with skirt coating

    • Elliptical design ensures even heat expansion and load distribution

    • Optimised for efficient heat transfer from combustion chamber to cylinder walls

    • Designed for two-stroke engine operation

    • Includes piston pins, clips, and rings

    Specifications

    • Bore size: 60.50mm (+0.50mm oversize)

    • Measured bore: 60.43mm

    • Display displacement: 498 cm³

    • Stroke: 58.80mm

    • Clearance: 0.07mm

    • Compression height: 31.90mm

    • Theoretical weight: 177g

    • Wossner compression ratio: 2-stroke

    • OEM compression ratio: 2-stroke

    • Quantity: 3 pistons per kit

    • Made in Germany

    Cross-Reference OEM Part Numbers

    • Part No. 56-W9867.050.WO

    • Clip: CW16

    • Piston Pin: WP041

    • Ring Set: RSB6050 x 2 per piston

    Vehicle Fitments

    • Kawasaki 500S 1969–1976

    • Kawasaki 500 H1 1969–1976

    • Kawasaki 500 KH 1969–1976

    • Triple Cylinder Models
