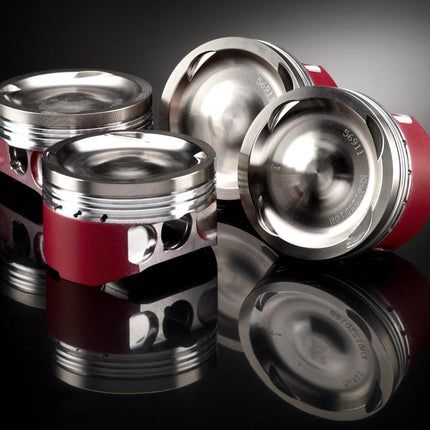

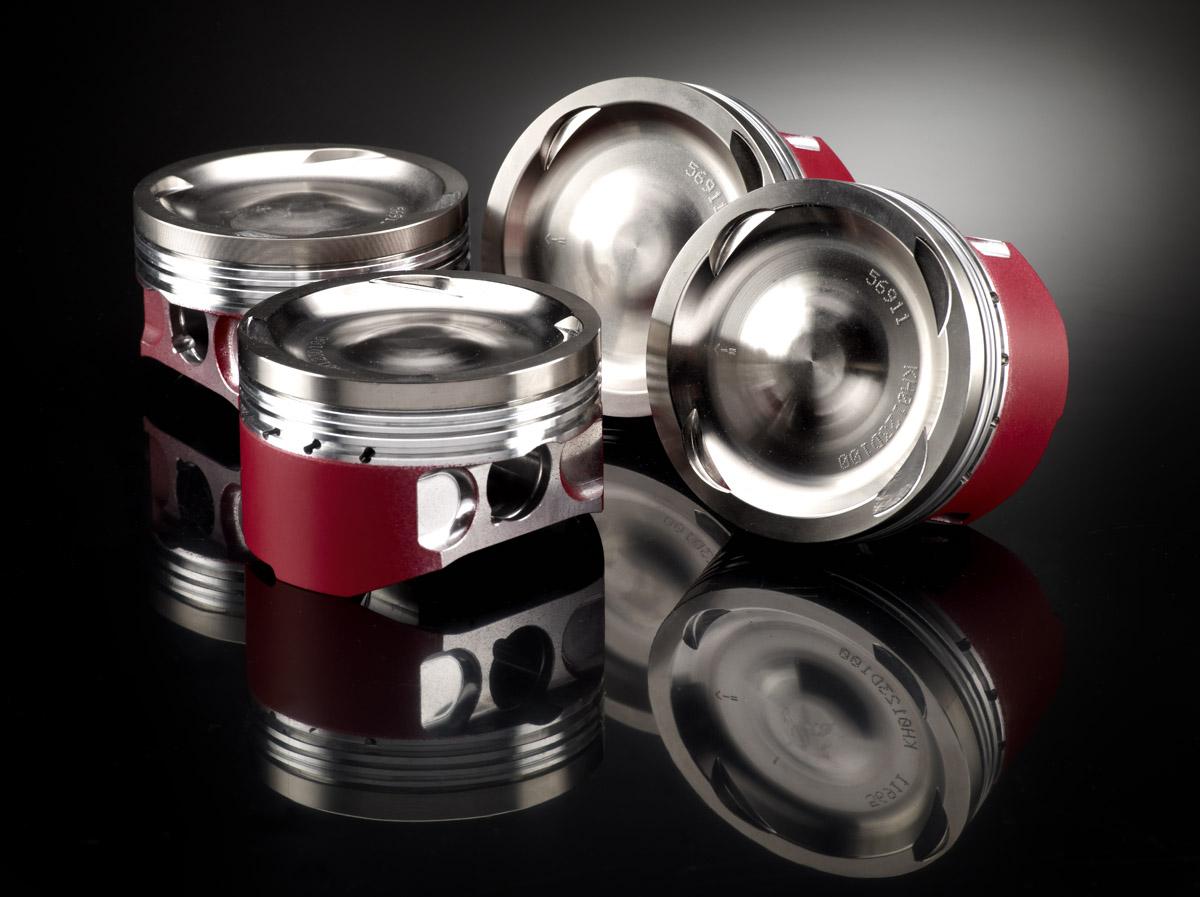

Piston Kit SET/4 84 Nc 1999-2007 Suzuki Hayabusa Wossner K4017D300-4

Description

This piston kit is designed for Suzuki Hayabusa models from 1999 to 2007 and includes four forged Wossner pistons from the Pro Series. Featuring a +3.00mm oversize bore (84.00mm), this kit is suited for high-performance builds requiring increased displacement and durability. The elliptical piston design enhances heat expansion management and distributes thrust loads evenly to reduce stress and prevent piston collapse. Manufactured in Germany, it ensures quality and precision for demanding engine configurations.

Features

  • Set of 4 forged Wossner pistons (Pro Series)
  • +3.00mm oversized bore (84.00mm, actual piston diameter 83.95mm)
  • 3-ring design
  • Elliptical construction for improved load distribution under thermal expansion
  • Optimised for heat transfer and mechanical strength
  • Made in Germany

Specifications

  • Part Number: K4017D300-4
  • Bore Size: 84.00mm (actual piston size 83.95mm)
  • Oversize: +3.00mm
  • Stroke: 63.00mm
  • Clearance: 0.05mm
  • Wossner Compression Ratio: 12.00:1
  • Compression Height: 25.25mm
  • Theoretical Weight: 253g

Cross-Reference OEM Part Numbers

  • Clip: CW20
  • Piston Pin: WP029-SP
  • Replacement Ring Set: RIK84.00B

Vehicle Fitments

  • Suzuki Hayabusa 1999–2007

Piston Kit SET/4 84 Nc 1999-2007 Suzuki Hayabusa Wossner K4017D300-4

Product form

This piston kit is designed for Suzuki Hayabusa models from 1999 to 2007 and includes four forged Wossner pistons from... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W9897.300.NC.WO

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This piston kit is designed for Suzuki Hayabusa models from 1999 to 2007 and includes four forged Wossner pistons from the Pro Series. Featuring a +3.00mm oversize bore (84.00mm), this kit is suited for high-performance builds requiring increased displacement and durability. The elliptical piston design enhances heat expansion management and distributes thrust loads evenly to reduce stress and prevent piston collapse. Manufactured in Germany, it ensures quality and precision for demanding engine configurations.

    Features

    • Set of 4 forged Wossner pistons (Pro Series)
    • +3.00mm oversized bore (84.00mm, actual piston diameter 83.95mm)
    • 3-ring design
    • Elliptical construction for improved load distribution under thermal expansion
    • Optimised for heat transfer and mechanical strength
    • Made in Germany

    Specifications

    • Part Number: K4017D300-4
    • Bore Size: 84.00mm (actual piston size 83.95mm)
    • Oversize: +3.00mm
    • Stroke: 63.00mm
    • Clearance: 0.05mm
    • Wossner Compression Ratio: 12.00:1
    • Compression Height: 25.25mm
    • Theoretical Weight: 253g

    Cross-Reference OEM Part Numbers

    • Clip: CW20
    • Piston Pin: WP029-SP
    • Replacement Ring Set: RIK84.00B

    Vehicle Fitments

    • Suzuki Hayabusa 1999–2007
