Piston Kit SET/4 GSXR1100 85, Wossner K8530D700-4 Suzuki, Oversize 7.00mm / 1315cc

Description

Piston kit 85mm Bore 84.94 Wossner SET/4 K8530D700-4 (+7mm)

SUZUKI
GSXR1100 1989-1992,
GSF1200 BANDIT 1989-1992,
GSX1100F KATANA 1989-1992,

  • Wossner forged pistons are superior in strength and design.
  • Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
  • Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
  • Made in Germany.

Part No. 56-W9890.700.WO (radhouse.co.uk)
SUZUKI GSXR1100 1989-1992, SUZUKI GSF1200 BANDIT 1989-1992, SUZUKI GSX1100F KATANA 1989-1992,

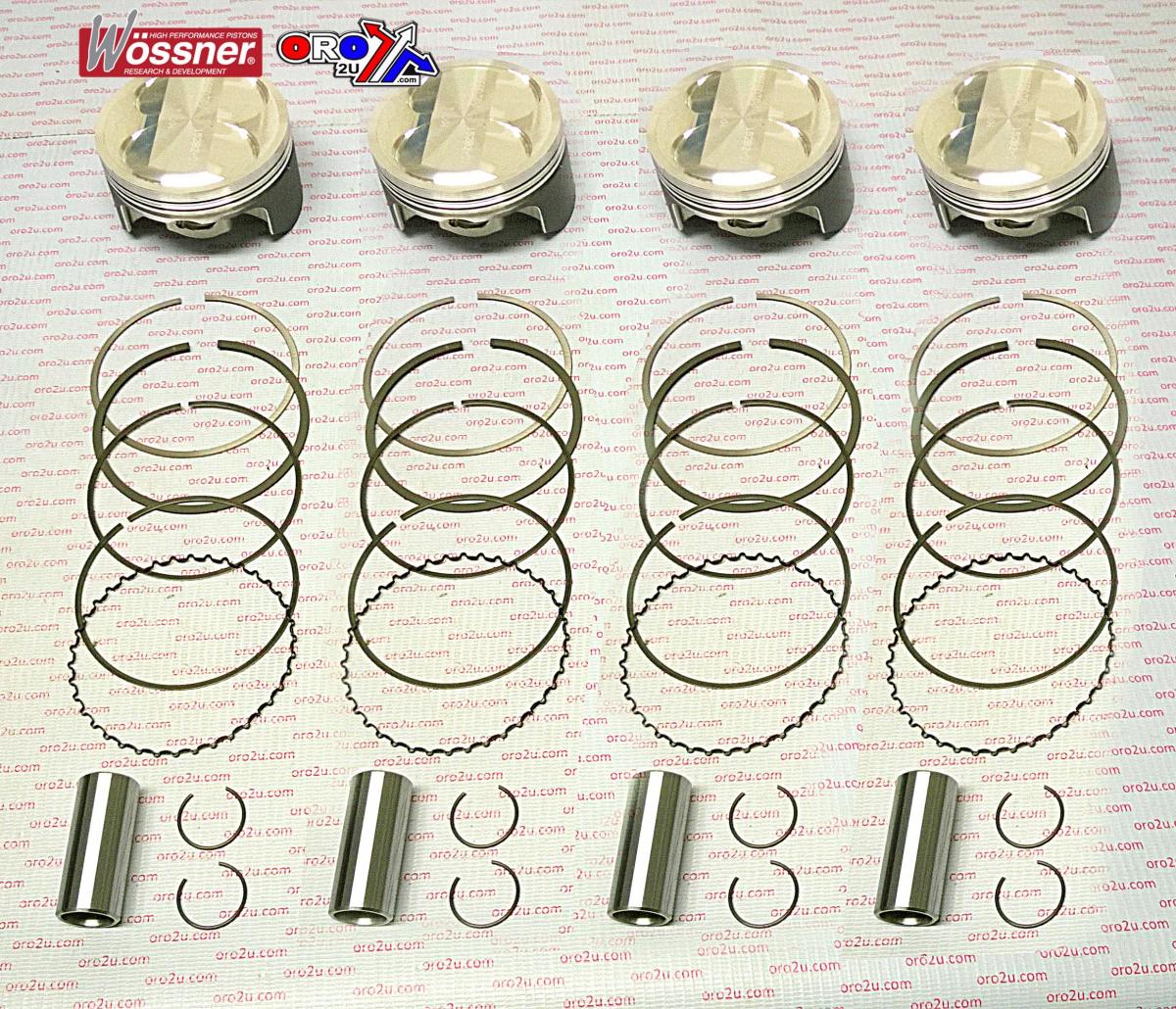

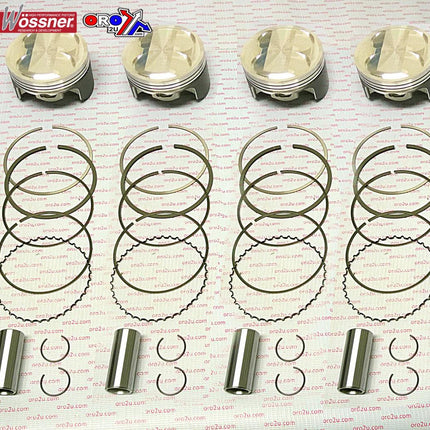

PISTON KIT SET/4 WOSSNER K8530D700-4 O/S 7.00mm 85.00mm.

CLIP No. CW20,
PIN No. WP029,
RINGS No. 850XSY

COMP.RATIO 12.5:1 COMP.HEIGHT 25.30mm

Display (cm3) 1165/1194/1224/1254/1315
Hub stroke (mm) 58.00
Clearance (mm) 0.06
Wossner compression Ratio: 12.5:1
OEM Compression ratio: 10.0:1
Dome volume (cm3) +3.80
Compression height (mm) 25.30
Theorectical weight (G)

Piston Kit SET/4 GSXR1100 85, Wossner K8530D700-4 Suzuki, Oversize 7.00mm / 1315cc

Product form

Piston kit 85mm Bore 84.94 Wossner SET/4 K8530D700-4 (+7mm) SUZUKI GSXR1100 1989-1992, GSF1200 BANDIT 1989-1992, GSX1100F KATANA 1989-1992, Wossner forged... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 56-W9890.700.WO

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Piston kit 85mm Bore 84.94 Wossner SET/4 K8530D700-4 (+7mm)

    SUZUKI
    GSXR1100 1989-1992,
    GSF1200 BANDIT 1989-1992,
    GSX1100F KATANA 1989-1992,

    • Wossner forged pistons are superior in strength and design.
    • Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
    • Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
    • Made in Germany.

    Part No. 56-W9890.700.WO (radhouse.co.uk)
    SUZUKI GSXR1100 1989-1992, SUZUKI GSF1200 BANDIT 1989-1992, SUZUKI GSX1100F KATANA 1989-1992,
    PISTON KIT SET/4 WOSSNER K8530D700-4 O/S 7.00mm 85.00mm.

    CLIP No. CW20,
    PIN No. WP029,
    RINGS No. 850XSY

    COMP.RATIO 12.5:1 COMP.HEIGHT 25.30mm

    Display (cm3) 1165/1194/1224/1254/1315
    Hub stroke (mm) 58.00
    Clearance (mm) 0.06
    Wossner compression Ratio: 12.5:1
    OEM Compression ratio: 10.0:1
    Dome volume (cm3) +3.80
    Compression height (mm) 25.30
    Theorectical weight (G)
