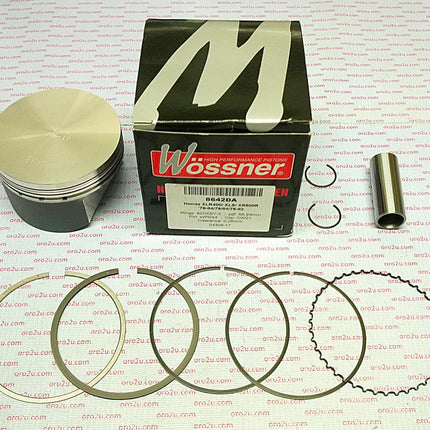

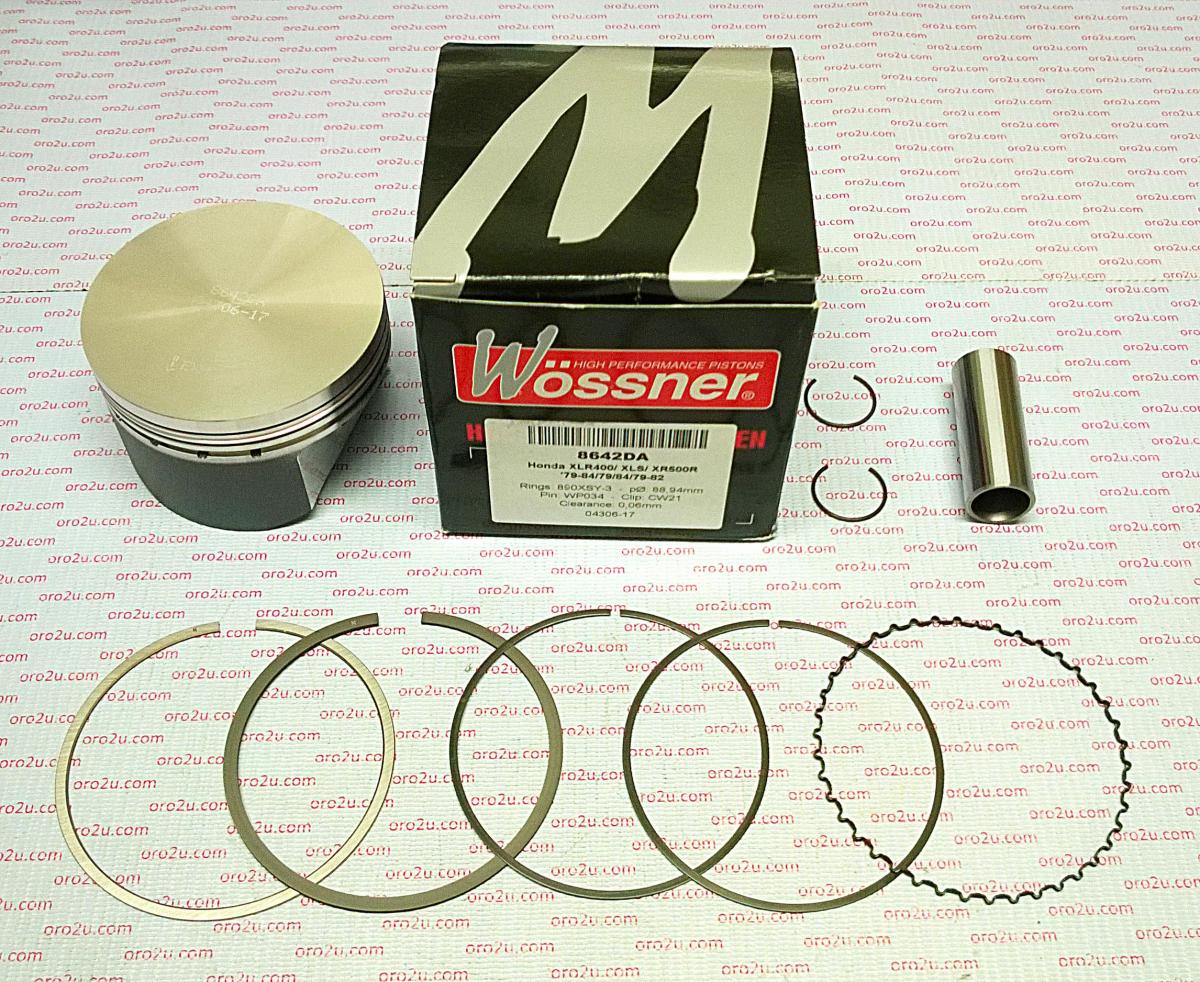

Name: Piston Kit Xr Xlr 500 89.50, Forged Wossner 8642D050
Brand: Wossner
SKU: 56-W310+050

Piston Kit Xr Xlr 500 89.50, Forged Wossner 8642D050

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

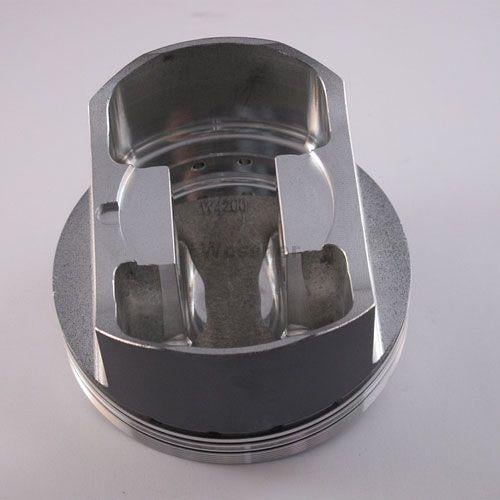

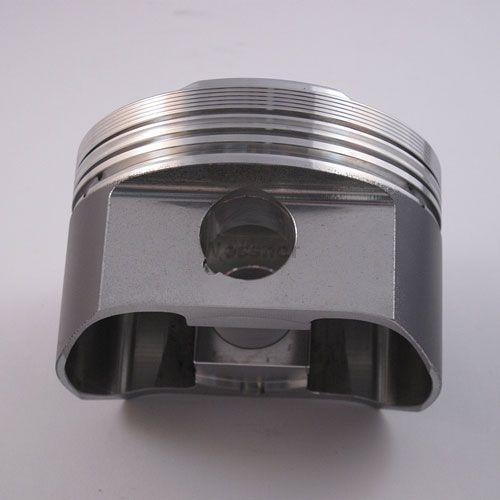

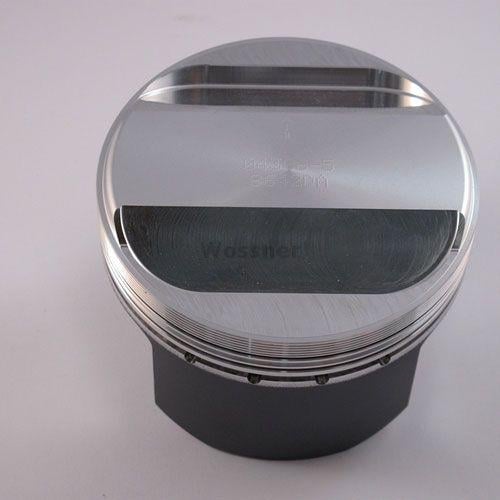

Wossner forged piston kit with an 89.50mm bore (89.44mm) for Honda XR400, XLS400, XLR500, XLS500, and XR500R models. Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

Forged piston for increased strength and durability
Optimized heat transfer for improved performance
Elliptical design ensures uniform bearing surface under heat expansion
Even thrust load distribution to prevent piston collapse
Manufactured in Germany

Specifications

Bore Size: 89.50mm (89.44mm)
Compression Ratio: 9.0:1
Part Number: 8642D050
Lock Part Number: CW21
Pin Part Number: WP034
Ring Set Part Number: 895XSY
Displacement: 398 cm³
Stroke: 64.00mm
Clearance: 0.06mm
OEM Compression Ratio: 8.6:1
Dome Volume: +0.00 cm³
Compression Height: 29.70mm

Vehicle Fitments

Honda XR400 (1981-1982)
Honda XLS400 (1981-1982)
Honda XLR500 (1979-1984)
Honda XLS500 (1979-1984)
Honda XR500R (1979-1982)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	XR 400	1996-2004
HONDA	XL 500	1979-1982
HONDA	XL R 500	1979-1982
HONDA	XR R 500	1979-1982
HONDA	XR 500	1979-1982
HONDA	XLS 500	1979-1982
HONDA	XLS 500	1979-1984
HONDA	XLR 500	1979-1984
HONDA	XL R 500	1979-1984

Piston Kit Xr Xlr 500 89.50, Forged Wossner 8642D050

Wossner
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Wossner forged piston kit with an 89.50mm bore (89.44mm) for Honda XR400, XLS400, XLR500, XLS500, and XR500R models. Designed for... Read more

Out of stock

£0.00 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 56-W310+050

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Wossner forged piston kit with an 89.50mm bore (89.44mm) for Honda XR400, XLS400, XLR500, XLS500, and XR500R models. Designed for superior strength and heat transfer efficiency, this piston ensures optimal combustion performance. The elliptical design distributes thrust loads evenly, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

Forged piston for increased strength and durability
Optimized heat transfer for improved performance
Elliptical design ensures uniform bearing surface under heat expansion
Even thrust load distribution to prevent piston collapse
Manufactured in Germany

Specifications

Bore Size: 89.50mm (89.44mm)
Compression Ratio: 9.0:1
Part Number: 8642D050
Lock Part Number: CW21
Pin Part Number: WP034
Ring Set Part Number: 895XSY
Displacement: 398 cm³
Stroke: 64.00mm
Clearance: 0.06mm
OEM Compression Ratio: 8.6:1
Dome Volume: +0.00 cm³
Compression Height: 29.70mm

Vehicle Fitments

Honda XR400 (1981-1982)
Honda XLS400 (1981-1982)
Honda XLR500 (1979-1984)
Honda XLS500 (1979-1984)
Honda XR500R (1979-1982)

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
HONDA	XR 400	1996-2004
HONDA	XL 500	1979-1982
HONDA	XL R 500	1979-1982
HONDA	XR R 500	1979-1982
HONDA	XR 500	1979-1982
HONDA	XLS 500	1979-1982
HONDA	XLS 500	1979-1984
HONDA	XLR 500	1979-1984
HONDA	XL R 500	1979-1984
