Pit Bike Triple Clamp Set 33mm Forks With 22mm (7/8) Handlebar Risers

Description

Aluminium triple tree clamp set with 22 mm (7/8") handlebar mounting clamps for pit and dirt bikes using binocular-style 33 mm forks. Supplied with upper and lower clamps/plates, handlebar riser blocks and a steering stem, it is intended for 50–125 cc Chinese models, including examples such as Atomik and Thumpstar.

Features

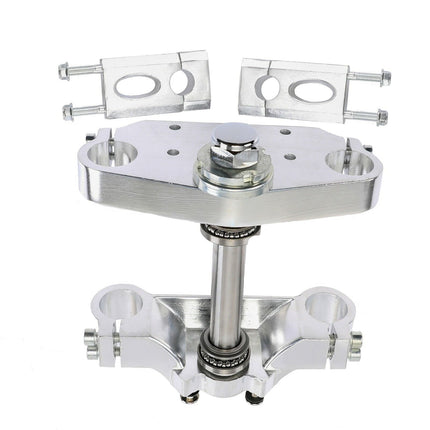

  • Complete assembly: upper and lower clamps, handlebar riser blocks and steering stem
  • Designed for binocular-style fork front ends on 50–125 cc Chinese pit/dirt bikes
  • Compatible with popular models such as Atomik and Thumpstar, and other similar bikes
  • General interfaces: for 22 mm (7/8") handlebars; for 33 mm fork tubes

Specifications

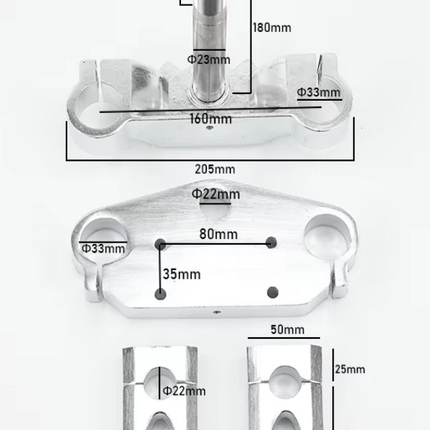

Upper clamp (top yoke)

  • Overall width 160 mm
  • Fork clamp bores Ø33 mm

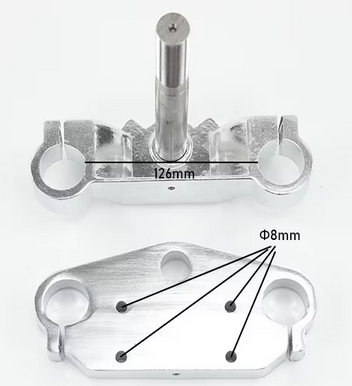

  • Fork spacing 126 mm

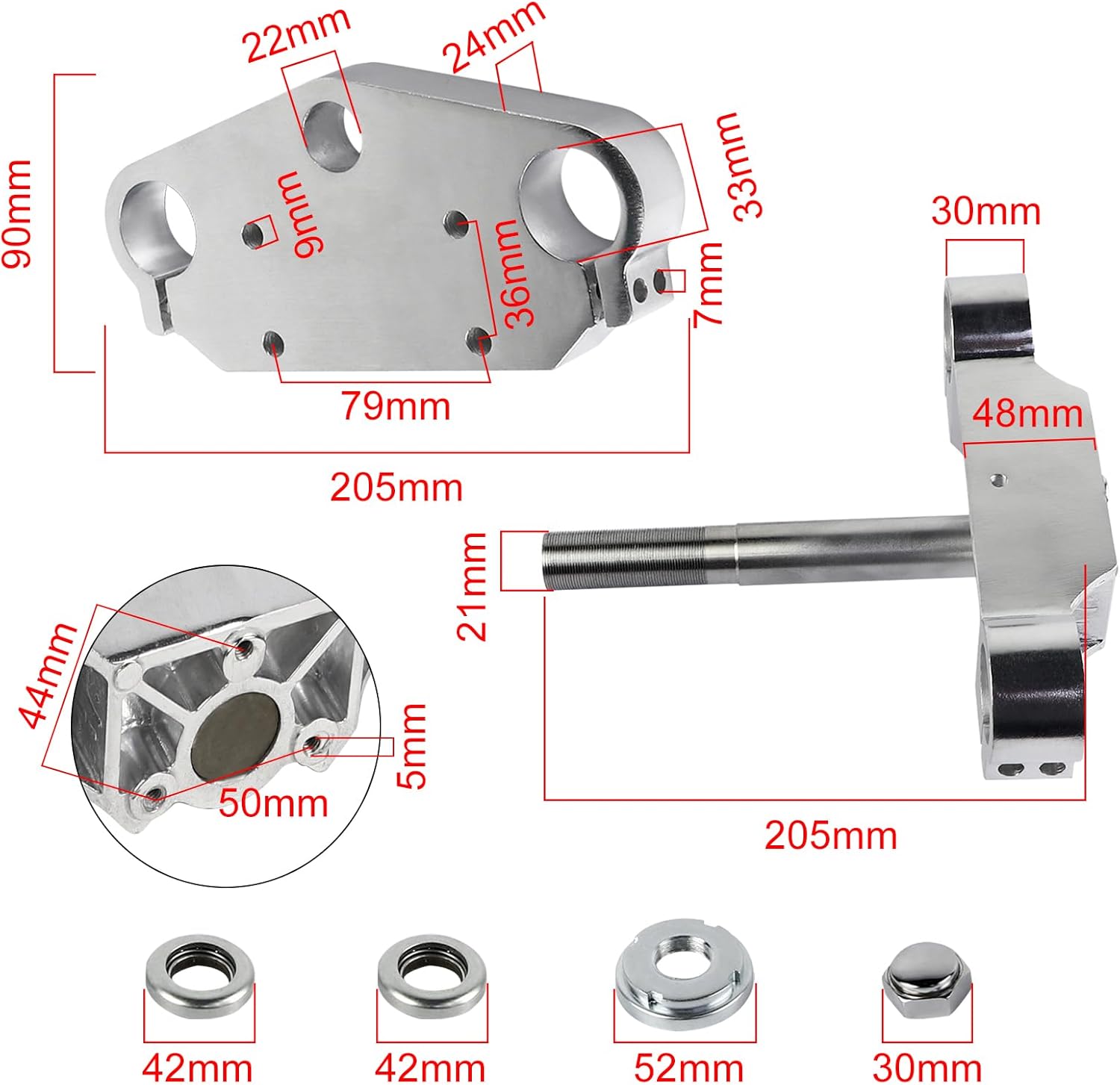

Lower clamp/plate (bottom yoke)

  • Overall width 205 mm
  • Fork clamp bores Ø33 mm
  • Headstock/top bore Ø22 mm
  • Central hole pattern 80 mm (horizontal) × 35 mm (vertical)
  • Four auxiliary holes Ø8 mm

Steering stem

  • Overall length 180 mm
  • Diameters Ø23 mm main section and Ø22 mm top section
  • 59 mm upper section length

Handlebar riser blocks (pair)

  • Clamp bore Ø22 mm (7/8")
  • Width 50 mm
  • Heights 47 mm and 68 mm
  • Distance from top to through-hole centre 20 mm and 25 mm respectively

Vehicle Fitments

  • 50 cc, 70 cc, 110 cc and 125 cc Chinese pit/dirt bikes with 33 mm binocular-style forks and 22 mm handlebars, including examples such as Atomik and Thumpstar

Pit Bike Triple Clamp Set 33mm Forks With 22mm (7/8) Handlebar Risers

Product form

Aluminium triple tree clamp set with 22 mm (7/8") handlebar mounting clamps for pit and dirt bikes using binocular-style 33... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 16-3531
    Barcode: 0120000052370

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    Aluminium triple tree clamp set with 22 mm (7/8") handlebar mounting clamps for pit and dirt bikes using binocular-style 33 mm forks. Supplied with upper and lower clamps/plates, handlebar riser blocks and a steering stem, it is intended for 50–125 cc Chinese models, including examples such as Atomik and Thumpstar.

    Features

    • Complete assembly: upper and lower clamps, handlebar riser blocks and steering stem
    • Designed for binocular-style fork front ends on 50–125 cc Chinese pit/dirt bikes
    • Compatible with popular models such as Atomik and Thumpstar, and other similar bikes
    • General interfaces: for 22 mm (7/8") handlebars; for 33 mm fork tubes

    Specifications

    Upper clamp (top yoke)

    • Overall width 160 mm
    • Fork clamp bores Ø33 mm
    • Fork spacing 126 mm

    Lower clamp/plate (bottom yoke)

    • Overall width 205 mm
    • Fork clamp bores Ø33 mm
    • Headstock/top bore Ø22 mm
    • Central hole pattern 80 mm (horizontal) × 35 mm (vertical)
    • Four auxiliary holes Ø8 mm

    Steering stem

    • Overall length 180 mm
    • Diameters Ø23 mm main section and Ø22 mm top section
    • 59 mm upper section length

    Handlebar riser blocks (pair)

    • Clamp bore Ø22 mm (7/8")
    • Width 50 mm
    • Heights 47 mm and 68 mm
    • Distance from top to through-hole centre 20 mm and 25 mm respectively

    Vehicle Fitments

    • 50 cc, 70 cc, 110 cc and 125 cc Chinese pit/dirt bikes with 33 mm binocular-style forks and 22 mm handlebars, including examples such as Atomik and Thumpstar
