Pit Bike Triple Clamp Set 45mm 48mm Forks With 22mm Handlebar Mount Risers

Description

This universal aluminium triple clamp set with integrated bar risers is designed for upside-down (USD) front forks on pit and dirt bikes. It provides secure fork clamping with 45 mm (upper) and 48 mm (lower) bores and accepts standard handlebars, making it suitable for CRF50-style and similar pit bike front ends.

Features

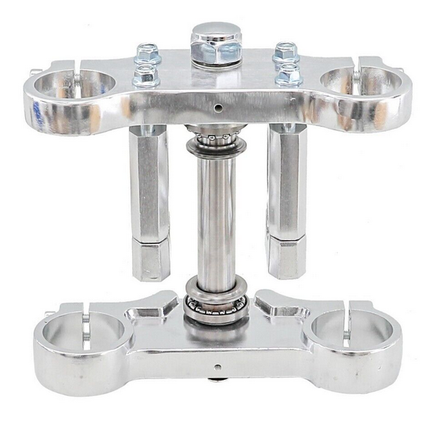

  • Complete triple clamp set
  • Integrated handlebar risers
  • Designed for upside-down (USD) front forks
  • Aluminium construction

Specifications

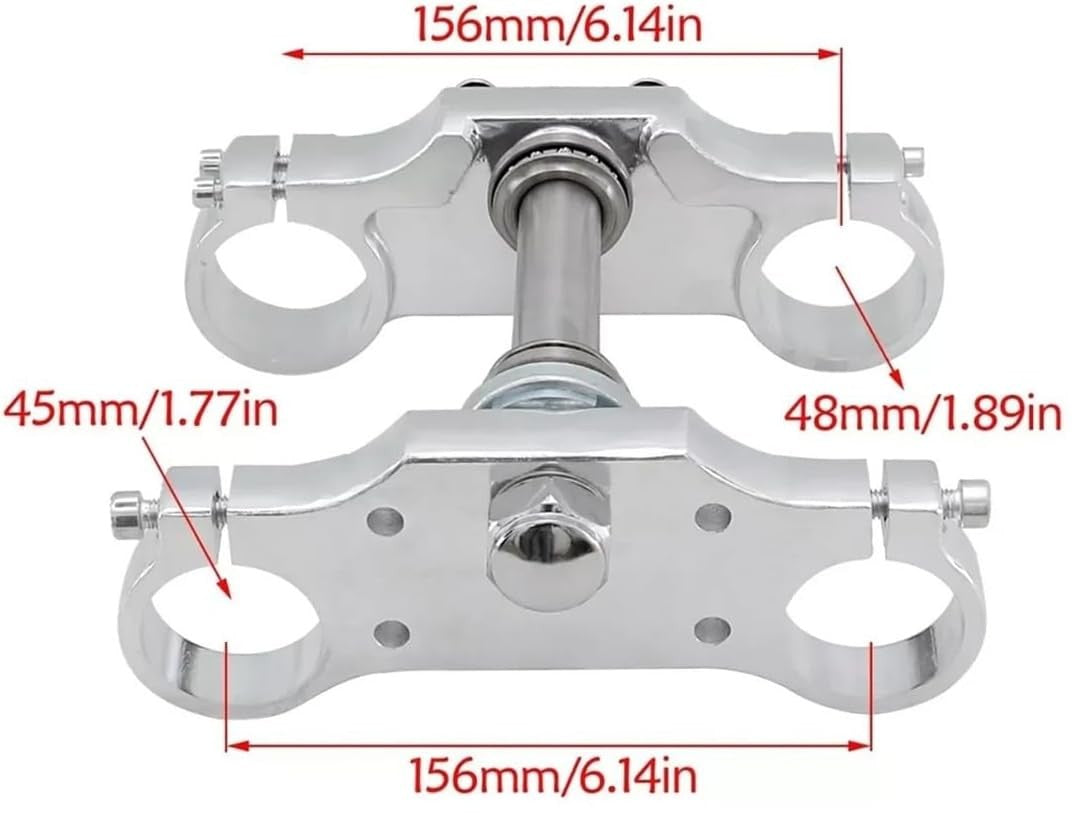

  • Upper clamp bore diameter: 45 mm
  • Lower clamp bore diameter: 48 mm
  • Handlebar clamp diameter: 22 mm (7/8")

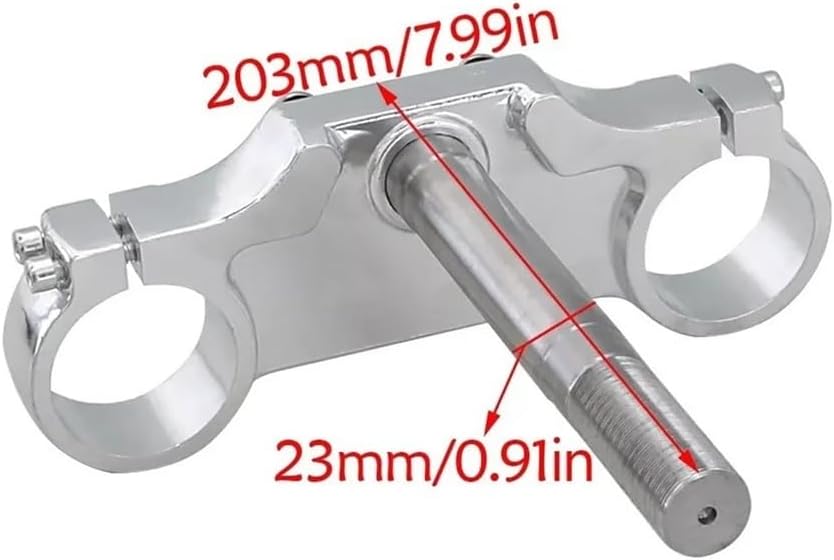

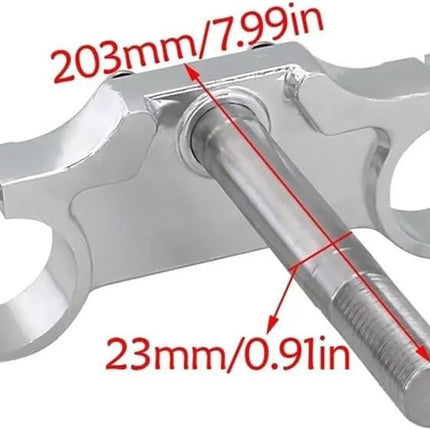

  • Column (steering stem) length: 203 mm

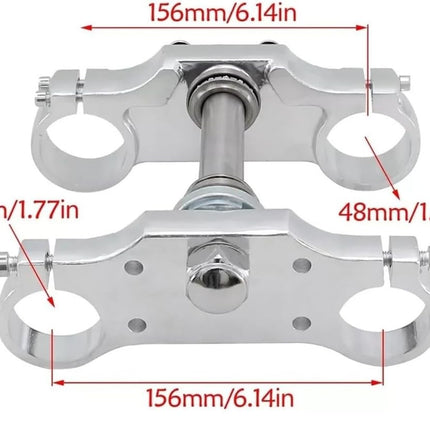

  • Bolt-to-bolt distance: 156 mm
  • Bearing sizes (tapered roller): 320/22 and 320/23

Vehicle Fitments

  • Universal fit for Chinese pit bikes using 45 mm/48 mm USD forks and 22 mm handlebars
  • Suitable for small, midsize, and big-wheel pit bike frames
  • Commonly used on CRF50-style frames and similar models

Pit Bike Triple Clamp Set 45mm 48mm Forks With 22mm Handlebar Mount Risers

Product form

This universal aluminium triple clamp set with integrated bar risers is designed for upside-down (USD) front forks on pit and... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 16-3530
    Barcode: 0120000052844

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This universal aluminium triple clamp set with integrated bar risers is designed for upside-down (USD) front forks on pit and dirt bikes. It provides secure fork clamping with 45 mm (upper) and 48 mm (lower) bores and accepts standard handlebars, making it suitable for CRF50-style and similar pit bike front ends.

    Features

    • Complete triple clamp set
    • Integrated handlebar risers
    • Designed for upside-down (USD) front forks
    • Aluminium construction

    Specifications

    • Upper clamp bore diameter: 45 mm
    • Lower clamp bore diameter: 48 mm
    • Handlebar clamp diameter: 22 mm (7/8")
    • Column (steering stem) length: 203 mm
    • Bolt-to-bolt distance: 156 mm
    • Bearing sizes (tapered roller): 320/22 and 320/23

    Vehicle Fitments

    • Universal fit for Chinese pit bikes using 45 mm/48 mm USD forks and 22 mm handlebars
    • Suitable for small, midsize, and big-wheel pit bike frames
    • Commonly used on CRF50-style frames and similar models
