Prop Shaft Yoke 96-16 Polaris Atp Diesel Magnum Scrambler Sportsman Ranger Xplorer 3260131

Description

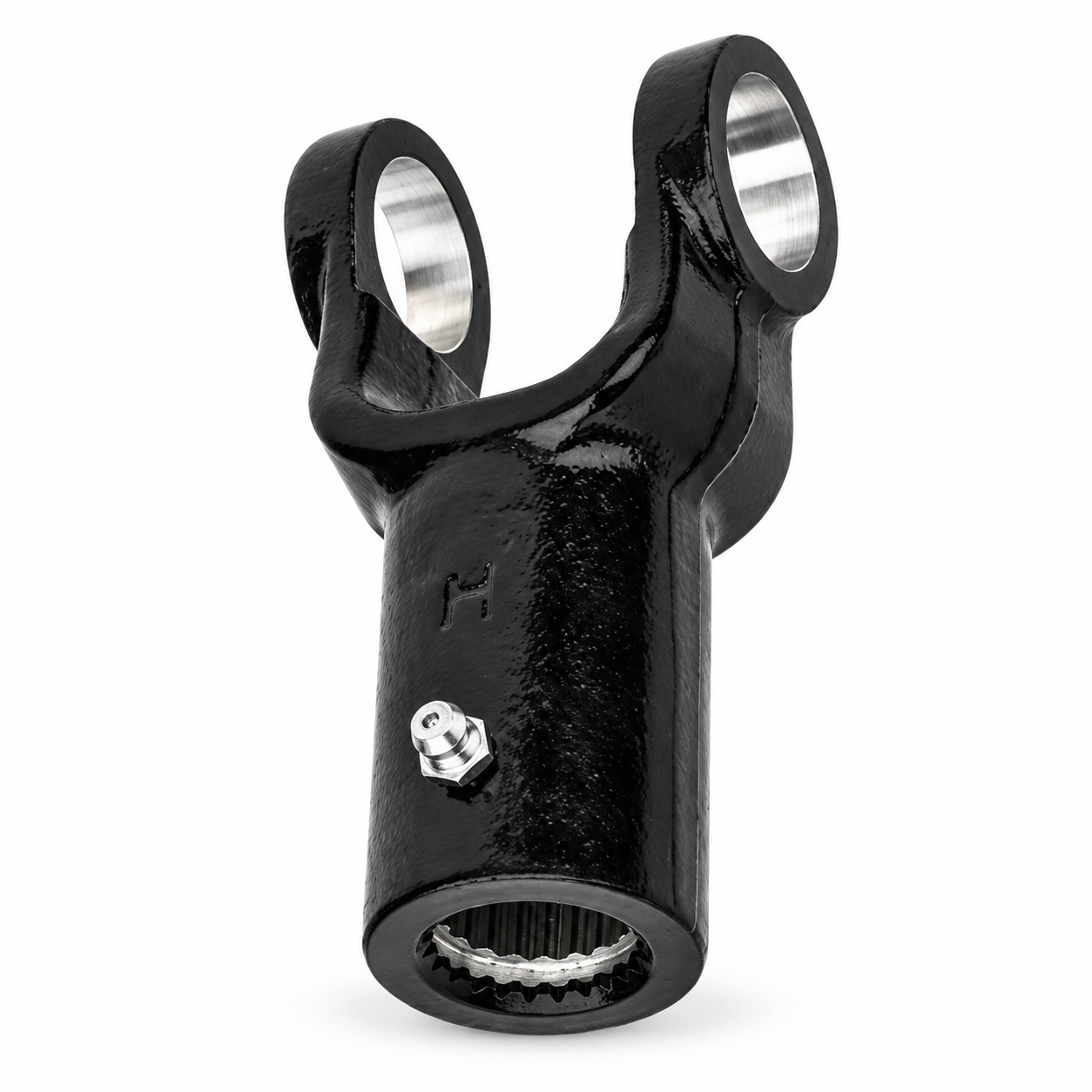

This transmission-side prop shaft yoke is a replacement driveline component for selected Polaris ATV and UTV applications. It corresponds with Polaris part number 3260131 and is fitted at the transmission or main gearcase end of the prop shaft. It is intended to replace an individual worn or damaged yoke while retaining the original prop shaft arrangement. This listing is for the yoke only and does not include the U-joint, cross and bearing kit, prop shaft or front gearcase yoke

Features

  • Replacement transmission-side prop shaft yoke.
  • Suitable for selected Polaris ATV and UTV driveline applications.
  • Direct replacement for the corresponding original yoke.
  • Allows the individual yoke to be replaced without replacing the complete prop shaft assembly.
  • Designed for use with the original prop shaft and universal joint arrangement.
  • Original part number, vehicle model and build date should be checked before ordering.

Package Contents

  • Transmission-side prop shaft yoke x 1
  • U-joint kit not included.
  • Cross and bearing kit not included.
  • Prop shaft not included.
  • Front gearcase yoke not included.

Cross-Reference OEM Part Numbers

  • 3260131

Vehicle Fitments

  • Polaris ATP 330 4x4 (2004-2005)
  • Polaris ATP 500 4x4 HO (2004-2005)
  • Polaris Diesel 455 4x4 (1999, 2001-2002)
  • Polaris Magnum 325 4x4 (2000-2002)
  • Polaris Magnum 330 4x4 (2003-2006)
  • Polaris Magnum 500 4x4 (1999-2003)
  • Polaris Scrambler 400 4x4 (1998-2000, 2002)
  • Polaris Scrambler 500 2x4 (1998)
  • Polaris Scrambler 500 4x4 (1999-2009)
  • Polaris Sportsman 335 4x4 (1999-2000)
  • Polaris Sportsman 400 4x4 (2001-2005)
  • Polaris Sportsman 450 4x4 (2006-2007)
  • Polaris Sportsman 500 4x4 (1996-2000)
  • Polaris Sportsman 500 HO, EFI and 6x6 variants (2001-2008, depending on model configuration)
  • Polaris Sportsman Touring 500 EFI (2008-2009)
  • Polaris Sportsman 600 Twin (2003-2005)
  • Polaris Sportsman 700 Twin / Twin EFI (2002-2006)
  • Polaris Sportsman 700 EFI (2007)
  • Polaris Sportsman 800 Twin EFI (2005-2006)
  • Polaris Sportsman 800 / 800 EFI (2007)
  • Polaris Sportsman 800 HO EFI (2008)
  • Polaris Sportsman Touring 800 EFI (2008; build-date restrictions apply)
  • Polaris Sportsman X2 500 EFI (2006-2008)
  • Polaris Sportsman X2 800 EFI (2007)
  • Polaris Sportsman X2 700 EFI (2008; units built 29 October 2007 and earlier use 3260131)
  • Polaris Sportsman MV7 (2005)
  • Polaris Worker 335 (1999)
  • Polaris Worker 500 (1999-2001)
  • Polaris Xpedition 325 4x4 (2000-2002)
  • Polaris Xpedition 425 4x4 (2000-2002)
  • Polaris Xplorer 250 4x4 (2000-2002)
  • Polaris Xplorer 400 4x4 (1999-2002)
  • Polaris Xplorer 500 4x4 (1997)
  • Polaris Ranger 500 6x6 (1999)
  • Polaris Ranger 425 2x4 (2001, 2003-2004)
  • Polaris Ranger 500 4x4 / 6x6 (2001-2005, depending on configuration)
  • Polaris Ranger TM (2004-2006)
  • Polaris Ranger 500 4x4 EFI (2006-2009)
  • Polaris Ranger 700 / XP 700 4x4 and 6x6 EFI variants (2006-2009)
  • Polaris Ranger Crew 700 EFI (2008-2009)
  • Polaris Ranger 800 6x6 (2010-2016)
  • Some 2008 applications changed yoke specification during production. Where applicable, part number 3260131 is specified for machines built on or before 29 October 2007, with later machines using a different yoke. Confirm the vehicle build date and original yoke part number before ordering.

Prop Shaft Yoke 96-16 Polaris Atp Diesel Magnum Scrambler Sportsman Ranger Xplorer 3260131

Product form

This transmission-side prop shaft yoke is a replacement driveline component for selected Polaris ATV and UTV applications. It corresponds with... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 17-0004.YOKE

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This transmission-side prop shaft yoke is a replacement driveline component for selected Polaris ATV and UTV applications. It corresponds with Polaris part number 3260131 and is fitted at the transmission or main gearcase end of the prop shaft. It is intended to replace an individual worn or damaged yoke while retaining the original prop shaft arrangement. This listing is for the yoke only and does not include the U-joint, cross and bearing kit, prop shaft or front gearcase yoke

    Features

    • Replacement transmission-side prop shaft yoke.
    • Suitable for selected Polaris ATV and UTV driveline applications.
    • Direct replacement for the corresponding original yoke.
    • Allows the individual yoke to be replaced without replacing the complete prop shaft assembly.
    • Designed for use with the original prop shaft and universal joint arrangement.
    • Original part number, vehicle model and build date should be checked before ordering.

    Package Contents

    • Transmission-side prop shaft yoke x 1
    • U-joint kit not included.
    • Cross and bearing kit not included.
    • Prop shaft not included.
    • Front gearcase yoke not included.

    Cross-Reference OEM Part Numbers

    • 3260131

    Vehicle Fitments

    • Polaris ATP 330 4x4 (2004-2005)
    • Polaris ATP 500 4x4 HO (2004-2005)
    • Polaris Diesel 455 4x4 (1999, 2001-2002)
    • Polaris Magnum 325 4x4 (2000-2002)
    • Polaris Magnum 330 4x4 (2003-2006)
    • Polaris Magnum 500 4x4 (1999-2003)
    • Polaris Scrambler 400 4x4 (1998-2000, 2002)
    • Polaris Scrambler 500 2x4 (1998)
    • Polaris Scrambler 500 4x4 (1999-2009)
    • Polaris Sportsman 335 4x4 (1999-2000)
    • Polaris Sportsman 400 4x4 (2001-2005)
    • Polaris Sportsman 450 4x4 (2006-2007)
    • Polaris Sportsman 500 4x4 (1996-2000)
    • Polaris Sportsman 500 HO, EFI and 6x6 variants (2001-2008, depending on model configuration)
    • Polaris Sportsman Touring 500 EFI (2008-2009)
    • Polaris Sportsman 600 Twin (2003-2005)
    • Polaris Sportsman 700 Twin / Twin EFI (2002-2006)
    • Polaris Sportsman 700 EFI (2007)
    • Polaris Sportsman 800 Twin EFI (2005-2006)
    • Polaris Sportsman 800 / 800 EFI (2007)
    • Polaris Sportsman 800 HO EFI (2008)
    • Polaris Sportsman Touring 800 EFI (2008; build-date restrictions apply)
    • Polaris Sportsman X2 500 EFI (2006-2008)
    • Polaris Sportsman X2 800 EFI (2007)
    • Polaris Sportsman X2 700 EFI (2008; units built 29 October 2007 and earlier use 3260131)
    • Polaris Sportsman MV7 (2005)
    • Polaris Worker 335 (1999)
    • Polaris Worker 500 (1999-2001)
    • Polaris Xpedition 325 4x4 (2000-2002)
    • Polaris Xpedition 425 4x4 (2000-2002)
    • Polaris Xplorer 250 4x4 (2000-2002)
    • Polaris Xplorer 400 4x4 (1999-2002)
    • Polaris Xplorer 500 4x4 (1997)
    • Polaris Ranger 500 6x6 (1999)
    • Polaris Ranger 425 2x4 (2001, 2003-2004)
    • Polaris Ranger 500 4x4 / 6x6 (2001-2005, depending on configuration)
    • Polaris Ranger TM (2004-2006)
    • Polaris Ranger 500 4x4 EFI (2006-2009)
    • Polaris Ranger 700 / XP 700 4x4 and 6x6 EFI variants (2006-2009)
    • Polaris Ranger Crew 700 EFI (2008-2009)
    • Polaris Ranger 800 6x6 (2010-2016)
    • Some 2008 applications changed yoke specification during production. Where applicable, part number 3260131 is specified for machines built on or before 29 October 2007, with later machines using a different yoke. Confirm the vehicle build date and original yoke part number before ordering.
