Description
RADIATOR MOUNTING UNIVERSAL [JAPANESE KIT] 24pcs.
- This kit allows you to replace all them worn Radiator mounts to stop vibration and damage to your rads.
- Cushion Anti-Vibration Rubber Radiator Mounting Grommet kit for Japanese Dirt bikes and some ATVs/Street modles.
- All components made to OEM specifications or better.
- Yamaha, Honda, Kawasaki, Suzuki.
- Steel Components are all Bright Silver finish BZP.
- Rubbers are also used in mouthing side panels and fairings, speedos and light clusters, tanks, seats, mudguards, expansion tanks.
- Meets or exceeds OEM quality.
- Direct oem replacement.
- FIR products are a high quality replacement part and
- FIR [FACTORY IMAGE RACING] (radhouse.co.uk)

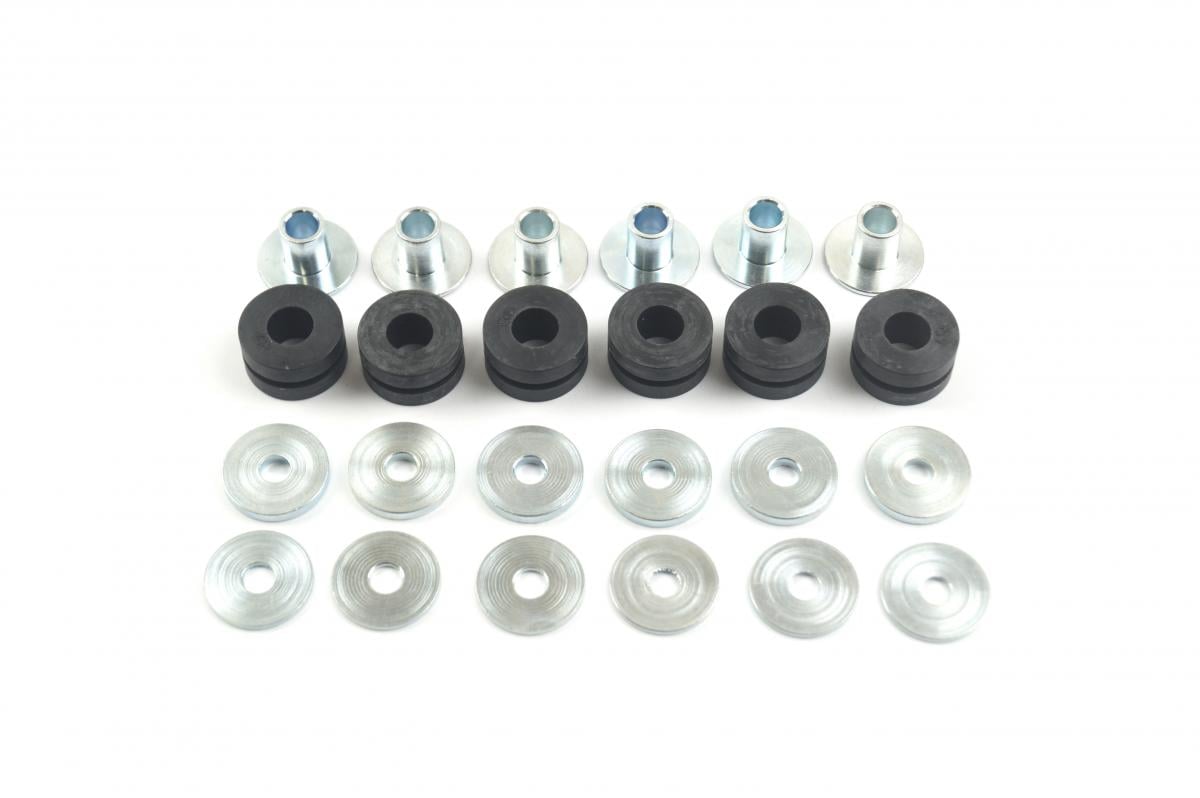

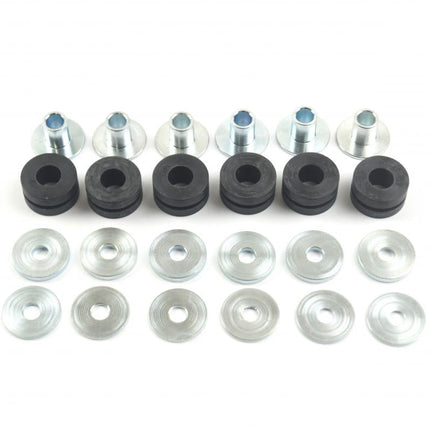

| SPECIFICATION: | RUBBER BUSHING X 6PCS |
| (24PCS/KIT) | STEEL BUSHING X 6PCS |
| | 3mm WASHER X 6PCS |
| | 1.5mm WASHER X 6PCS |
| | *RUBBER BUSHING |
| | I.D: 10mm |
| | O.D: 22mm |
| | INNER WIDTH: 2.5mm |
| | T: 12mm(+/-0.3mm) |
| | HARDNESS: 60 |
| | *STEEL BUSHING |
| | I.D: 7mm |
| | O.D: 10mm / 22mm |
| | H: 1.5mm / 13.5mm |
| | *3mm WASHER |
| | I.D: 6.5mm |
| | O.D: 22mm |
| | T: 3mm |
| | *1.5mm WASHER |
| | I.D: 6.5mm |
| | O.D: 22mm |
| | T: 1.5mm |
| MATERIAL: | RUBBER BUSHING - SILICON |
| STEEL BUSHING - STEEL (C1008) |
| 3mm WASHER - STEEL(SPCC) |
| 1.5mm WASHER - STEEL(SPCC) |
Cross Reference Numbers Only:
92027-194, 92075-209, 19052MAC680, 19051KA3830, 90403KA3830, 90387-06065, 90480-15528, 90201-06571,
09180-06243, 17787-19400, UP-10031,
