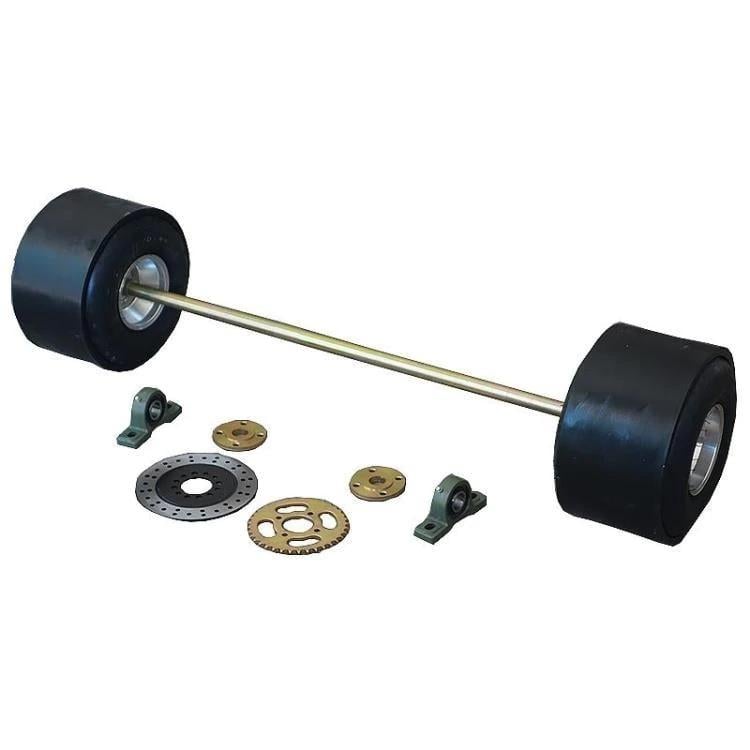

Rear Axle Universal Diy Drift Kit For Go Kart Buggy Trike

Description

This universal rear axle kit is designed for compatibility with a wide range of off-road vehicles including ATVs, MX bikes, go-karts, and buggies. It includes a 1000mm splined shaft, hubs, carrier bearings, sprocket, disc, and additional mounting components for drivetrain and brake system integration.

Features

  • Rear axle suitable for 150cc go-karts
  • Total axle length: 1000mm
  • Splined ends for hub compatibility
  • Includes 2 x 3-hole hubs with internal splines
  • Includes 2 x carrier bearings (P205) with grease nipples for lubrication
  • 2 x universal sprocket and disc hubs (require welding to shaft)
  • Includes 1 x sprocket and 1 x brake disc
  • Includes 2 x nylock nuts
  • Hole for split pin on both ends

Specifications

Axle Shaft

  • Length: 1000mm
  • Splined at both ends for hub connection
  • Includes hole for split pin at each end
  • Includes 2 x nylock nuts

Tyres

  • Size: 11 x 7.10-5
  • Type: 4-ply racing tubeless

Tyre Plastic Cover

  • Dimensions: 290mm x 150mm

Wheel Hubs (2 x 3-hole hubs)

  • Hole size: 6.5mm
  • Pitch Circle Diameter (PCD): approximately 57.74mm
  • Internal splines to mate with shaft
  • Threaded mounting holes
  • 6 bolts included

Carrier Bearings (2 x P205)

  • Inner diameter: 24.5mm
  • Mounting hole spacing: 100mm (adjustable by 10–15mm)
  • Includes grease nipple for lubrication

Universal Sprocket and Disc Hubs (2 included)

  • Inner diameter: 26mm
  • Outer diameter: 85mm
  • Hole diameter: 8mm
  • Number of holes: 4
  • PCD: 68mm
  • Require welding to shaft

Sprocket

  • Tooth count: 37
  • Hole size: 8.5mm
  • Inner diameter: 48mm

Brake Disc

  • Outer diameter: approximately 160mm
  • Hole size: 8.5mm
  • Inner diameter: 48mm
  • Number of holes: 4
  • PCD: 68mm

Rear Axle Universal Diy Drift Kit For Go Kart Buggy Trike

Product form

This universal rear axle kit is designed for compatibility with a wide range of off-road vehicles including ATVs, MX bikes,... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 42-2211

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This universal rear axle kit is designed for compatibility with a wide range of off-road vehicles including ATVs, MX bikes, go-karts, and buggies. It includes a 1000mm splined shaft, hubs, carrier bearings, sprocket, disc, and additional mounting components for drivetrain and brake system integration.

    Features

    • Rear axle suitable for 150cc go-karts
    • Total axle length: 1000mm
    • Splined ends for hub compatibility
    • Includes 2 x 3-hole hubs with internal splines
    • Includes 2 x carrier bearings (P205) with grease nipples for lubrication
    • 2 x universal sprocket and disc hubs (require welding to shaft)
    • Includes 1 x sprocket and 1 x brake disc
    • Includes 2 x nylock nuts
    • Hole for split pin on both ends

    Specifications

    Axle Shaft

    • Length: 1000mm
    • Splined at both ends for hub connection
    • Includes hole for split pin at each end
    • Includes 2 x nylock nuts

    Tyres

    • Size: 11 x 7.10-5
    • Type: 4-ply racing tubeless

    Tyre Plastic Cover

    • Dimensions: 290mm x 150mm

    Wheel Hubs (2 x 3-hole hubs)

    • Hole size: 6.5mm
    • Pitch Circle Diameter (PCD): approximately 57.74mm
    • Internal splines to mate with shaft
    • Threaded mounting holes
    • 6 bolts included

    Carrier Bearings (2 x P205)

    • Inner diameter: 24.5mm
    • Mounting hole spacing: 100mm (adjustable by 10–15mm)
    • Includes grease nipple for lubrication

    Universal Sprocket and Disc Hubs (2 included)

    • Inner diameter: 26mm
    • Outer diameter: 85mm
    • Hole diameter: 8mm
    • Number of holes: 4
    • PCD: 68mm
    • Require welding to shaft

    Sprocket

    • Tooth count: 37
    • Hole size: 8.5mm
    • Inner diameter: 48mm

    Brake Disc

    • Outer diameter: approximately 160mm
    • Hole size: 8.5mm
    • Inner diameter: 48mm
    • Number of holes: 4
    • PCD: 68mm
