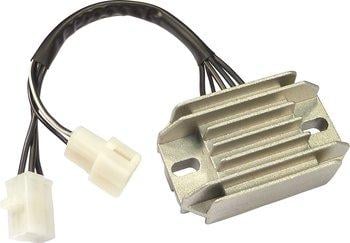

Rectifier Regulator 86-11 Suzuki An Burgman En A2 Gn GSX Rg Rgv Gamma Ue Dze

Description

The DZE rectifier/regulator is an external charging-system component for the Suzuki motorcycles and scooters listed below. It converts alternator output to direct current and regulates voltage for the battery and electrical system.

Features

  • Direct replacement for compatible original equipment units.
  • Connector configuration should be checked against the existing unit before ordering.

Specifications

  • Rated voltage: 12 V
  • Rated current: 20 A
  • Input: three-phase
  • Output: direct current (DC)
  • Regulation technology: SCR
  • Dimensions: 76 mm long × 47 mm wide × 28 mm high
  • Mounting hole centres: 60 mm
  • Sensor: none

Cross-Reference OEM Part Numbers

  • DZE: 44-3975.AH.B
  • 3530-014
  • Shindengen: SH572MB
  • Suzuki: 32800-22D11, 32800-22D10, 32800-22D20, 32800-37G10-000, 32800-20A00, 32800-22D00, 32800-20A01
  • 44-3975.DZE

Vehicle Fitments

  • Suzuki AN 125 cc: 2000
  • Suzuki AN Burgman 125 cc: 1995–2000
  • Suzuki AN Burgman 250 cc: 1996–2000
  • Suzuki EN 125 cc: 2004–2008
  • Suzuki EN A2 125 cc: year not specified
  • Suzuki GN 125 cc: year not specified
  • Suzuki GSX 250 cc: 1991–1997
  • Suzuki RG Gamma 500 cc: 1986–1987
  • Suzuki RGV Gamma 250 cc: 1989–1996
  • Suzuki UE 125 cc: 2001–2011
  • Suzuki UE 150 cc: 2001–2011

  • Arctic Cat ATV 4x4 300 (1998–2002) - OEM Code:

  • Arctic Cat ATV 4x4 250 (1999–2003) - OEM Code: 3530-014

  • Arctic Cat ATV 2x4 300 (1998–2002) - OEM Code: 3530-014
  • Arctic Cat ATV 2x4 250 (1999–2003) - OEM Code: 3530-014

Rectifier Regulator 86-11 Suzuki An Burgman En A2 Gn GSX Rg Rgv Gamma Ue Dze

Product form

The DZE rectifier/regulator is an external charging-system component for the Suzuki motorcycles and scooters listed below. It converts alternator output... Read more

2 in stock 1-2 business days

£56.34 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 44-3975.AH.B

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    The DZE rectifier/regulator is an external charging-system component for the Suzuki motorcycles and scooters listed below. It converts alternator output to direct current and regulates voltage for the battery and electrical system.

    Features

    • Direct replacement for compatible original equipment units.
    • Connector configuration should be checked against the existing unit before ordering.

    Specifications

    • Rated voltage: 12 V
    • Rated current: 20 A
    • Input: three-phase
    • Output: direct current (DC)
    • Regulation technology: SCR
    • Dimensions: 76 mm long × 47 mm wide × 28 mm high
    • Mounting hole centres: 60 mm
    • Sensor: none

    Cross-Reference OEM Part Numbers

    • DZE: 44-3975.AH.B
    • 3530-014
    • Shindengen: SH572MB
    • Suzuki: 32800-22D11, 32800-22D10, 32800-22D20, 32800-37G10-000, 32800-20A00, 32800-22D00, 32800-20A01
    • 44-3975.DZE

    Vehicle Fitments

    • Suzuki AN 125 cc: 2000
    • Suzuki AN Burgman 125 cc: 1995–2000
    • Suzuki AN Burgman 250 cc: 1996–2000
    • Suzuki EN 125 cc: 2004–2008
    • Suzuki EN A2 125 cc: year not specified
    • Suzuki GN 125 cc: year not specified
    • Suzuki GSX 250 cc: 1991–1997
    • Suzuki RG Gamma 500 cc: 1986–1987
    • Suzuki RGV Gamma 250 cc: 1989–1996
    • Suzuki UE 125 cc: 2001–2011
    • Suzuki UE 150 cc: 2001–2011

    • Arctic Cat ATV 4x4 300 (1998–2002) - OEM Code:

    • Arctic Cat ATV 4x4 250 (1999–2003) - OEM Code: 3530-014

    • Arctic Cat ATV 2x4 300 (1998–2002) - OEM Code: 3530-014
    • Arctic Cat ATV 2x4 250 (1999–2003) - OEM Code: 3530-014
