Description
Arctic Cat
1998-99 400 2x4, 4x4 w/376cc,
1998 454 2x4, 4x4 Bearcat w/454cc,
1998-99 500 4x4 w/493c,
Bearcat 2X4 / 4X4 454 (1997-1998)
| Technical specifications |
| Tension (voltage) | 12 [V] |
| Corriente (current) | 35 [A] |
| Tipo de entrada (input type) | TRIFASICO |
| Tecnologia (technology) | SCR |
| Tipo de salida (output type) | CC |
| Alto (height) | 28 [mm] |
| Ancho (width) | 80 [mm] |
| Largo (length) | 90 [mm] |
| Entre centro (pitch) | 70 [mm] |
| Con sensor (with sensor) | NO |
| dze products that apply to |
| Brand | Model | Version | Displacement | Year | OEM |
| Arctic Cat | - | 2X4 / 4X4 | 500 | from 1998 to 1999 | 3430-016 |
| Arctic Cat | - | 2X4 / 4X4 | 400 | from 1997 to 1999 | 3430-072 |
| Arctic Cat | Bearcat | 2X4 / 4X4 | 454 | from 1997 to 1998 | 3430-037 |
| Suzuki | LT-F | W / X models | 500 | from 1998 to 2002 | 32800-44D11 |
- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale.
- Designed to handle increased power loads.
- DZE Racing products are a high quality replacement part and
- Please check the image and connection plugs before ordering to avoid mistakes.
- Note. No Returns on Electrical Parts.
Part No. 44-6098.AH (radhouse.co.uk)

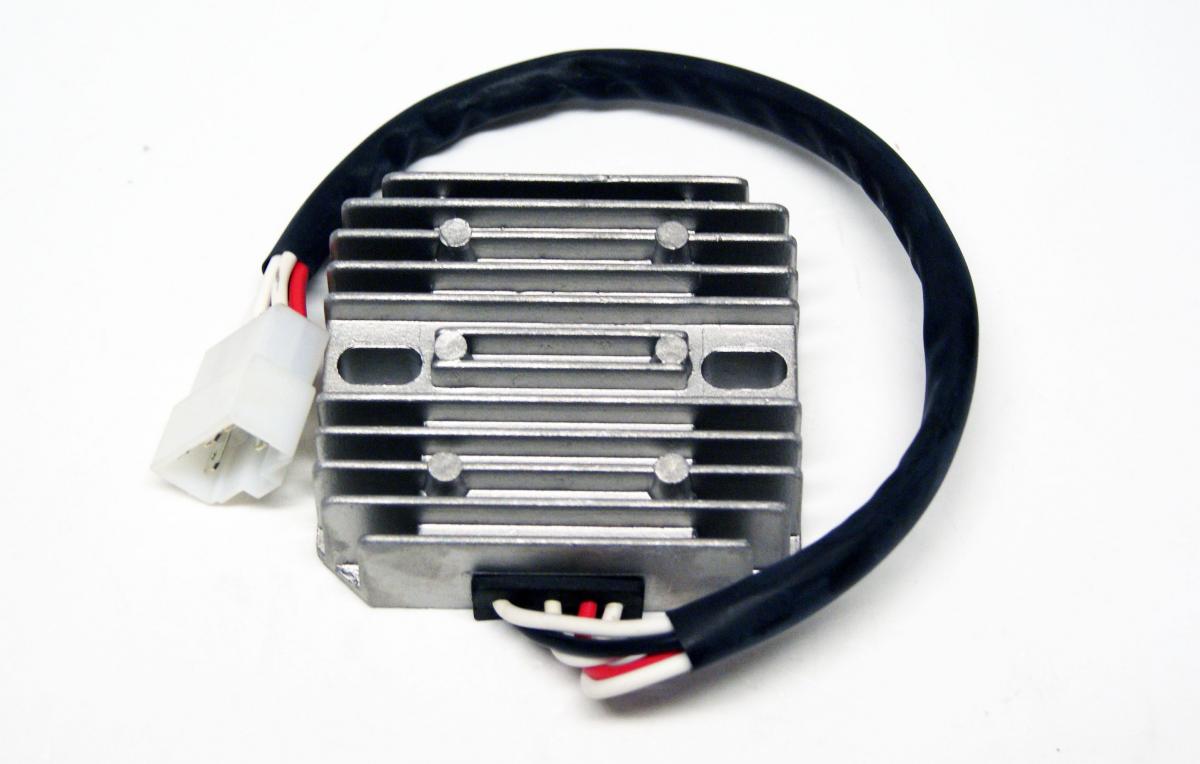

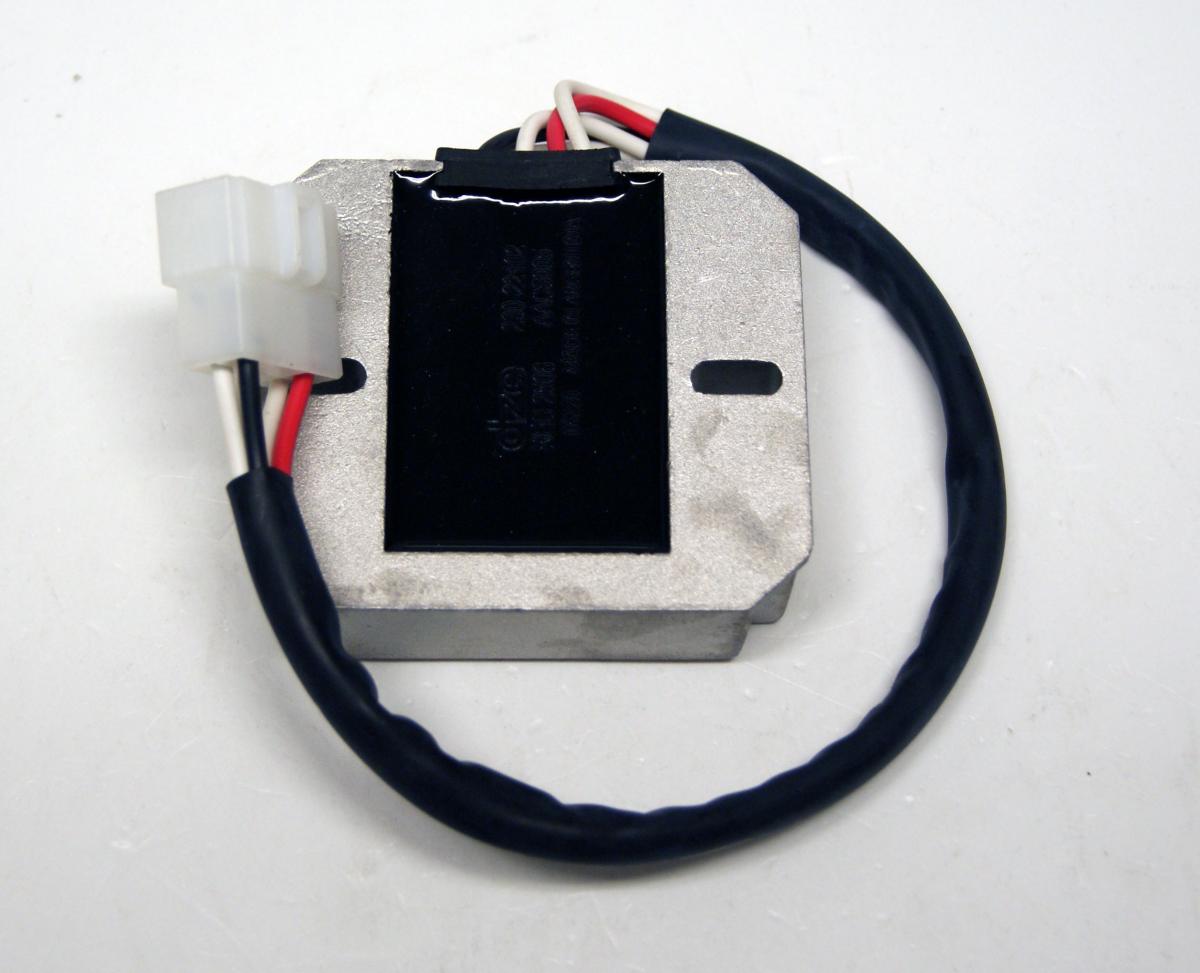

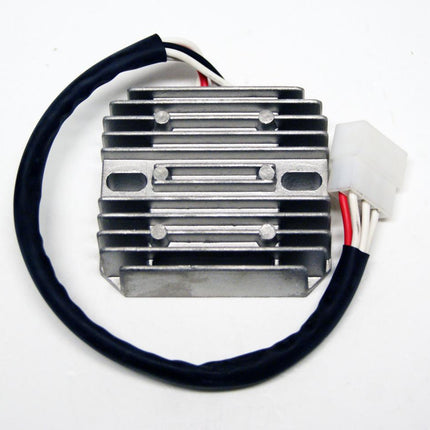

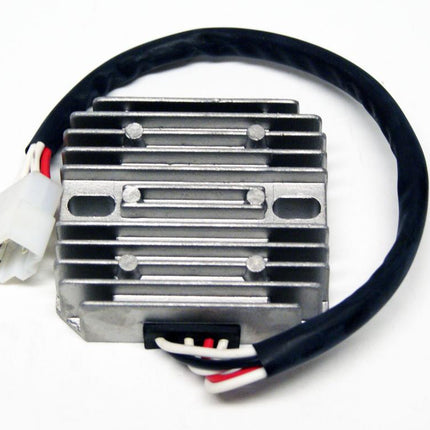

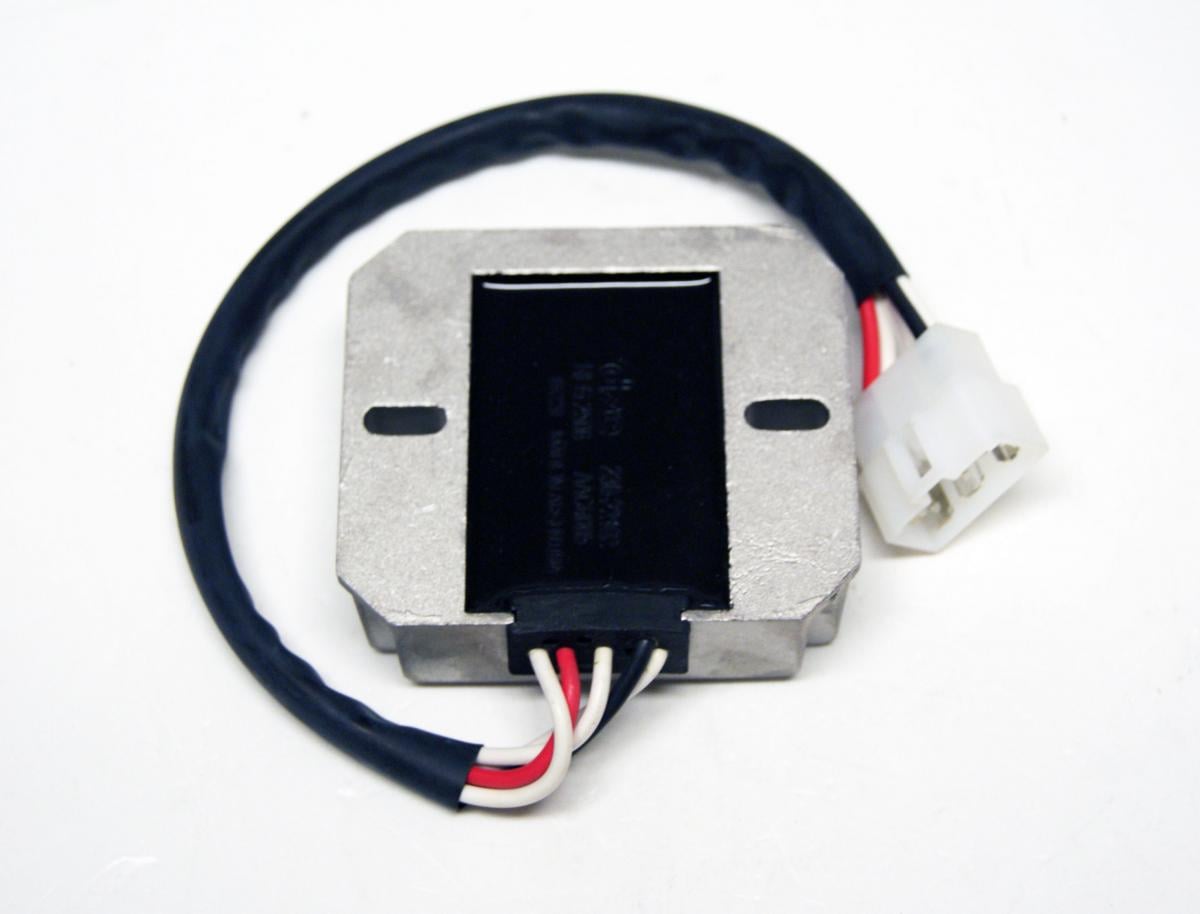

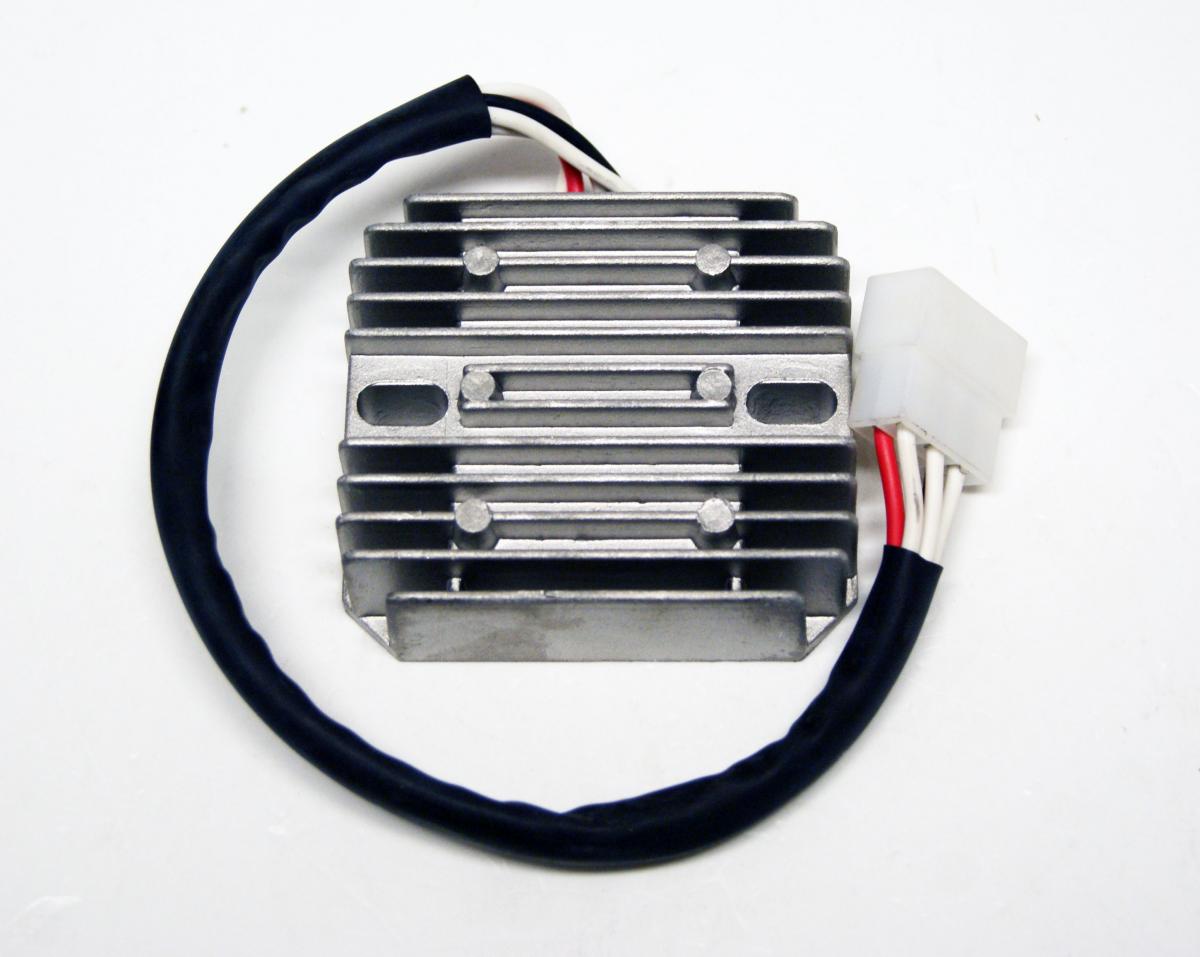

Voltage Regulator / Rectifier 12v AAC6005,
SIZE 90mm L x 82mm W x 29mm T
Plug - (1) Red (Positive), (1) Black (Ground), (3) Charging Coil, (1) N/C Wire & Plug 14 Inches OAL Oval Mtg. Holes - 83mm (Outer), 52mm (Inner)
Cross reference numbers ONLY.
ARCTCO 3430-016, 3430-037, 3430-072,
