Name: Regulator Ducati, Others, Arrowhead ADC6002, 50311034000
Brand: Arrowhead Electrical
SKU: 44-6161.AH
Price: 91.65 GBP
Availability: InStock

Regulator Ducati, Others, Arrowhead ADC6002, 50311034000

Arrowhead Electrical
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

Aprilia 50 Benelli 50 Benelli 100 Beta Ark 80 Beta Scooter 50 Beta Tempo 80 Ducati Models

Gilera 100 Gilera JL 100 Italjet 50 Malaguti 50 Malaguti 100 MBK 50 MBK 100 Yamaha Scooter 50 Yamaha Scooter 100,

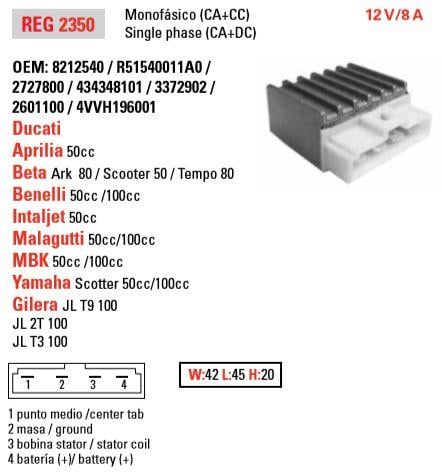

Technical specifications
Tension (voltage)	12 [V]
Corriente (current)	8 [A]
Tipo de entrada (input type)	MONOFASICO
Tecnologia (technology)	SCR
Tipo de salida (output type)	CA+CC
Alto (height)	20 [mm]
Ancho (width)	42 [mm]
Largo (length)	45 [mm]
Con sensor (with sensor)	NO

dze that apply to
Brand	Model	Version	Displacement	Year	OEM
Aprilia	Amico		50	from 1992 to 1995	AP8212540
Aprilia	Amico		50	from 1996 to 1998	AP8212540
Aprilia	Area	51	50	from 1998 to 2000	AP8212540
Aprilia	Gulliver		50	from 1995 to 1998	AP8212540
Aprilia	Rally		50	from 1995 to 2003	AP8212540
Aprilia	Rally	LC	50	from 1996 to 1999	AP8212540
Aprilia	SR	Sigilo	50	from 1997 to 2000	AP8212540
Aprilia	SR	AC/LC	50	from 1993 to 1996	AP8212540
Aprilia	SR	WWW	50	from 1997 to 2001	AP8212540
Aprilia	Scarabeo		50	from 1993 to 1997	AP8212540
Aprilia	Scarabeo		50	from 1998 to 2005	AP8212540
Aprilia	Sonic	GP	50	from 1998 to 2008	AP8212799
Aprilia	Sonic		50	from 1998 to 2007	AP8212799
Benelli	491	Racing	50	from 1997 to 2001	R51540011A0
Benelli	491	ST	50	from 2003 to 2006	R51540011A0
Benelli	491	RR	50	from 1997 to 2001	R51540011A0
Benelli	491	ST/GT/ Sport	50	from 1997 to 2002	R51540011A0
Benelli	491	Superbike	50	from 1997 to 2001	R51540011A0
Benelli	491	Army	50	from 1997 to 2001	R51540011A0
Benelli	K2	AC/LC	50	from 1998 to 2001	R51540011A0
Benelli	Pepe		50	from 1999 to 2004	R51540011A0
Beta	Ark	AC	50	from 2004 to 2007	2727800000
Beta	Ark	AC	50	from 2008	2727800000
Beta	Ark	LC	50	from 1996 to 2007	2727800000
Beta	Ark	AC	50	from 1996 to 2003	2727800000
Beta	Quadra		50	from 1995 to 2001	2727800000
Beta	Quadra	Chrono 502	50	from 1995 to 1999	2727800000
Beta	Tempo		50	from 1994 to 1999	2727800000
Derbi	Hunter		50	from 1996 to 1997	00G01000841
Derbi	Manhattan		50	from 1998 to 1999	00G01000841
Derbi	Vamos	FL/FLN/L	50	from 1995 to 1998	00G01000841
Ducati	-				434348101
Gilera	JL	T9	100
Gilera	JL	2T	100
Gilera	JL	T3	100
Italjet	Dragster	FL/FLN/L	50	from 1998 to 2002	3372902
Italjet	Formula		50	from 1994 to 2003	3372902
Italjet	Pista 2	AC 2T	50	from 1992 to 1997	3372902
KTM	EXC	4T	450	from 2003 to 2004	5031134000
KTM	EXC		500	from 2000 to 2004	5031134000
KTM	EXC	4T	250	from 2002 to 2004	5031134000
KTM	EXC	4T	250	from 2002 to 2004	5031134000
KTM	EXC	2T	300	from 1998 to 2004	5031134000
KTM	EXC	2T	250	from 1998 to 2004	5031134000
KTM	EXC	2T	125	from 1998 to 2004	5031134000
KTM	MXC		525	from 2000 to 2004	5031134000
KTM	MXC	4T	450	from 2003 to 2004	5031134000
KTM	MXC	4T	250	from 2002 to 2004	5031134000
KTM	SC		620	from 1999 to 2001	5031134000
Kawasaki	BN	Eliminator	125	1998	21066-1086
Kawasaki	KLX		110	from 2002 to 2009	21066-1086
MBK	-		50		4VV-H1960-01
MBK	-		100		4VV-H1960-01
Malaguti	CR1	Crosser	50	from 1995 to 2001	02601100
Malaguti	Centro	SL	50	from 1994 to 2000	02601100
Malaguti	Centro	SL	50	from 1993 to 1997	02601100
Malaguti	Ciak		50	from 2000 to 2004	02601100
Malaguti	F10	Jetline Euro 1	50	from 1994 to 2001	02601100
Malaguti	F12	Phantom AC / LC	50	from 1994 to 2000	02601100
Malaguti	F12	Phantom DT AC	50	from 1994 to 1998	02601100
Malaguti	F12	Phantom Euro 2 IDT	50	from 2002 to 2003	02601100
Malaguti	F15	Firefox DD AC	50	from 1996 to 2001	02601100
Malaguti	F15	Firefox DD LC	50	from 1996 to 2001	02601100
Malaguti	Yesterday		50	from 1998 to 2003	02601100
Reemplazo	Shindengen				SH635-12
Reemplazo	Shindengen				SH610-12
Reemplazo	Shindengen				SH636A-12
Reemplazo	Shindengen				SH580-12
Reemplazo	Shindengen				SH653-12
Suzuki	Address		50	from 1992 to 1995	32800-40D10-000
Suzuki	Sepia		50	from 1995 to 1997	32800-40D10-000
Yamaha	BW	Bump	50	from 1995 to 1998	4VV-H1960-01-00
Yamaha	BW	Original	50	from 1997 to 2002	4VV-H1960-01-00
Yamaha	BW	NG	50	from 1997 to 2002	4VV-H1960-01-00
Yamaha	YH	Why	50	from 1998 to 2007	4VV-H1960-01-00
Yamaha	YN	Neos	50	from 1997 to 2007	4VV-H1960-01-00
Yamaha	YQ	Aerox	50	from 1997 to 2000	4VV-H1960-01-00

- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale
- Designed to handle increased power loads.
- DZE Racing products are a high quality replacement part and
- Note. No Returns on Electrical Parts.

Part No. 44-6161.AH (radhouse.co.uk)

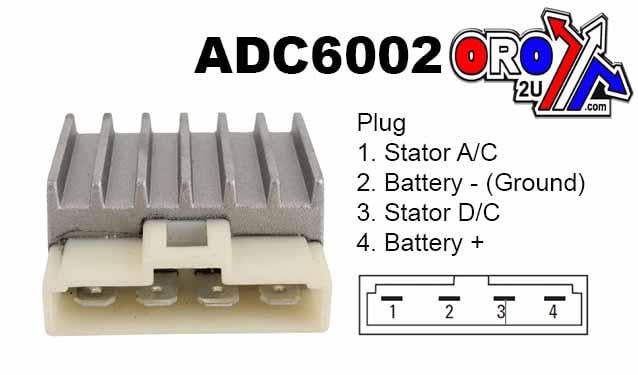

RECTIFIER / REGULATOR ADC6002 12-Volt 8 Amp Input Type MONOFASICO SCR Output Type CA+CC 20mm H x 42mm W x 45mmL Without Sensor

Cross reference numbers ONLY.
50311034000, ADC6002 ARROWHEAD AP8212540 APRILIA R51540011A0 BENELLI
ADC6002 ARROWHEAD
230-42022 J & N
AP8212540 APRILIA
R51540011A0 BENELLI
2727800000 BETAMOTOR
343480 DUCATI
34348100 DUCATI
34348101 DUCATI
717003 HI LEVEL
3372902 ITALJET
21066-1086 KAWASAKI
50311034000 KTM
02601100 MALAGUTI
32800-36C20 SUZUKI
32800-36C30 SUZUKI
32800-40D00 SUZUKI
32800-40D10 SUZUKI
K2106-61086 SUZUKI
4VV-H1960-00-00 YAMAHA
4VV-H1960-01-00 YAMAHA

Assemblies where 50311034000 is used
1997 125 SIX DAY LE (US) - Ignition Kokusan 2K-1/2K2/2K3 '98
1997 200 EXC JACKPINER (US) - Wiring Harness Exc 125-200 '98
1997 200 EXC JACKPINER (US) - Ignition Kokusan 2K-1/2K2/2K3 '98
1998 125 EGS 6KW (DE) - Wiring Harness Egs 125-200 '98
1998 125 EGS 6KW (DE) - Ignition Kokusan 2K-1/2K2/2K3 '98
1998 125 EXC (US) - Wiring Harness Exc 125-200 '98
1998 125 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '98
1998 125 SX (US) - Ignition Kokusan 2K-1/2K2/2K3 '98
1998 200 EGS 12LT 8KW (AU) - Ignition Kokusan 2K-1/2K2/2K3 '98
1998 200 EXC (US) - Wiring Harness Exc 125-200 '98
1998 200 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '98
1998 200 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '98
1999 125 EGS (AU) - Ignition Kokusan 2K-1/2K2/2K3 '99
1999 125 EGS 6KW (DE) - Wiring Harness Egs 125-200 '99
1999 125 EGS 6KW (DE) - Ignition Kokusan 2K-1/2K2/2K3 '99
1999 125 EXC (US) - Wiring Harness Exc 125-200 '99
1999 125 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '99
1999 125 SX (US) - Ignition Kokusan 2K-1/2K2/2K3 '99
1999 200 EGS 12LT 8KW (AU) - Ignition Kokusan 2K-1/2K2/2K3 '99
1999 200 EGS SGP (SG) - Wiring Harness Egs 125-200 '99
1999 200 EGS SGP (SG) - Ignition Kokusan 2K-1/2K2/2K3 '2000
1999 200 EGS SGP (SG) - Ignition Kokusan 2K-1/2K2/2K3 '99
1999 200 EXC (US) - Wiring Harness Exc 125-200 '99
1999 200 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '99
1999 200 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '99
1999 400 SUP-COMP 20kW (DE) - Wiring Harness 400/620 Sc '99
1999 620 SUP-COMP 20kW (DE) - Wiring Harness 400/620 Sc '99
2000 125 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 125 EXE 80 (DE) - Wiring Harness 125 Exe 2000
2000 125 EXE 80 (DE) - Ignition Kokusan 2K3 125 Exe 2000
2000 125 SUPERMOTO 80 (DE) - Wiring Harness 125 Exe 2000
2000 125 SUPERMOTO 80 (DE) - Ignition Kokusan 2K3 125 Exe 2000
2000 125 SX (US) - Wiring Harness Egs 125-380'2000
2000 125 SX (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 125 SXS - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 200 EXC (AU) - Wiring Harness Egs 125-380'2000
2000 200 EXC (AU) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 200 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 200 EXC SGP (SG) - Wiring Harness Egs 125-380'2000
2000 200 EXC SGP (SG) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 200 EXC SGP (SG) - Ignition Kokusan 2K-1/2K2/2K3 '99
2000 200 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 250 EXC (AU) - Wiring Harness Egs 125-380'2000
2000 250 EXC (AU) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 250 EXC (US) - Wiring Harness Exc 250-380 '2000
2000 250 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 250 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 250 SX (US) - Wiring Harness Exc 250-380 '2000
2000 250 SX (US) - Wiring Harness Egs 125-380'2000
2000 300 EXC (AU) - Wiring Harness Egs 125-380'2000
2000 300 EXC (AU) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 300 EXC (US) - Wiring Harness Exc 250-380 '2000
2000 300 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 300 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 380 EXC (AU) - Wiring Harness Egs 125-380'2000
2000 380 EXC (AU) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 380 EXC (US) - Wiring Harness Exc 250-380 '2000
2000 380 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 380 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 380 SX (US) - Wiring Harness Exc 250-380 '2000
2000 380 SX (US) - Wiring Harness Egs 125-380'2000
2000 380 SX (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 400 EXC RACING - Wiring Harness 400/520 Racing Europa;Aus 2000
2000 400 EXC RACING (AU) - Wiring Harness 400/520 Racing Europa;Aus 2000
2000 400 EXC RACING (US) - Wiring Harness 400/520 Exc Usa 2000
2000 400 SC - Wiring Harness 400/620 Sc 2000
2000 400 SX RACING (US) - Wiring Harness 400/520 Exc Usa 2000
2000 400 SX RACING (US) - Wiring Harness 400/520 Racing Europa;Aus 2000
2000 520 EXC RACING - Wiring Harness 400/520 Racing Europa;Aus 2000
2000 520 EXC RACING (AU) - Wiring Harness 400/520 Racing Europa;Aus 2000
2000 520 EXC RACING (US) - Wiring Harness 400/520 Exc Usa 2000
2000 520 SX RACING (US) - Wiring Harness 400/520 Exc Usa 2000
2000 520 SX RACING (US) - Wiring Harness 400/520 Racing Europa;Aus 2000
2000 620 SC - Wiring Harness 400/620 Sc 2000
2000 620 SC (AU) - Wiring Harness 400/620 Sc 2000
2000 620 SC Super-moto (DE) - Wiring Harness 400/620 Sc 2000
2001 125 EXC (AU) - Wiring Harness Egs 125-380 2001
2001 125 EXC (AU) - Ignition Kokusan 2K-1/2K-2/2K-3 2001
2001 125 EXC (US) - Ignition Kokusan 2K-1/2K-2/2K-3 2001
2001 125 EXE 80 (DE) - Wiring Harness 125 Exe 2001
2001 125 EXE 80 (DE) - Ignition Kokusan 2K3 125 Exe 2000
2001 125 SUPERMOTO 80 (DE) - Wiring Harness 125 Exe 2001
2001 125 SUPERMOTO 80 (DE) - Ignition Kokusan 2K3 125 Exe 2000
2001 125 SX - Ignition Kokusan 2K-1/2K-2/2K-3 2001
2001 125 SXS - Ignition Kokusan 2K-1/2K-2/2K-3 2001
2001 200 EXC (AU) - Wiring Harness Egs 125-380 2001
2001 200 EXC (AU) - Ignition Kokusan 2K-1/2K-2/2K-3 2001
2001 200 EXC (US) - Ignition Kokusan 2K-1/2K-2/2K-3 2001
2001 200 EXC SGP (SG) - Wiring Harness Egs 125-380 2001
2001 200 EXC SGP (SG) - Wiring Harness Egs 200 2001
2001 200 EXC SGP (SG) - Ignition Kokusan 2K-1/2K-2/2K-3 2001
2001 200 MXC (US) - Ignition Kokusan 2K-1/2K-2/2K-3 2001
2001 250 EXC (AU) - Wiring Harness Egs 125-380 2001
2001 250 EXC (AU) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 250 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 250 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 250 SX - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 250 SXS - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 300 EXC (AU) - Wiring Harness Egs 125-380 2001
2001 300 EXC (AU) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 300 EXC (US) - Wiring Harness Exc 250-380 2001
2001 300 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 300 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 380 EXC (AU) - Wiring Harness Egs 125-380 2001
2001 380 EXC (AU) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 380 EXC (US) - Wiring Harness Exc 250-380 2001
2001 380 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 380 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 380 SX - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 400 EXC RACING (AU) - Wiring Harness 400/520 Racing Eu, Aus 2001
2001 400 EXC RACING (US) - Wiring Harness 400/520 Exc Usa, Mxc 2001
2001 400 MXC RACING (US) - Wiring Harness 400/520 Exc Usa, Mxc 2001
2001 520 EXC RACING (AU) - Wiring Harness 400/520 Racing Eu, Aus 2001
2001 520 EXC RACING (US) - Wiring Harness 400/520 Exc Usa, Mxc 2001
2001 520 MXC RACING (US) - Wiring Harness 400/520 Exc Usa, Mxc 2001
2001 620 SC SUPER-MOTO (DE) - Wiring Harness 620 Sc 2001
2002 125 EXC (AU) - Wiring Harness 125-380 2002
2002 125 EXC (AU) - Ignition Kokusan 2K 1/2K 2/2K-
2002 125 SX - Ignition Kokusan 2K 1/2K 2/2K-
2002 125 SXS - Ignition Kokusan 2K 1/2K 2/2K-
2002 200 EXC (AU) - Wiring Harness 125-380 2002
2002 200 EXC (AU) - Ignition Kokusan 2K 1/2K 2/2K-
2002 200 EXC (US) - Ignition Kokusan 2K 1/2K 2/2K-
2002 200 EXC SGP GS (SG) - Wiring Harness 200 Exc Gs 2002
2002 200 EXC SGP GS (SG) - Ignition Kokusan 2K 1/2K 2/2K-
2002 200 MXC (US) - Ignition Kokusan 2K 1/2K 2/2K-
2002 250 EXC (AU) - Wiring Harness 250-380 2002
2002 250 EXC (AU) - Ignition Kokusan 2K-1/2K-2/2K-
2002 250 EXC (US) - Wiring Harness Exc 250-380
2002 250 EXC (US) - Ignition Kokusan 2K-1/2K-2/2K-
2002 250 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2002 250 EXC RACING (US) - Wiring Harness 400/520 Exc Usa
2002 250 SX - Ignition Kokusan 2K-1/2K-2/2K-
2002 300 EXC (AU) - Wiring Harness 250-380 2002
2002 300 EXC (AU) - Ignition Kokusan 2K-1/2K-2/2K-
2002 300 EXC (US) - Wiring Harness Exc 250-380
2002 300 EXC (US) - Ignition Kokusan 2K-1/2K-2/2K-
2002 300 MXC (US) - Ignition Kokusan 2K-1/2K-2/2K-
2002 380 EXC (AU) - Wiring Harness 250-380 2002
2002 380 EXC (AU) - Ignition Kokusan 2K-1/2K-2/2K-
2002 380 EXC (US) - Wiring Harness Exc 250-380
2002 380 EXC (US) - Ignition Kokusan 2K-1/2K-2/2K-
2002 380 SX - Ignition Kokusan 2K-1/2K-2/2K-
2002 400 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2002 400 EXC RACING (US) - Wiring Harness 400/520 Exc Usa
2002 400 EXC-G RACING (US) - Wiring Harness 400/520 Exc Usa
2002 400 MXC RACING (US) - Wiring Harness 400/520 Exc Usa, Mxc 2001
2002 520 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2002 520 EXC RACING (US) - Wiring Harness 400/520 Exc Usa
2002 520 EXC-G RACING (US) - Wiring Harness 400/520 Exc Usa
2002 520 MXC RACING (US) - Wiring Harness 400/520 Exc Usa
2003 125 SX - Ignition Kokusan 2K-1/2K-2/2-3
2003 125 SXS - Ignition Kokusan 2K-1/2K-2/2-3
2003 200 EXC (AU) - Wiring Harness 125-300 Exc Eu
2003 200 EXC (AU) - Ignition Kokusan 2K-1/2K-2/2-3
2003 200 EXC (US) - Ignition Kokusan 2K-1/2K-2/2-3
2003 200 MXC (US) - Ignition Kokusan 2K-1/2K-2/2-3
2003 200 SX - Ignition Kokusan 2K-1/2K-2/2-3
2003 250 EXC (AU) - Wiring Harness 125-300 Exc Eu
2003 250 EXC (US) - Wiring Harness 250/300 Exc Usa
2003 250 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2003 250 EXC-G RACING (US) - Wiring Harness Racing Exc Usa
2003 300 EXC (AU) - Wiring Harness 125-300 Exc Eu
2003 300 EXC (AU) - Ignition Sys.Kokusan 2K-2/2K-3
2003 300 EXC (US) - Ignition Sys.Kokusan 2K-2/2K-3
2003 300 MXC (US) - Ignition Sys.Kokusan 2K-2/2K-3
2003 450 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2003 450 EXC-G RACING (US) - Wiring Harness Racing Exc Usa
2003 450 MXC-G RACING (US) - Wiring Harness Racing Exc Usa
2003 525 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2003 525 EXC-G RACING (US) - Wiring Harness Racing Exc Usa
2003 525 MXC-G RACING (US) - Wiring Harness Racing Exc Usa
2004 125 SX - Ignition System Kokusan
2004 125 SXS - Ignition System Kokusan
2004 200 EXC (AU) - Wiring Harness 125-300 Exc
2004 200 EXC (AU) - Ignition System Kokusan
2004 200 EXC (US) - Ignition System Kokusan
2004 200 SX - Ignition System Kokusan
2004 250 EXC (AU) - Wiring Harness 125-300 Exc
2004 250 EXC (AU) - Ignition System Kokusan
2004 250 EXC (US) - Wiring Harness 250/300 Exc Usa
2004 250 EXC (US) - Ignition System Kokusan
2004 250 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2004 250 EXC-G RACING (US) - Wiring Harness Racing Usa
2004 250 SX - Ignition System Kokusan
2004 250 SXS - Ignition System Kokusan
2004 300 EXC (AU) - Wiring Harness 125-300 Exc
2004 300 EXC (AU) - Ignition System Kokusan
2004 300 EXC (US) - Wiring Harness 250/300 Exc Usa
2004 300 EXC (US) - Ignition System Kokusan
2004 300 MXC (US) - Ignition System Kokusan
2004 400 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2004 400 EXC-G RACING (US) - Wiring Harness Racing Usa
2004 450 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2004 450 EXC RACING SIX-DAYS - Wiring Harness Racing Eu, Aus
2004 450 EXC-G RACING (US) - Wiring Harness Racing Usa
2004 450 MXC-G RACING (US) - Wiring Harness Racing Usa
2004 525 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2004 525 EXC RACING SIX.DAYS - Wiring Harness Racing Eu, Aus
2004 525 EXC-G RACING (US) - Wiring Harness Racing Usa
2004 525 MXC-G RACING (US) - Wiring Harness Racing Usa

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	EXC 380	2000-2002
KTM	SX 380	2000-2002
KTM	EXC 520	2000-2002
KTM	EXC 250	2002-2003
KTM	SX 200	2003-2004
KTM	MXC 200	1998-2003
KTM	MXC 250	1998-2001
KTM	EGS 200	1998-1999
KTM	SX 400	2000
KTM	EXC 125	1998-2002
KTM	MXC 400	2001-2002
KTM	EXE 125	2000-2001
KTM	MXC 520	2001-2002
KTM	SX 520	2000
KTM	MXC 380	2000-2001
KTM	EXC 450	2003-2004
KTM	EXC 525	2003-2004
KTM	EXC 250	2000-2004
KTM	EXC 300	2000-2004
KTM	SX 125	1998-2004
KTM	SX 250	2000-2004
KTM	SC 400	1999-2000
KTM	MXC 450	2003-2004
KTM	MXC 525	2003-2004
KTM	EXC 200	1999-2004
KTM	EXC 250	2002-2004
KTM	EXC 250	2001-2006
KTM	EXC 400	2000-2004

Regulator Ducati, Others, Arrowhead ADC6002, 50311034000

Arrowhead Electrical
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Aprilia 50 Benelli 50 Benelli 100 Beta Ark 80 Beta Scooter 50 Beta Tempo 80 Ducati Models Gilera 100 Gilera... Read more

1 in stock 1-2 business days

£91.65 Incl. VAT

Guaranteed secure & safe checkout.

SKU: 44-6161.AH

Free shipping on all orders above £75

No hassle returns within 30 days

Description

Aprilia 50 Benelli 50 Benelli 100 Beta Ark 80 Beta Scooter 50 Beta Tempo 80 Ducati Models

Gilera 100 Gilera JL 100 Italjet 50 Malaguti 50 Malaguti 100 MBK 50 MBK 100 Yamaha Scooter 50 Yamaha Scooter 100,

Technical specifications
Tension (voltage)	12 [V]
Corriente (current)	8 [A]
Tipo de entrada (input type)	MONOFASICO
Tecnologia (technology)	SCR
Tipo de salida (output type)	CA+CC
Alto (height)	20 [mm]
Ancho (width)	42 [mm]
Largo (length)	45 [mm]
Con sensor (with sensor)	NO

dze that apply to
Brand	Model	Version	Displacement	Year	OEM
Aprilia	Amico		50	from 1992 to 1995	AP8212540
Aprilia	Amico		50	from 1996 to 1998	AP8212540
Aprilia	Area	51	50	from 1998 to 2000	AP8212540
Aprilia	Gulliver		50	from 1995 to 1998	AP8212540
Aprilia	Rally		50	from 1995 to 2003	AP8212540
Aprilia	Rally	LC	50	from 1996 to 1999	AP8212540
Aprilia	SR	Sigilo	50	from 1997 to 2000	AP8212540
Aprilia	SR	AC/LC	50	from 1993 to 1996	AP8212540
Aprilia	SR	WWW	50	from 1997 to 2001	AP8212540
Aprilia	Scarabeo		50	from 1993 to 1997	AP8212540
Aprilia	Scarabeo		50	from 1998 to 2005	AP8212540
Aprilia	Sonic	GP	50	from 1998 to 2008	AP8212799
Aprilia	Sonic		50	from 1998 to 2007	AP8212799
Benelli	491	Racing	50	from 1997 to 2001	R51540011A0
Benelli	491	ST	50	from 2003 to 2006	R51540011A0
Benelli	491	RR	50	from 1997 to 2001	R51540011A0
Benelli	491	ST/GT/ Sport	50	from 1997 to 2002	R51540011A0
Benelli	491	Superbike	50	from 1997 to 2001	R51540011A0
Benelli	491	Army	50	from 1997 to 2001	R51540011A0
Benelli	K2	AC/LC	50	from 1998 to 2001	R51540011A0
Benelli	Pepe		50	from 1999 to 2004	R51540011A0
Beta	Ark	AC	50	from 2004 to 2007	2727800000
Beta	Ark	AC	50	from 2008	2727800000
Beta	Ark	LC	50	from 1996 to 2007	2727800000
Beta	Ark	AC	50	from 1996 to 2003	2727800000
Beta	Quadra		50	from 1995 to 2001	2727800000
Beta	Quadra	Chrono 502	50	from 1995 to 1999	2727800000
Beta	Tempo		50	from 1994 to 1999	2727800000
Derbi	Hunter		50	from 1996 to 1997	00G01000841
Derbi	Manhattan		50	from 1998 to 1999	00G01000841
Derbi	Vamos	FL/FLN/L	50	from 1995 to 1998	00G01000841
Ducati	-				434348101
Gilera	JL	T9	100
Gilera	JL	2T	100
Gilera	JL	T3	100
Italjet	Dragster	FL/FLN/L	50	from 1998 to 2002	3372902
Italjet	Formula		50	from 1994 to 2003	3372902
Italjet	Pista 2	AC 2T	50	from 1992 to 1997	3372902
KTM	EXC	4T	450	from 2003 to 2004	5031134000
KTM	EXC		500	from 2000 to 2004	5031134000
KTM	EXC	4T	250	from 2002 to 2004	5031134000
KTM	EXC	4T	250	from 2002 to 2004	5031134000
KTM	EXC	2T	300	from 1998 to 2004	5031134000
KTM	EXC	2T	250	from 1998 to 2004	5031134000
KTM	EXC	2T	125	from 1998 to 2004	5031134000
KTM	MXC		525	from 2000 to 2004	5031134000
KTM	MXC	4T	450	from 2003 to 2004	5031134000
KTM	MXC	4T	250	from 2002 to 2004	5031134000
KTM	SC		620	from 1999 to 2001	5031134000
Kawasaki	BN	Eliminator	125	1998	21066-1086
Kawasaki	KLX		110	from 2002 to 2009	21066-1086
MBK	-		50		4VV-H1960-01
MBK	-		100		4VV-H1960-01
Malaguti	CR1	Crosser	50	from 1995 to 2001	02601100
Malaguti	Centro	SL	50	from 1994 to 2000	02601100
Malaguti	Centro	SL	50	from 1993 to 1997	02601100
Malaguti	Ciak		50	from 2000 to 2004	02601100
Malaguti	F10	Jetline Euro 1	50	from 1994 to 2001	02601100
Malaguti	F12	Phantom AC / LC	50	from 1994 to 2000	02601100
Malaguti	F12	Phantom DT AC	50	from 1994 to 1998	02601100
Malaguti	F12	Phantom Euro 2 IDT	50	from 2002 to 2003	02601100
Malaguti	F15	Firefox DD AC	50	from 1996 to 2001	02601100
Malaguti	F15	Firefox DD LC	50	from 1996 to 2001	02601100
Malaguti	Yesterday		50	from 1998 to 2003	02601100
Reemplazo	Shindengen				SH635-12
Reemplazo	Shindengen				SH610-12
Reemplazo	Shindengen				SH636A-12
Reemplazo	Shindengen				SH580-12
Reemplazo	Shindengen				SH653-12
Suzuki	Address		50	from 1992 to 1995	32800-40D10-000
Suzuki	Sepia		50	from 1995 to 1997	32800-40D10-000
Yamaha	BW	Bump	50	from 1995 to 1998	4VV-H1960-01-00
Yamaha	BW	Original	50	from 1997 to 2002	4VV-H1960-01-00
Yamaha	BW	NG	50	from 1997 to 2002	4VV-H1960-01-00
Yamaha	YH	Why	50	from 1998 to 2007	4VV-H1960-01-00
Yamaha	YN	Neos	50	from 1997 to 2007	4VV-H1960-01-00
Yamaha	YQ	Aerox	50	from 1997 to 2000	4VV-H1960-01-00

- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale
- Designed to handle increased power loads.
- DZE Racing products are a high quality replacement part and
- Note. No Returns on Electrical Parts.

Part No. 44-6161.AH (radhouse.co.uk)

RECTIFIER / REGULATOR ADC6002 12-Volt 8 Amp Input Type MONOFASICO SCR Output Type CA+CC 20mm H x 42mm W x 45mmL Without Sensor

Cross reference numbers ONLY.
50311034000, ADC6002 ARROWHEAD AP8212540 APRILIA R51540011A0 BENELLI
ADC6002 ARROWHEAD
230-42022 J & N
AP8212540 APRILIA
R51540011A0 BENELLI
2727800000 BETAMOTOR
343480 DUCATI
34348100 DUCATI
34348101 DUCATI
717003 HI LEVEL
3372902 ITALJET
21066-1086 KAWASAKI
50311034000 KTM
02601100 MALAGUTI
32800-36C20 SUZUKI
32800-36C30 SUZUKI
32800-40D00 SUZUKI
32800-40D10 SUZUKI
K2106-61086 SUZUKI
4VV-H1960-00-00 YAMAHA
4VV-H1960-01-00 YAMAHA

Assemblies where 50311034000 is used
1997 125 SIX DAY LE (US) - Ignition Kokusan 2K-1/2K2/2K3 '98
1997 200 EXC JACKPINER (US) - Wiring Harness Exc 125-200 '98
1997 200 EXC JACKPINER (US) - Ignition Kokusan 2K-1/2K2/2K3 '98
1998 125 EGS 6KW (DE) - Wiring Harness Egs 125-200 '98
1998 125 EGS 6KW (DE) - Ignition Kokusan 2K-1/2K2/2K3 '98
1998 125 EXC (US) - Wiring Harness Exc 125-200 '98
1998 125 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '98
1998 125 SX (US) - Ignition Kokusan 2K-1/2K2/2K3 '98
1998 200 EGS 12LT 8KW (AU) - Ignition Kokusan 2K-1/2K2/2K3 '98
1998 200 EXC (US) - Wiring Harness Exc 125-200 '98
1998 200 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '98
1998 200 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '98
1999 125 EGS (AU) - Ignition Kokusan 2K-1/2K2/2K3 '99
1999 125 EGS 6KW (DE) - Wiring Harness Egs 125-200 '99
1999 125 EGS 6KW (DE) - Ignition Kokusan 2K-1/2K2/2K3 '99
1999 125 EXC (US) - Wiring Harness Exc 125-200 '99
1999 125 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '99
1999 125 SX (US) - Ignition Kokusan 2K-1/2K2/2K3 '99
1999 200 EGS 12LT 8KW (AU) - Ignition Kokusan 2K-1/2K2/2K3 '99
1999 200 EGS SGP (SG) - Wiring Harness Egs 125-200 '99
1999 200 EGS SGP (SG) - Ignition Kokusan 2K-1/2K2/2K3 '2000
1999 200 EGS SGP (SG) - Ignition Kokusan 2K-1/2K2/2K3 '99
1999 200 EXC (US) - Wiring Harness Exc 125-200 '99
1999 200 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '99
1999 200 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '99
1999 400 SUP-COMP 20kW (DE) - Wiring Harness 400/620 Sc '99
1999 620 SUP-COMP 20kW (DE) - Wiring Harness 400/620 Sc '99
2000 125 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 125 EXE 80 (DE) - Wiring Harness 125 Exe 2000
2000 125 EXE 80 (DE) - Ignition Kokusan 2K3 125 Exe 2000
2000 125 SUPERMOTO 80 (DE) - Wiring Harness 125 Exe 2000
2000 125 SUPERMOTO 80 (DE) - Ignition Kokusan 2K3 125 Exe 2000
2000 125 SX (US) - Wiring Harness Egs 125-380'2000
2000 125 SX (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 125 SXS - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 200 EXC (AU) - Wiring Harness Egs 125-380'2000
2000 200 EXC (AU) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 200 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 200 EXC SGP (SG) - Wiring Harness Egs 125-380'2000
2000 200 EXC SGP (SG) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 200 EXC SGP (SG) - Ignition Kokusan 2K-1/2K2/2K3 '99
2000 200 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 250 EXC (AU) - Wiring Harness Egs 125-380'2000
2000 250 EXC (AU) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 250 EXC (US) - Wiring Harness Exc 250-380 '2000
2000 250 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 250 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 250 SX (US) - Wiring Harness Exc 250-380 '2000
2000 250 SX (US) - Wiring Harness Egs 125-380'2000
2000 300 EXC (AU) - Wiring Harness Egs 125-380'2000
2000 300 EXC (AU) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 300 EXC (US) - Wiring Harness Exc 250-380 '2000
2000 300 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 300 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 380 EXC (AU) - Wiring Harness Egs 125-380'2000
2000 380 EXC (AU) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 380 EXC (US) - Wiring Harness Exc 250-380 '2000
2000 380 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 380 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 380 SX (US) - Wiring Harness Exc 250-380 '2000
2000 380 SX (US) - Wiring Harness Egs 125-380'2000
2000 380 SX (US) - Ignition Kokusan 2K-1/2K2/2K3 '2000
2000 400 EXC RACING - Wiring Harness 400/520 Racing Europa;Aus 2000
2000 400 EXC RACING (AU) - Wiring Harness 400/520 Racing Europa;Aus 2000
2000 400 EXC RACING (US) - Wiring Harness 400/520 Exc Usa 2000
2000 400 SC - Wiring Harness 400/620 Sc 2000
2000 400 SX RACING (US) - Wiring Harness 400/520 Exc Usa 2000
2000 400 SX RACING (US) - Wiring Harness 400/520 Racing Europa;Aus 2000
2000 520 EXC RACING - Wiring Harness 400/520 Racing Europa;Aus 2000
2000 520 EXC RACING (AU) - Wiring Harness 400/520 Racing Europa;Aus 2000
2000 520 EXC RACING (US) - Wiring Harness 400/520 Exc Usa 2000
2000 520 SX RACING (US) - Wiring Harness 400/520 Exc Usa 2000
2000 520 SX RACING (US) - Wiring Harness 400/520 Racing Europa;Aus 2000
2000 620 SC - Wiring Harness 400/620 Sc 2000
2000 620 SC (AU) - Wiring Harness 400/620 Sc 2000
2000 620 SC Super-moto (DE) - Wiring Harness 400/620 Sc 2000
2001 125 EXC (AU) - Wiring Harness Egs 125-380 2001
2001 125 EXC (AU) - Ignition Kokusan 2K-1/2K-2/2K-3 2001
2001 125 EXC (US) - Ignition Kokusan 2K-1/2K-2/2K-3 2001
2001 125 EXE 80 (DE) - Wiring Harness 125 Exe 2001
2001 125 EXE 80 (DE) - Ignition Kokusan 2K3 125 Exe 2000
2001 125 SUPERMOTO 80 (DE) - Wiring Harness 125 Exe 2001
2001 125 SUPERMOTO 80 (DE) - Ignition Kokusan 2K3 125 Exe 2000
2001 125 SX - Ignition Kokusan 2K-1/2K-2/2K-3 2001
2001 125 SXS - Ignition Kokusan 2K-1/2K-2/2K-3 2001
2001 200 EXC (AU) - Wiring Harness Egs 125-380 2001
2001 200 EXC (AU) - Ignition Kokusan 2K-1/2K-2/2K-3 2001
2001 200 EXC (US) - Ignition Kokusan 2K-1/2K-2/2K-3 2001
2001 200 EXC SGP (SG) - Wiring Harness Egs 125-380 2001
2001 200 EXC SGP (SG) - Wiring Harness Egs 200 2001
2001 200 EXC SGP (SG) - Ignition Kokusan 2K-1/2K-2/2K-3 2001
2001 200 MXC (US) - Ignition Kokusan 2K-1/2K-2/2K-3 2001
2001 250 EXC (AU) - Wiring Harness Egs 125-380 2001
2001 250 EXC (AU) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 250 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 250 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 250 SX - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 250 SXS - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 300 EXC (AU) - Wiring Harness Egs 125-380 2001
2001 300 EXC (AU) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 300 EXC (US) - Wiring Harness Exc 250-380 2001
2001 300 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 300 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 380 EXC (AU) - Wiring Harness Egs 125-380 2001
2001 380 EXC (AU) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 380 EXC (US) - Wiring Harness Exc 250-380 2001
2001 380 EXC (US) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 380 MXC (US) - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 380 SX - Ignition Kokusan 2K-1/2K2/2K3 2001
2001 400 EXC RACING (AU) - Wiring Harness 400/520 Racing Eu, Aus 2001
2001 400 EXC RACING (US) - Wiring Harness 400/520 Exc Usa, Mxc 2001
2001 400 MXC RACING (US) - Wiring Harness 400/520 Exc Usa, Mxc 2001
2001 520 EXC RACING (AU) - Wiring Harness 400/520 Racing Eu, Aus 2001
2001 520 EXC RACING (US) - Wiring Harness 400/520 Exc Usa, Mxc 2001
2001 520 MXC RACING (US) - Wiring Harness 400/520 Exc Usa, Mxc 2001
2001 620 SC SUPER-MOTO (DE) - Wiring Harness 620 Sc 2001
2002 125 EXC (AU) - Wiring Harness 125-380 2002
2002 125 EXC (AU) - Ignition Kokusan 2K 1/2K 2/2K-
2002 125 SX - Ignition Kokusan 2K 1/2K 2/2K-
2002 125 SXS - Ignition Kokusan 2K 1/2K 2/2K-
2002 200 EXC (AU) - Wiring Harness 125-380 2002
2002 200 EXC (AU) - Ignition Kokusan 2K 1/2K 2/2K-
2002 200 EXC (US) - Ignition Kokusan 2K 1/2K 2/2K-
2002 200 EXC SGP GS (SG) - Wiring Harness 200 Exc Gs 2002
2002 200 EXC SGP GS (SG) - Ignition Kokusan 2K 1/2K 2/2K-
2002 200 MXC (US) - Ignition Kokusan 2K 1/2K 2/2K-
2002 250 EXC (AU) - Wiring Harness 250-380 2002
2002 250 EXC (AU) - Ignition Kokusan 2K-1/2K-2/2K-
2002 250 EXC (US) - Wiring Harness Exc 250-380
2002 250 EXC (US) - Ignition Kokusan 2K-1/2K-2/2K-
2002 250 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2002 250 EXC RACING (US) - Wiring Harness 400/520 Exc Usa
2002 250 SX - Ignition Kokusan 2K-1/2K-2/2K-
2002 300 EXC (AU) - Wiring Harness 250-380 2002
2002 300 EXC (AU) - Ignition Kokusan 2K-1/2K-2/2K-
2002 300 EXC (US) - Wiring Harness Exc 250-380
2002 300 EXC (US) - Ignition Kokusan 2K-1/2K-2/2K-
2002 300 MXC (US) - Ignition Kokusan 2K-1/2K-2/2K-
2002 380 EXC (AU) - Wiring Harness 250-380 2002
2002 380 EXC (AU) - Ignition Kokusan 2K-1/2K-2/2K-
2002 380 EXC (US) - Wiring Harness Exc 250-380
2002 380 EXC (US) - Ignition Kokusan 2K-1/2K-2/2K-
2002 380 SX - Ignition Kokusan 2K-1/2K-2/2K-
2002 400 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2002 400 EXC RACING (US) - Wiring Harness 400/520 Exc Usa
2002 400 EXC-G RACING (US) - Wiring Harness 400/520 Exc Usa
2002 400 MXC RACING (US) - Wiring Harness 400/520 Exc Usa, Mxc 2001
2002 520 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2002 520 EXC RACING (US) - Wiring Harness 400/520 Exc Usa
2002 520 EXC-G RACING (US) - Wiring Harness 400/520 Exc Usa
2002 520 MXC RACING (US) - Wiring Harness 400/520 Exc Usa
2003 125 SX - Ignition Kokusan 2K-1/2K-2/2-3
2003 125 SXS - Ignition Kokusan 2K-1/2K-2/2-3
2003 200 EXC (AU) - Wiring Harness 125-300 Exc Eu
2003 200 EXC (AU) - Ignition Kokusan 2K-1/2K-2/2-3
2003 200 EXC (US) - Ignition Kokusan 2K-1/2K-2/2-3
2003 200 MXC (US) - Ignition Kokusan 2K-1/2K-2/2-3
2003 200 SX - Ignition Kokusan 2K-1/2K-2/2-3
2003 250 EXC (AU) - Wiring Harness 125-300 Exc Eu
2003 250 EXC (US) - Wiring Harness 250/300 Exc Usa
2003 250 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2003 250 EXC-G RACING (US) - Wiring Harness Racing Exc Usa
2003 300 EXC (AU) - Wiring Harness 125-300 Exc Eu
2003 300 EXC (AU) - Ignition Sys.Kokusan 2K-2/2K-3
2003 300 EXC (US) - Ignition Sys.Kokusan 2K-2/2K-3
2003 300 MXC (US) - Ignition Sys.Kokusan 2K-2/2K-3
2003 450 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2003 450 EXC-G RACING (US) - Wiring Harness Racing Exc Usa
2003 450 MXC-G RACING (US) - Wiring Harness Racing Exc Usa
2003 525 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2003 525 EXC-G RACING (US) - Wiring Harness Racing Exc Usa
2003 525 MXC-G RACING (US) - Wiring Harness Racing Exc Usa
2004 125 SX - Ignition System Kokusan
2004 125 SXS - Ignition System Kokusan
2004 200 EXC (AU) - Wiring Harness 125-300 Exc
2004 200 EXC (AU) - Ignition System Kokusan
2004 200 EXC (US) - Ignition System Kokusan
2004 200 SX - Ignition System Kokusan
2004 250 EXC (AU) - Wiring Harness 125-300 Exc
2004 250 EXC (AU) - Ignition System Kokusan
2004 250 EXC (US) - Wiring Harness 250/300 Exc Usa
2004 250 EXC (US) - Ignition System Kokusan
2004 250 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2004 250 EXC-G RACING (US) - Wiring Harness Racing Usa
2004 250 SX - Ignition System Kokusan
2004 250 SXS - Ignition System Kokusan
2004 300 EXC (AU) - Wiring Harness 125-300 Exc
2004 300 EXC (AU) - Ignition System Kokusan
2004 300 EXC (US) - Wiring Harness 250/300 Exc Usa
2004 300 EXC (US) - Ignition System Kokusan
2004 300 MXC (US) - Ignition System Kokusan
2004 400 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2004 400 EXC-G RACING (US) - Wiring Harness Racing Usa
2004 450 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2004 450 EXC RACING SIX-DAYS - Wiring Harness Racing Eu, Aus
2004 450 EXC-G RACING (US) - Wiring Harness Racing Usa
2004 450 MXC-G RACING (US) - Wiring Harness Racing Usa
2004 525 EXC RACING (AU) - Wiring Harness Racing Eu, Aus
2004 525 EXC RACING SIX.DAYS - Wiring Harness Racing Eu, Aus
2004 525 EXC-G RACING (US) - Wiring Harness Racing Usa
2004 525 MXC-G RACING (US) - Wiring Harness Racing Usa

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	EXC 380	2000-2002
KTM	SX 380	2000-2002
KTM	EXC 520	2000-2002
KTM	EXC 250	2002-2003
KTM	SX 200	2003-2004
KTM	MXC 200	1998-2003
KTM	MXC 250	1998-2001
KTM	EGS 200	1998-1999
KTM	SX 400	2000
KTM	EXC 125	1998-2002
KTM	MXC 400	2001-2002
KTM	EXE 125	2000-2001
KTM	MXC 520	2001-2002
KTM	SX 520	2000
KTM	MXC 380	2000-2001
KTM	EXC 450	2003-2004
KTM	EXC 525	2003-2004
KTM	EXC 250	2000-2004
KTM	EXC 300	2000-2004
KTM	SX 125	1998-2004
KTM	SX 250	2000-2004
KTM	SC 400	1999-2000
KTM	MXC 450	2003-2004
KTM	MXC 525	2003-2004
KTM	EXC 200	1999-2004
KTM	EXC 250	2002-2004
KTM	EXC 250	2001-2006
KTM	EXC 400	2000-2004

Shipping & Delivery

How long will my item take to arrive?

Orders are typically dispatched within 1 working day and are shipped on a 24hour (non-guaranteed) service.

Where do you ship to?

We currently only ship orders within the UK.

How can I track my order?

Once your order has been dispatched, you will receive a tracking code. Tracking information is emailed to the email address that was provided when placing the order.

Can I collect my order?

Unfortunately we do not offer order collections from our fulfilment centre.
