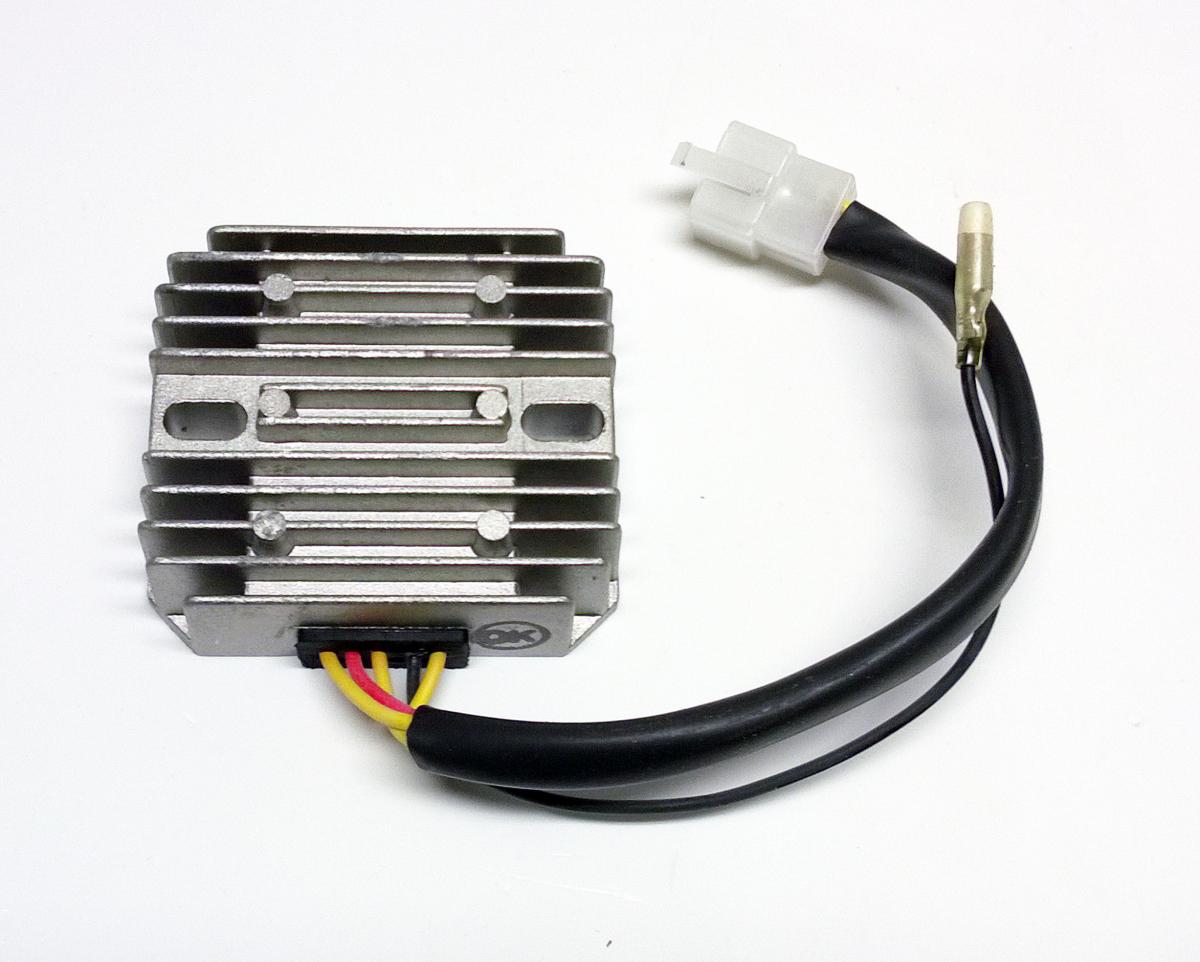

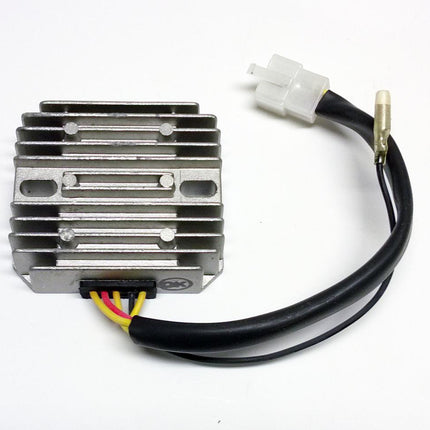

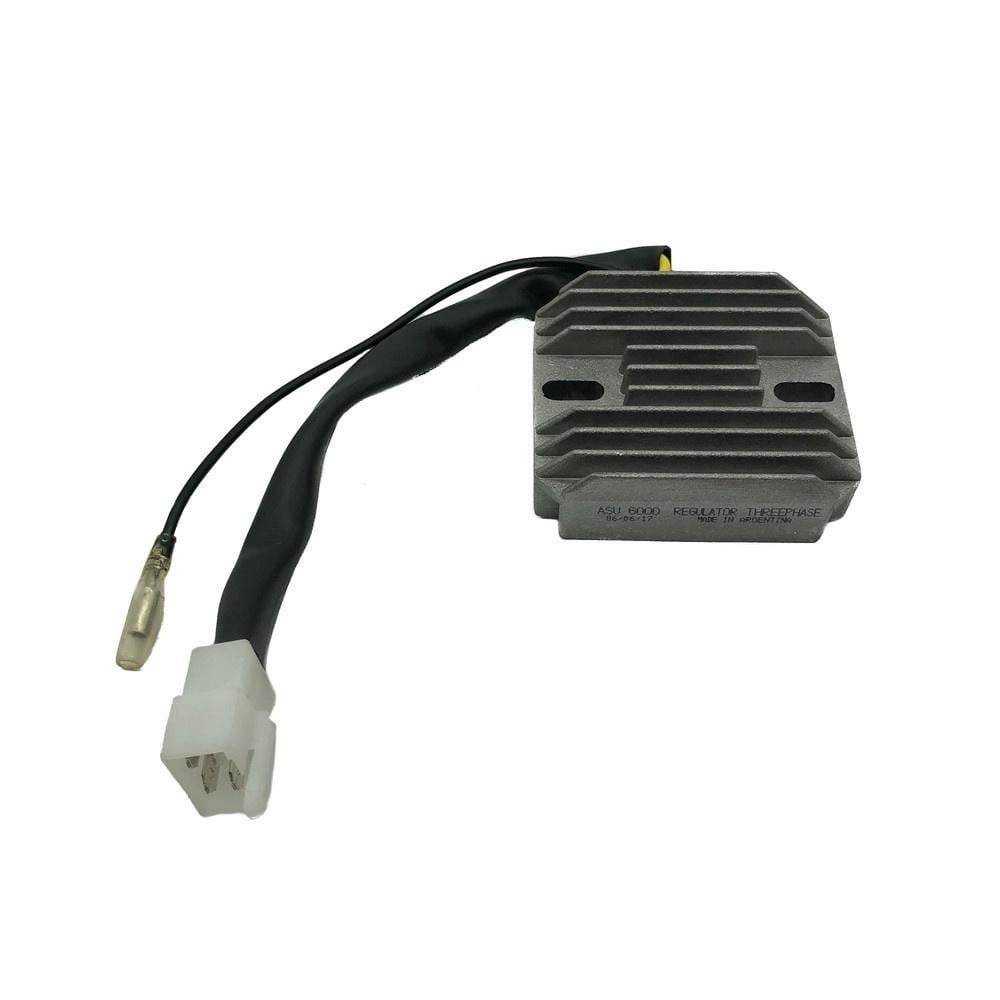

Description
Suzuki
LS-F230 1986-87,
LS230G 1985-86,
GS750 KATANA L/T/S 1981-82,
GS750 KATANA E 1981-82,
GS650 GLT 1981-83,
GS650 GL 1981-83,
GS650 KATANA 1981-83,
GS550L 1983-86,
GS550 ESG 1983-86,
GS550 ESF 1983-86,
GS550 ESE 1983-86,
GS550 ES3 1983-86,
GS550 EF 1983-86,
GS550 E / ES 1983,
GS550 L / M 1980-82,
GS1100 L 16-VALVE 1980-83,
GS1100 EZ 16-VALVE 1980-83,
GS1100 E 16-VALVE 1980-83,
GS1100 G 1981-83,
LT250EF Quadrunner 250cc 1985-86
LT300E Quadrunner 300cc 1987-88
| Technical specifications |
| Tension (voltage) | 12 [V] |
| Corriente (current) | 25 [A] |
| Tipo de entrada (input type) | TRIFASICO |
| Tecnologia (technology) | SCR |
| Tipo de salida (output type) | CC |
| Alto (height) | 28 [mm] |
| Ancho (width) | 70 [mm] |
| Largo (length) | 80 [mm] |
| Entre centro (pitch) | 60 [mm] |
| Con sensor (with sensor) | NO |
| dze products that apply to |
| Brand | Model | Version | Displacement | Year | OEM |
| Suzuki | - |
|
|
| 32800-43X51 |
| Suzuki | - |
|
|
| 32800-43X50 |
| Suzuki | GS | E / S | 450 | from 1984 to 1988 | 32800-35B00 |
| Suzuki | GS | E / ES | 1100 | from 1982 to 1983 | 32800-49420 |
| Suzuki | GS | L | 550 | from 1983 to 1986 | 32800-43400 |
| Suzuki | GS | G / GK / GL | 1100 | from 1982 to 1983 | 32800-49420 |
| Suzuki | GS | E | 550 | from 1983 to 1986 | 32800-43400 |
| Suzuki | GS | G | 1100 | 2002 | 32800-43400 |
| Suzuki | GS | G | 1100 | from 1982 to 1983 | 32800-43400 |
| Suzuki | GSX | E | 500 | from 1984 to 1985 | 32800-43400 |
| Suzuki | GSX | E | 550 | from 1983 to 1987 | 32800-43400 |
| Suzuki | GSX | D / XD | 1100 | 1983 | 32800-49430 |
| Suzuki | GSX | Z | 1100 | 1982 | 32800-49430 |
| Suzuki | GSX | E | 1100 | from 1982 to 1983 | 32800-49430 |
- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale
- DZE Racing products are a high quality replacement part and
- Note. No Returns on Electrical Parts.
Part No. 44-3868 (radhouse.co.uk)
76mm L x 48mm W x 28mm T

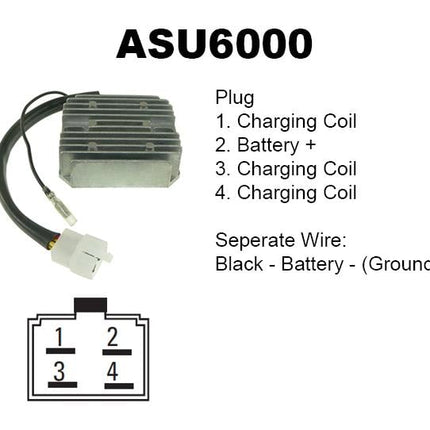

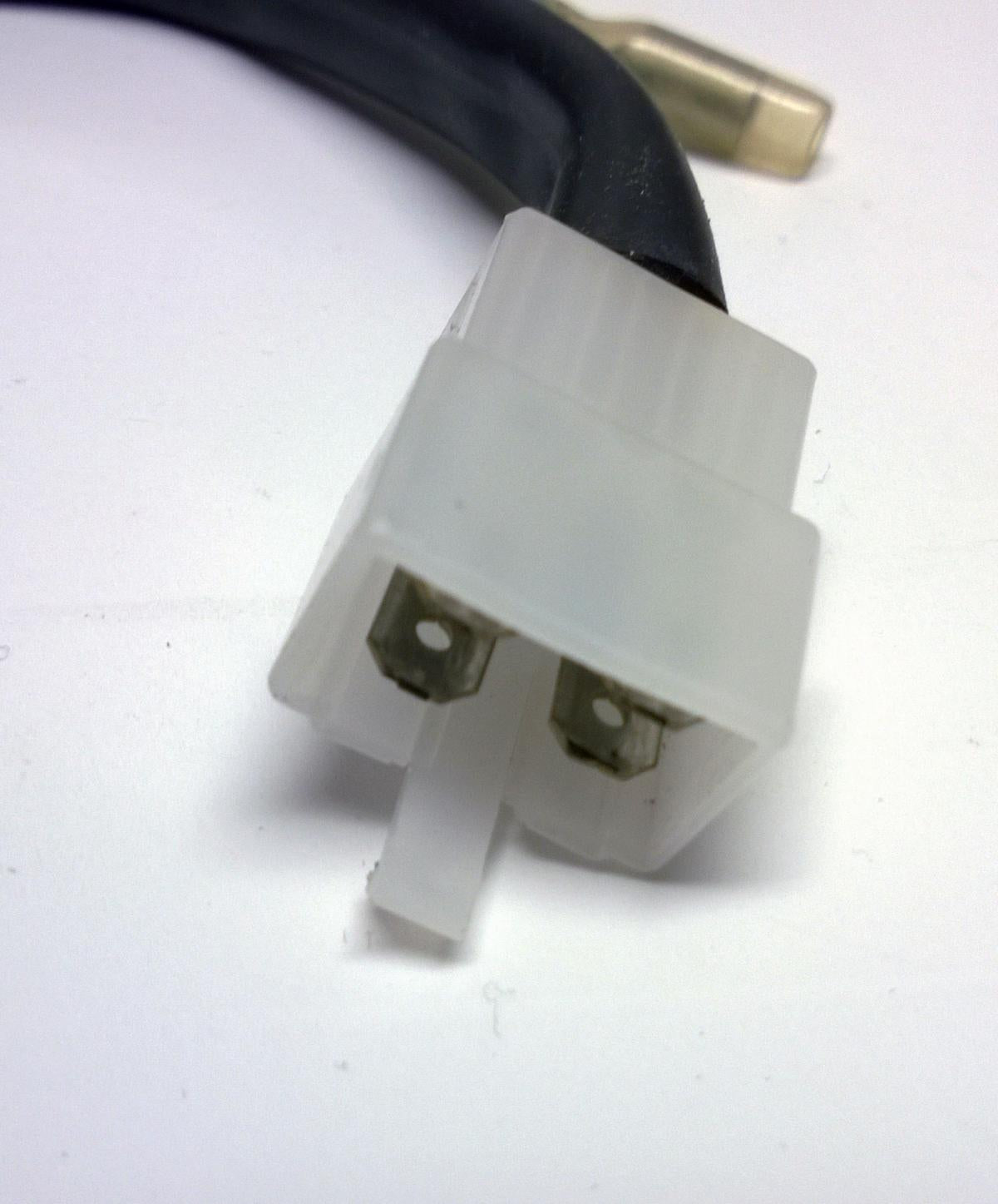

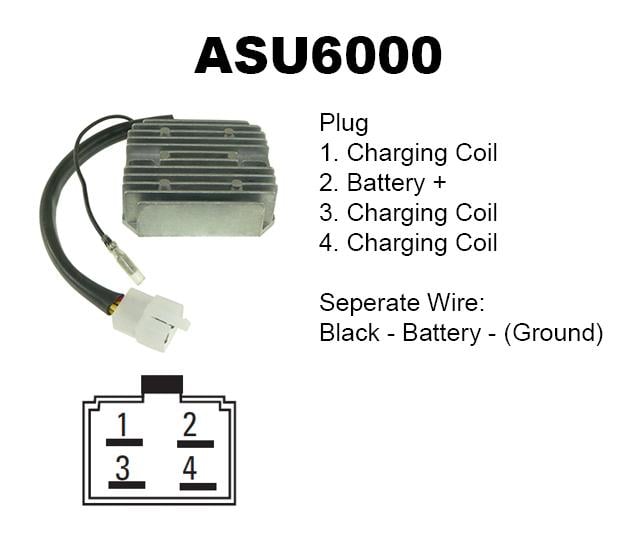

Plug - (3) Yellow, (1) Red Wire 9.5 Inches OAL
(1) Black Ground Wire w/Bullet Connector 9 Inches OAL
(2) 6.5mm x 11.8mm Elongated Mounting Holes 48.3mm (inner), 72mm (outer)
SIZE. 80mm L x 70mm W X 28mm H
Cross reference numbers ONLY.

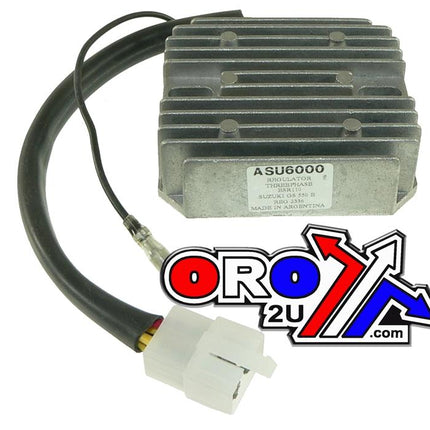

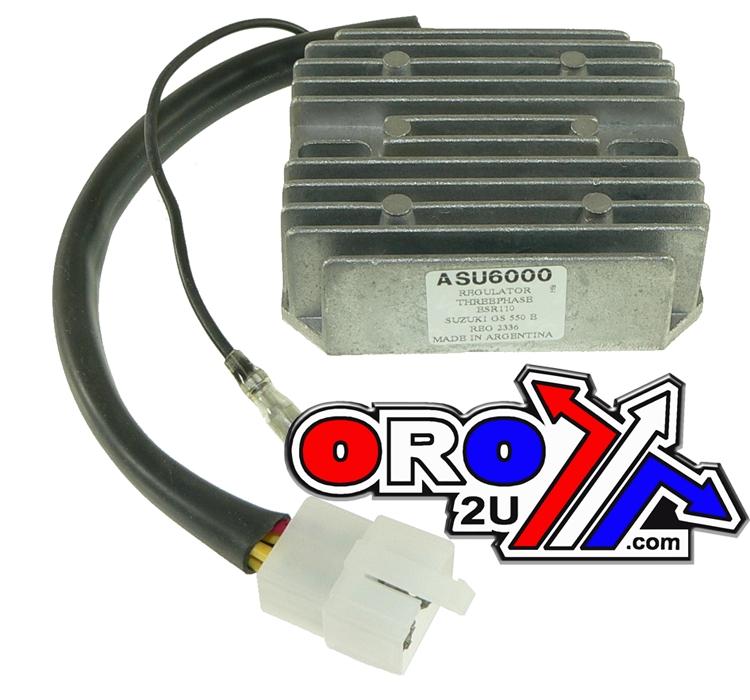

ASU6000 ARROWHEAD
ESP2336 ARROWHEAD (OEM)
230-58165 J & N
8099-1604 PIC
44-3600 EMS
717920 HI LEVEL
32800-24500 SUZUKI
32800-24501 SUZUKI
32800-35B00 SUZUKI
32800-43410 SUZUKI
32800-43X50 SUZUKI
32800-43X51 SUZUKI
32800-49120 SUZUKI
32800-49420 SUZUKI
32800-49430 SUZUKI
463981 TUCKER ROCKY
495842 TUCKER ROCKY
49-5842 TUCKER ROCKY
