Description
Part no 48-226.OR (radhouse.co.uk)
Fitment
Villopoto/Stewart/KTM 2011-2016

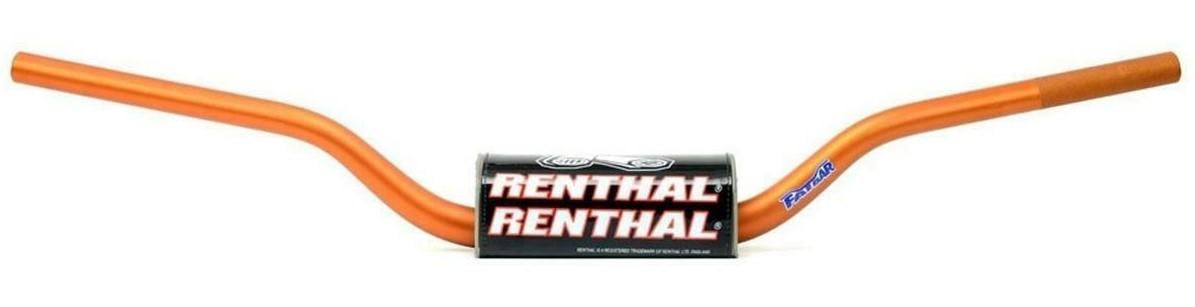

Fatbar
The championship-proven Renthal Fatbar continues to set the industry standard in an unbraced tapered MX handlebar. The oversized (1-1/8 inches | 28.6mm) clamping diameter uses computer-aided profiling, tapering down to (7/8 inches | 22.2mm) to accept standard controls. Engineered from Renthal's exclusive 7010 T6 aluminum, specially formulated to reduce vibration and provide superior strength.
The Renthal MX Fatbar provides that signature flex character desired by many top athletes around the globe and is fitted as OE equipment by Honda, Kawasaki, and Suzuki.

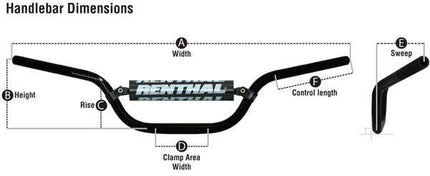

Bar Dimensions
Width / Dimension A 811
Height / Dimension 92
Rise / Dimension C 52
Clamping Width / Dimension D 117
Sweep / Dimension E 52
Control Length / Dimension F 222
Dimension G 106
Height / Dimension BV 92
Mounting Diameter 28.6mm / 1+1/8''
Vehicle Compatibility
Please check the exact model and year before ordering.
| Manufacturer |
Model |
Years |
| KTM |
SX 150 |
2015 |
| KTM |
SX F 250 |
2015 |
| KTM |
SX F 350 |
2015 |
| KTM |
SX 125 |
2015 |
| KTM |
SX 250 |
2015 |
| KTM |
SX F 450 |
2015 |
