Description

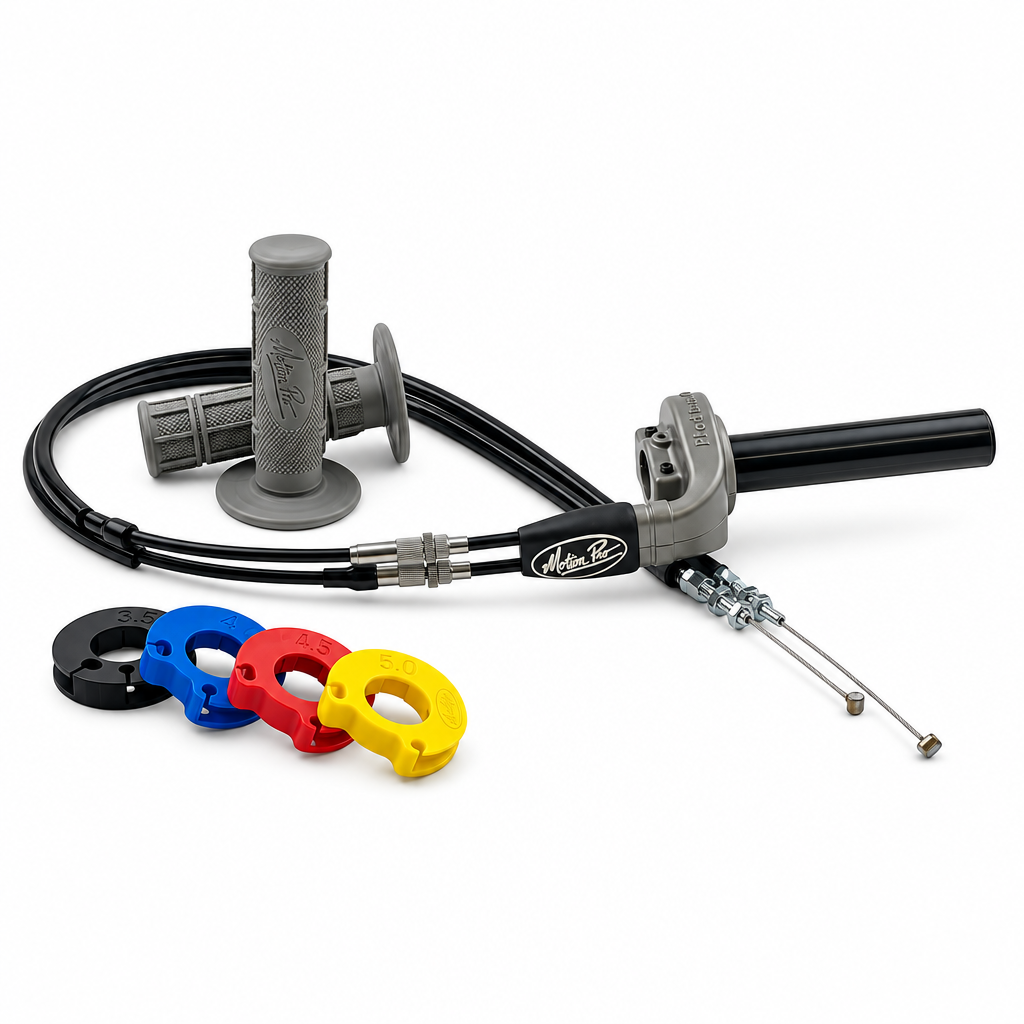

A second-generation, variable-rate off-road throttle system designed to reduce required twist, provide progressive control, and streamline installation and maintenance. The ultra-compact housing and snap-together elbows conserve handlebar space while enabling rapid reel swaps, with cable construction focused on smooth operation and durability.

Features

Adjusts how much twist is required to reach full throttle via interchangeable reels
Each reel changes twist by approximately 10 degrees: if stock is 90° with a 40 mm reel, the 45 mm reel reduces to ~80°, the 50 mm reel to ~70°, and the 35 mm reel increases to ~100°
Progressive-profile cam reel delivers sensitive, longer-twist control at small openings and shorter, more direct twist at larger openings
Second-generation throttle system with patent-pending design
Innovative reel changing system to tailor throttle rate to riding conditions and rider preference
Ultra-compact reel housing with snap-together elbows for quick installation and reel changes
Requires less handlebar space than the Revolver throttle kit for added lever and control clearance
Use smaller reels for slower throttle rate and larger reels for faster throttle rate
Unique reel design enables fast reel changes
Cable boot helps keep dirt and dust out for reliable, smooth operation
Billet aluminium in-line cable adjusters for ease of installation and adjustment

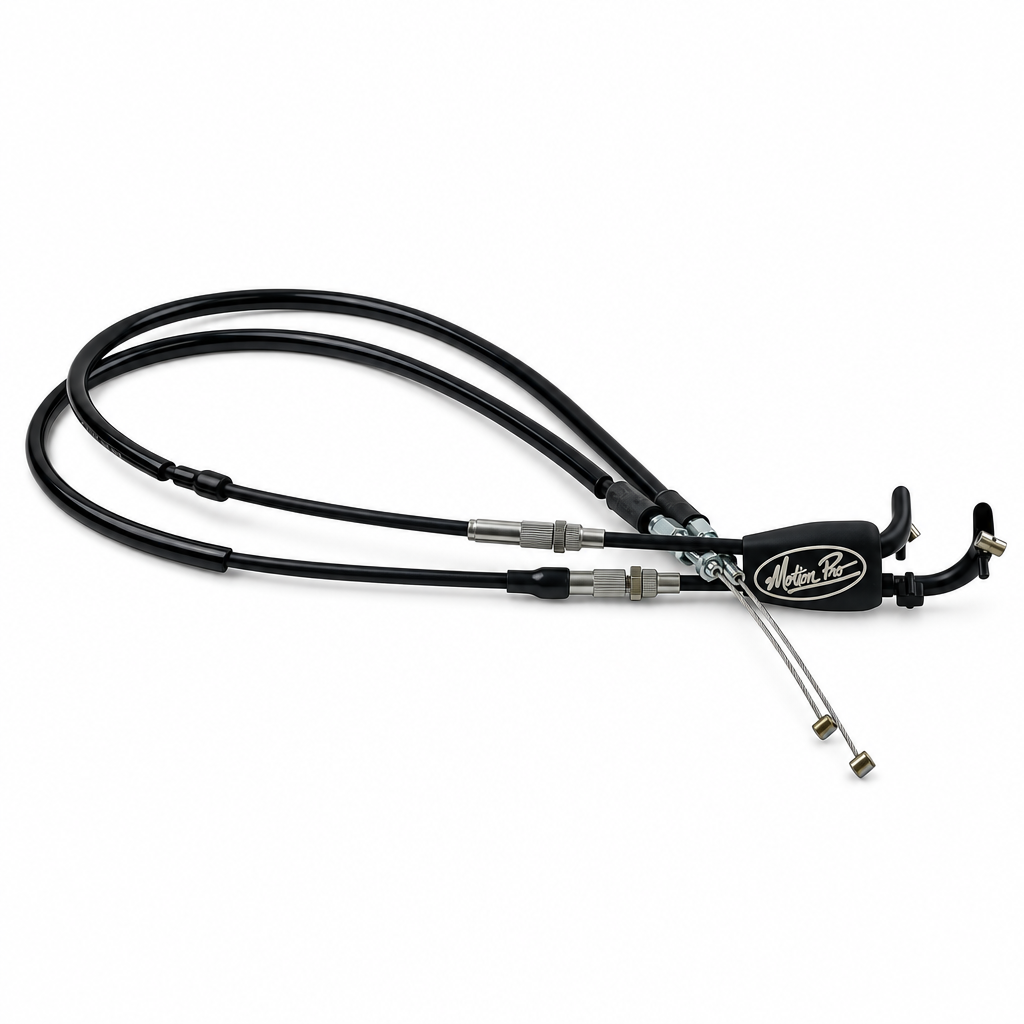

Lower cable section uses 5 mm housing with PTFE liner for reduced friction, increased routing flexibility, and lighter weight
Upper cable section uses 6 mm housing to provide solid support for adjusters

Specifications

Model: REV2 Offroad Throttle Kit
Carburettor type: Stock

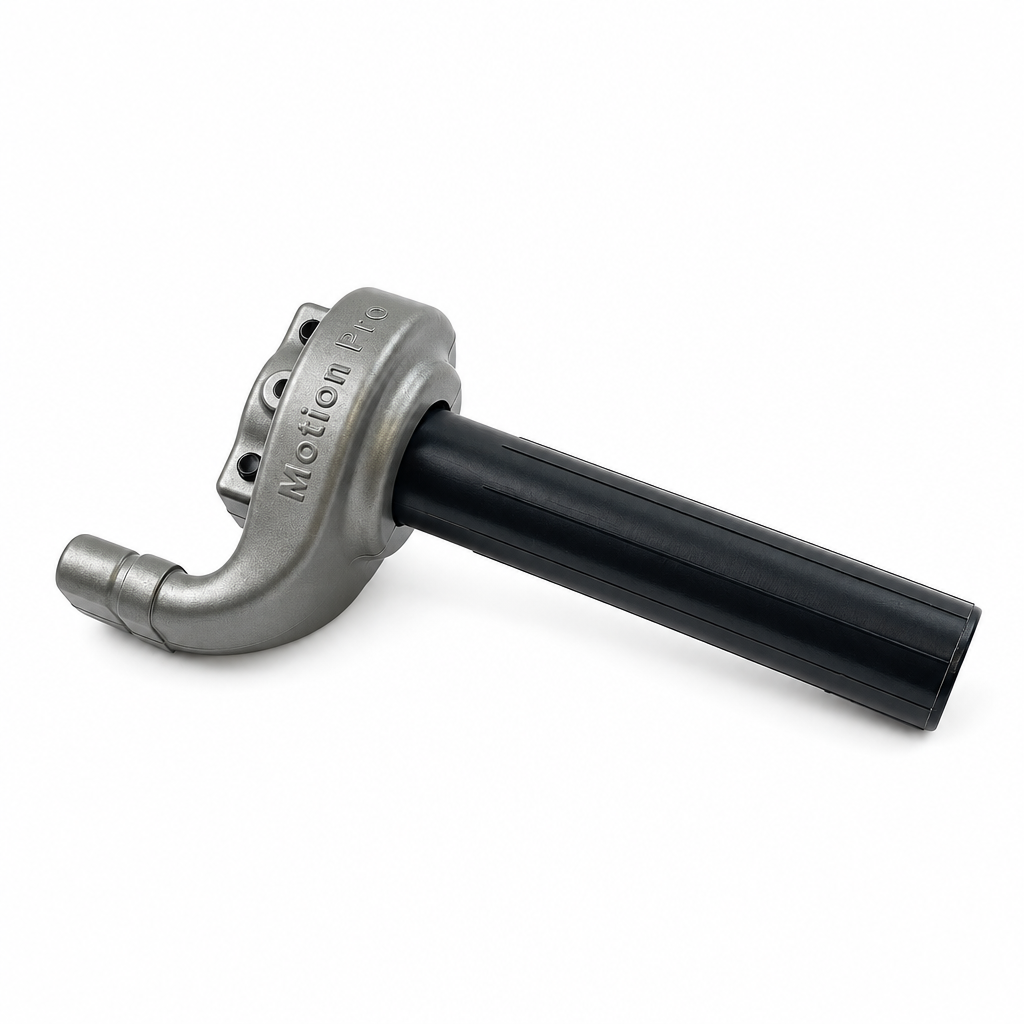

Throttle assembly: Rev2 with Titan throttle tube
Cables: Black vinyl, specifically designed for the listed applications

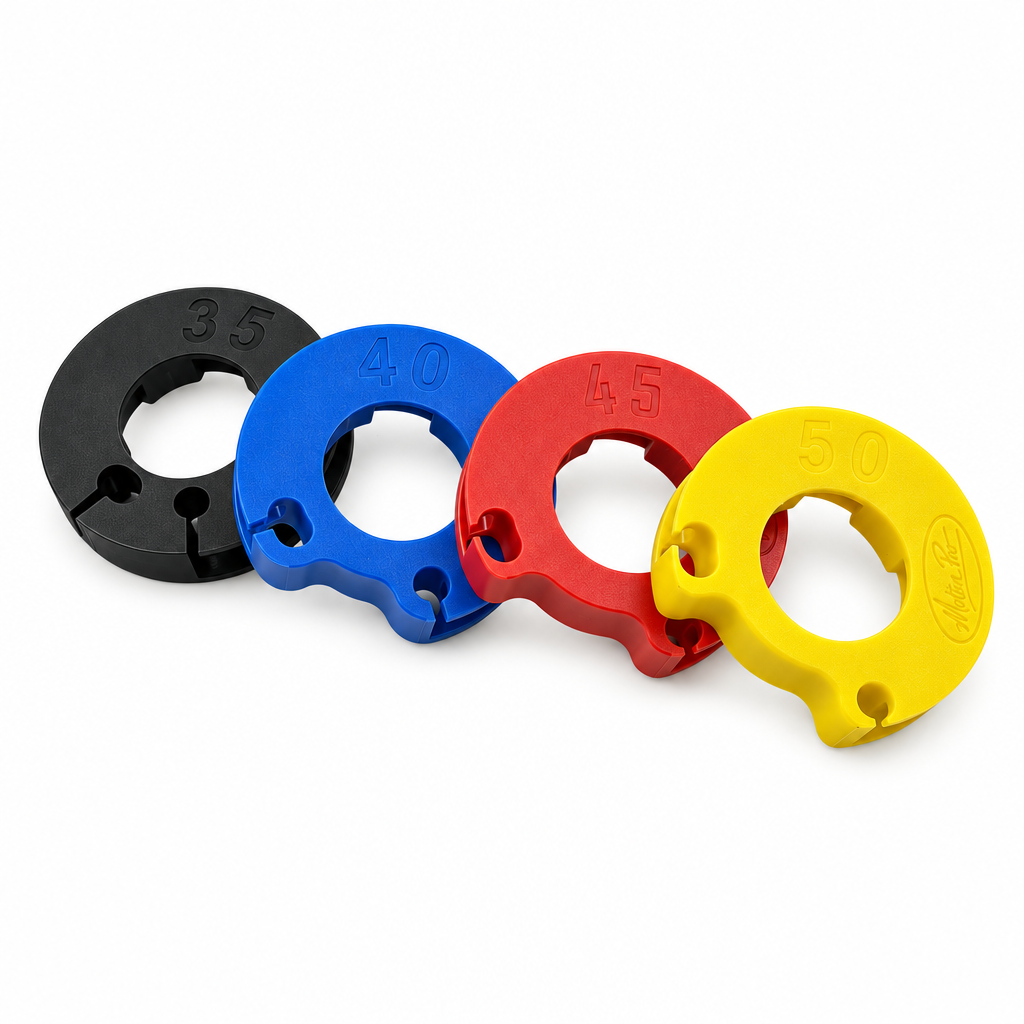

Reels included: 35 mm, 40 mm, 45 mm, 50 mm, plus grey progressive cam reel

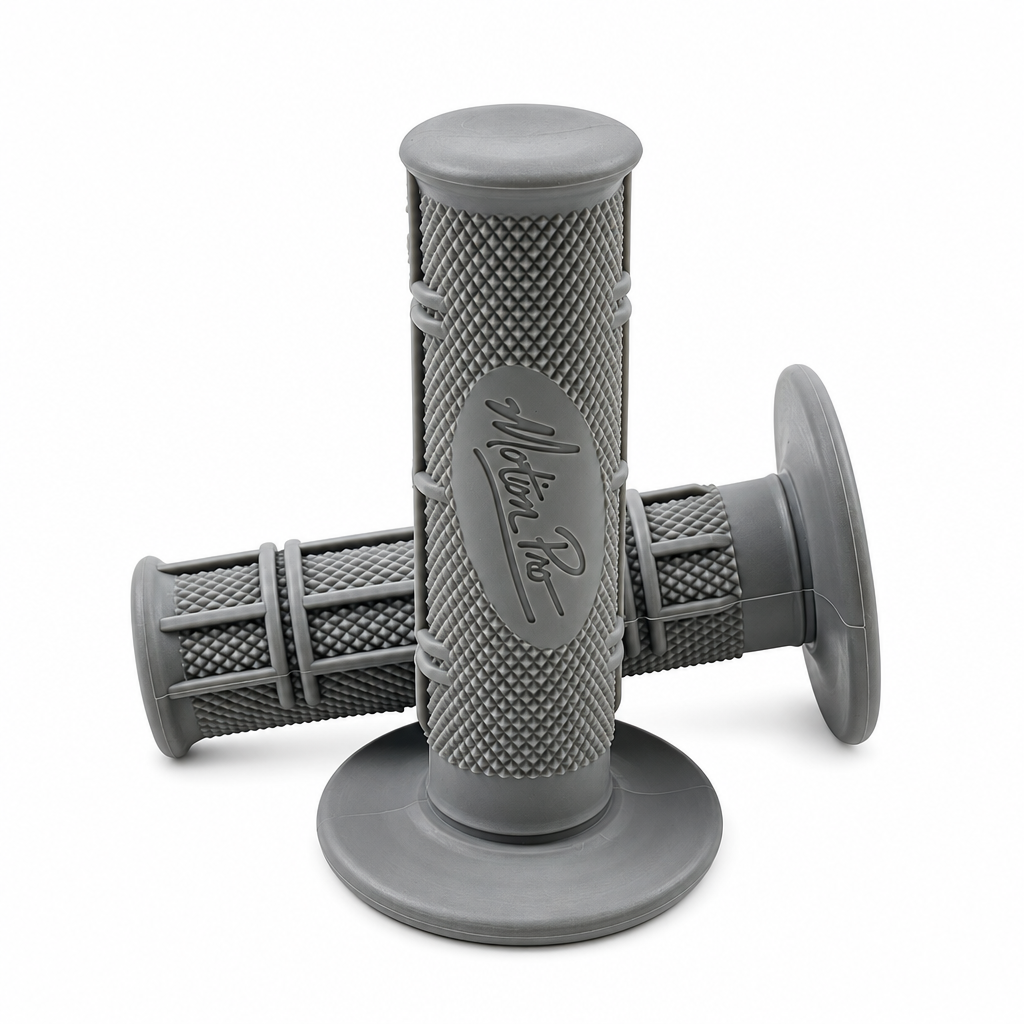

Grips included: Motion Pro Dirt Control grips
Accessories: Rev2 throttle equipped decal set; printed colour instructions

Cross-Reference Numbers

01-2724 (Motion Pro Rev2 / Revolver 2 Throttle Kit)

Vehicle Fitments

Husaberg FE 450: 2005–2008
Husaberg FE 550: 2005–2008
Husaberg FE 650 e: 2005–2008
Husaberg FS 450 c: 2005–2008
Husaberg FS 450 e: 2005–2008
Husaberg FS 450 s: 2005–2008
Husaberg FS 650 c: 2005–2008
Husaberg FS 650 e: 2005–2008
KTM 250 EXC-G / EXC-G Racing: 2002–2005
KTM 400 EXC-G / EXC-G Racing: 2004–2007
KTM 450 EXC-G / EXC-G Racing: 2003–2006
KTM 450 MXC-G / MXC-G Racing: 2003–2005
KTM 450 SMR: 2004–2007
KTM 450 SX: 2003–2006
KTM 450 SX Racing: 2003–2006
KTM 450 SX-F: 2003–2006
KTM 450 SX-F Racing 4-Stroke: 2003–2006
KTM 450 XC: 2006–2007
KTM 450 XC-F: 2006–2007
KTM 450 XC-W: 2007–2008
KTM 450 SMC: 2004
KTM 525 EXC-G Racing: 2003, 2005–2006
KTM 525 EXC: 2007
KTM 525 MXC-G Racing: 2003–2005
KTM 525 SMC: 2004
KTM 525 SX: 2003–2006
KTM 525 SX Racing: 2003–2006
KTM 525 XC: 2007
KTM 525 XC-W: 2007
KTM 625 SMC: 2003–2004
KTM 625 SXC: 2003–2004
KTM 660 Rally: 2007
KTM 690 Rally Factory Replica: 2008–2009

Vehicle Compatibility

Please check the exact model and year before ordering.

Manufacturer	Model	Years
KTM	EXC 525	2007
KTM	SXC 625	2003-2004
KTM	XC W 525	2007
KTM	XC 525	2007
KTM	SX 525	2003-2006
KTM	SMC 450	2004
KTM	MXC G 450	2003-2005
KTM	EXC G 250	2002-2005
KTM	EXC G 400	2004-2007
KTM	EXC G 450	2003-2006
KTM	XC F 450	2006-2007
KTM	SX F 450	2005-2006
KTM	SMC 625	2003-2004
