Rev 3 Throttle Kit KTM Motion Pro 01-2914

Description

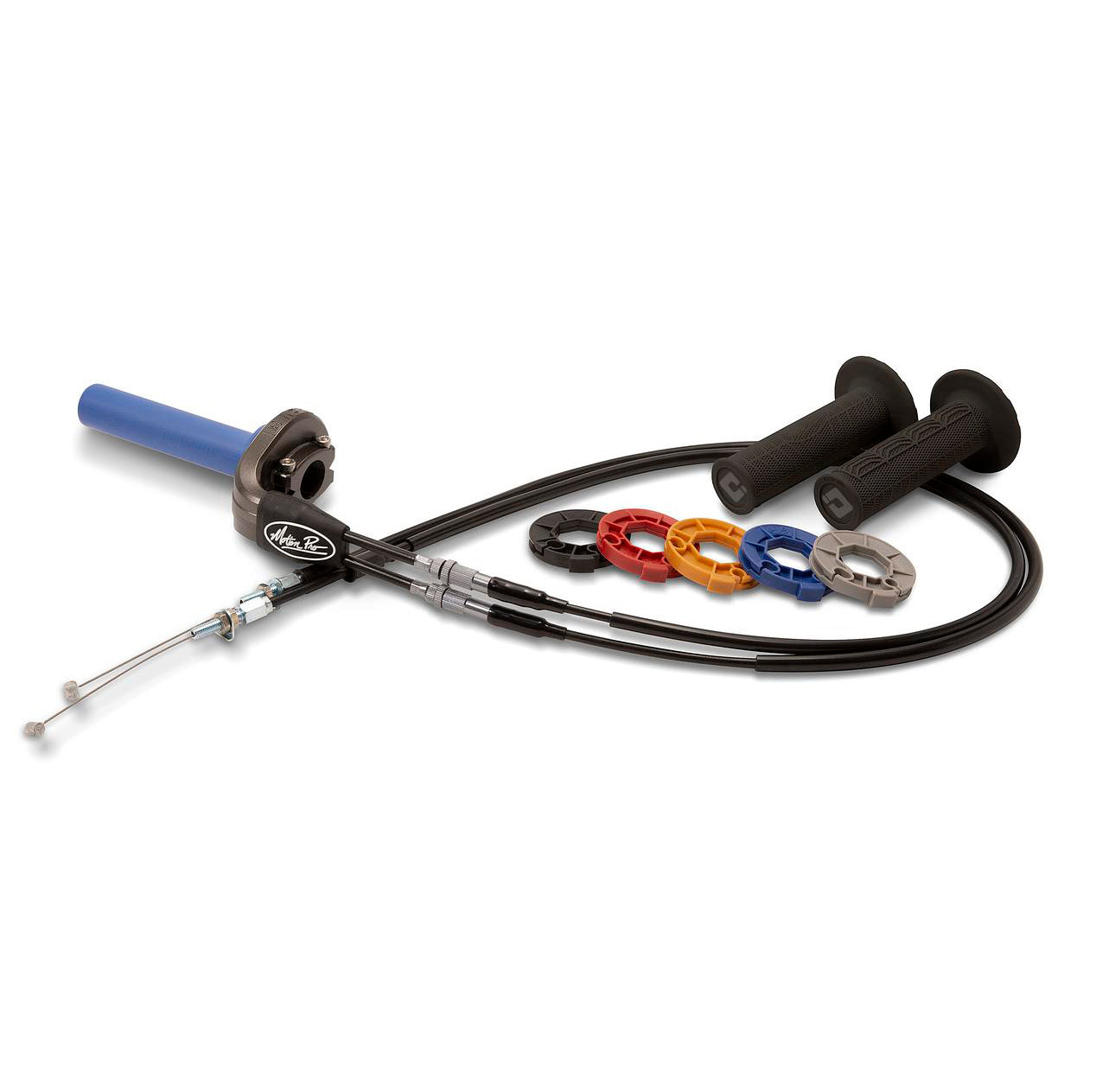

A 3rd-generation variable-rate off-road throttle system that lets the rider tailor throttle response with interchangeable reels, featuring a slim housing for lever clearance, improved durability, and protective sealing for reliable, smooth operation. Designed for straightforward installation and maintenance and compatible with modern lock-on grip systems.

Features

  • Innovative reel changing system to tailor throttle rate to preference and riding conditions
  • Five reel options enable slower (smaller reels) or faster (larger reels) throttle rates, plus a progressive cam reel
  • Slim REV3 housing for increased lever clearance and flexible positioning
  • Improved throttle stop for greater strength and durability
  • Snap-together elbows for easier installation and reel changes
  • Cable boot to keep out dirt and dust for reliable, smooth operation
  • Simple to install and maintain
  • Patented

Specifications

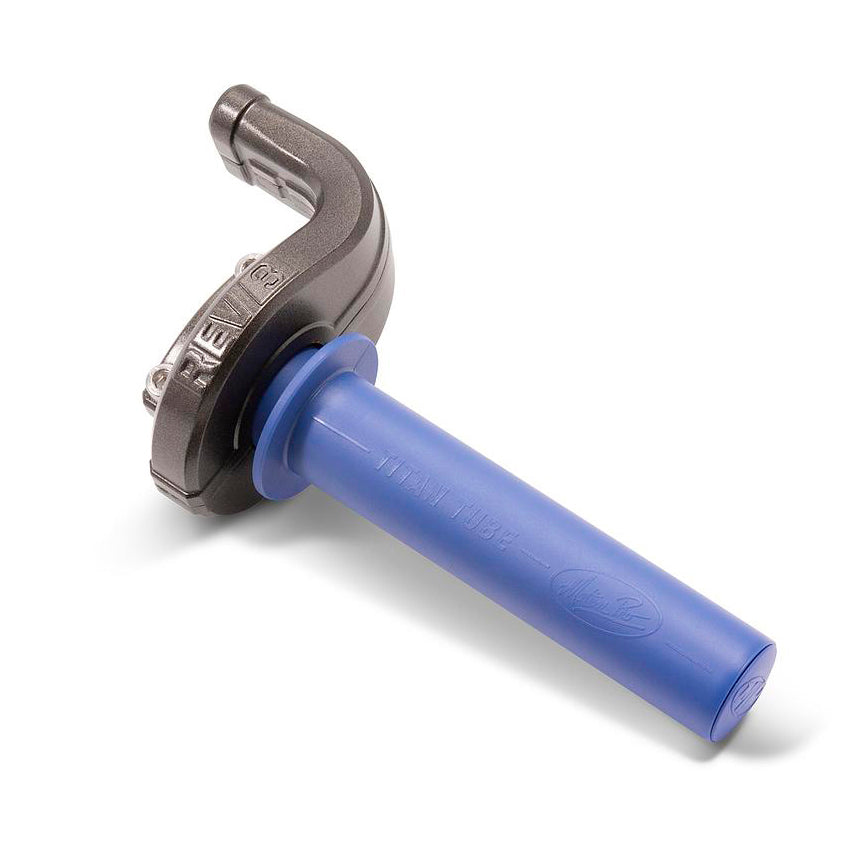

  • Throttle assembly: REV3 with throttle tube; off-road kits include the unbreakable Titan Throttle Tube
  • Cables: REV3 black vinyl cables specifically designed for the listed applications

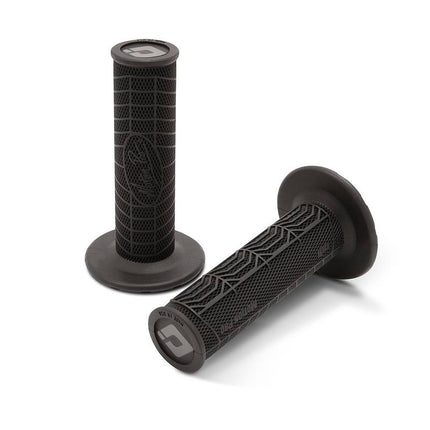

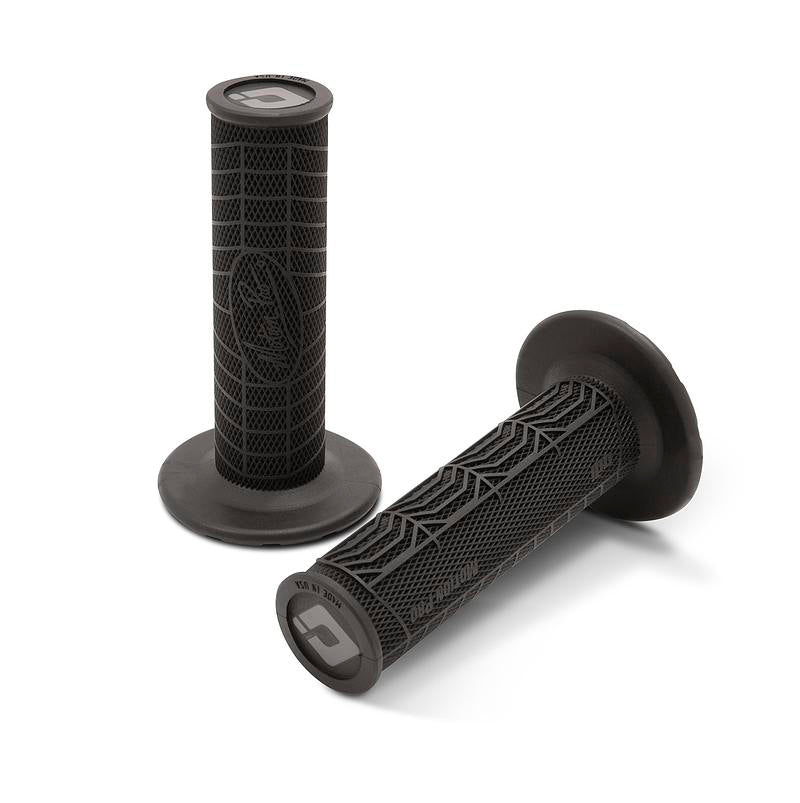

  • Grips: REV3 sportbike kits include RoadControl grips (01-1131); REV3 off-road kits include DirtControl II grips (01-2818)

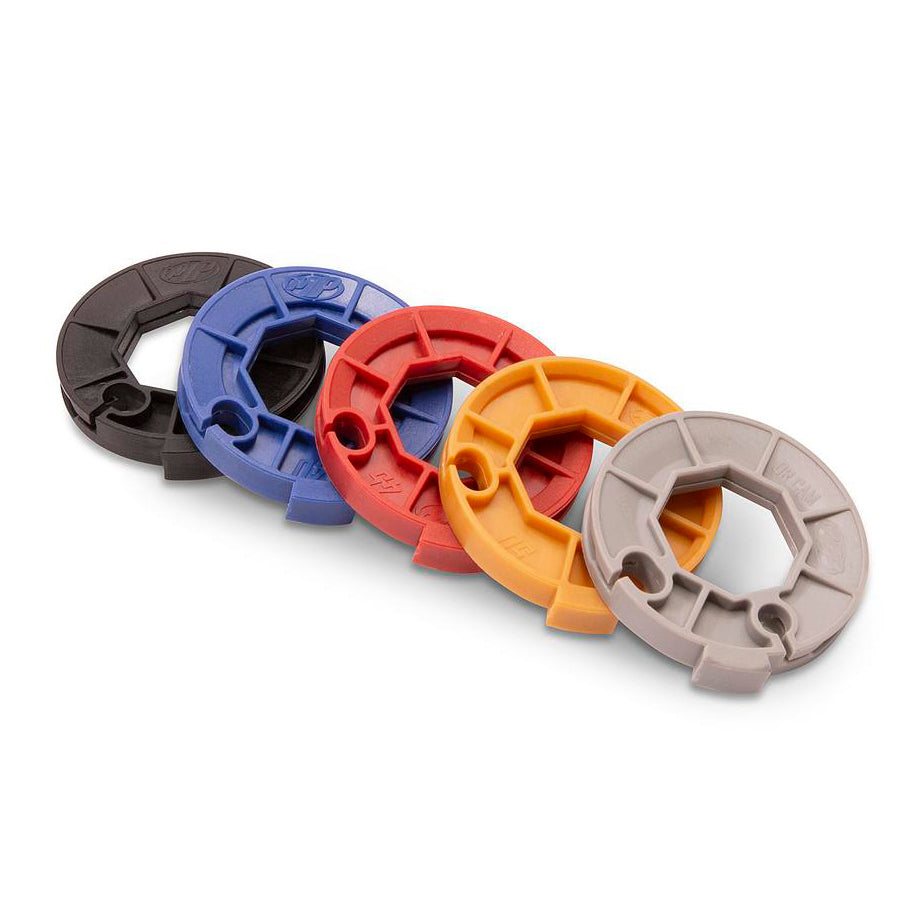

  • Reels included: four interchangeable round reels (35 mm, 40 mm, 45 mm, 50 mm) plus one progressive cam reel
  • Progressive cam reel profile: off-road profile cam reel (grey) included in off-road kits; sportbike kits include road race profile (orange)
  • Cable adjusters: billet aluminium in-line adjusters for ease of installation and adjustment
  • Cable construction (lower): 5 mm housing with PTFE liner for reduced friction, increased routing flexibility, and lighter weight
  • Cable construction (upper): 6 mm housing to provide solid support for adjusters
  • Grip compatibility: off-road kits compatible with DirtControl V2 Lock-On grips (01-2818, 01-2819) and ODI Lock-On grips

Cross-Reference Numbers

  • 01-2914

Vehicle Fitments

  • Husaberg FE 450: 2005–2008
  • Husaberg FE 550: 2005–2008
  • Husaberg FE 650 e: 2005–2008
  • Husaberg FS 450 c: 2005–2008
  • Husaberg FS 450 e: 2005–2008
  • Husaberg FS 450 s: 2005–2008
  • Husaberg FS 650 c: 2005–2008
  • Husaberg FS 650 e: 2005–2008
  • KTM 250 EXC-G Racing: 2002–2005
  • KTM 400 EXC-G Racing: 2004–2007
  • KTM 450 EXC-G Racing: 2003–2006
  • KTM 450 MXC-G Racing: 2003–2005
  • KTM 450 SMR: 2004–2007
  • KTM 450 SX: 2003–2006
  • KTM 450 SX Racing: 2003–2006
  • KTM 450 SX-F: 2003–2006
  • KTM 450 SX-F Racing 4-Stroke: 2003–2006
  • KTM 450 XC: 2006–2007
  • KTM 450 XC-F: 2006–2007
  • KTM 450 XC-W: 2007–2008
  • KTM 525 EXC-G Racing: 2003, 2005–2006
  • KTM 525 MXC-G Racing: 2003–2005
  • KTM 525 SMC: 2004
  • KTM 525 SX: 2006
  • KTM 525 SX Racing: 2006
  • KTM 525 SX Racing: 2003–2005
  • KTM 525 XC: 2007
  • KTM 525 XC-W: 2007
  • KTM 625 SMC: 2003–2004
  • KTM 625 SXC: 2003–2004
  • KTM 660 Rally: 2007
  • KTM 690 Rally Factory Replica: 2008–2009
