Revolver 3 Throttle Kit 2004-2005 Suzuki GSXR 600 750 Motion Pro 01-2920

Description

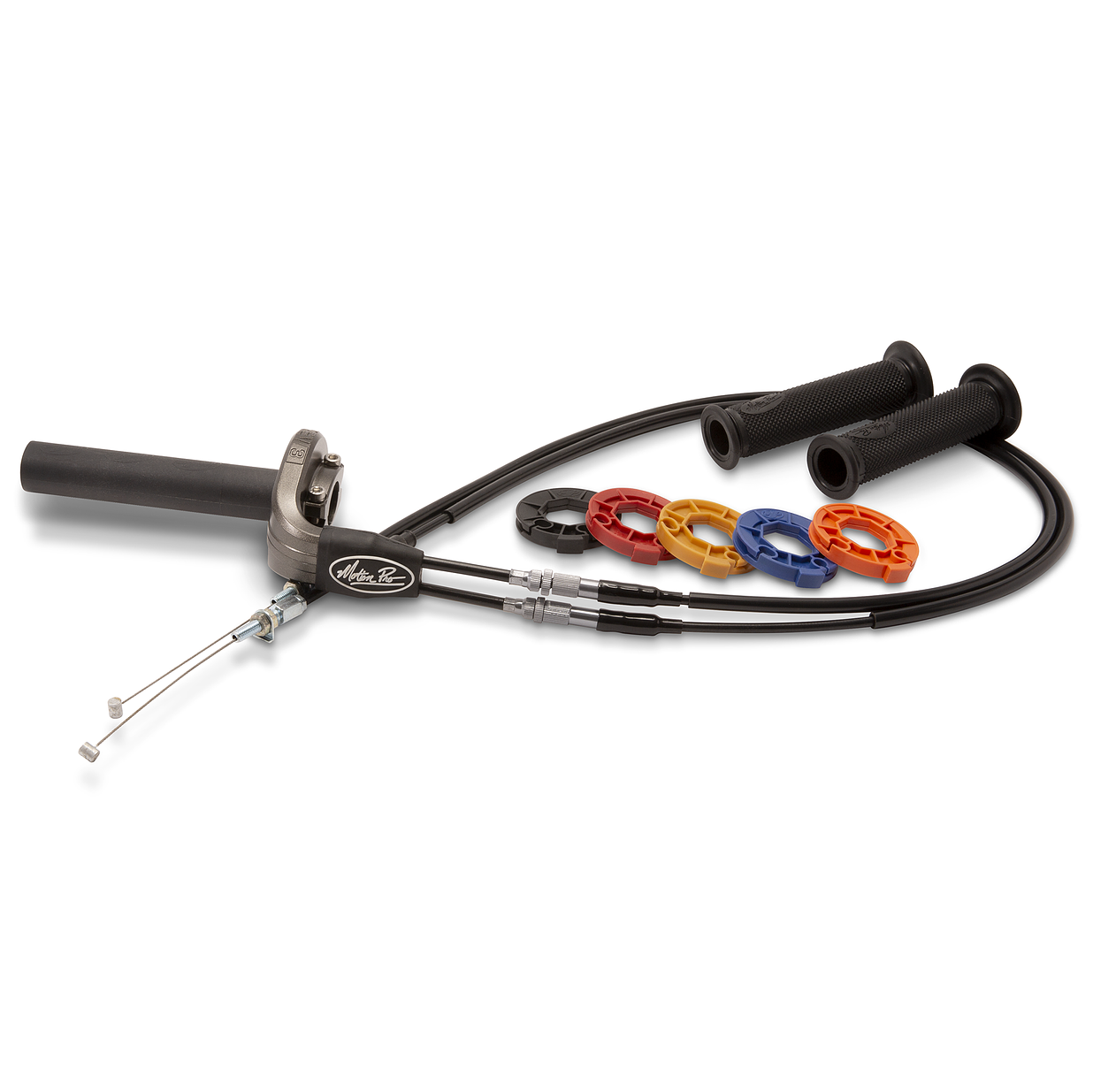

A 3rd-generation variable-rate throttle system featuring an interchangeable reel mechanism to tailor throttle response, a slim REV3™ housing for improved lever clearance, and components engineered for reliable, low-friction operation. Supplied as a complete kit with throttle assembly, model-specific cables, grips, and multiple cam reels for varied riding conditions.

Features

  • Innovative reel-changing system to tailor throttle rate to preference and riding conditions
  • Five-reel range; smaller reels slow the rate, larger reels increase it
  • Progressive cam reel provides non-linear response preferred by some riders
  • Slim REV3™ throttle housing allows more room for lever clearance and housing position adjustment
  • Improved throttle stop for greater strength and durability
  • Snap-together elbows for easier installation and reel changes
  • Cable boot keeps dirt and dust out for smooth, reliable operation
  • Billet aluminium inline cable adjusters ease installation and adjustment
  • Simple to install and maintain
  • Patented

Specifications

  • Generation: REV3™ 3rd-generation variable-rate throttle system
  • Lower cable section: 5 mm housing with PTFE liner for reduced friction, increased routing flexibility, and lighter weight
  • Upper cable section: 6 mm housing to provide solid support of adjusters

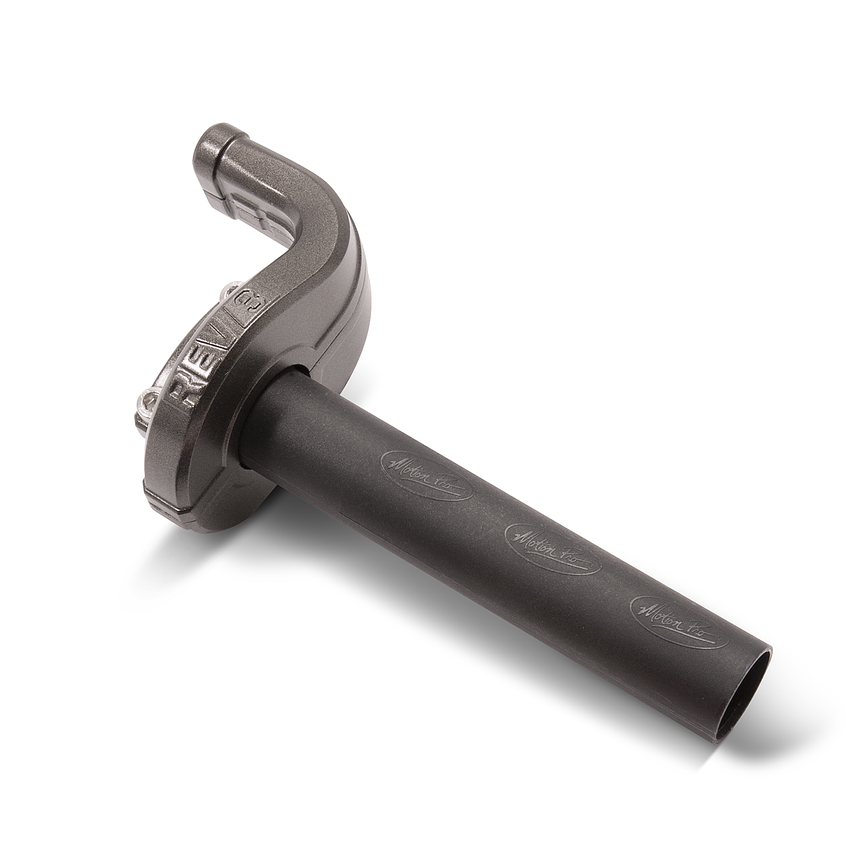

  • Throttle assembly: REV3™ throttle assembly with throttle tube (REV3™ off-road kits include the unbreakable Titan Throttle Tube™)
  • Cables: REV3™ black vinyl cables specifically designed for the bike

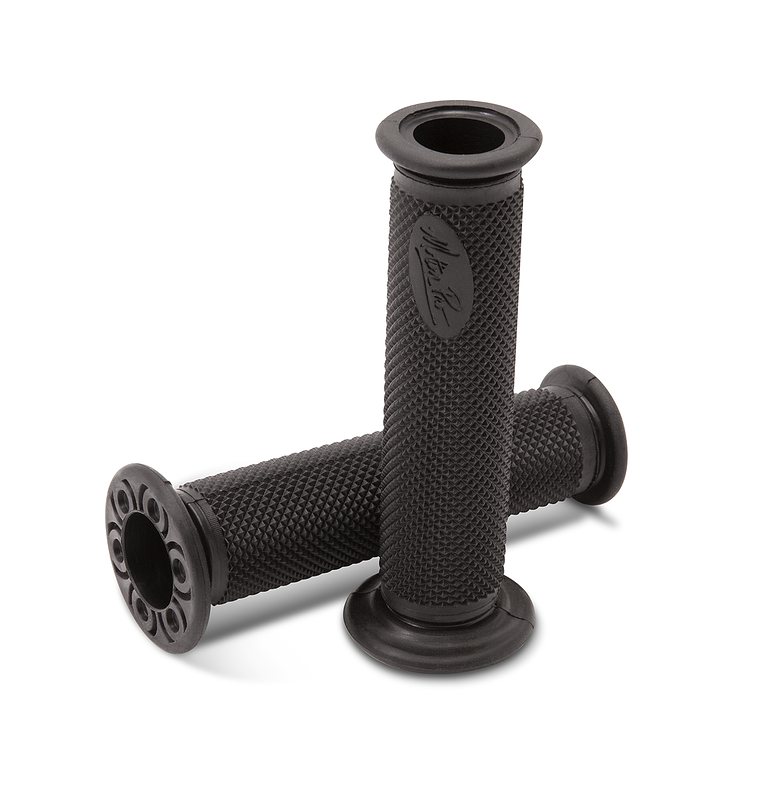

  • Grips: Sportbike kits include RoadControl™ grips (01-1131); off-road kits include DirtControl™ II grips (01-2816)
  • Reels included: four interchangeable round reels (35 mm, 40 mm, 45 mm, 50 mm) and one progressive cam reel
  • Cam reel profiles: sportbike kits include road race profile cam reel (orange); off-road kits include off-road profile cam reel (grey)
  • Compatibility: REV3™ off-road kits compatible with DirtControl™ V2 Lock-On grips (01-2818, 01-2819) and ODI Lock-On grips

Cross-Reference Numbers

  • 01-2818
  • 01-2819
  • 01-1131
  • 01-2816

Vehicle Fitments

  • 2004–2005 Suzuki GSX-R600 (GSXR600)
  • 2004–2005 Suzuki GSX-R750 (GSXR750)

Revolver 3 Throttle Kit 2004-2005 Suzuki GSXR 600 750 Motion Pro 01-2920

Product form

A 3rd-generation variable-rate throttle system featuring an interchangeable reel mechanism to tailor throttle response, a slim REV3™ housing for improved... Read more

1 in stock 1-2 business days

£201.13 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 14-K372.REV3

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    A 3rd-generation variable-rate throttle system featuring an interchangeable reel mechanism to tailor throttle response, a slim REV3™ housing for improved lever clearance, and components engineered for reliable, low-friction operation. Supplied as a complete kit with throttle assembly, model-specific cables, grips, and multiple cam reels for varied riding conditions.

    Features

    • Innovative reel-changing system to tailor throttle rate to preference and riding conditions
    • Five-reel range; smaller reels slow the rate, larger reels increase it
    • Progressive cam reel provides non-linear response preferred by some riders
    • Slim REV3™ throttle housing allows more room for lever clearance and housing position adjustment
    • Improved throttle stop for greater strength and durability
    • Snap-together elbows for easier installation and reel changes
    • Cable boot keeps dirt and dust out for smooth, reliable operation
    • Billet aluminium inline cable adjusters ease installation and adjustment
    • Simple to install and maintain
    • Patented

    Specifications

    • Generation: REV3™ 3rd-generation variable-rate throttle system
    • Lower cable section: 5 mm housing with PTFE liner for reduced friction, increased routing flexibility, and lighter weight
    • Upper cable section: 6 mm housing to provide solid support of adjusters
    • Throttle assembly: REV3™ throttle assembly with throttle tube (REV3™ off-road kits include the unbreakable Titan Throttle Tube™)
    • Cables: REV3™ black vinyl cables specifically designed for the bike
    • Grips: Sportbike kits include RoadControl™ grips (01-1131); off-road kits include DirtControl™ II grips (01-2816)
    • Reels included: four interchangeable round reels (35 mm, 40 mm, 45 mm, 50 mm) and one progressive cam reel
    • Cam reel profiles: sportbike kits include road race profile cam reel (orange); off-road kits include off-road profile cam reel (grey)
    • Compatibility: REV3™ off-road kits compatible with DirtControl™ V2 Lock-On grips (01-2818, 01-2819) and ODI Lock-On grips

    Cross-Reference Numbers

    • 01-2818
    • 01-2819
    • 01-1131
    • 01-2816

    Vehicle Fitments

    • 2004–2005 Suzuki GSX-R600 (GSXR600)
    • 2004–2005 Suzuki GSX-R750 (GSXR750)
