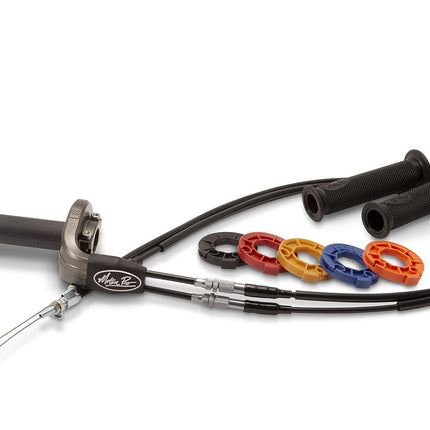

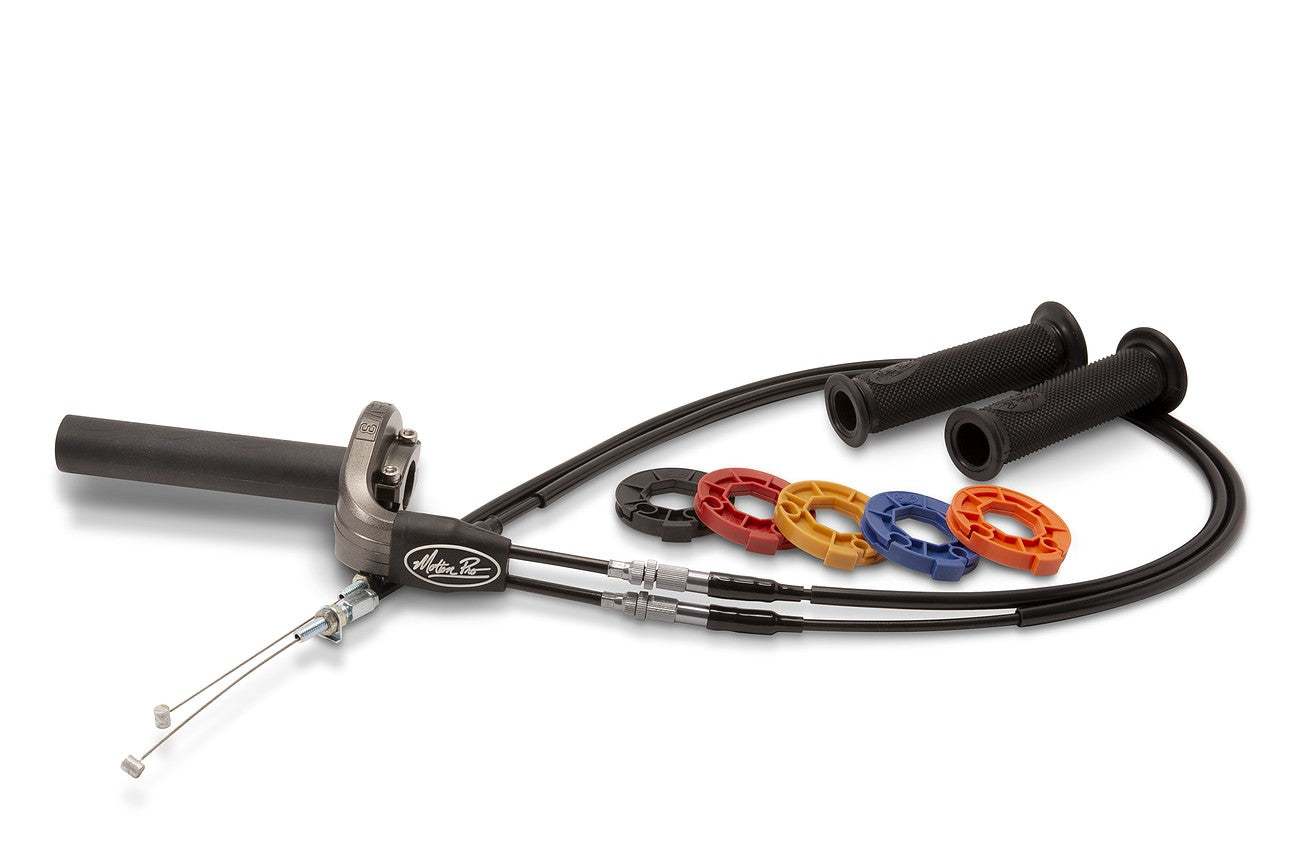

Revolver 3 Throttle Kit Suzuki GSXR 2011-2026, Motion Pro 01-2945

Description

The 3rd generation Motion Pro Revolver REV3 variable rate throttle system is a motorcycle throttle kit designed for use with stock throttle bodies. It allows throttle response to be adjusted for different riding conditions and rider preferences by using interchangeable reels, with smaller reels providing slower throttle action and larger reels providing faster throttle action. The included cam reel provides a progressive throttle response preferred by some riders.

Features

  • Innovative reel changing system allows the throttle rate to be tailored to rider preference and riding conditions

  • Five different reels provide throttle response options for different conditions

  • Slim REV3™ throttle housing provides additional room for lever clearance and throttle housing position adjustment

  • Improved throttle stop provides increased strength and durability

  • Snap-together elbows make installation and reel changes easier

  • Cable boot helps keep dirt and dust out for reliable, smooth operation

  • Compatible with Motion Pro DirtControl™ V2 Lock-On grips and ODI Lock-On grips on REV3™ off-road kits

  • Inline cable adjusters support easier installation and adjustment

  • Lower cable design reduces friction, improves routing flexibility and reduces weight

  • Upper cable design provides solid support for adjusters

  • Simple to install and maintain

  • Patented design

Specifications

  • Stock reel size: 33.4 mm

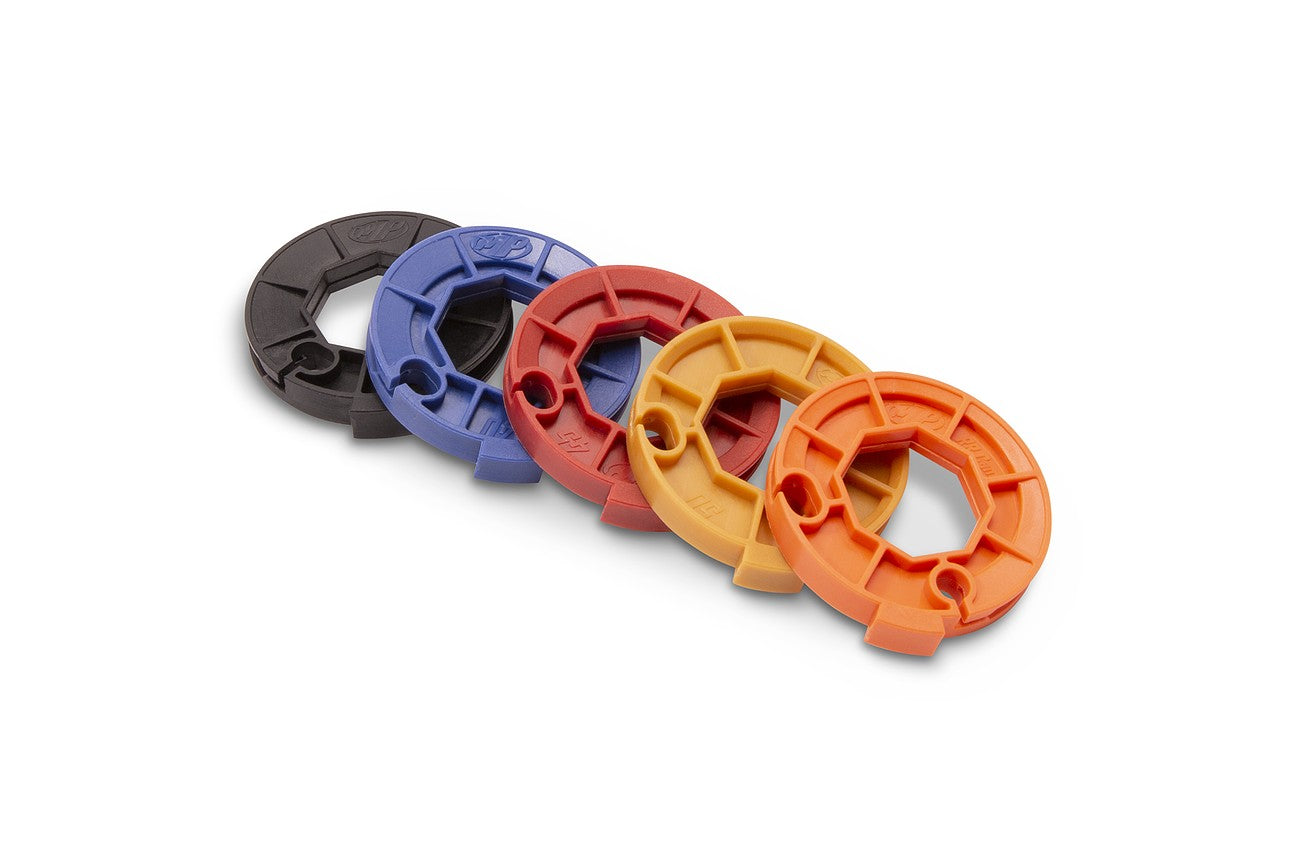

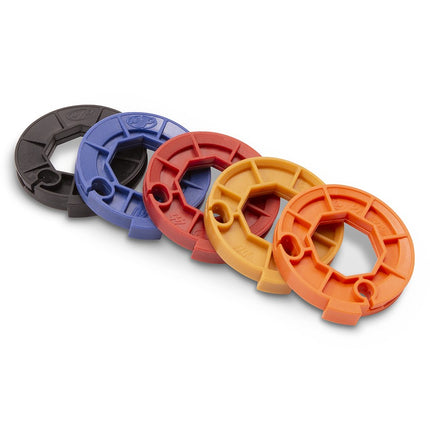

  • Four interchangeable round reels: 35 mm, 40 mm, 45 mm and 50 mm

  • Lower cable sections use 5 mm housing with PTFE liner

  • Upper cable sections use 6 mm housing

  • Billet aluminium inline cable adjusters

  • Progressive cam reel included

  • Sportbike kits include road race profile cam reel in orange

  • Off-road kits include off-road profile cam reel in grey

  • REV3 kits use cables specifically designed for fitment on specific models, while the REV3 throttle itself is not model specific

Kit Contents

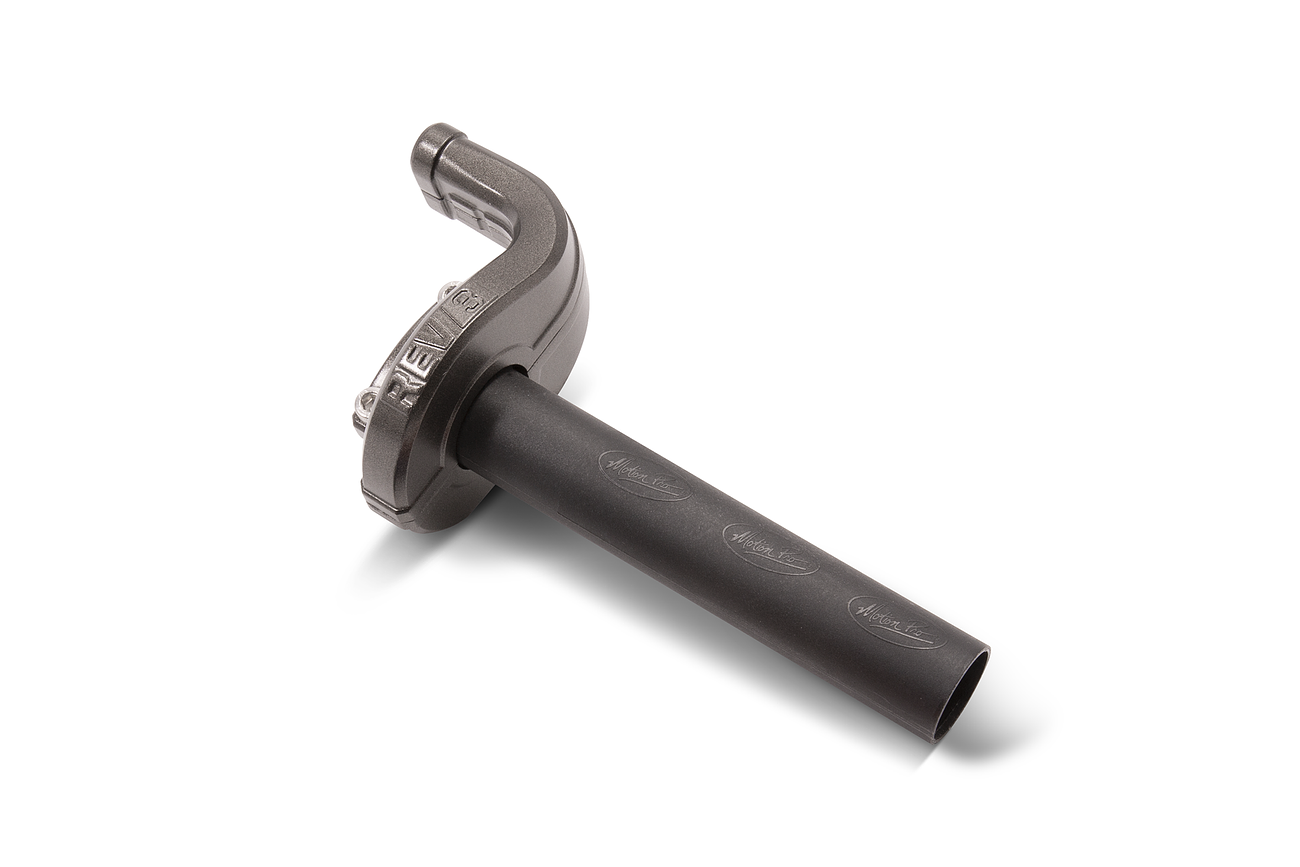

  • REV3 throttle assembly with throttle tube

  • REV3 off-road kits include the unbreakable Titan Throttle Tube™

  • Motion Pro REV3™ black vinyl cable specifically designed for the bike

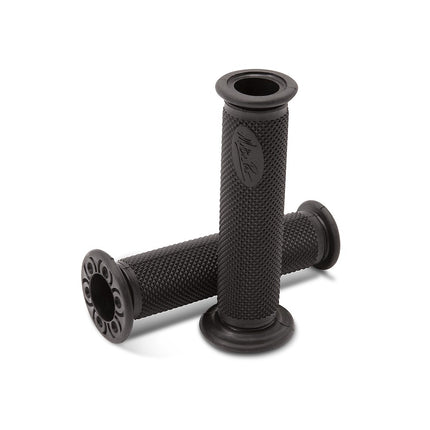

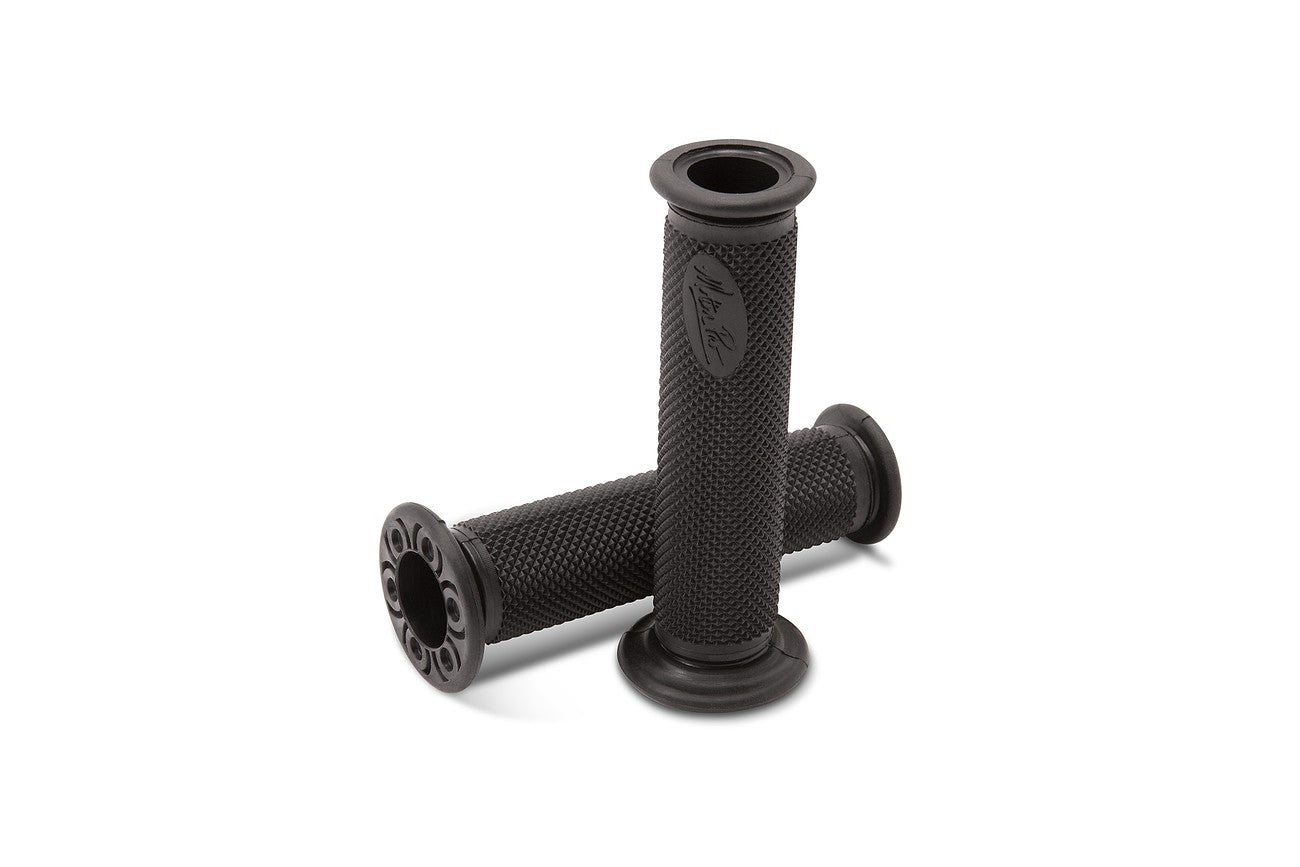

  • REV3 sportbike kits include Motion Pro RoadControl™ grips

  • REV3 off-road kits include Motion Pro DirtControl™ II grips

  • Four interchangeable round reels

  • Progressive cam reel

Installation Notes

  • The stock twist throttle assembly on this model incorporates an on/off switch, mode switch and starter button

  • The Motion Pro 11-0098 accessory switch only has an on/off switch and starter button, and cannot be used to replace the original switching functions on the stock throttle assembly

  • To install the REV3 kit and retain all necessary switching functions, this model requires longer aftermarket handlebars, at least 50 mm longer than stock on the right side, with the stock throttle assembly mounted behind the REV3 throttle housing

  • The stock twist throttle assembly can be modified to remove the throttle reel holder portion, leaving only the necessary switches, making it narrower and requiring less handlebar space

  • In some situations, the REV3 kit may not be a direct bolt-on installation due to space limitations on the stock handlebar

  • Some installations may require other control components on the stock handlebar to be moved, the REV3 throttle tube and grip to be shortened, longer aftermarket handlebars to be installed, or all of these measures

  • The end user must determine the best method for fitment and ensure that the REV3 kit is installed properly with the correct clearances for safe operation

  • Installation should be carried out by a qualified mechanic and carefully checked for proper function

  • Improper installation could result in serious bodily injury or death

Cross-Reference Part Numbers

  • 01-1484 Black Vinyl Cable

  • 01-1131 Motion Pro Road Control Grips

Vehicle Fitments

  • Suzuki GSX-R 600, 2011-2026

  • Suzuki GSX-R 750, 2011-2026

Revolver 3 Throttle Kit Suzuki GSXR 2011-2026, Motion Pro 01-2945

Product form

The 3rd generation Motion Pro Revolver REV3 variable rate throttle system is a motorcycle throttle kit designed for use with... Read more

1 in stock 1-2 business days

£184.05 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 14-K375.REV3
    Barcode: 0120000116317

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    The 3rd generation Motion Pro Revolver REV3 variable rate throttle system is a motorcycle throttle kit designed for use with stock throttle bodies. It allows throttle response to be adjusted for different riding conditions and rider preferences by using interchangeable reels, with smaller reels providing slower throttle action and larger reels providing faster throttle action. The included cam reel provides a progressive throttle response preferred by some riders.

    Features

    • Innovative reel changing system allows the throttle rate to be tailored to rider preference and riding conditions

    • Five different reels provide throttle response options for different conditions

    • Slim REV3™ throttle housing provides additional room for lever clearance and throttle housing position adjustment

    • Improved throttle stop provides increased strength and durability

    • Snap-together elbows make installation and reel changes easier

    • Cable boot helps keep dirt and dust out for reliable, smooth operation

    • Compatible with Motion Pro DirtControl™ V2 Lock-On grips and ODI Lock-On grips on REV3™ off-road kits

    • Inline cable adjusters support easier installation and adjustment

    • Lower cable design reduces friction, improves routing flexibility and reduces weight

    • Upper cable design provides solid support for adjusters

    • Simple to install and maintain

    • Patented design

    Specifications

    • Stock reel size: 33.4 mm

    • Four interchangeable round reels: 35 mm, 40 mm, 45 mm and 50 mm

    • Lower cable sections use 5 mm housing with PTFE liner

    • Upper cable sections use 6 mm housing

    • Billet aluminium inline cable adjusters

    • Progressive cam reel included

    • Sportbike kits include road race profile cam reel in orange

    • Off-road kits include off-road profile cam reel in grey

    • REV3 kits use cables specifically designed for fitment on specific models, while the REV3 throttle itself is not model specific

    Kit Contents

    • REV3 throttle assembly with throttle tube

    • REV3 off-road kits include the unbreakable Titan Throttle Tube™

    • Motion Pro REV3™ black vinyl cable specifically designed for the bike

    • REV3 sportbike kits include Motion Pro RoadControl™ grips

    • REV3 off-road kits include Motion Pro DirtControl™ II grips

    • Four interchangeable round reels

    • Progressive cam reel

    Installation Notes

    • The stock twist throttle assembly on this model incorporates an on/off switch, mode switch and starter button

    • The Motion Pro 11-0098 accessory switch only has an on/off switch and starter button, and cannot be used to replace the original switching functions on the stock throttle assembly

    • To install the REV3 kit and retain all necessary switching functions, this model requires longer aftermarket handlebars, at least 50 mm longer than stock on the right side, with the stock throttle assembly mounted behind the REV3 throttle housing

    • The stock twist throttle assembly can be modified to remove the throttle reel holder portion, leaving only the necessary switches, making it narrower and requiring less handlebar space

    • In some situations, the REV3 kit may not be a direct bolt-on installation due to space limitations on the stock handlebar

    • Some installations may require other control components on the stock handlebar to be moved, the REV3 throttle tube and grip to be shortened, longer aftermarket handlebars to be installed, or all of these measures

    • The end user must determine the best method for fitment and ensure that the REV3 kit is installed properly with the correct clearances for safe operation

    • Installation should be carried out by a qualified mechanic and carefully checked for proper function

    • Improper installation could result in serious bodily injury or death

    Cross-Reference Part Numbers

    • 01-1484 Black Vinyl Cable

    • 01-1131 Motion Pro Road Control Grips

    Vehicle Fitments

    • Suzuki GSX-R 600, 2011-2026

    • Suzuki GSX-R 750, 2011-2026
