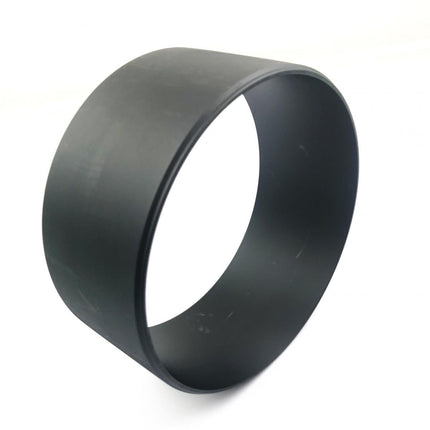

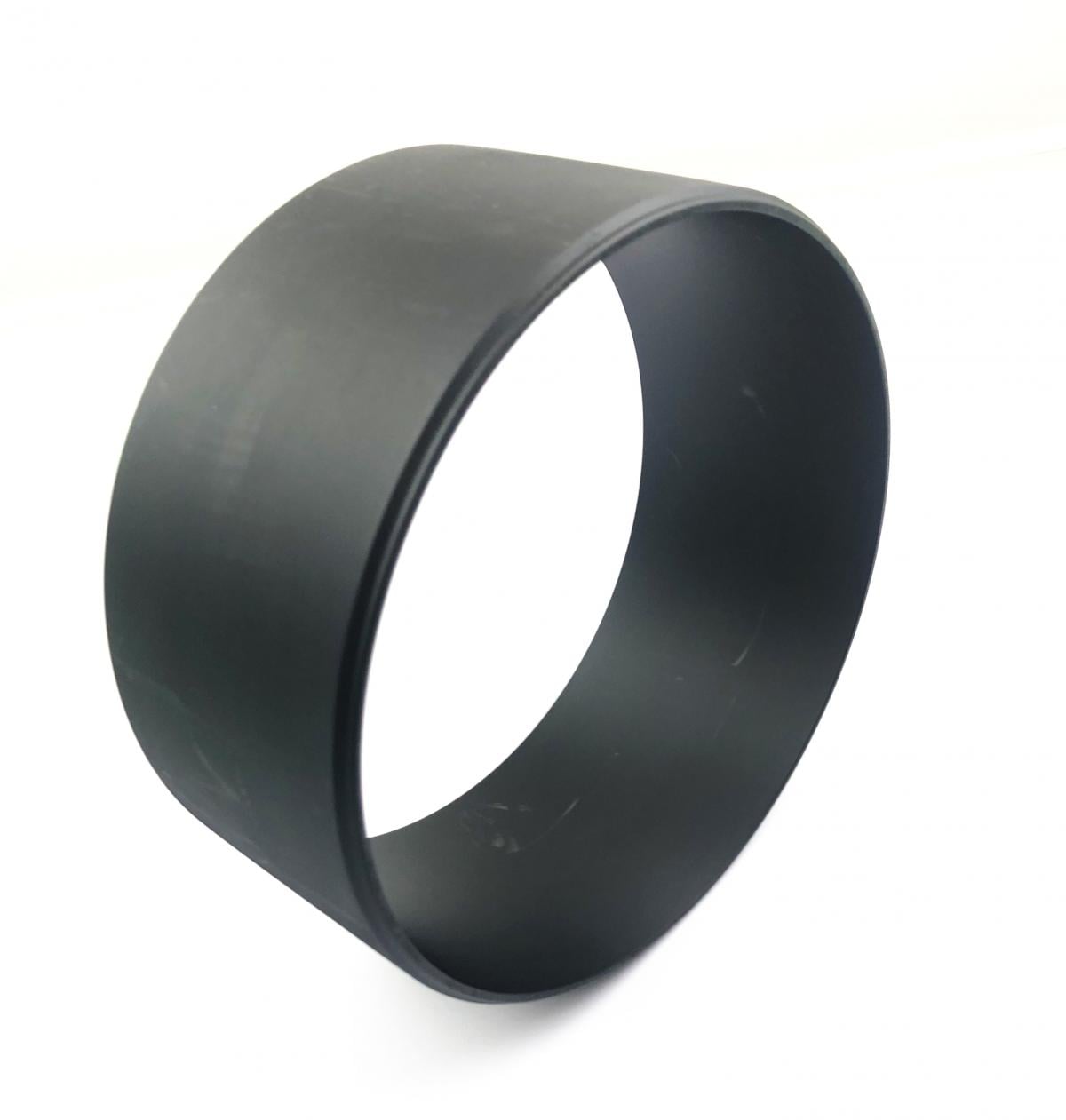

Sea-doo Jet Pump Wear Ring Kit, 159mm ID, WC-03006K, 003-499, Jet Ski, Pwc Drive Parts

Description

This replacement wear ring kit restores correct jet pump running clearance on the listed Sea-Doo models using the 1503 engine family. Supplied with a composite wear ring and neoprene pump seal, it is designed to minimise cavitation and protect the impeller after debris ingestion, ensuring reliable thrust and proper pump sealing.

Features

  • Direct-fit replacement for the listed Sea-Doo applications using the 159 mm jet pump
  • Press-in installation with no machining required
  • Composite liner acts sacrificially to help protect the impeller from debris damage
  • Restores correct impeller-to-housing clearance to minimise cavitation and thrust loss
  • Includes neoprene pump-to-hull seal to ensure correct pump sealing

Specifications

  • Inner diameter: 159 mm
  • Material: Composite (plastic/nylon/Delrin-type)
  • Kit contents: 1 x wear ring, 1 x neoprene seal
  • Application: Sea-Doo 1503 (4-TEC) models as listed, including 215/255/260 HP variants where specified

Cross-Reference OEM Part Numbers

  • 267000105
  • 267000372
  • 293200122

Vehicle Fitments

  • Sea-Doo Challenger / SE 215 1503 2007-2011
  • Sea-Doo Challenger S/C 215 1503 2007-2009
  • Sea-Doo Challenger SE 2 x 215 1503 2012
  • Sea-Doo Challenger SE 2 x 260 1503 2012
  • Sea-Doo Challenger SE 255 1503 2009-2011
  • Sea-Doo Challenger SE 430 1503 2008-2011
  • Sea-Doo Challenger SE 510 1503 2010-2011
  • Sea-Doo Challenger SP 215 1503 2009
  • Sea-Doo Challenger SP 430 1503 2010-2011
  • Sea-Doo Challenger Wake 430 1503 2008
  • Sea-Doo Challenger Wake S/C 215 1503 2007
  • Sea-Doo GTI DTF 1503 2016
  • Sea-Doo GTI LTD 155 1503 2016
  • Sea-Doo GTI SE 155 1503 2016
  • Sea-Doo GTR 215 1503 2012-2016
  • Sea-Doo GTS 130 1503 2016
  • Sea-Doo GTX 215 1503 2008-2009,2011-2013
  • Sea-Doo GTX IS 215 1503 2010-2011
  • Sea-Doo GTX LTD 215 1503 2008,2014-2016
  • Sea-Doo GTX LTD 230 1503 2017
  • Sea-Doo GTX LTD IS 255 1503 2009
  • Sea-Doo GTX LTD IS 260 1503 2010-2016
  • Sea-Doo GTX LTD SCIC 1503 2007
  • Sea-Doo GTX P LTD 230 1503 2018
  • Sea-Doo GTX P STD 230 1503 2018
  • Sea-Doo GTX SCIC 1503 2007
  • Sea-Doo GTXS LTD 260 1503 2017
  • Sea-Doo Islandia SE 215 1503 2009
  • Sea-Doo Islandia SE 430 1503 2008
  • Sea-Doo RXP 155 S/C 1503 2008
  • Sea-Doo RXP 215 1503 2009
  • Sea-Doo RXP BVIC 1503 2007
  • Sea-Doo RXP S/C 1503 2004
  • Sea-Doo RXP X 255 1503 2008-2011
  • Sea-Doo RXP X 260 1503 2012-2015
  • Sea-Doo RXT 215 1503 2009-2010
  • Sea-Doo RXT 260 1503 2011-2016
  • Sea-Doo RXT IS 255 1503 2009
  • Sea-Doo RXT IS 260 1503 2010-2012
  • Sea-Doo RXT SCIC 1503 2007
  • Sea-Doo RXT STD 230 1503 2018
  • Sea-Doo RXT STD 260 1503 2017
  • Sea-Doo RXT STDRS 260 1503 2017
  • Sea-Doo RXT X 255 1503 2008-2009
  • Sea-Doo RXT X 260 1503 2010-2015
  • Sea-Doo RXT X AS 260 1503 2011-2016
  • Sea-Doo SP 2 x 215 1503 2012
  • Sea-Doo SP 2 x 260 1503 2012
  • Sea-Doo Speedster 1 x 260 1503 2012
  • Sea-Doo Speedster 2 x 255 1503 2012
  • Sea-Doo Speedster 215 1503 2007-2009
  • Sea-Doo Speedster 255 1503 2009-2011
  • Sea-Doo Speedster 430 1503 2008
  • Sea-Doo Speedster 510 1503 2010-2011
  • Sea-Doo Speedster Wake 215 1503 2009
  • Sea-Doo Speedster Wake 430 1503 2008
  • Sea-Doo Utopia / SE 215 1503 2009
  • Sea-Doo Utopia SE 430 1503 2008
  • Sea-Doo Wake / SE 430 1503 2010-2011
  • Sea-Doo Wake / SE 510 1503 2010-2011
  • Sea-Doo Wake 155 1503 2016
  • Sea-Doo Wake 2 x 215 1503 2012
  • Sea-Doo Wake 2 x 260 1503 2012
  • Sea-Doo Wake 215 1503 2008-2009
  • Sea-Doo Wake 215 1503 2008-2009
  • Sea-Doo Wake 255 1503 2009
  • Sea-Doo Wake P Pro 230 1503 2018
  • Sea-Doo Wake Pro 215 1503 2009-2016
  • Sea-Doo Wake Pro 230 1503 2017

Sea-doo Jet Pump Wear Ring Kit, 159mm ID, WC-03006K, 003-499, Jet Ski, Pwc Drive Parts

Product form

This replacement wear ring kit restores correct jet pump running clearance on the listed Sea-Doo models using the 1503 engine... Read more

Out of stock

£0.00 Incl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    SKU: 78-1191
    Barcode: 0120000028207

    • Free shipping on all orders above £75
    • No hassle returns within 30 days

    Description

    This replacement wear ring kit restores correct jet pump running clearance on the listed Sea-Doo models using the 1503 engine family. Supplied with a composite wear ring and neoprene pump seal, it is designed to minimise cavitation and protect the impeller after debris ingestion, ensuring reliable thrust and proper pump sealing.

    Features

    • Direct-fit replacement for the listed Sea-Doo applications using the 159 mm jet pump
    • Press-in installation with no machining required
    • Composite liner acts sacrificially to help protect the impeller from debris damage
    • Restores correct impeller-to-housing clearance to minimise cavitation and thrust loss
    • Includes neoprene pump-to-hull seal to ensure correct pump sealing

    Specifications

    • Inner diameter: 159 mm
    • Material: Composite (plastic/nylon/Delrin-type)
    • Kit contents: 1 x wear ring, 1 x neoprene seal
    • Application: Sea-Doo 1503 (4-TEC) models as listed, including 215/255/260 HP variants where specified

    Cross-Reference OEM Part Numbers

    • 267000105
    • 267000372
    • 293200122
